High Torque Control Knob with Pointer Indicator
High Torque Control Knob with Pointer Indicator

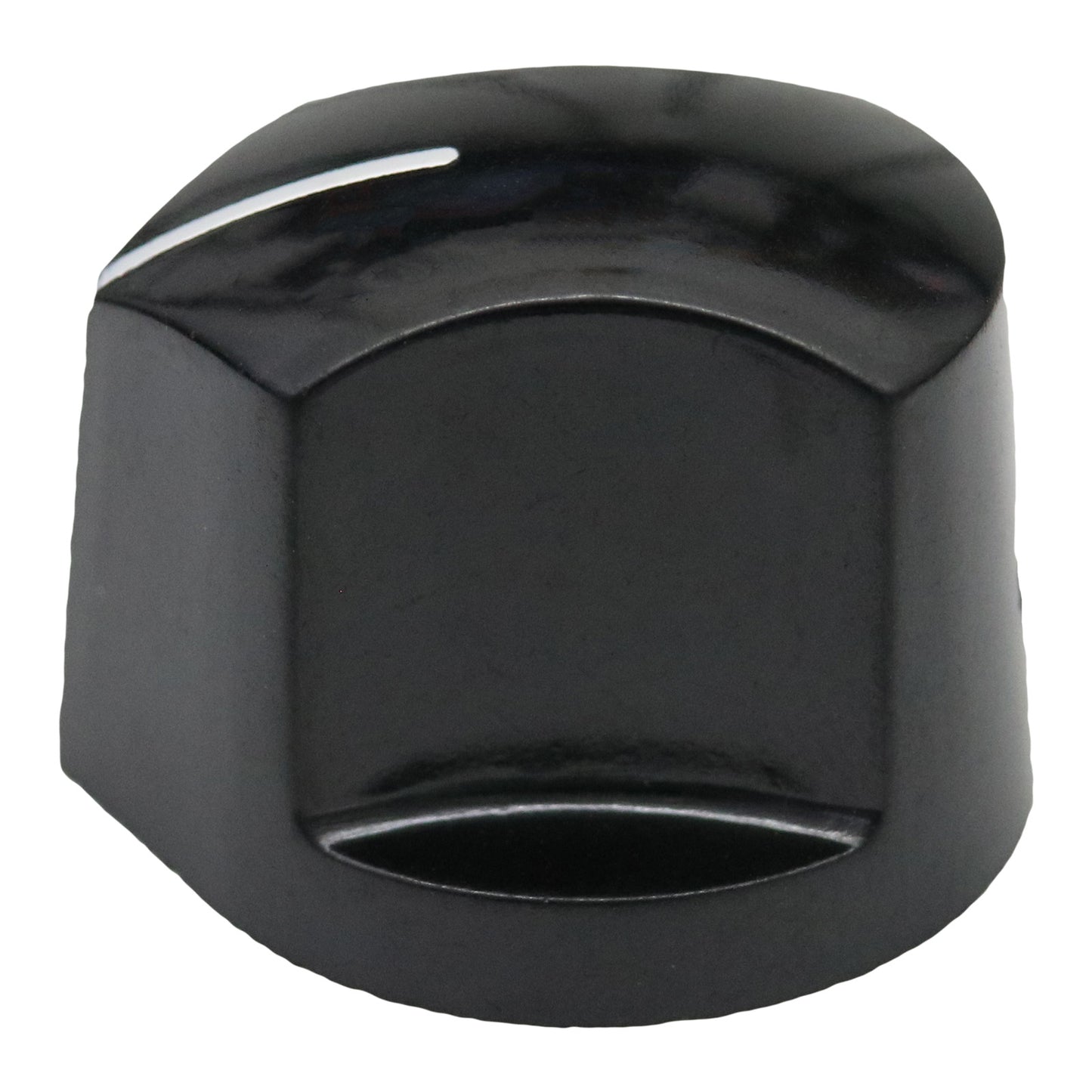

This substantial control knob features a distinctive pointed position indicator that extends beyond the main body, making precise positioning effortless even in low-light conditions. The knob's cylindrical body incorporates two deep finger grip recesses positioned on opposite sides, providing secure handling and enhanced control during operation.
The contrasting white pointer against the black body creates excellent visual clarity for accurate control positioning. With its robust construction and secure grub screw fixing mechanism, this knob excels in professional audio equipment, laboratory instruments, and industrial control panels where precision and reliability are paramount.
| Quantity | Unit Price |
|---|---|
| 1+ | £1.01 |
| 2+ | £0.909 |
| 5+ | £0.8585 |
| 10+ | £0.808 |
| 20+ | £0.7575 |
| 50+ | £0.707 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | Round |
| Shaft Fixing | Grub Screw |
| Hole Size | 6.4mm |
Appearance
| Identity Colour | Black |
|---|---|
| Body Colour | Black |
| Accent Colour | |
| Position Indicator Colour | White |
| Position Indicator Shape | Pointer, Line |
Measurements
| Minimum Shaft Depth | 8.9mm |
|---|---|
| Maximum Shaft Depth | 13.9mm |
| Body Diameter | 21.8mm |
| Maximum Diameter | 21.8mm |
| Width | mm |
| Length | mm |
| Height | 17.1mm |
| Additional Measurements | Maximum Length With Pointer: 23.9mm |
| Unit Weight | 7.2g |
Hole Type
Round Hole
A knob designed for a round shaft has a smooth, cylindrical hole that matches the shaft's shape. This type of hole allows the knob to slide easily onto the shaft, relying on a grub screw / set screw or friction to keep it in place. This design is widely used in audio equipment, consumer electronics, and control panels due to its simplicity and versatility
A knob with a round hole can typically also be used on a D type shaft in the 180° position (where the position indicator is opposite to the flat of the D) and can often also be mouned to splined shafts in low torque applications.
A View from the underside of the knob when fitting a round hole knob to a D shaft, showing the grub screw position relative to the position indicator:
