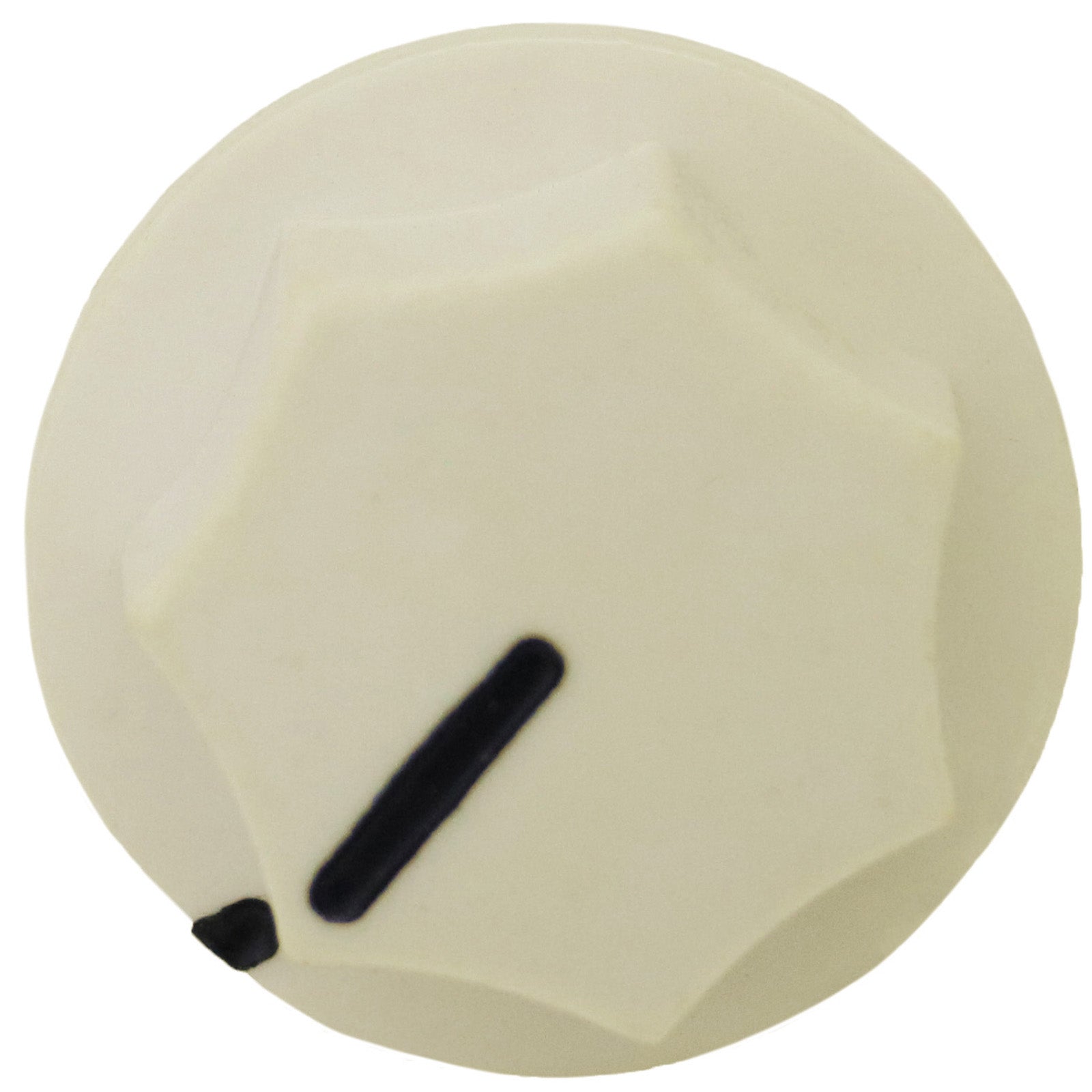

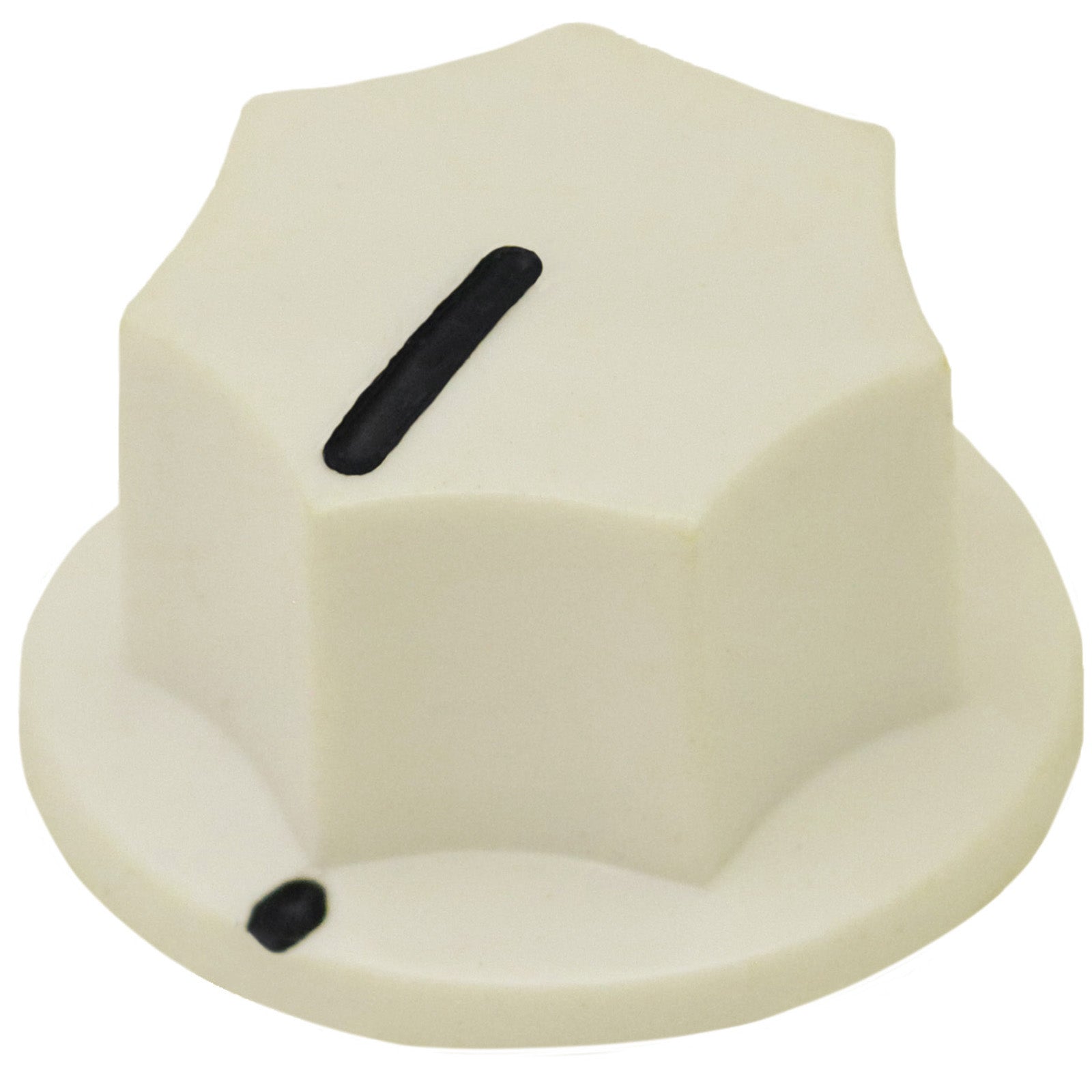

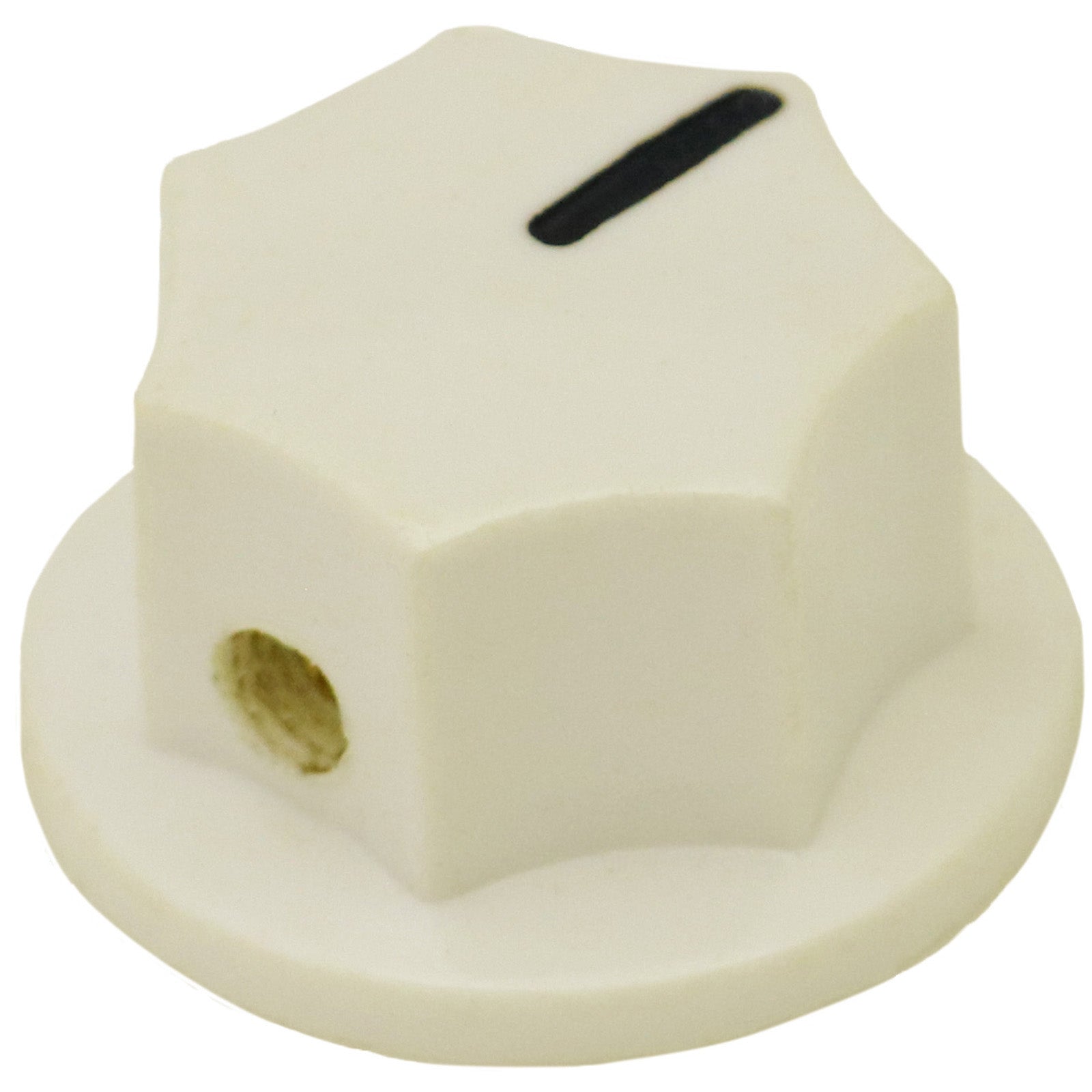

Large Skirted 7-Sided Guitar / Pedal Control Knob
Large Skirted 7-Sided Guitar / Pedal Control Knob
Quantity | Unit Price |
---|---|
1+ | £1.01 |
2+ | £0.909 |
5+ | £0.8585 |
10+ | £0.808 |
20+ | £0.7575 |
50+ | £0.707 |
Fitting
Knob Type | Rotary |
---|---|
Shaft Type | Round |
Shaft Fixing | Grub Screw |
Hole Size | 6.4mm |
Appearance
Identity Colour | White |
---|---|
Body Colour | White |
Accent Colour | |
Position Indicator Colour | Black |
Position Indicator Shape | Line, Dot |
Measurements
Minimum Shaft Depth | 6.2mm |
---|---|
Maximum Shaft Depth | 8.2mm |
Body Diameter | 15.0mm |
Maximum Diameter | 15.0mm |
Width | mm |
Length | mm |
Height | 10.5mm |
Additional Measurements | |
Unit Weight | 3.66g |
Hole Type
Round Hole
A knob designed for a round shaft has a smooth, cylindrical hole that matches the shaft's shape. This type of hole allows the knob to slide easily onto the shaft, relying on a grub screw / set screw or friction to keep it in place. This design is widely used in audio equipment, consumer electronics, and control panels due to its simplicity and versatility
A knob with a round hole can typically also be used on a D type shaft in the 180° position (where the position indicator is opposite to the flat of the D) and can often also be mouned to splined shafts in low torque applications.

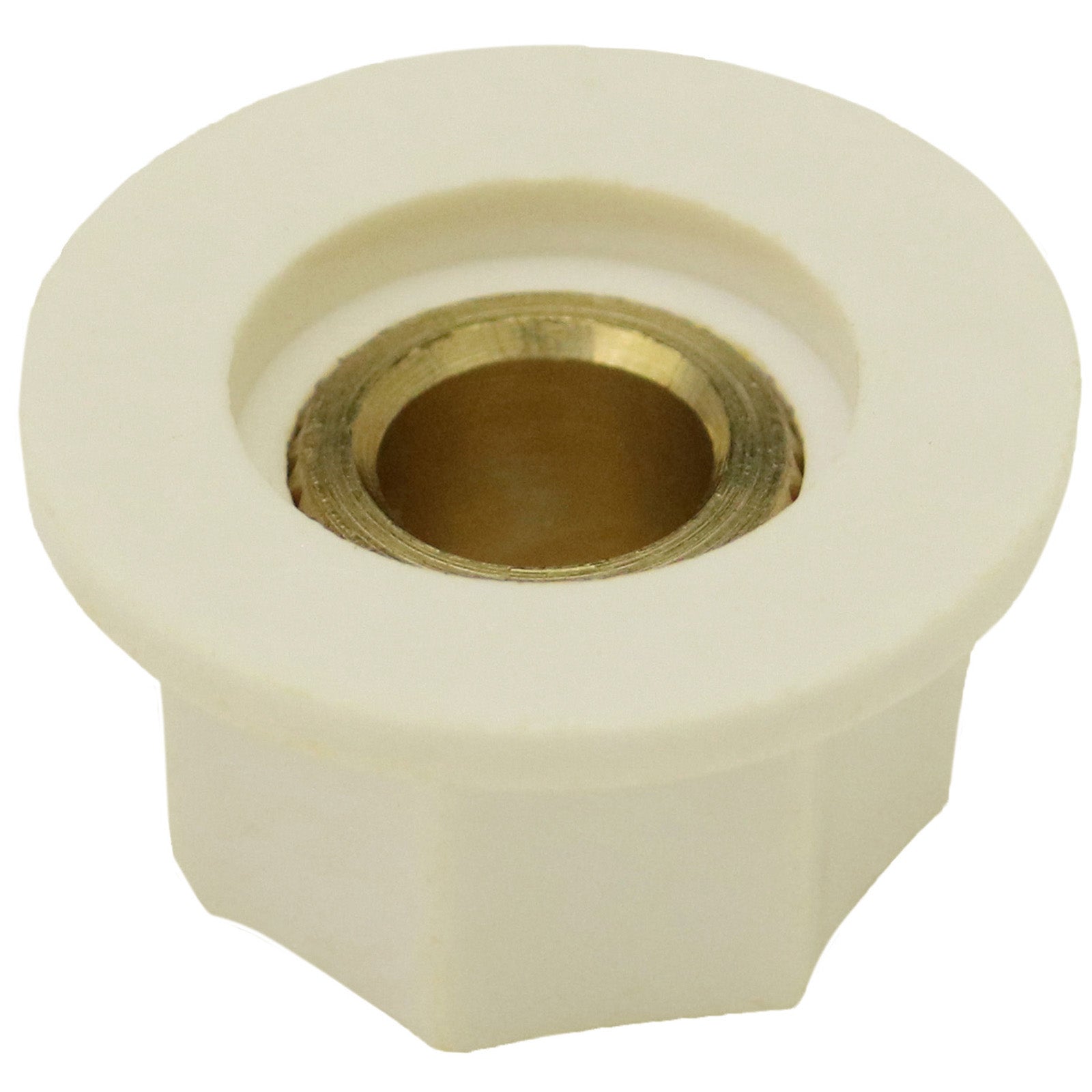

A View from the underside of the knob when fitting a round hole knob to a D shaft, showing the grub screw position relative to the position indicator:
