Large Black Plastic Fluted Control Knob
Large Black Plastic Fluted Control Knob

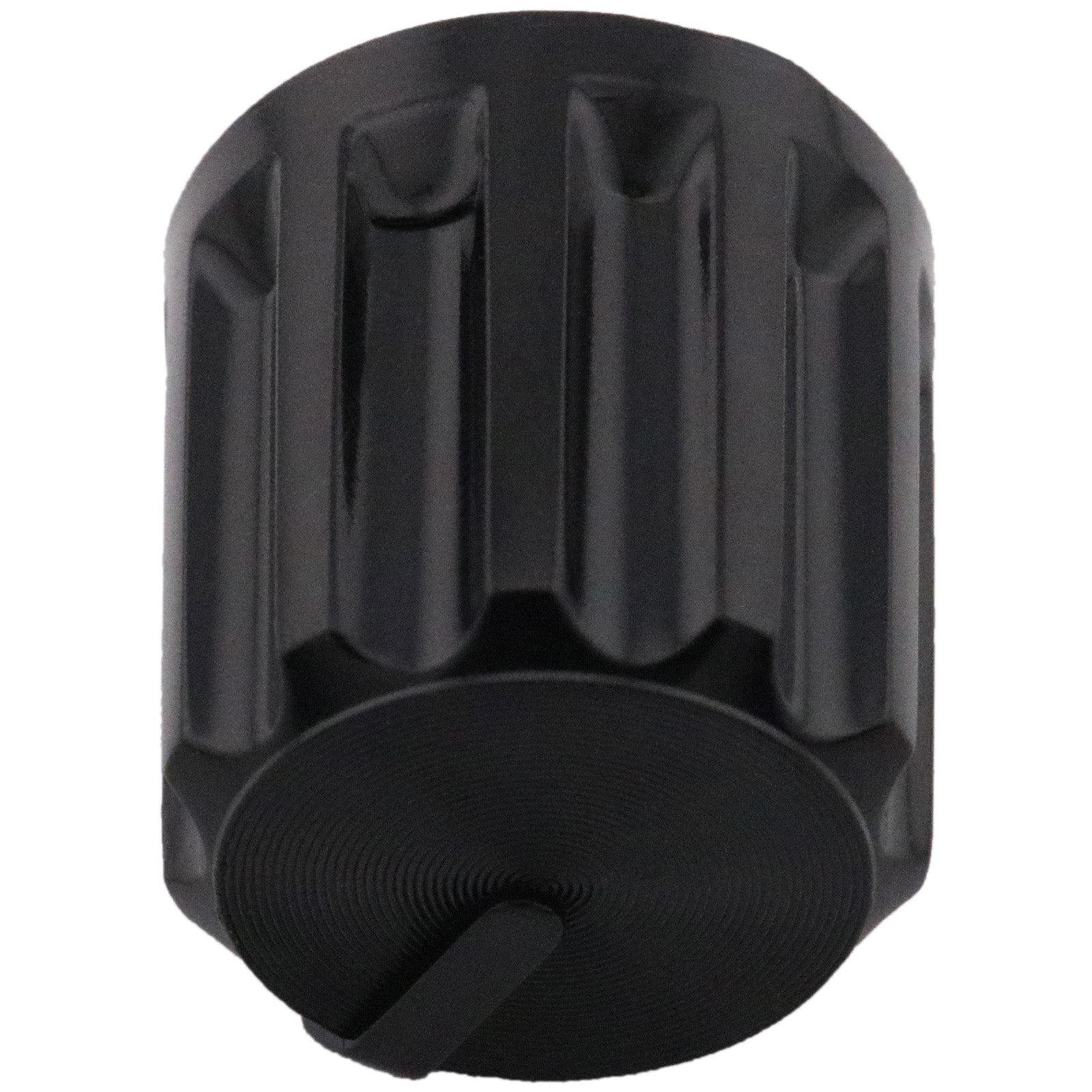

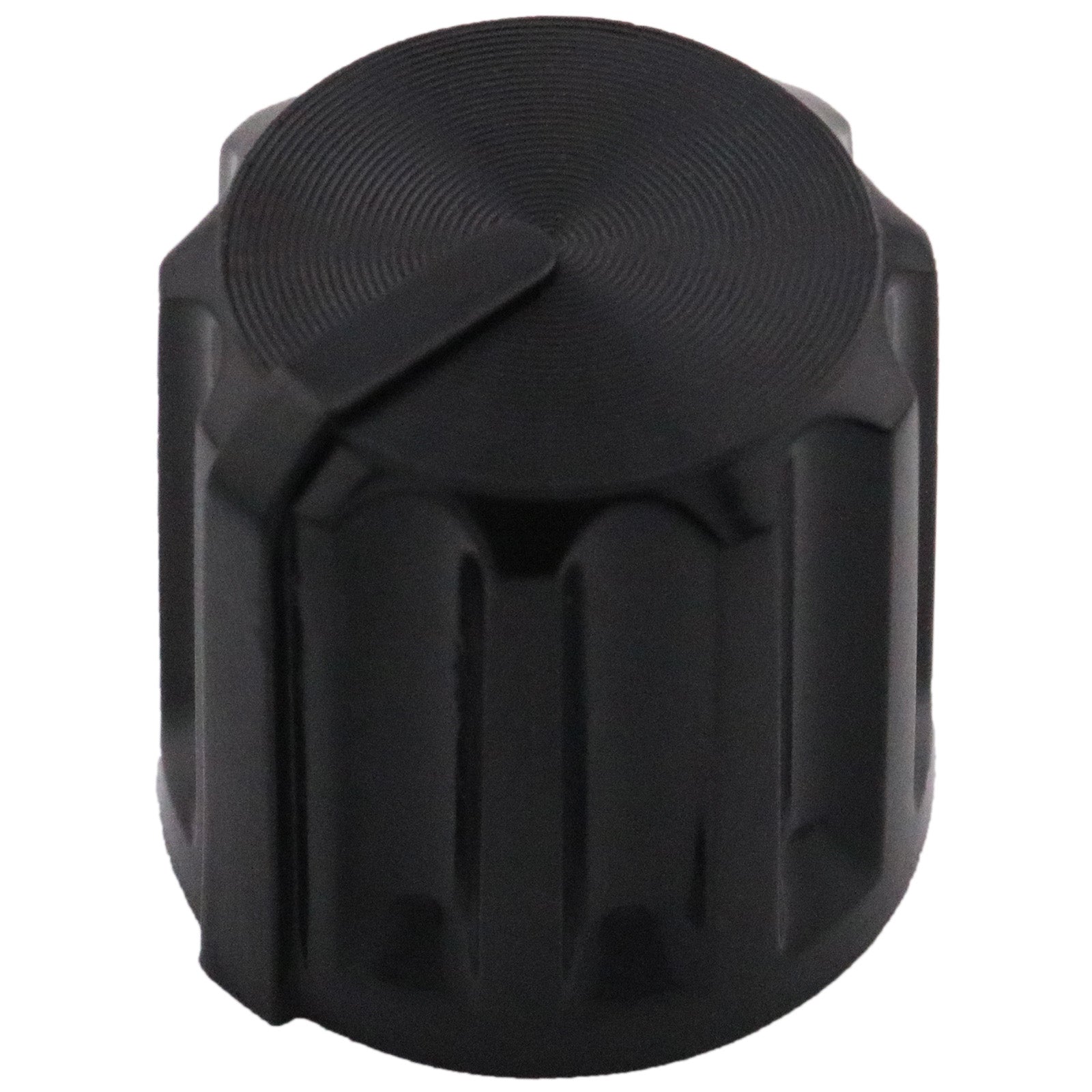

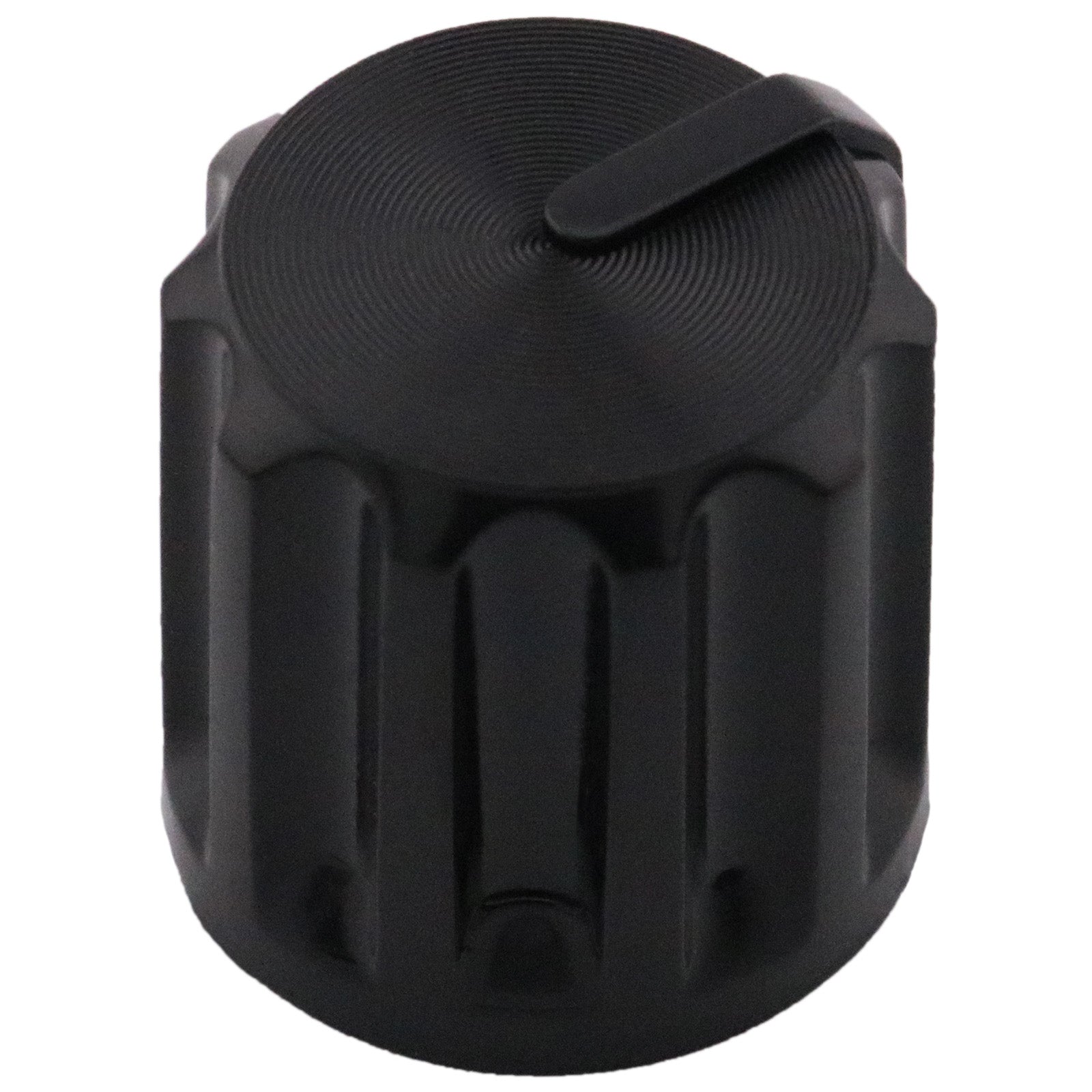

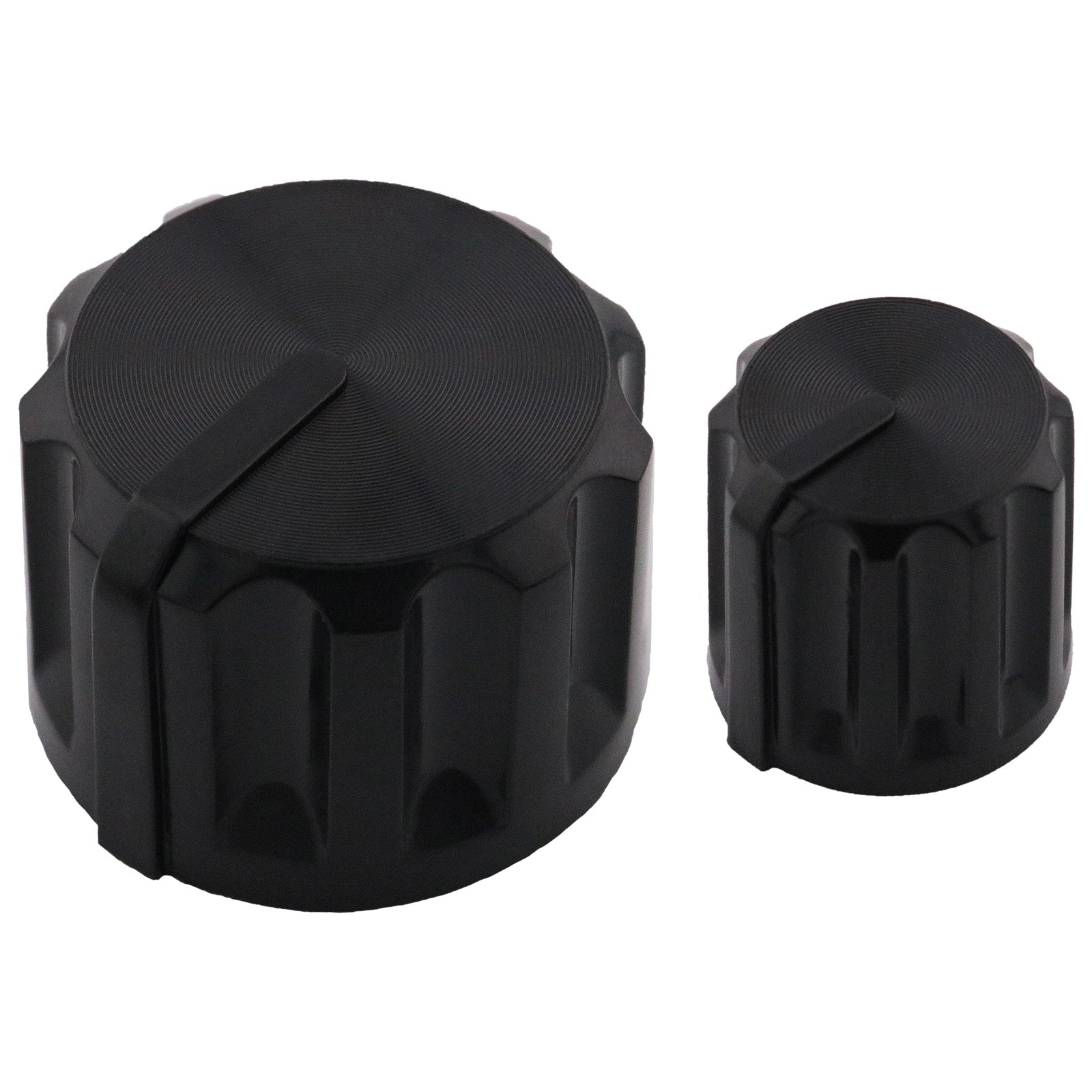

A large black rotary control knob with a raised black position indicator. This knob has an all-black design and features large flutes on the side for a reliable grip.
| Quantity | Unit Price |
|---|---|
| 1+ | £0.69 |
| 5+ | £0.552 |
| 10+ | £0.483 |
| 20+ | £0.414 |
| 50+ | £0.345 |
| 100+ | £0.276 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | Splined |
| Shaft Fixing | Push-Fit |
| Hole Size | 6mm |
Appearance
| Identity Colour | Black |
|---|---|
| Body Colour | Black |
| Accent Colour | |
| Position Indicator Colour | Black |
| Position Indicator Shape | Ridged Line |
Measurements
| Minimum Shaft Depth | 9.8mm |
|---|---|
| Maximum Shaft Depth | 16.9mm |
| Body Diameter | 26.0mm |
| Maximum Diameter | 26.0mm |
| Width | mm |
| Length | mm |
| Height | 18.8mm |
| Additional Measurements | Position Indicator Width: 2.7mm-3.3mm |
| Unit Weight | 3.15g |
Hole Type
Splined Hole

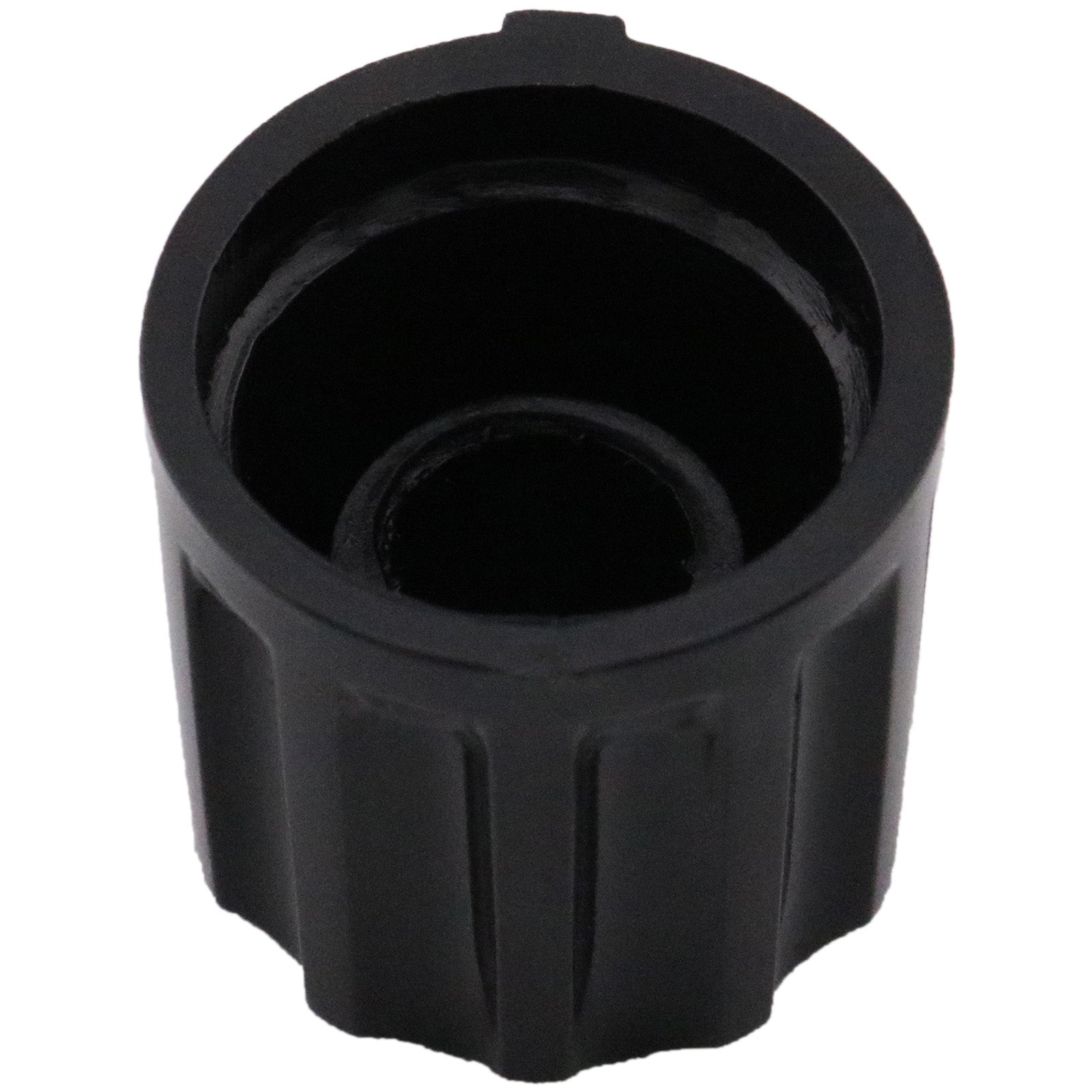

Knobs designed for splined shafts have holes with multiple grooves or ridges that correspond to the splines on the shaft. This splined hole creates a very tight and secure fit, preventing any movement between the knob and the shaft.
The position indicator can be placed in any of 18 different directions, in increments of 20°
The ridged interior of the hole ensures a strong connection, capable of handling high torque and frequent adjustments without the risk of slippage.
A control knob with a splined hole will not fit onto a round or D typ shaft.
Measuring Rotary Knobs
Read more about measuring rotary knobs here.
