Plain Black Rotary Encoder Control Knob

Name: Plain Black Rotary Encoder Control Knob
Brand: Knob Zone
SKU: KZ0022-01-PK1
Price: 0.54 GBP
Availability: InStock

Series Code: KZ0022

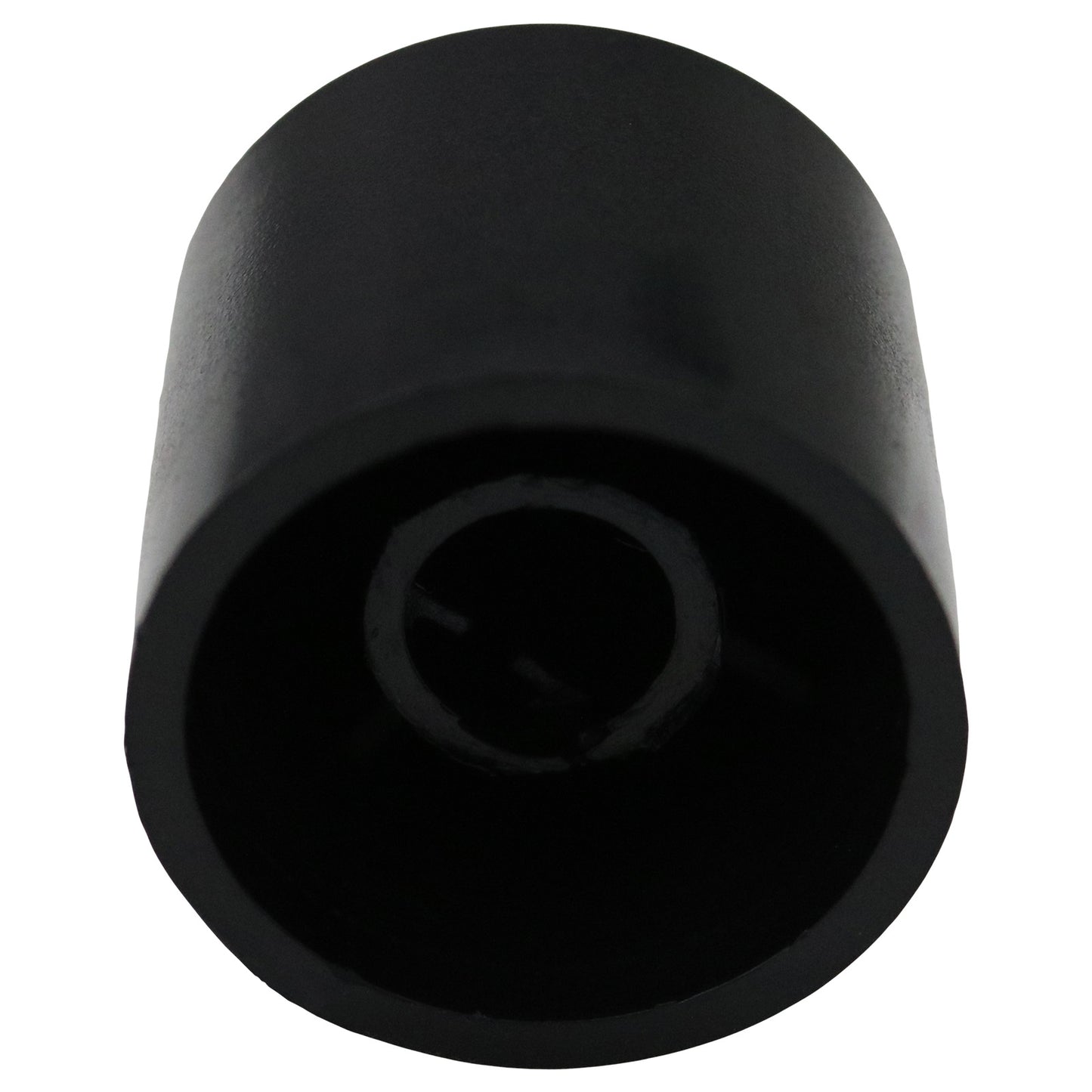

A plain black rotary control knob. This knob has a matte finish, with straight sides and a slightly concave top surface. There is no position indicator on the knob, so it is well suited to continuous rotation applications such as rotary encoders, tuners and multi-turn potentiometers.

Product variants

Availability: 379 in stock

Price

Quantity	Unit Price
1+	£0.54
5+	£0.432
10+	£0.378
20+	£0.324
50+	£0.27
100+	£0.216

Quantity

View full details

Part Code: KZ0022-01

Fitting

Knob Type	Rotary
Shaft Type	D
Shaft Fixing	Push-Fit
Hole Size	6mm

Appearance

Identity Colour	Black
Body Colour	Black
Accent Colour
Position Indicator Colour
Position Indicator Shape	None

Measurements

Minimum Shaft Depth	8.3mm
Maximum Shaft Depth	15.8mm
Body Diameter	18.6mm
Maximum Diameter	18.6mm
Width	mm
Length	mm
Height	16.7mm
Additional Measurements
Unit Weight	2.11g

Hole Type

D Shaft Hole

A D-shaft knob features a hole with a D-shaped cross-section, having one flat side and the rest round. This configuration ensures that the knob fits snugly onto the shaft, preventing any slippage and provides absolute psoitoning of the position indicator.

The flat side of the hole aligns with the flattened side of the D-shaft, providing precise control and secure attachment. This type of hole is commonly found in knobs used in audio equipment, industrial controls, and automotive applications.

This type of hole dictates the angle of the position indicator, relative to the flat of the D shape. This is measured in degrees of rotation being either 0°, 90°, 180° or 270°.

Measuring Rotary Knobs

Body Diameter

The body diameter is measured at the base of the gripping surface and excludes any non-grippable flange or skirt and also excludes any protruding pinters or tails.

This knob has a body diameter of 18.6mm.

Maximum Diameter

The maximum diameter is measured at the widest part of the knob and excludes any non-grippable flange or skirt and also excludes any protruding pinters or tails. The widest round part of the knob.

This knob has a maximum diameter of 18.6mm.

Minimum Shaft Depth

The minimum shaft depth is the minimum amount that the shaft must be inserted into the body of the knob, in order to make suitable contact with the shaft fixing.

This knob has a minimum shaft depth of 8.3mm.

Maximum Shaft Depth

The maximum shaft depth is the maximum amount that the shaft can be inserted into the body of the knob. This is measured from the lowest part of the base of the knob to the bottom of the hole.

This knob has a minimum shaft depth of 15.8mm.

Height

The height of the knob is measured from the lowest part to the highest including any pointers, inserts, skirts or domed end caps.

This knob has a height of 16.7mm.

Clearance

The clearance is the space between the bottom of the knob and the equipment it is mounted to. While this is not a direct specification of the knob it is important to consider this dimension when selecting a control knob.

An appropiate level of clearence between the base of the knob and the surface of the equipment is nessessary to ensure smooth control and to prevent damage. If your equipment has a recessed area around the control knob shaft you will need to consider this in conjunction with the maximum shaft depth and maximum diameter.
