Slim Flared Rotary Encoder Control Knob Without Position Indicator
Slim Flared Rotary Encoder Control Knob Without Position Indicator

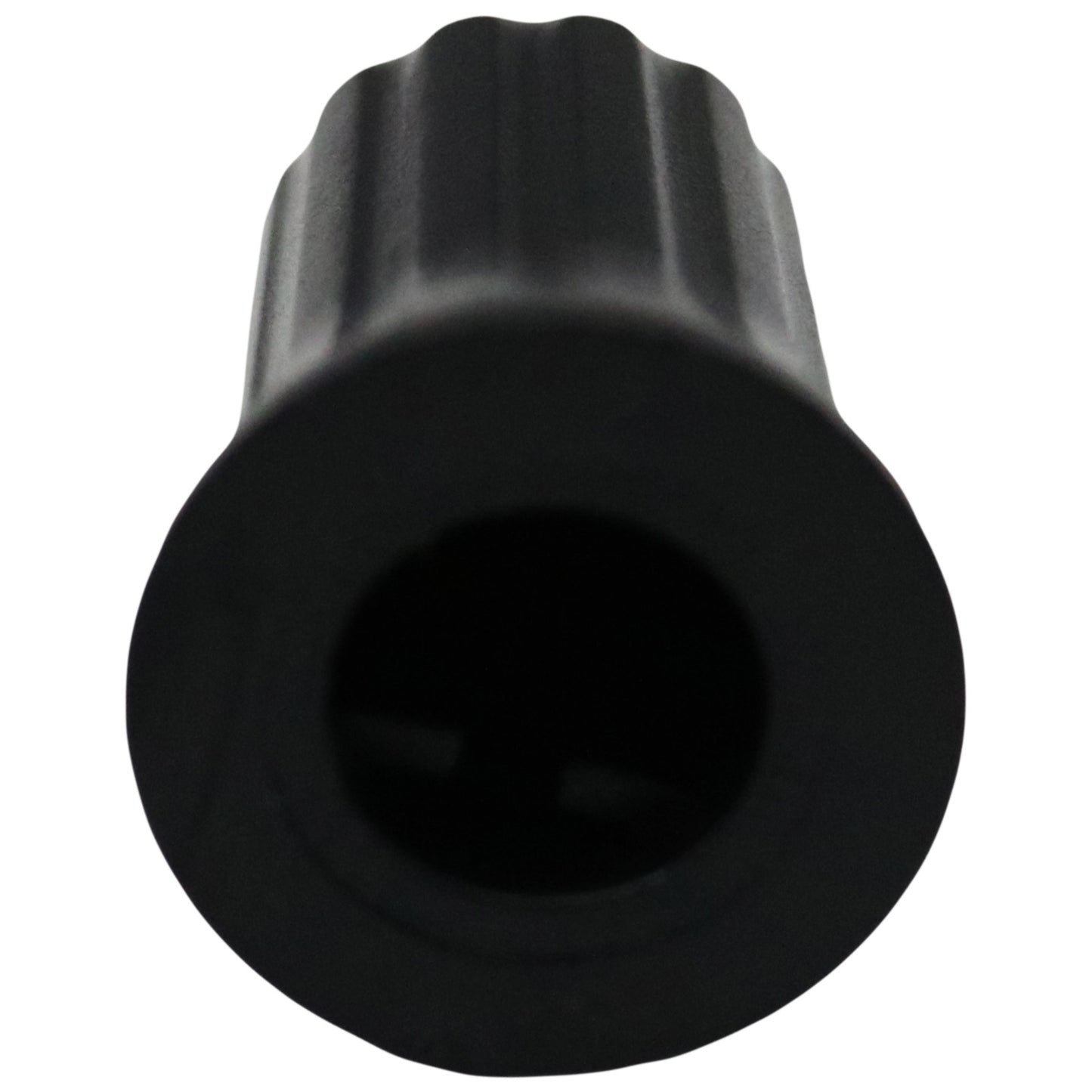

This distinctive control knob features a flared base design that widens towards the bottom, creating an elegant tapered profile. The upper portion displays fine ridging around its circumference, providing enhanced grip and tactile feedback during operation. The knob's cap presents a clean, unadorned surface with no position indicator markings, making it ideal for continuous rotation applications.
The flared base not only adds visual appeal but also offers improved finger purchase when making adjustments. This knob excels in applications requiring smooth, continuous rotation such as rotary encoders, frequency tuners, and multi-turn potentiometers where precise control without positional reference is desired. The ridged grip section ensures confident operation even in challenging conditions.
| Quantity | Unit Price |
|---|---|
| 1+ | £0.43 |
| 10+ | £0.344 |
| 20+ | £0.301 |
| 50+ | £0.258 |
| 100+ | £0.215 |
| 500+ | £0.172 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | D |
| Shaft Fixing | Push-Fit |
| Hole Size | 6mm |
Appearance
| Identity Colour | Black |
|---|---|
| Body Colour | Black |
| Accent Colour | |
| Position Indicator Colour | |
| Position Indicator Shape | None |
Measurements
| Minimum Shaft Depth | 4.6mm |
|---|---|
| Maximum Shaft Depth | 14.2mm |
| Body Diameter | 11.8mm |
| Maximum Diameter | 11.8mm |
| Width | mm |
| Length | mm |
| Height | 15.9mm |
| Additional Measurements | |
| Unit Weight | 0.68g |
Hole Type
D Shaft Hole
A D-shaft knob features a hole with a D-shaped cross-section, having one flat side and the rest round. This configuration ensures that the knob fits snugly onto the shaft, preventing any slippage and provides absolute psoitoning of the position indicator.
The flat side of the hole aligns with the flattened side of the D-shaft, providing precise control and secure attachment. This type of hole is commonly found in knobs used in audio equipment, industrial controls, and automotive applications.
This type of hole dictates the angle of the position indicator, relative to the flat of the D shape. This is measured in degrees of rotation being either 0°, 90°, 180° or 270°.
