Orange & Black Industrial Style Equipment Control Knob

Name: Orange & Black Industrial Style Equipment Control Knob
Brand: Knob Zone
SKU: KZ0031-01-PK1
Price: 0.54 GBP
Availability: InStock

Series Code: KZ0031

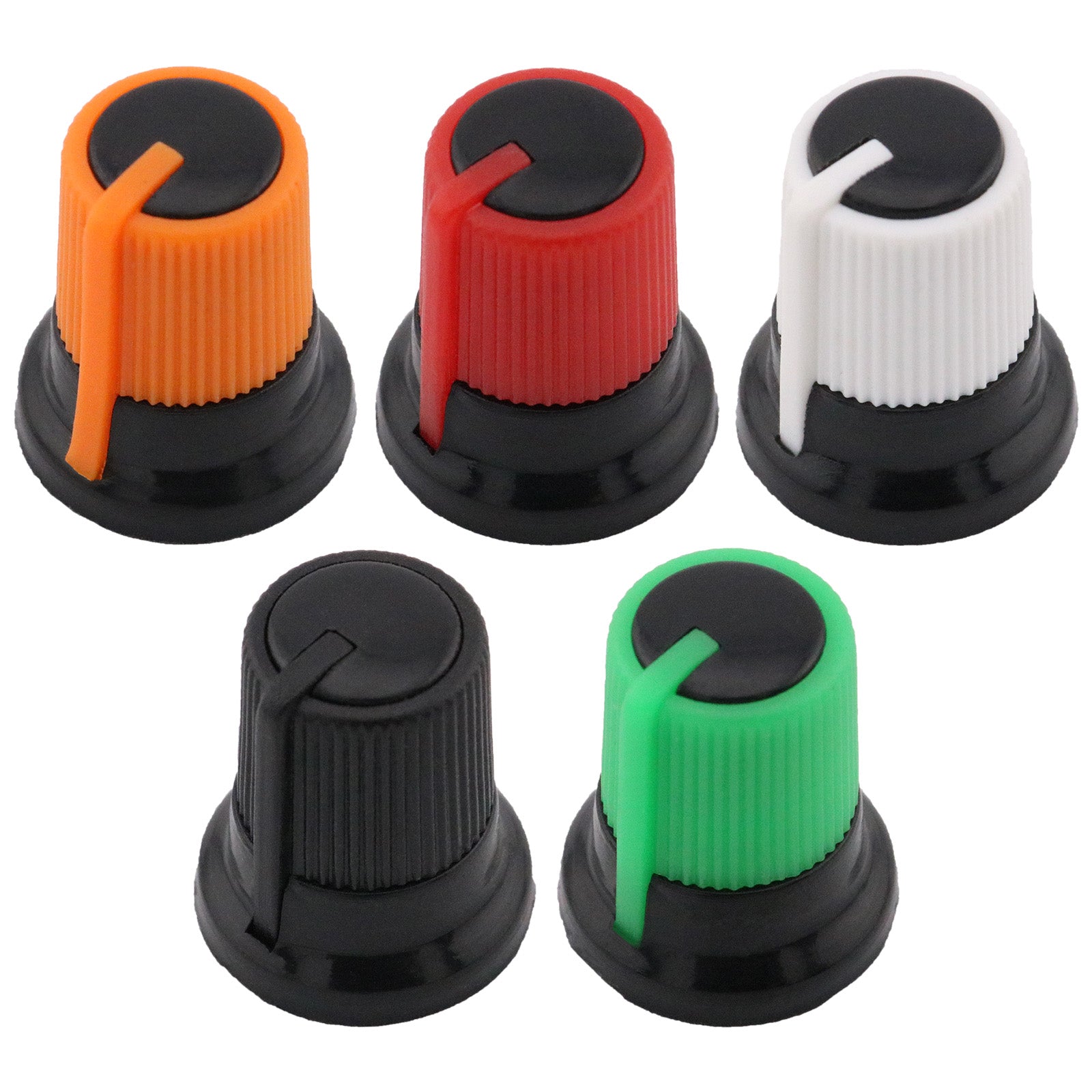

An orange and black coloured body rotary control knob. This knob has a striking industrial look and features a slightly raised orange position indicator that extends from within the black end cap, through the orange mid-section down through to the black base, ending at the small black skirt. Small ridges on the orange section of the body provide a good grip surface to aid the user.

Product variants

Availability: 850 in stock

Price

Quantity	Unit Price
1+	£0.54
5+	£0.432
10+	£0.378
20+	£0.324
50+	£0.27
100+	£0.216

Quantity

View full details

Part Code: KZ0031-01

Fitting

Knob Type	Rotary
Shaft Type	Splined
Shaft Fixing	Push-Fit
Hole Size	6mm

Appearance

Identity Colour	Orange
Body Colour	Black
Accent Colour	Orange
Position Indicator Colour	Orange
Position Indicator Shape	Ridged Line

Measurements

Minimum Shaft Depth	10.0mm
Maximum Shaft Depth	15.5mm
Body Diameter	11.9mm
Maximum Diameter	14.6mm
Width	mm
Length	mm
Height	17.2mm
Additional Measurements
Unit Weight	0.97g

Orange & Black Industrial Style Equipment Control Knob

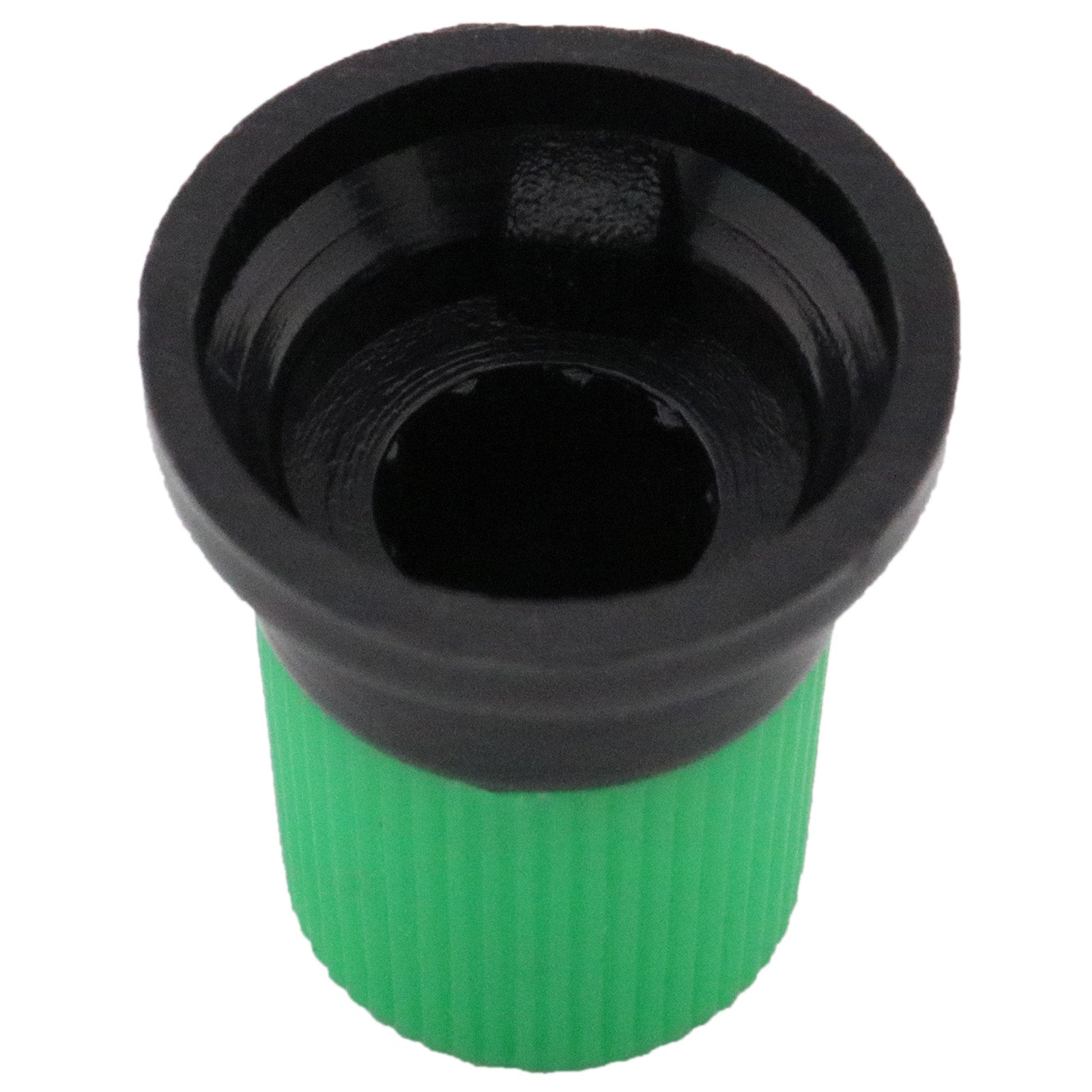

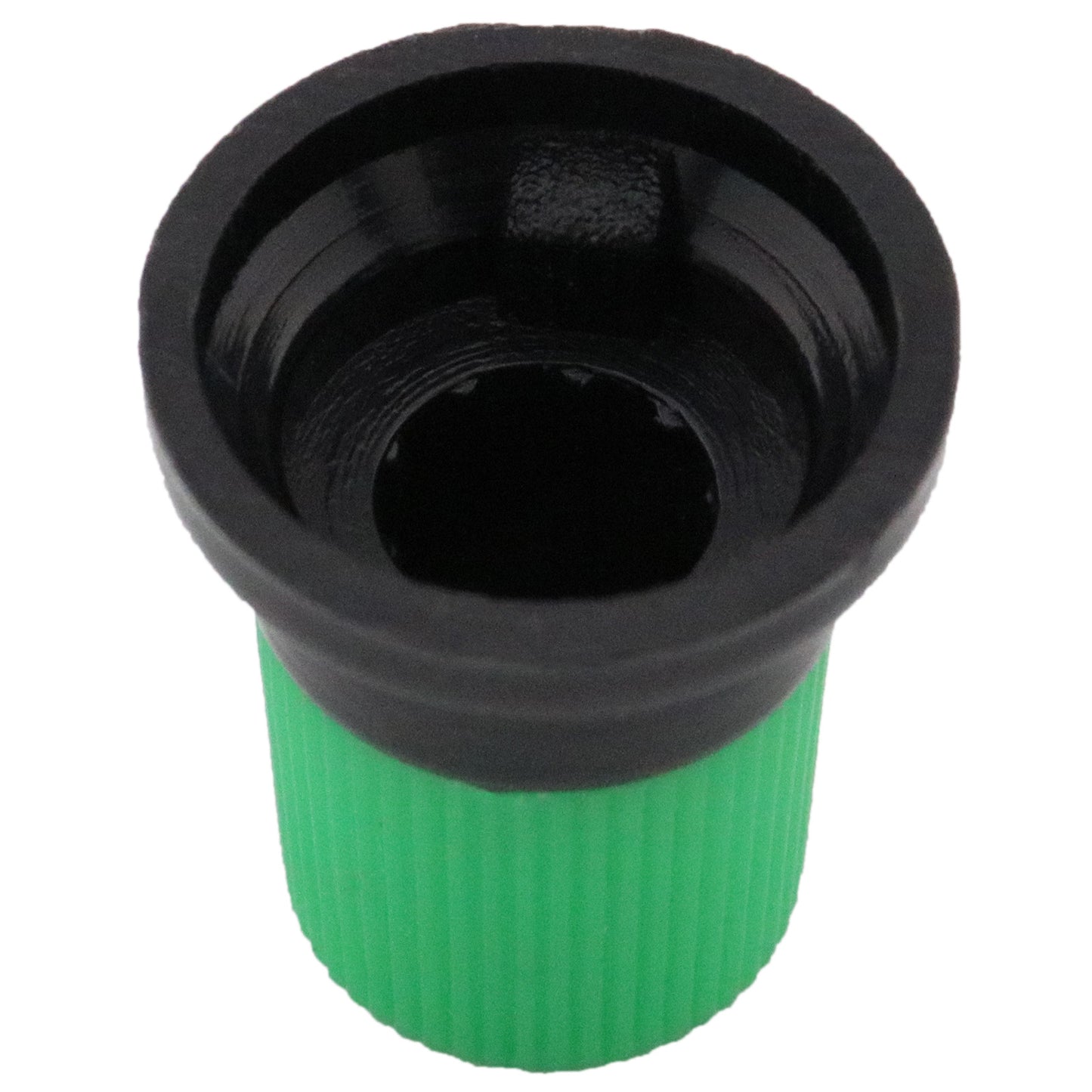

Hole Type

Splined Hole

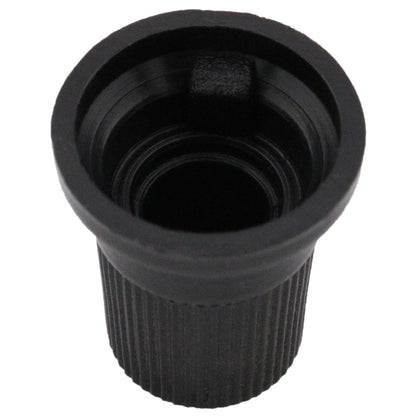

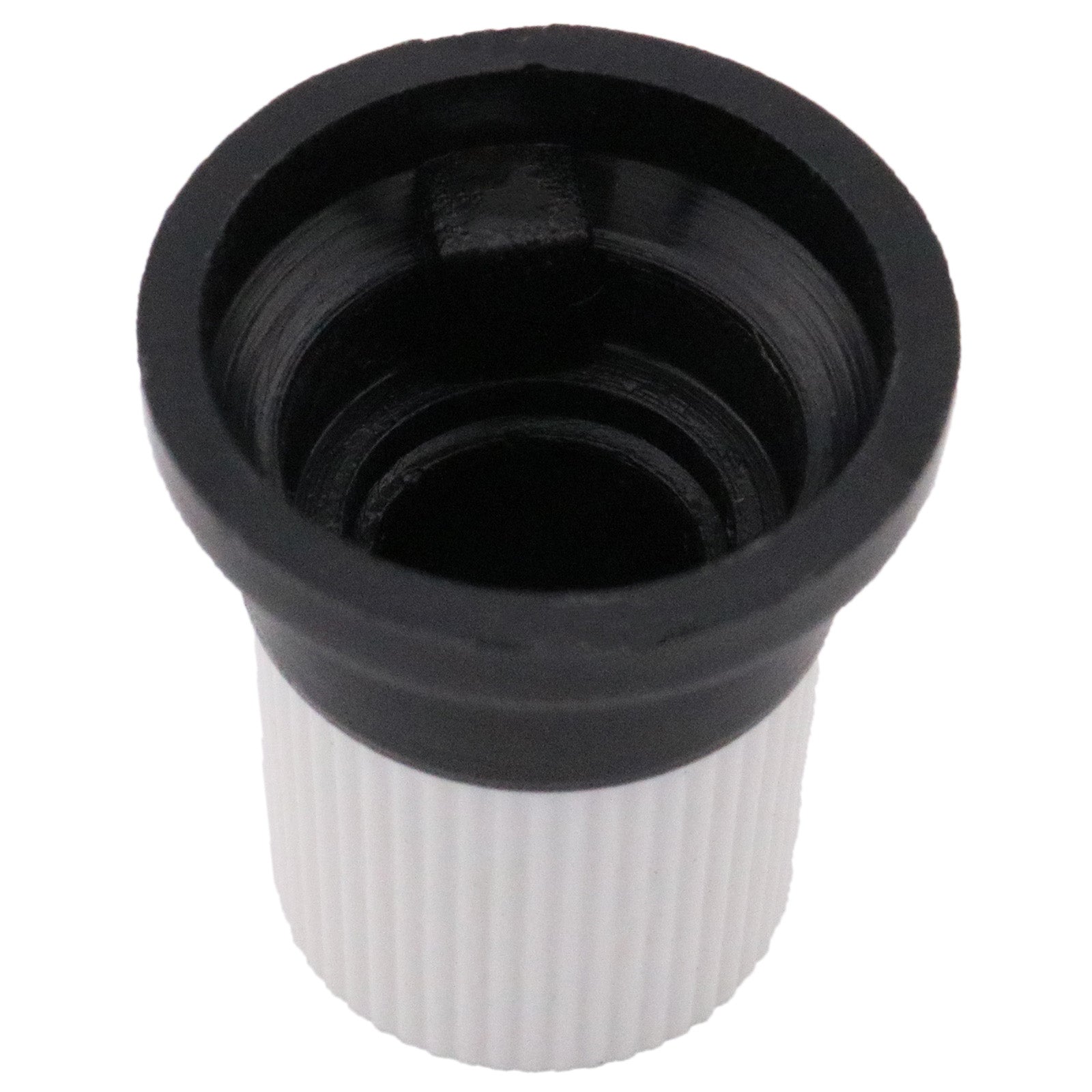

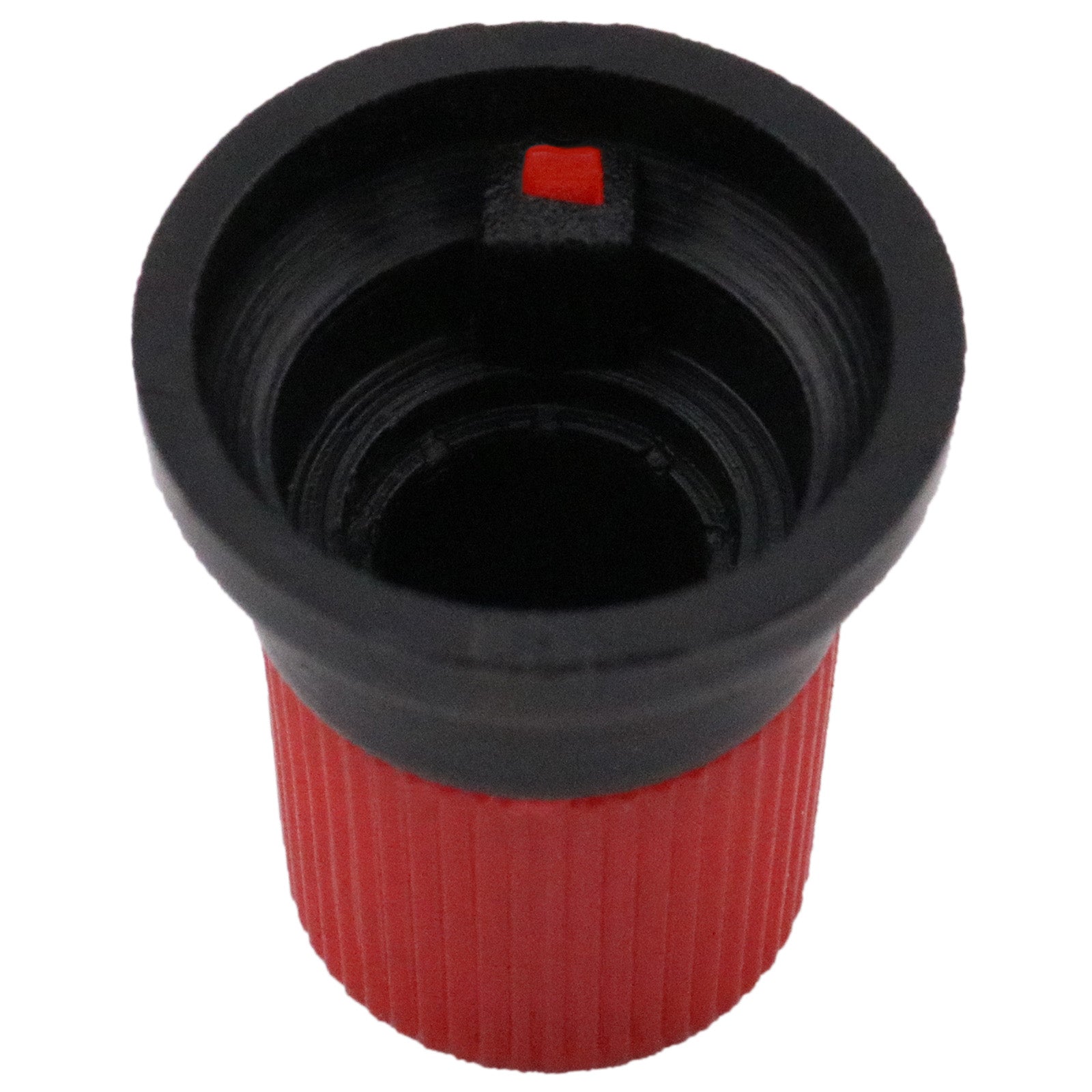

Knobs designed for splined shafts have holes with multiple grooves or ridges that correspond to the splines on the shaft. This splined hole creates a very tight and secure fit, preventing any movement between the knob and the shaft.

The position indicator can be placed in any of 18 different directions, in increments of 20°

The ridged interior of the hole ensures a strong connection, capable of handling high torque and frequent adjustments without the risk of slippage.

A control knob with a splined hole will not fit onto a round or D typ shaft.

Measuring Rotary Knobs

Body Diameter

The body diameter is measured at the base of the gripping surface and excludes any non-grippable flange or skirt and also excludes any protruding pinters or tails.

This knob has a body diameter of 11.9mm.

Maximum Diameter

The maximum diameter is measured at the widest part of the knob and excludes any non-grippable flange or skirt and also excludes any protruding pinters or tails. The widest round part of the knob.

This knob has a maximum diameter of 14.6mm.

Minimum Shaft Depth

The minimum shaft depth is the minimum amount that the shaft must be inserted into the body of the knob, in order to make suitable contact with the shaft fixing.

This knob has a minimum shaft depth of 10.0mm.

Maximum Shaft Depth

The maximum shaft depth is the maximum amount that the shaft can be inserted into the body of the knob. This is measured from the lowest part of the base of the knob to the bottom of the hole.

This knob has a minimum shaft depth of 15.5mm.

Height

The height of the knob is measured from the lowest part to the highest including any pointers, inserts, skirts or domed end caps.

This knob has a height of 17.2mm.

Clearance

The clearance is the space between the bottom of the knob and the equipment it is mounted to. While this is not a direct specification of the knob it is important to consider this dimension when selecting a control knob.

An appropiate level of clearence between the base of the knob and the surface of the equipment is nessessary to ensure smooth control and to prevent damage. If your equipment has a recessed area around the control knob shaft you will need to consider this in conjunction with the maximum shaft depth and maximum diameter.
