AG2 Plastic Black Body Colour Indicator Standard Control Knob
AG2 Plastic Black Body Colour Indicator Standard Control Knob

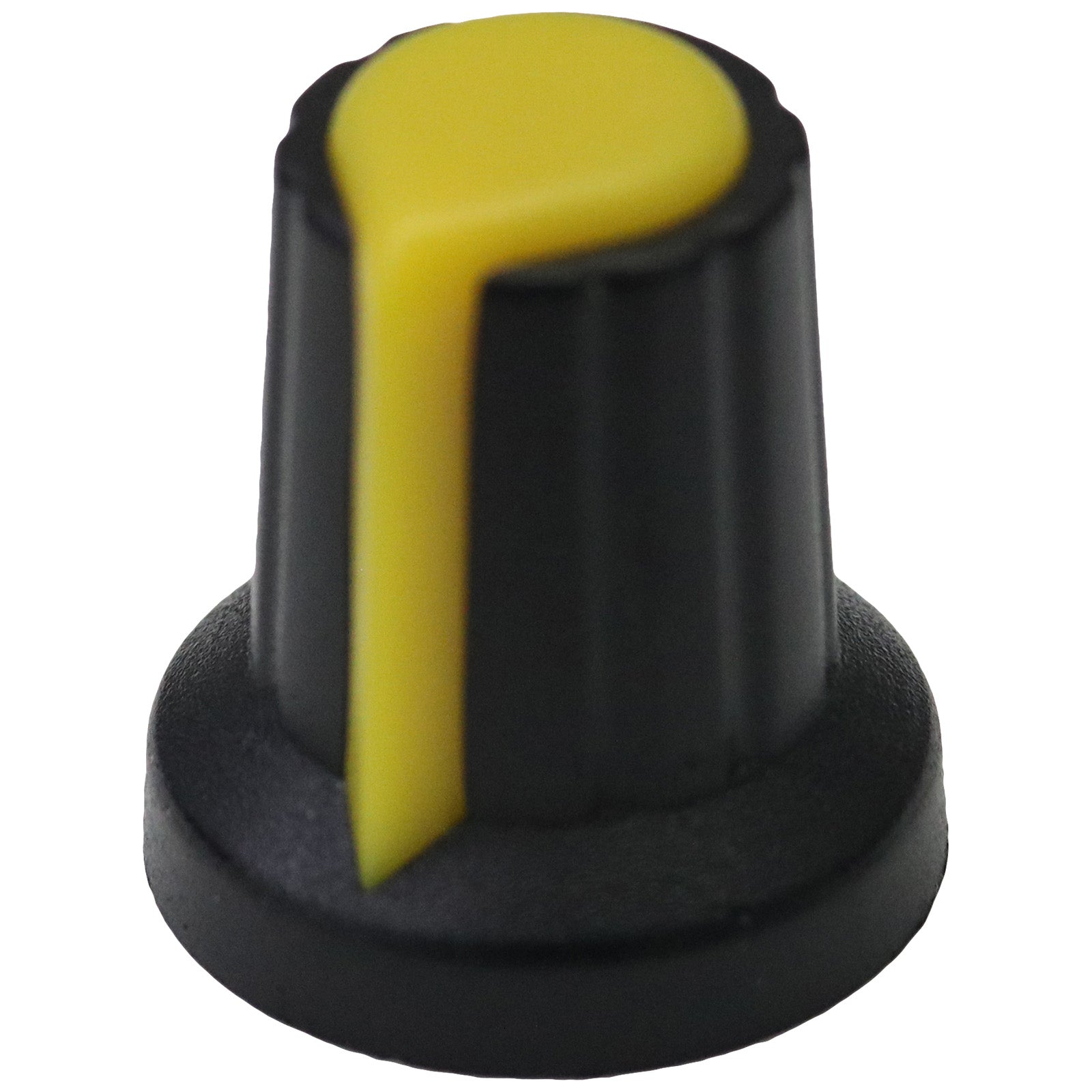

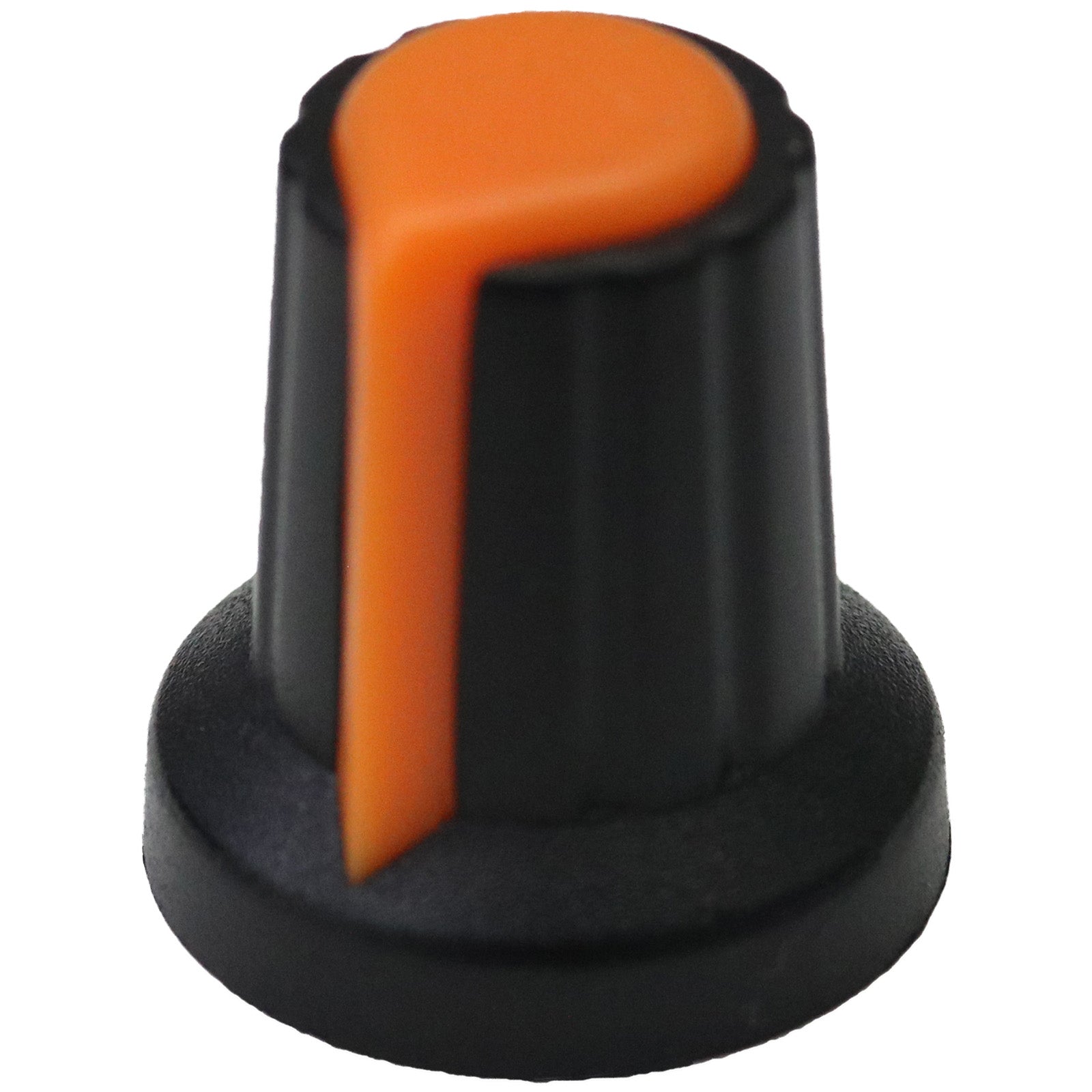

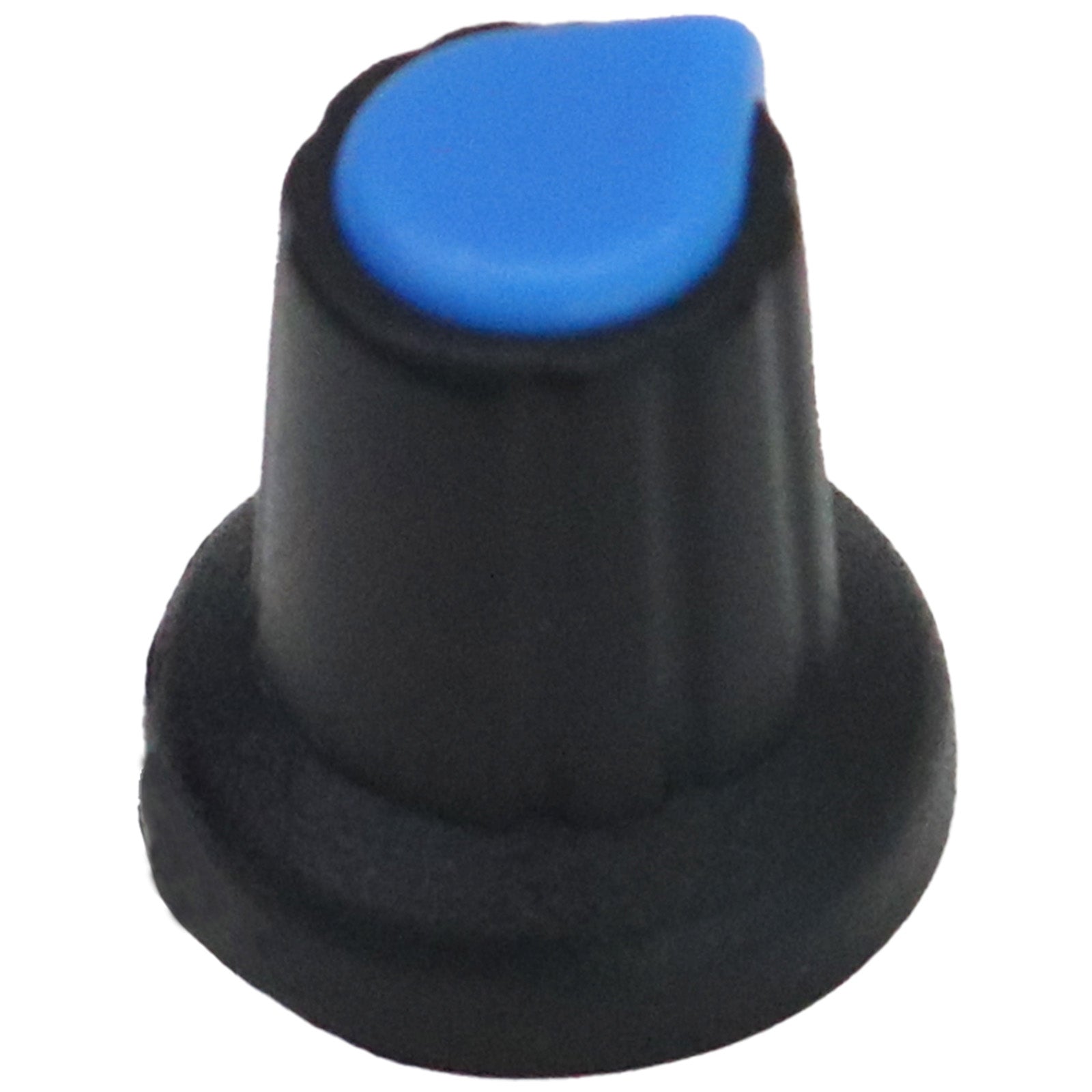

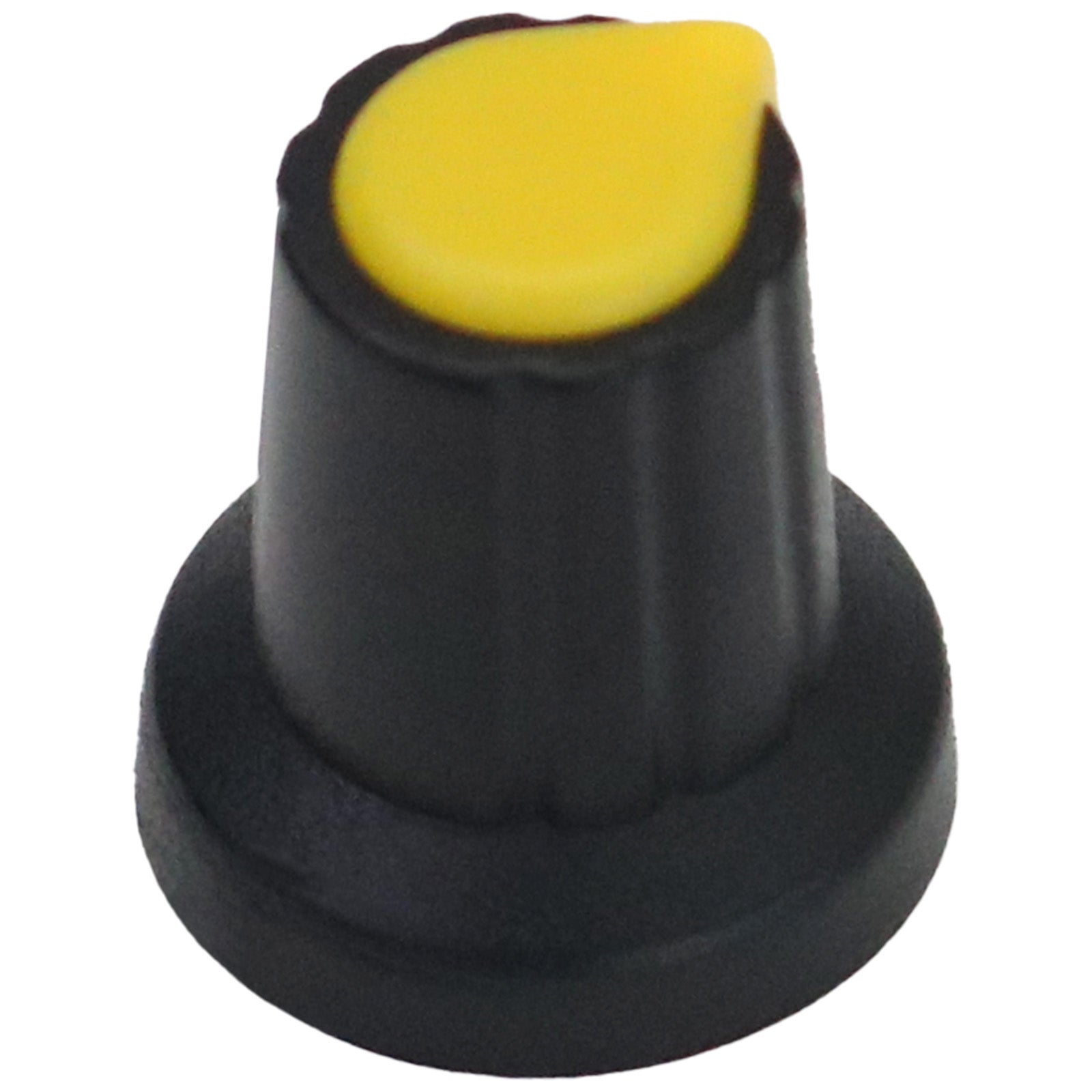

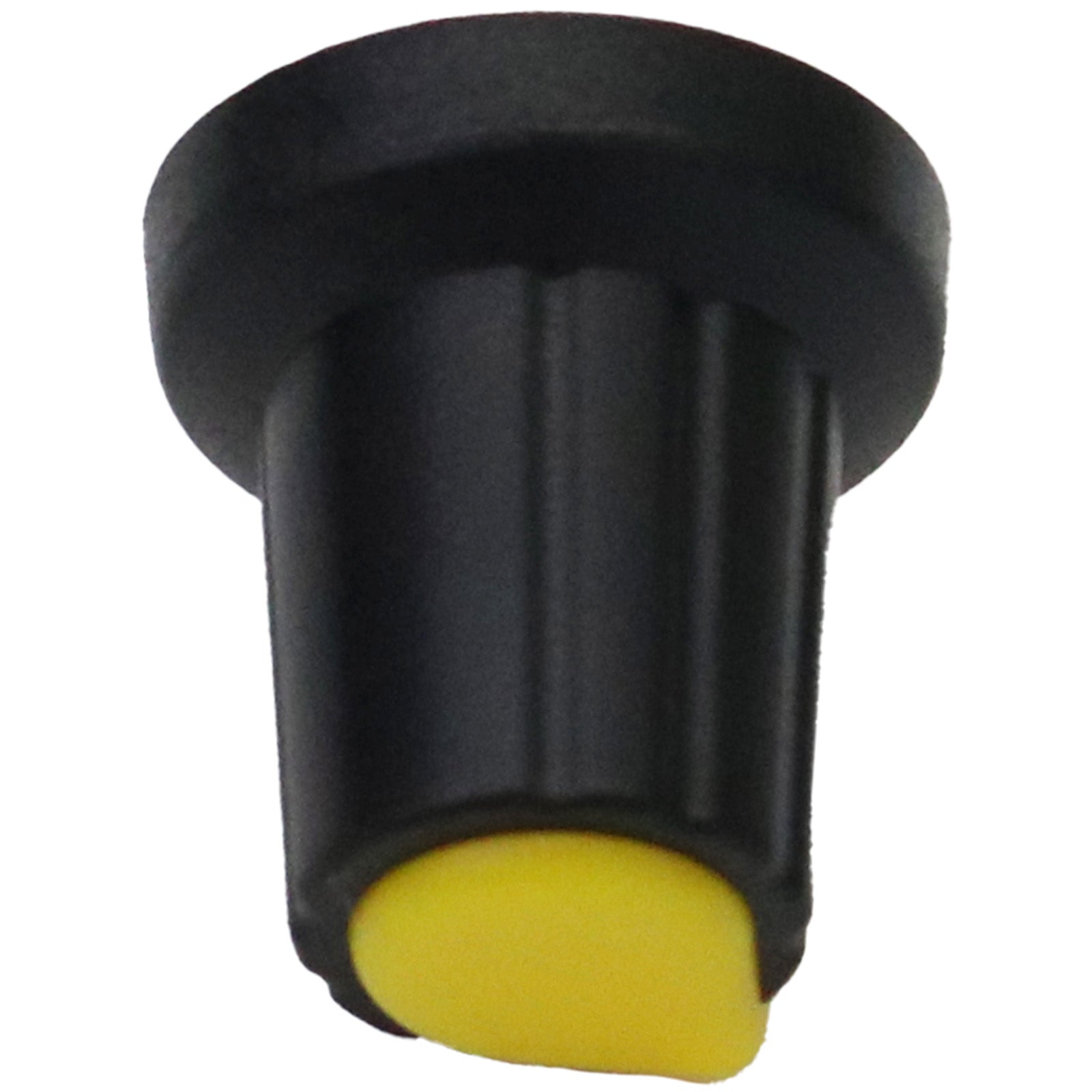

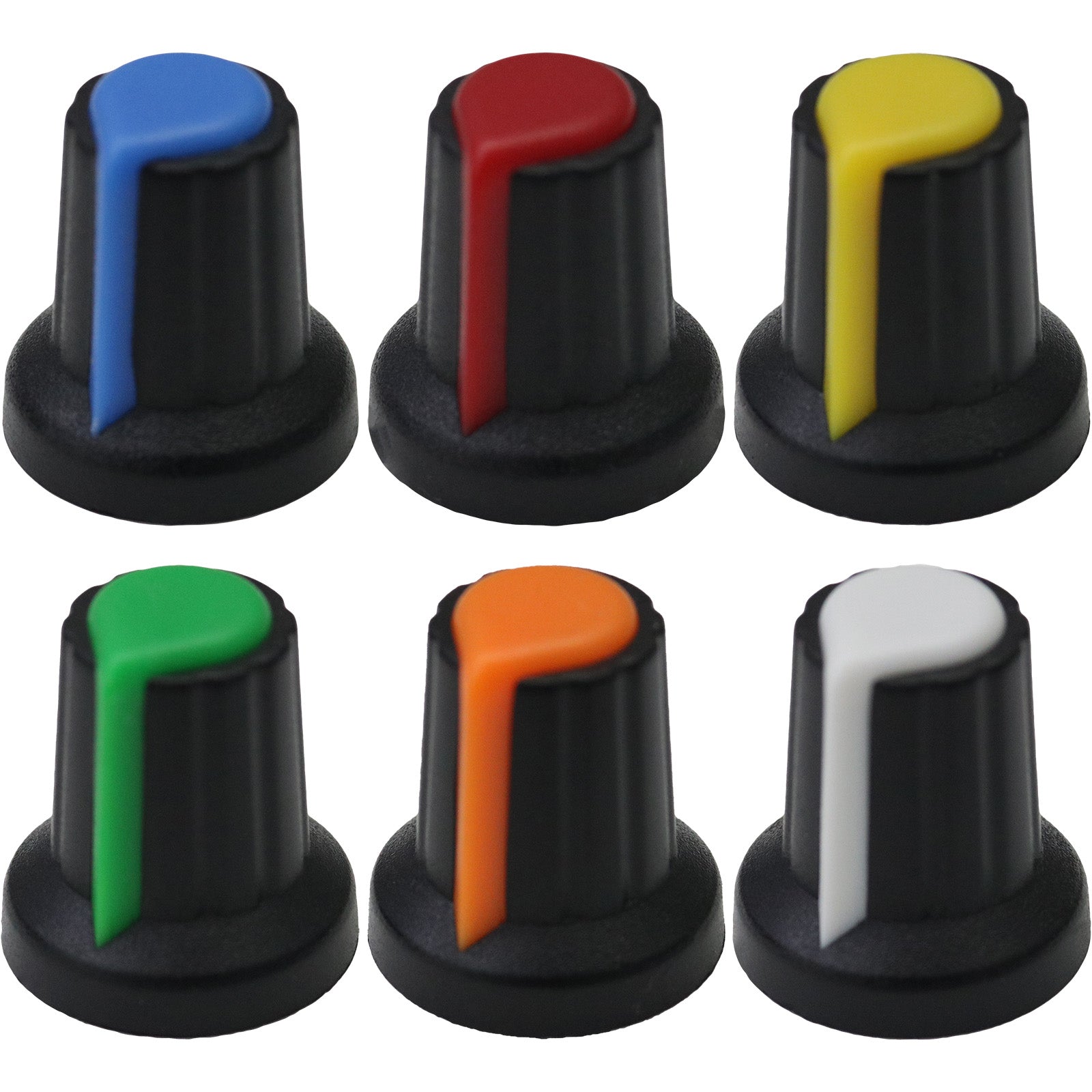

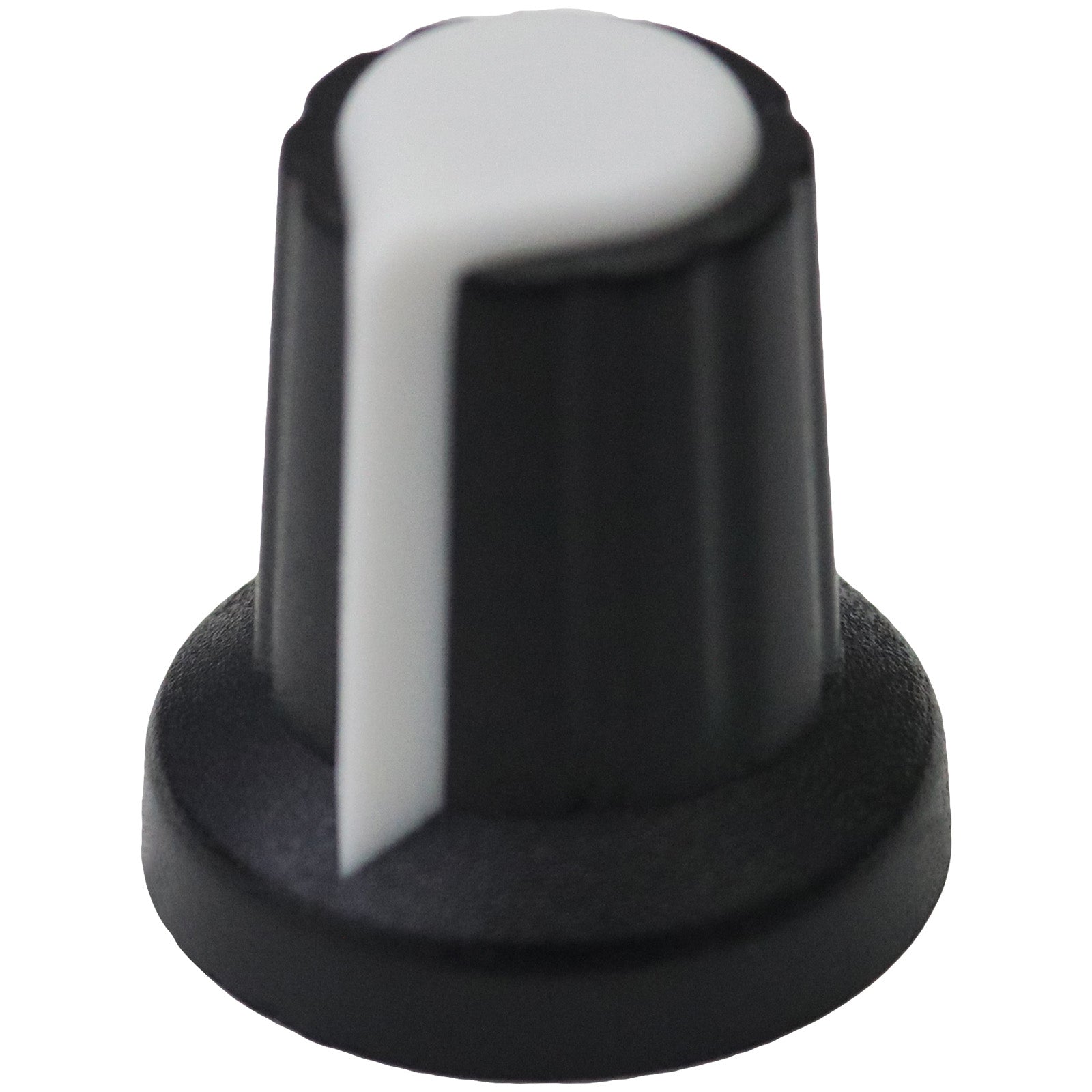

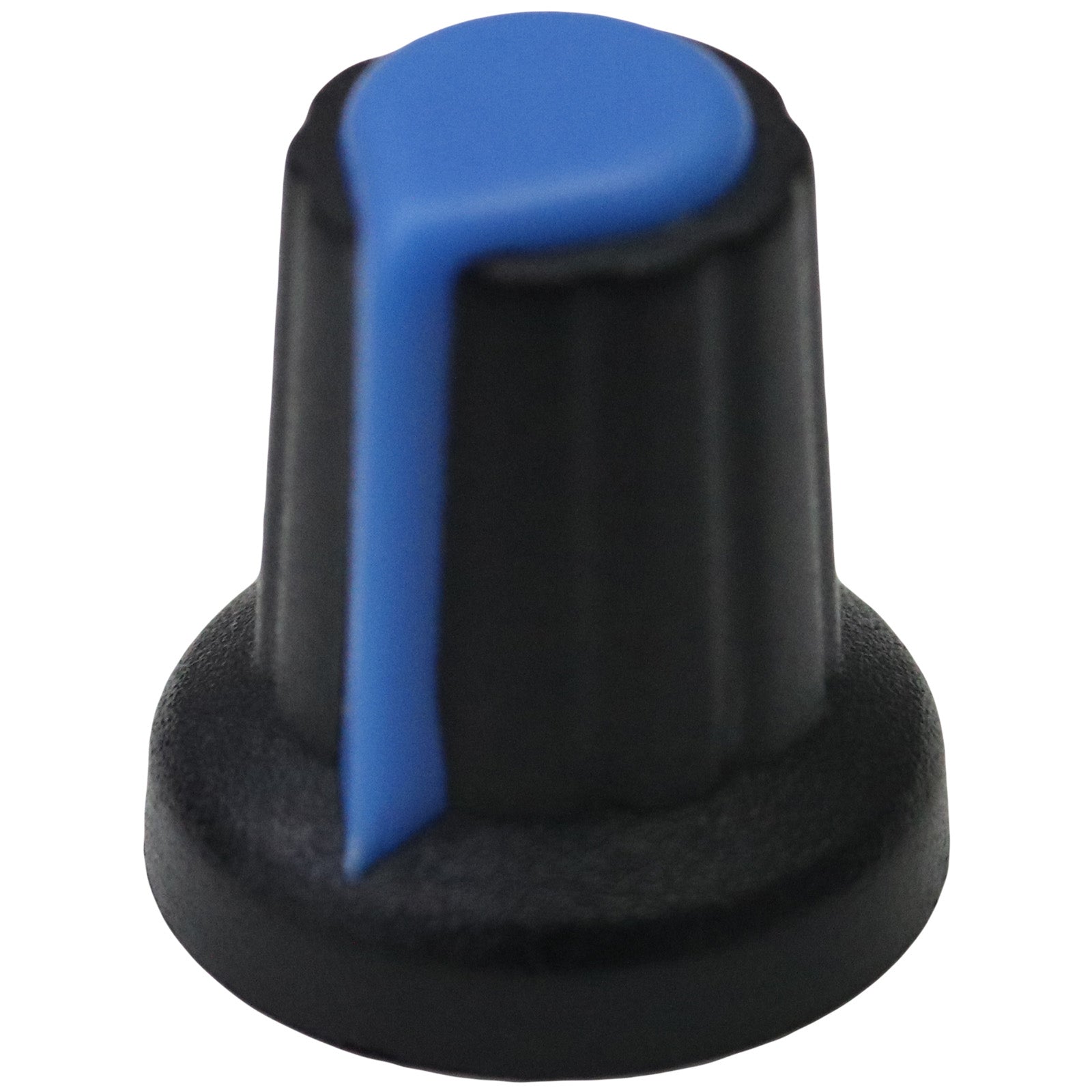

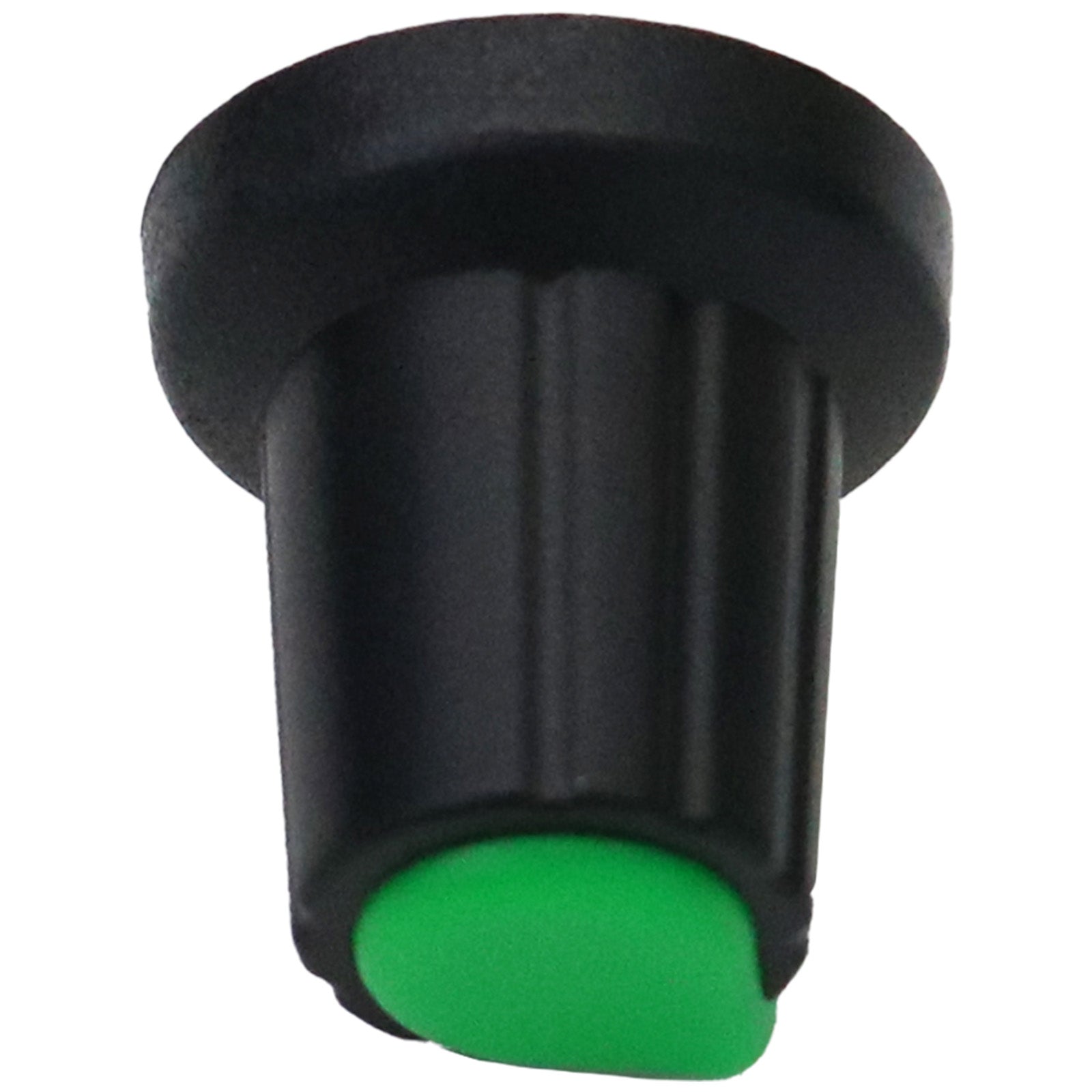

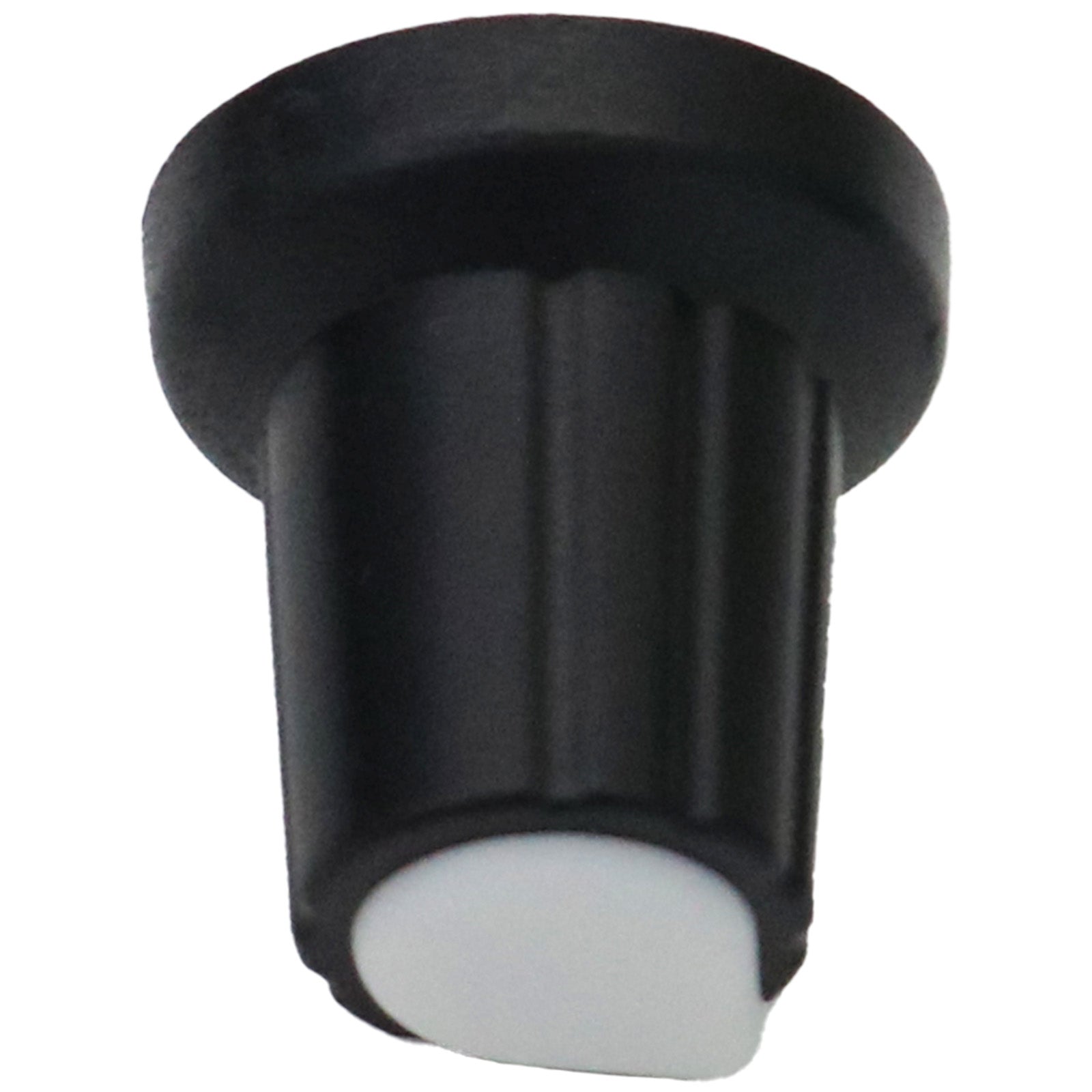

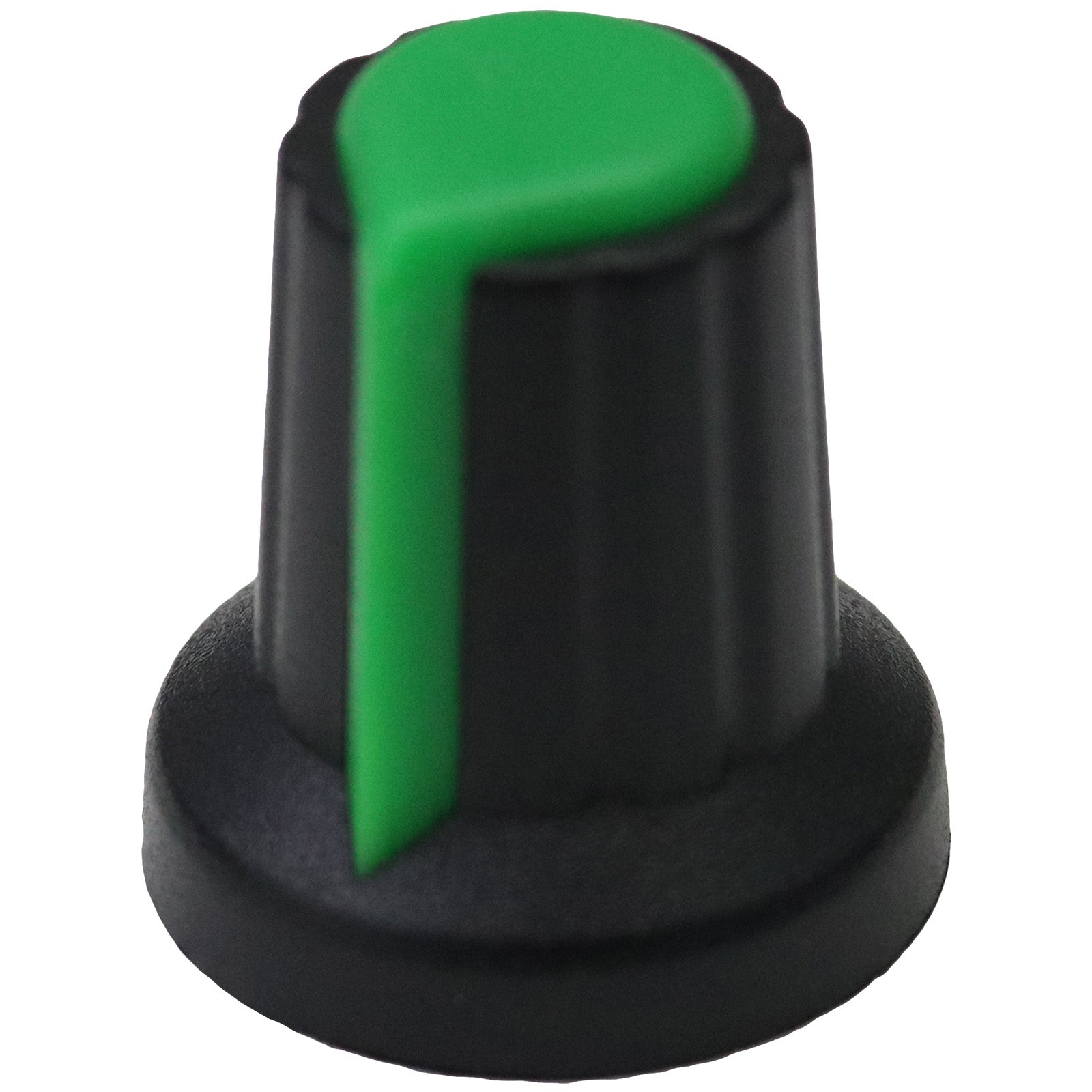

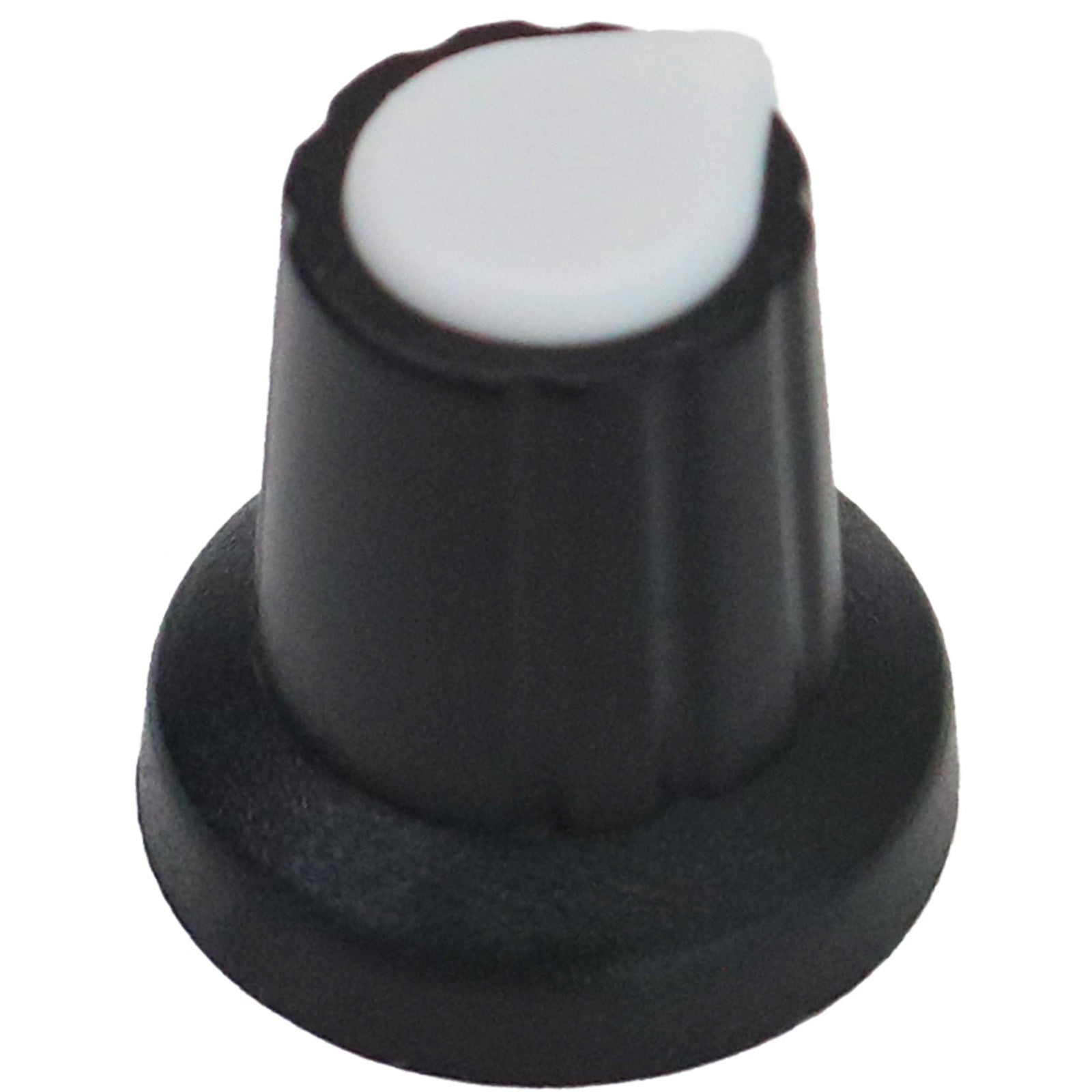

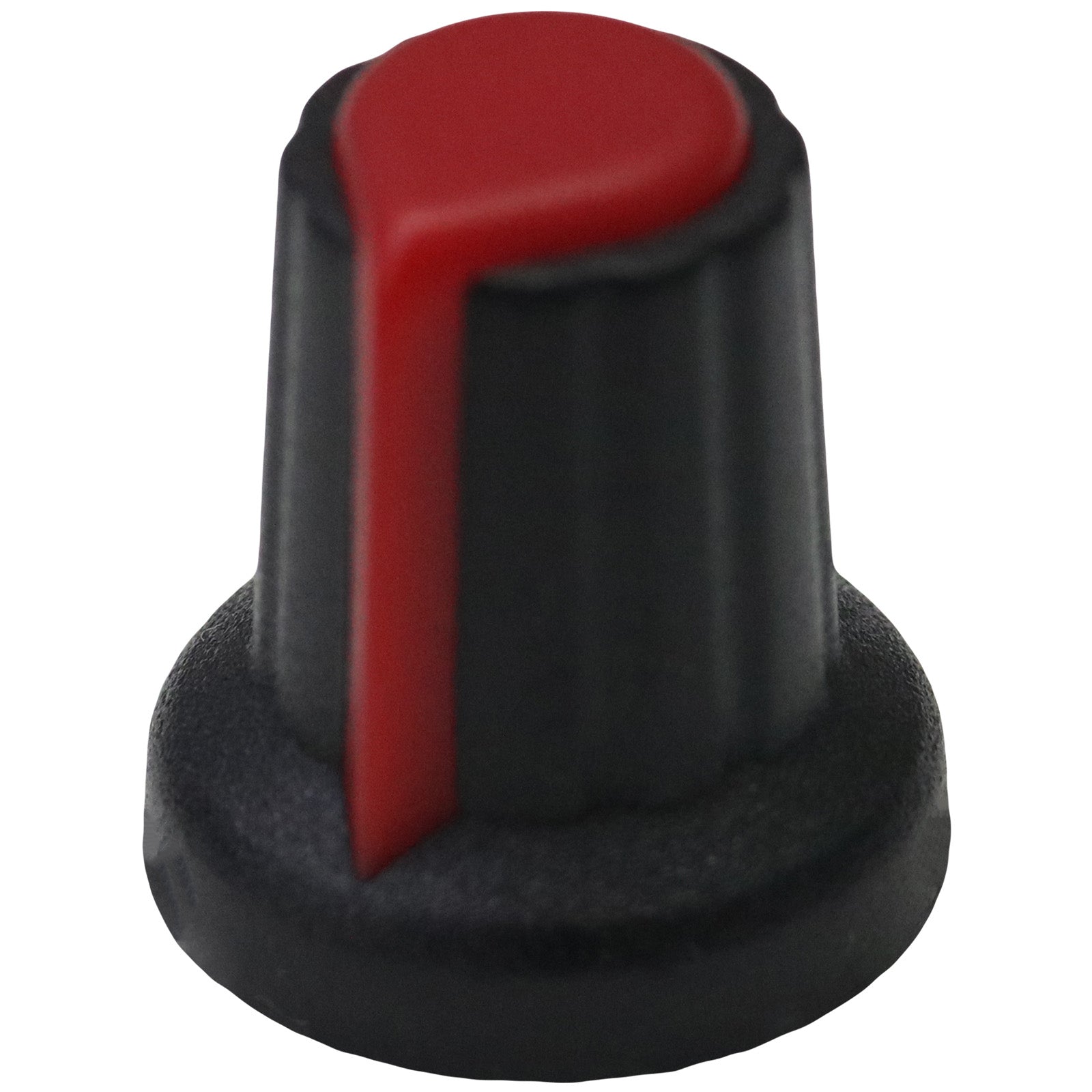

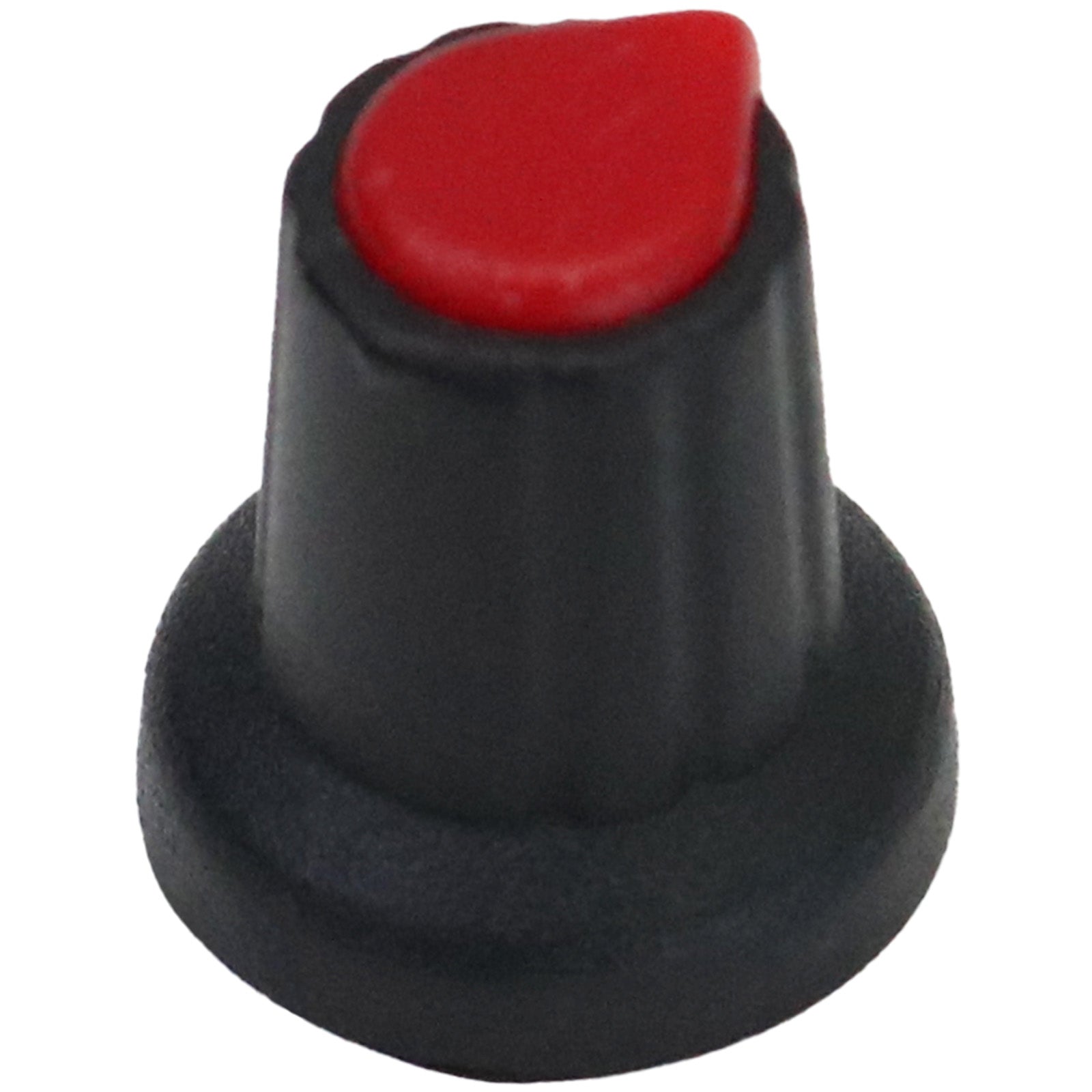

This distinctive control knob features a black body with a coloured droplet-shaped position indicator that extends down the side for clear visual feedback. The knob's circumference is enhanced with vertical ridges that provide excellent grip and tactile control during operation.

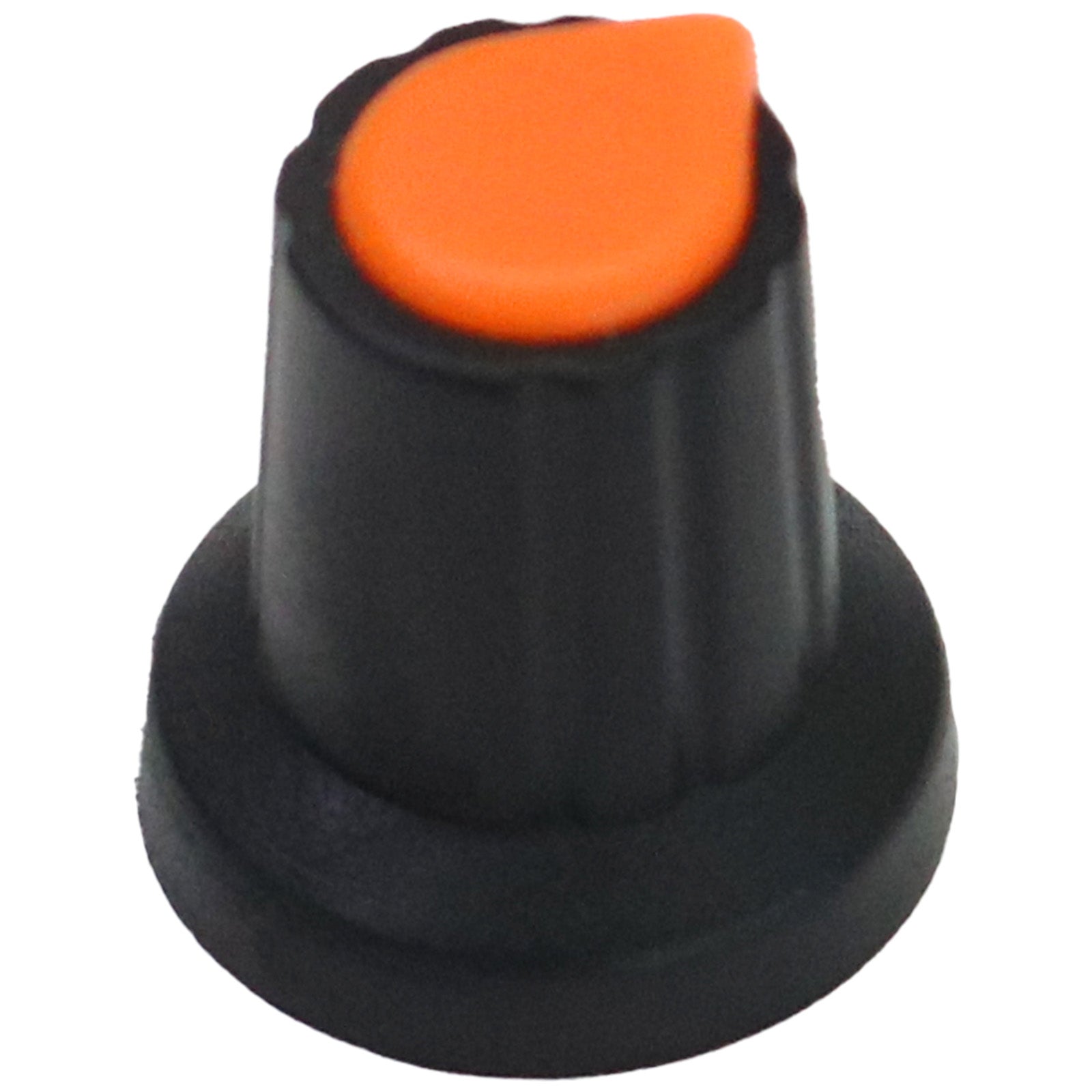

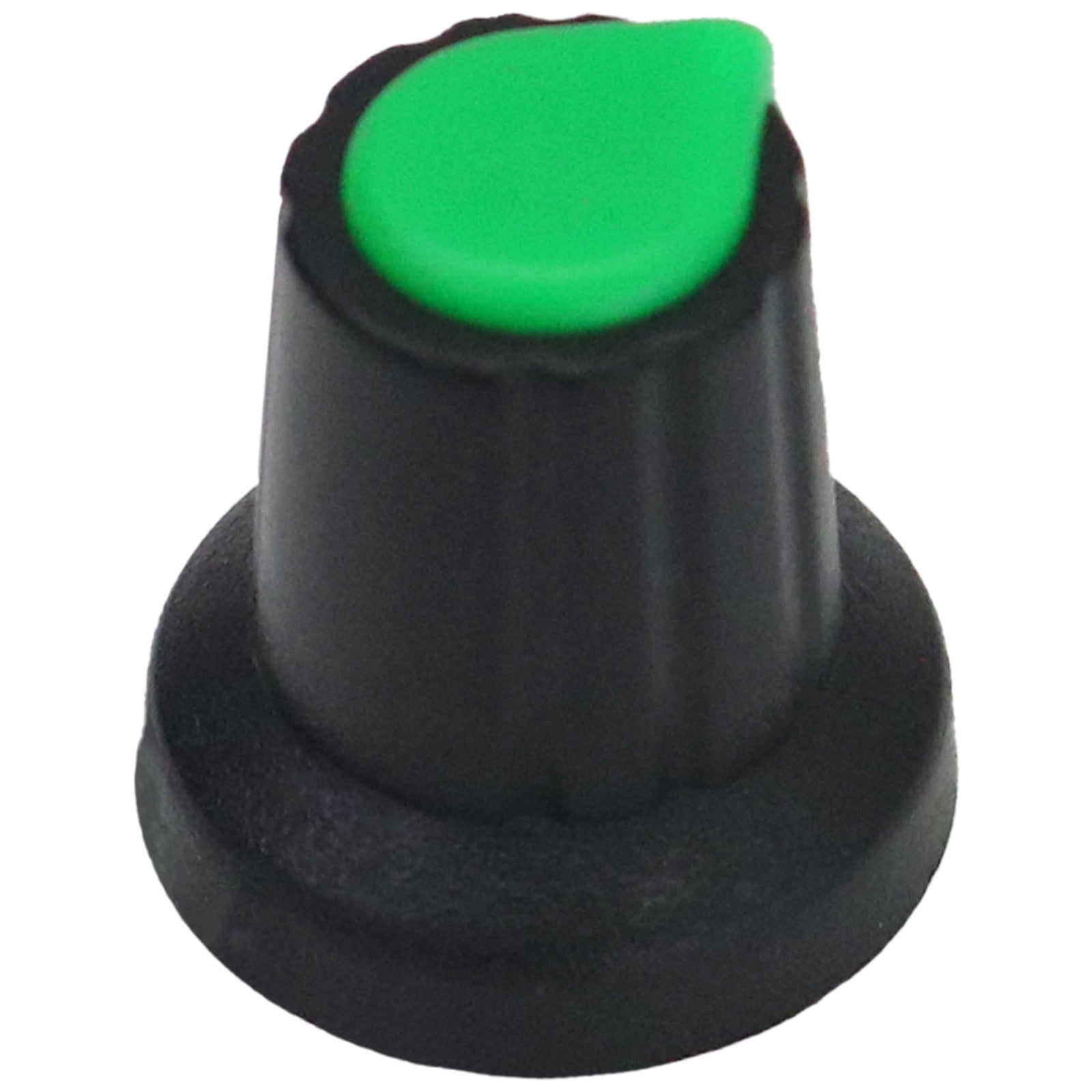

The prominent position indicator takes the form of a teardrop or pointer shape that flows from the top cap down the side of the knob body, making it ideal for applications where precise positioning and quick visual reference are essential. The ridged grip surface ensures reliable operation even in challenging conditions, whilst the compact design with its distinctive skirt base provides stability and professional appearance in control panel installations.
| Quantity | Unit Price |
|---|---|
| 1+ | £0.23 |
| 10+ | £0.184 |
| 20+ | £0.161 |
| 50+ | £0.138 |
| 100+ | £0.115 |
| 500+ | £0.092 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | Splined |
| Shaft Fixing | Push-Fit |
| Hole Size | 6mm |
Appearance
| Identity Colour | Blue |
|---|---|
| Body Colour | Black |
| Accent Colour | Blue |
| Position Indicator Colour | Blue |
| Position Indicator Shape | Pointer, Line |
Measurements
| Minimum Shaft Depth | 8.5mm |
|---|---|
| Maximum Shaft Depth | 15.8mm |
| Body Diameter | 11.2mm |
| Maximum Diameter | 15.6mm |
| Width | mm |
| Length | mm |
| Height | 16.8mm |
| Additional Measurements | |
| Unit Weight | 1.12g |
Hole Type
Splined Hole

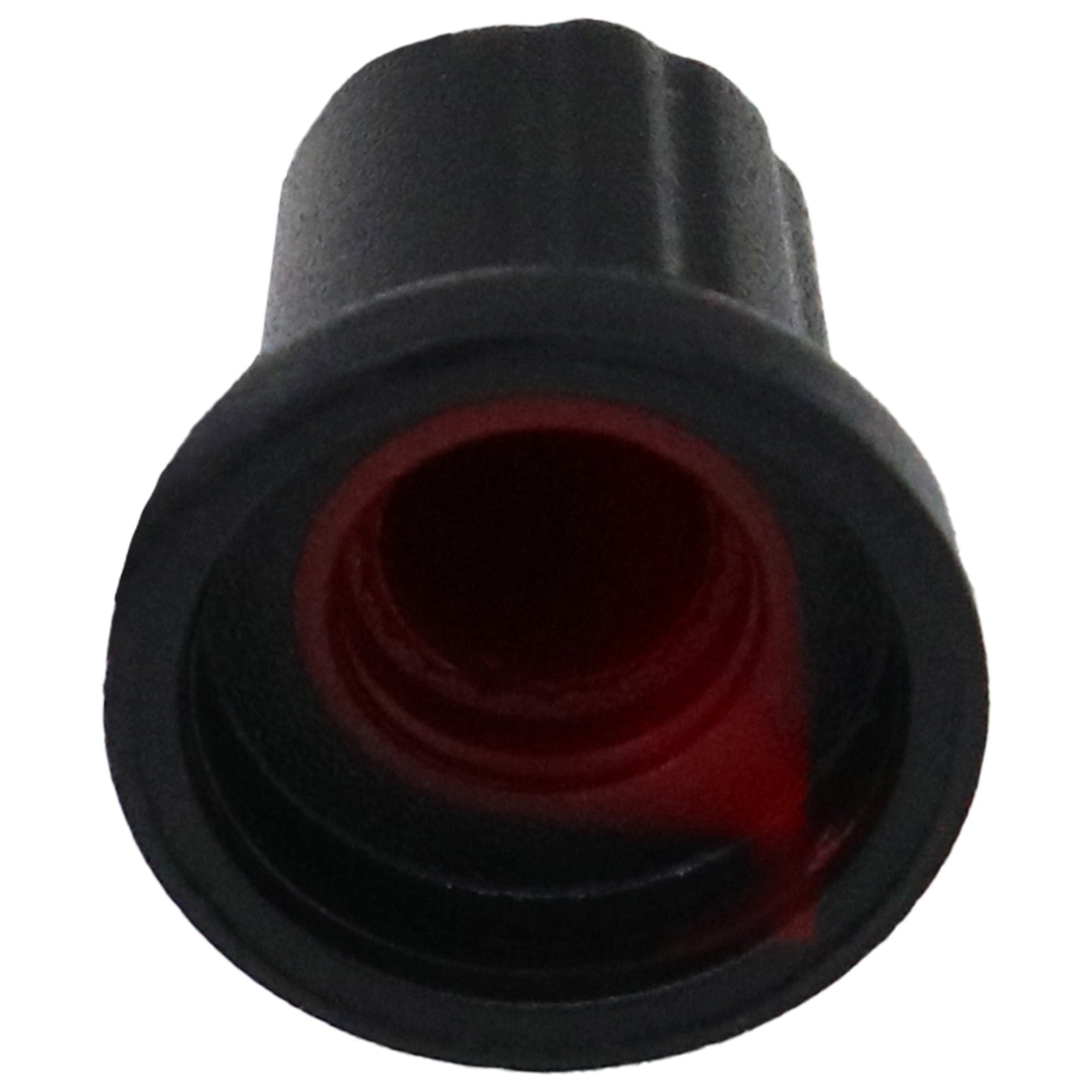

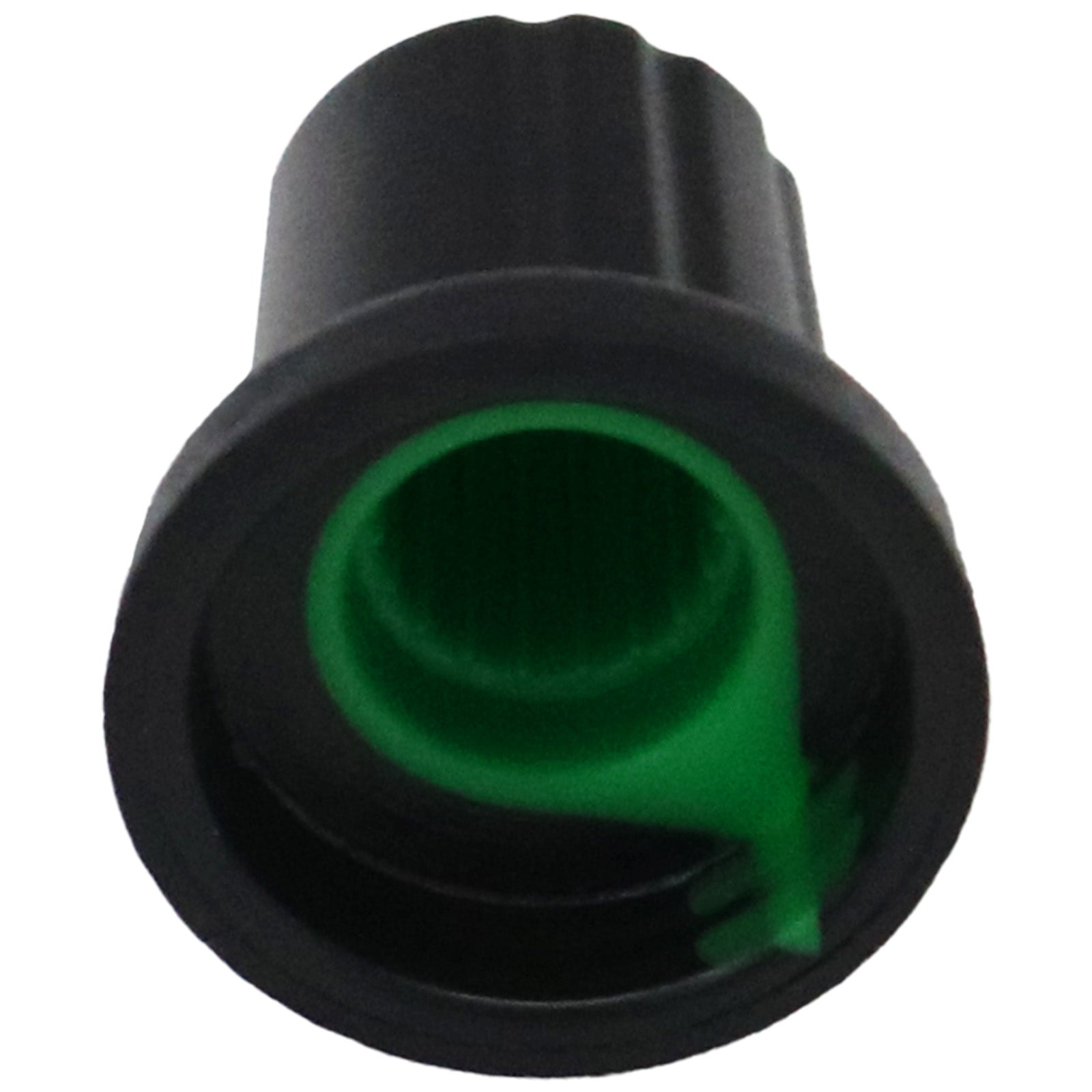

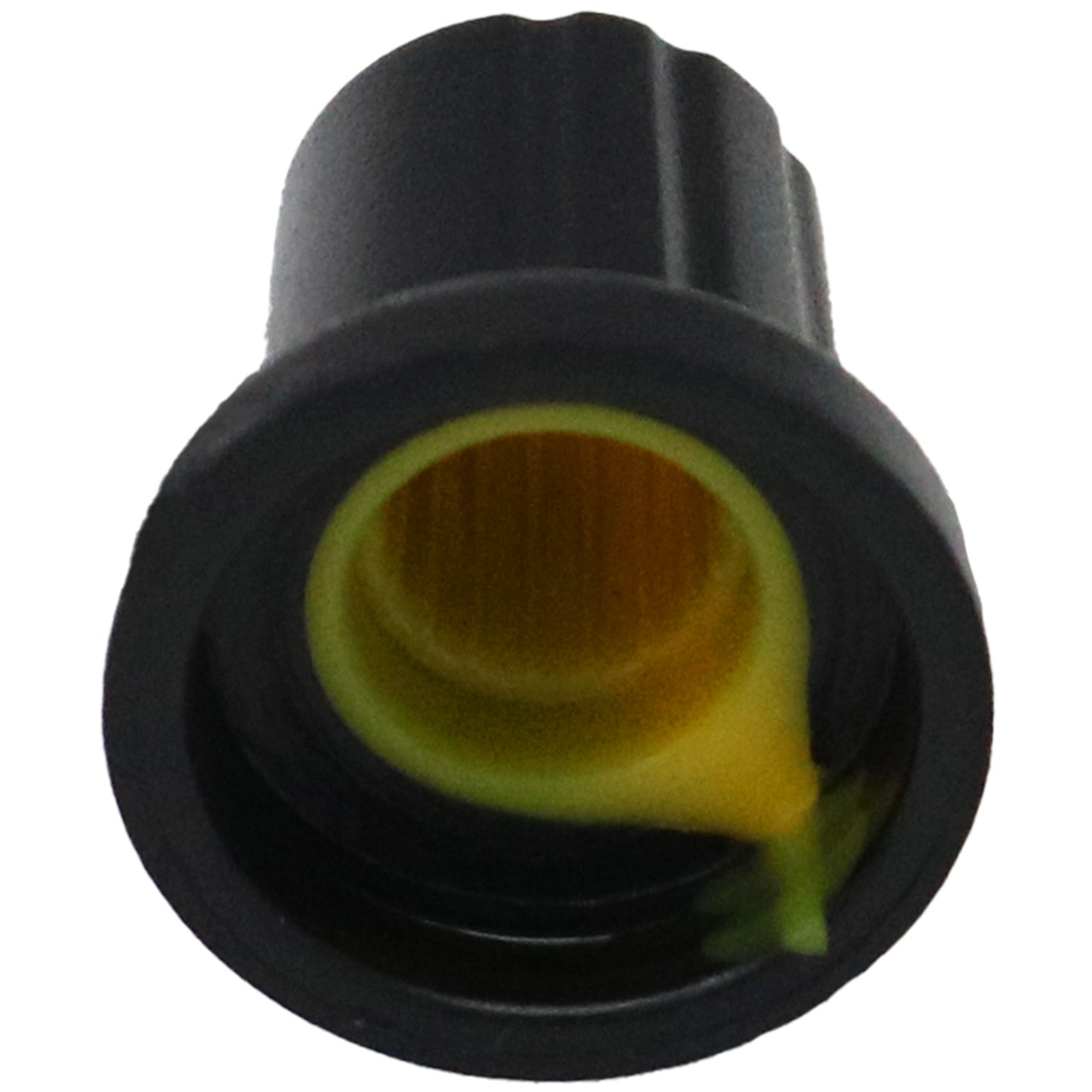

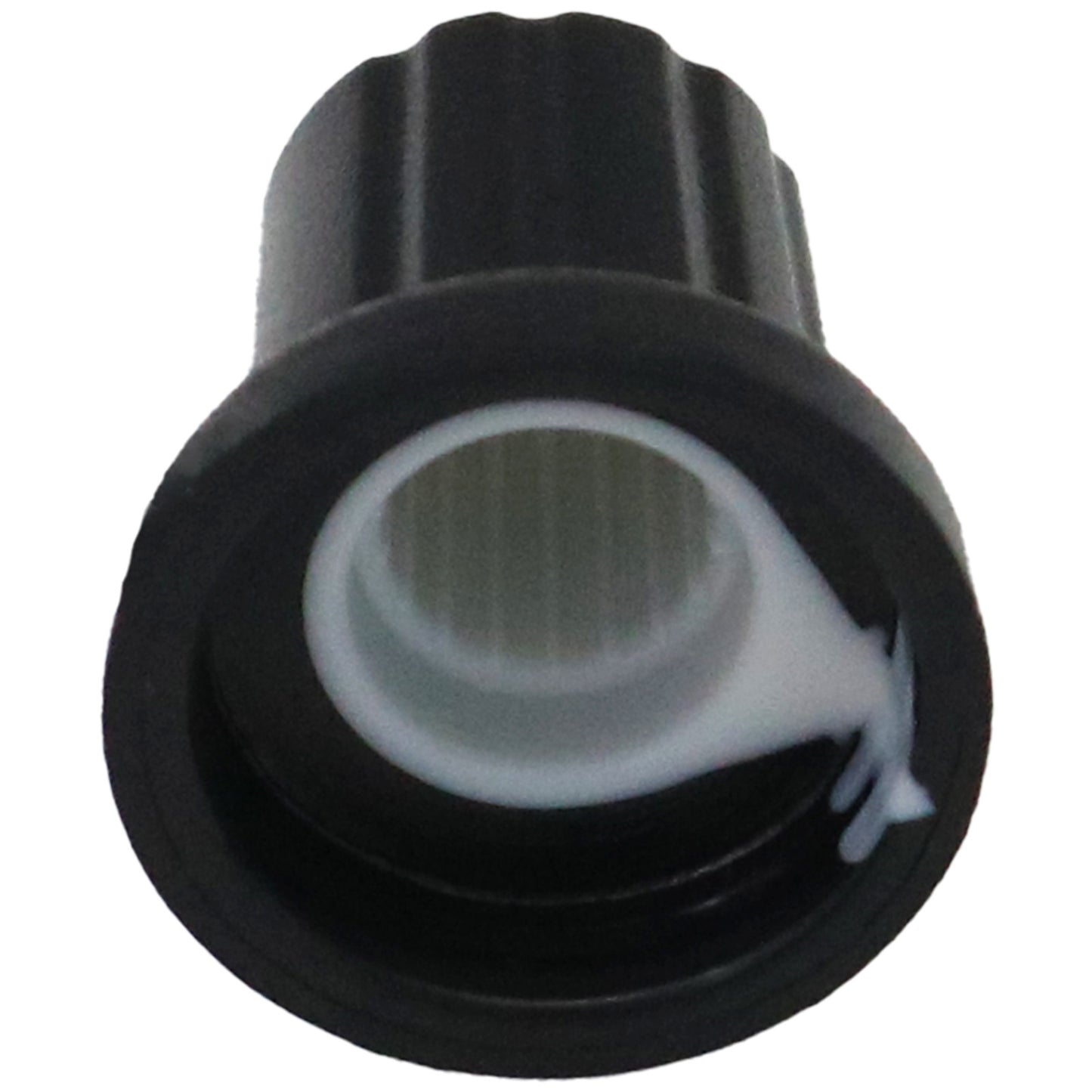

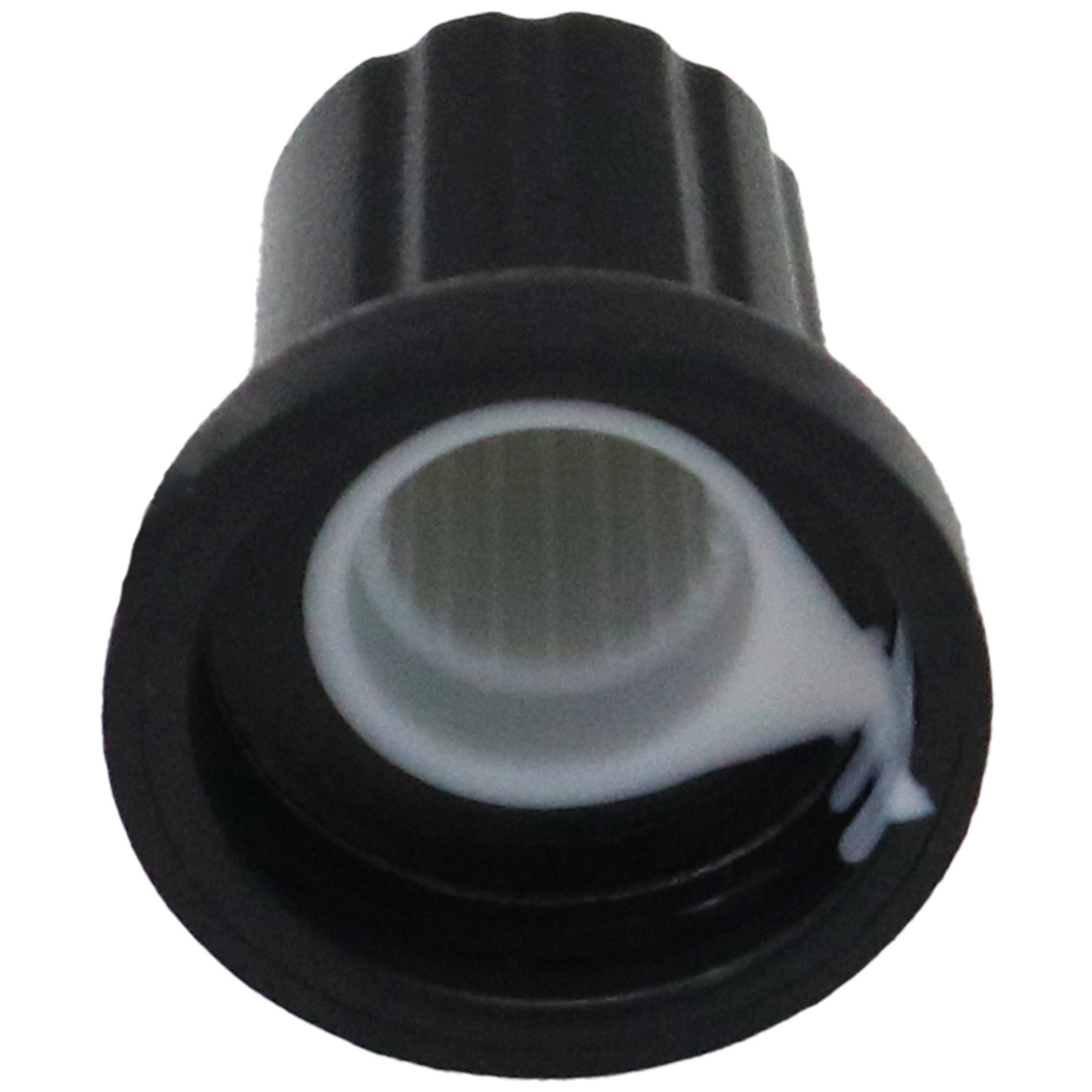

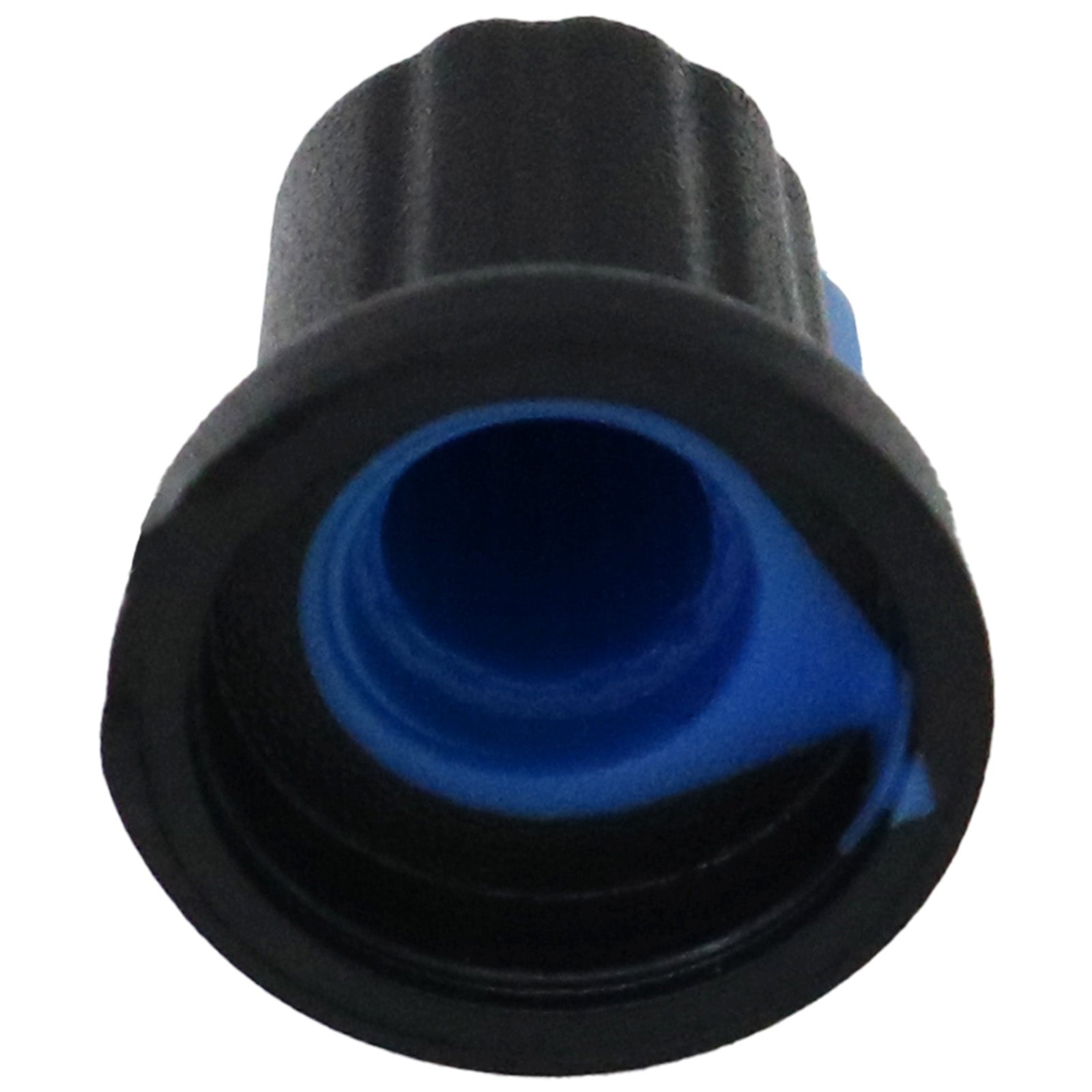

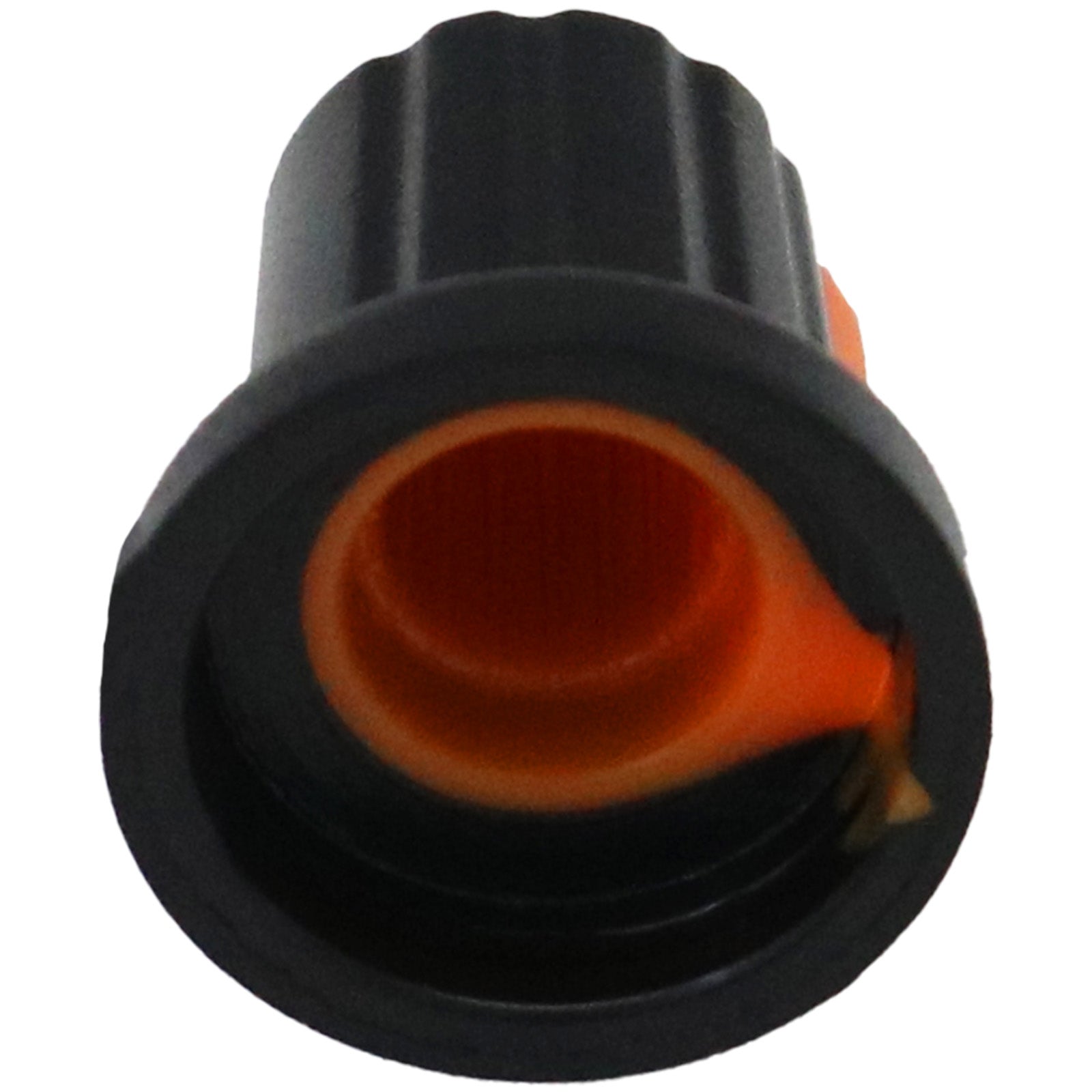

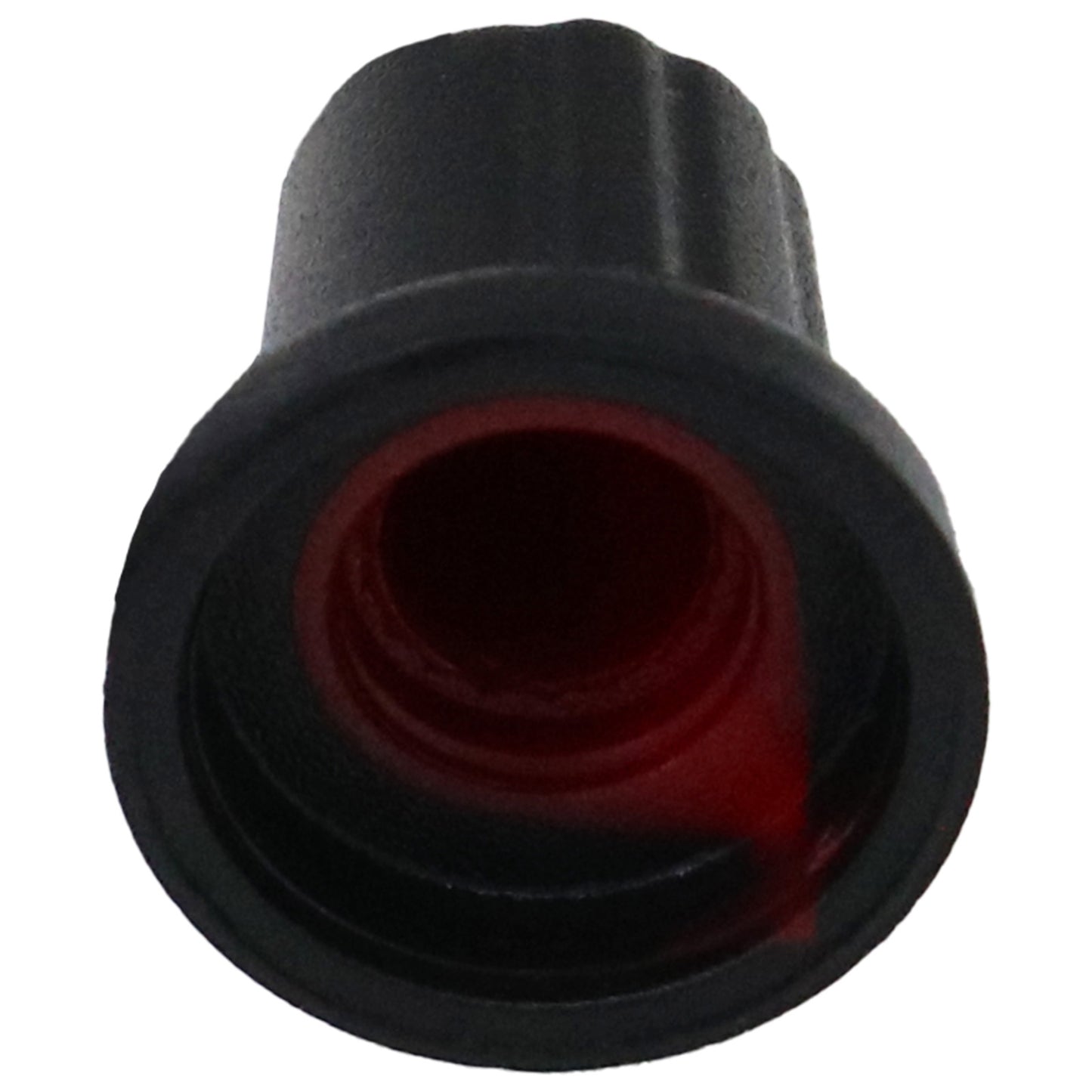

Knobs designed for splined shafts have holes with multiple grooves or ridges that correspond to the splines on the shaft. This splined hole creates a very tight and secure fit, preventing any movement between the knob and the shaft.
The position indicator can be placed in any of 18 different directions, in increments of 20°
The ridged interior of the hole ensures a strong connection, capable of handling high torque and frequent adjustments without the risk of slippage.
A control knob with a splined hole will not fit onto a round or D typ shaft.
