4mm Colour Body Linear Slider / Fader Caps
4mm Colour Body Linear Slider / Fader Caps

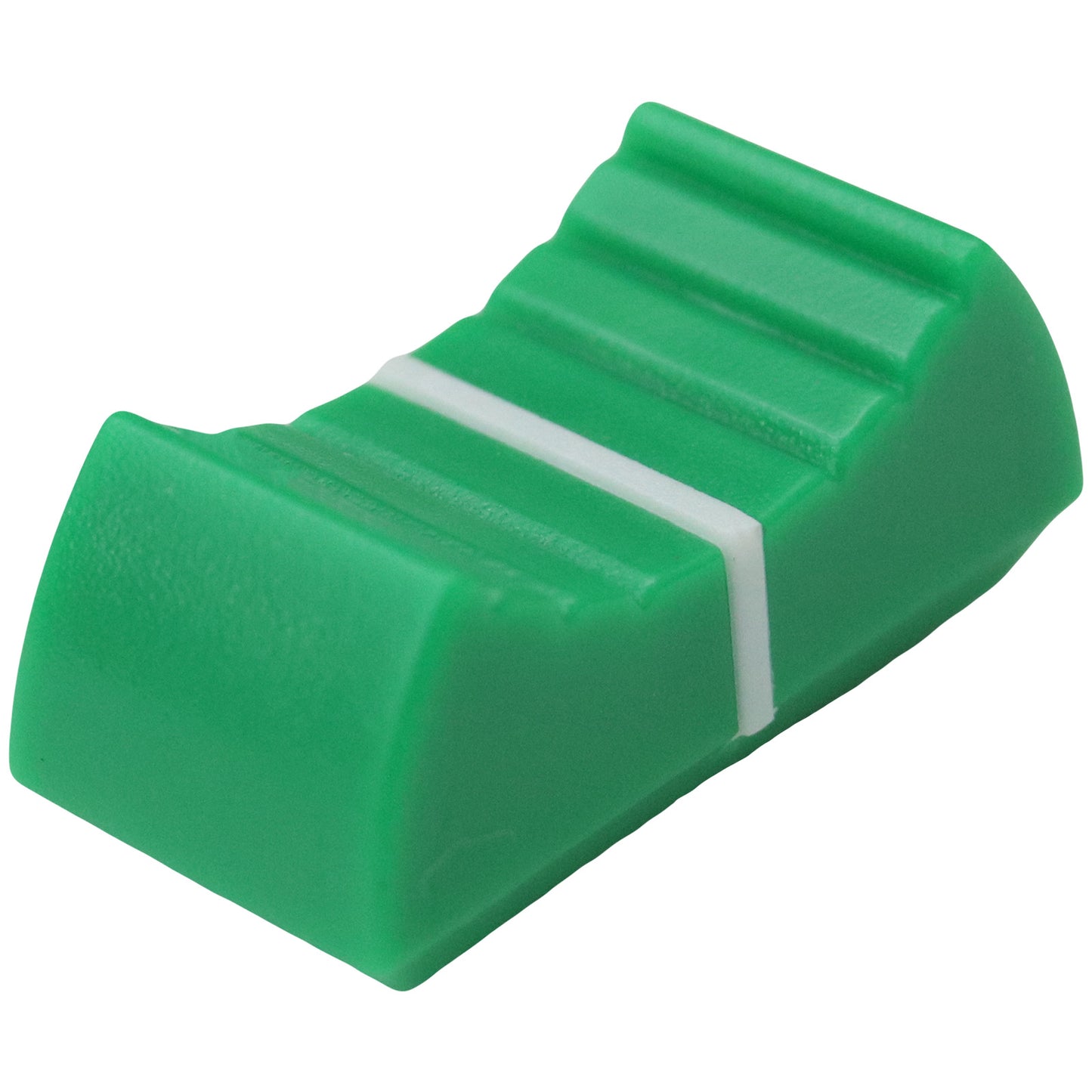

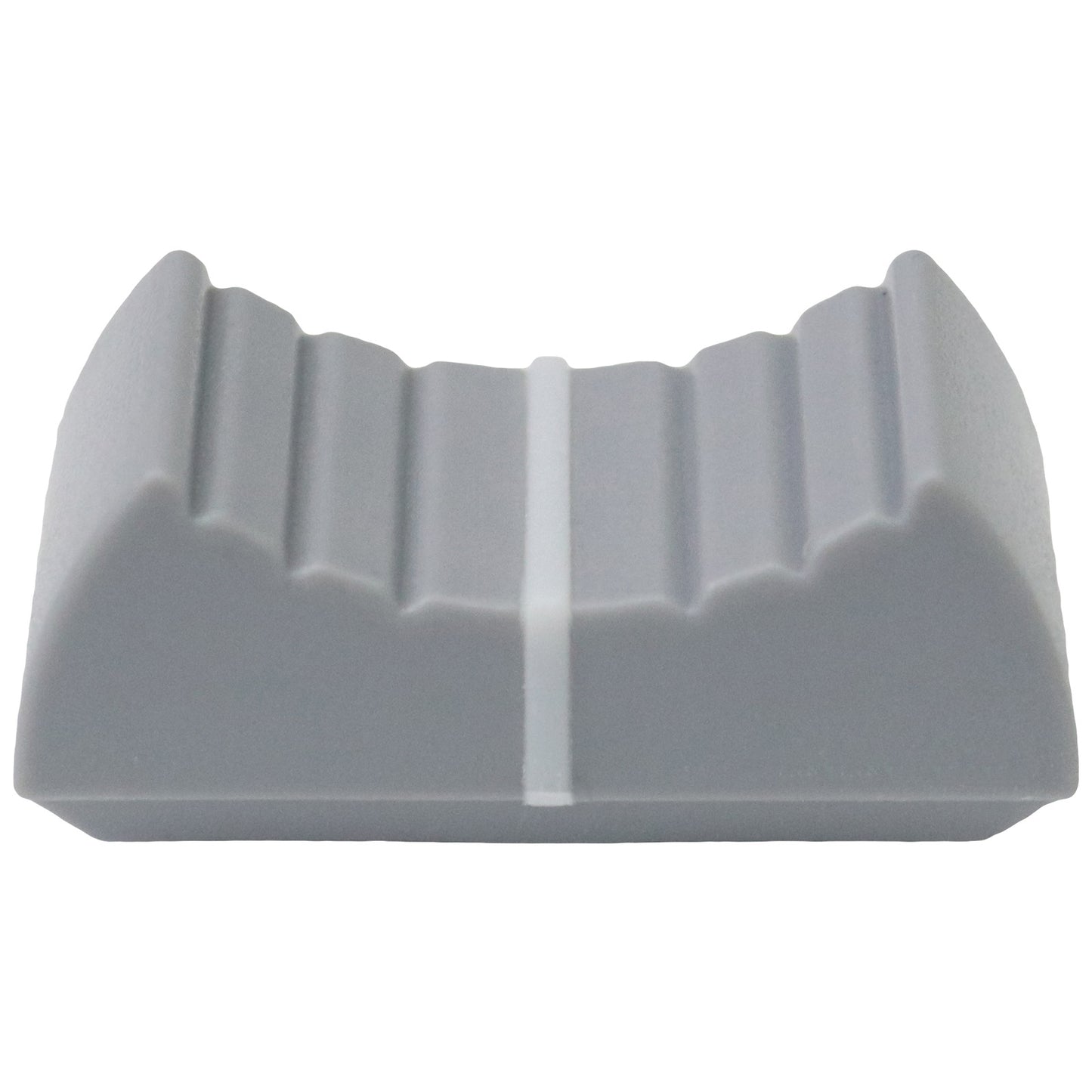

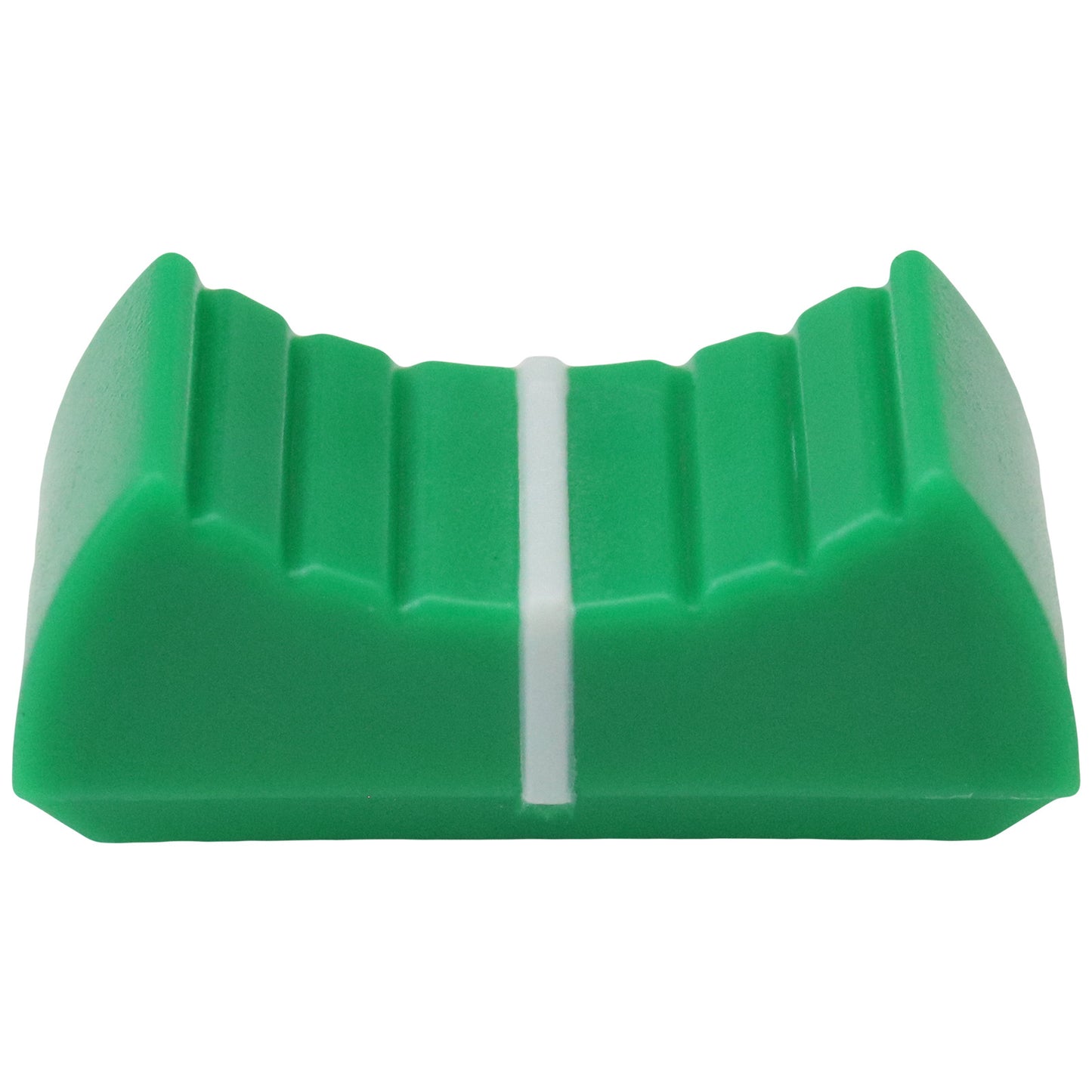

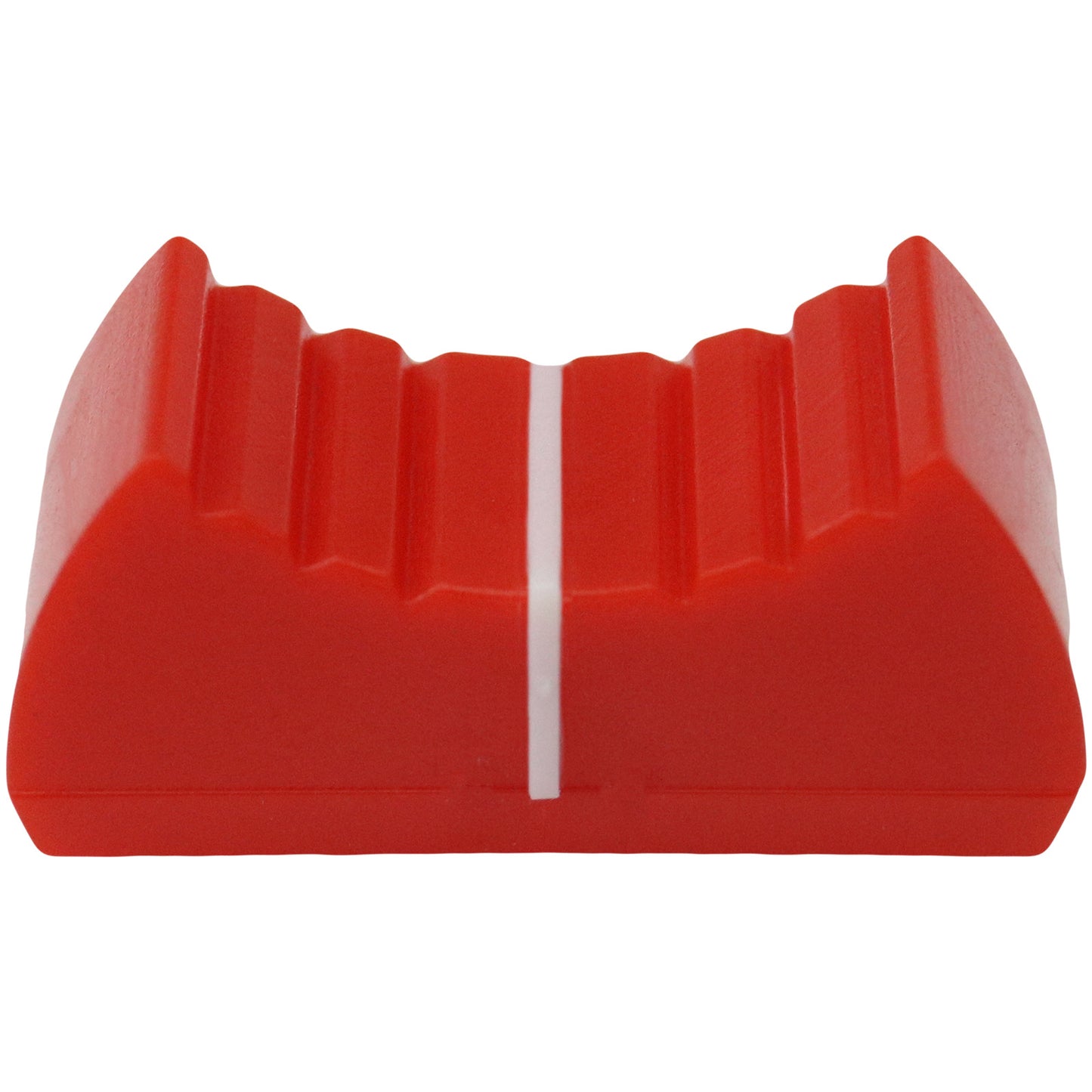

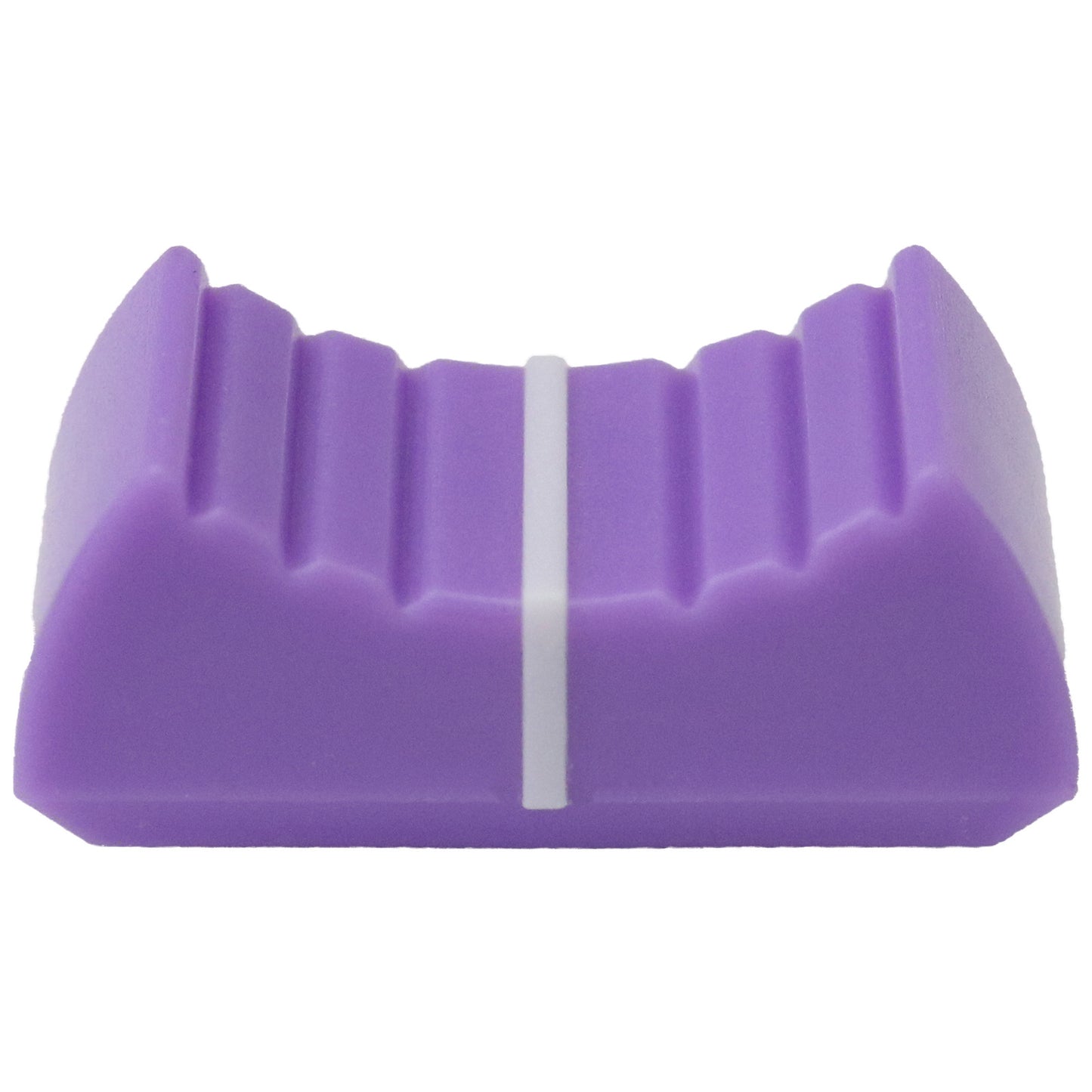

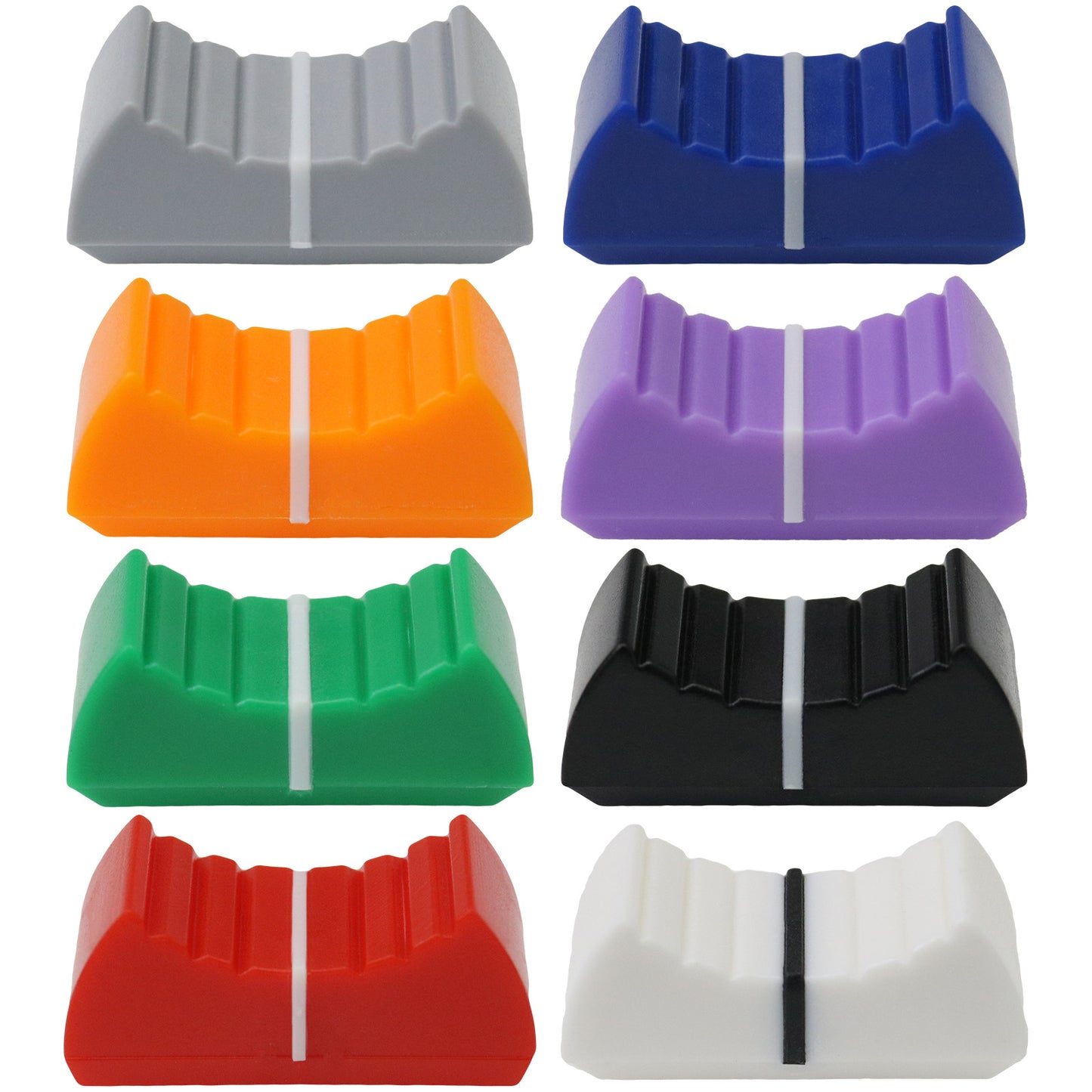

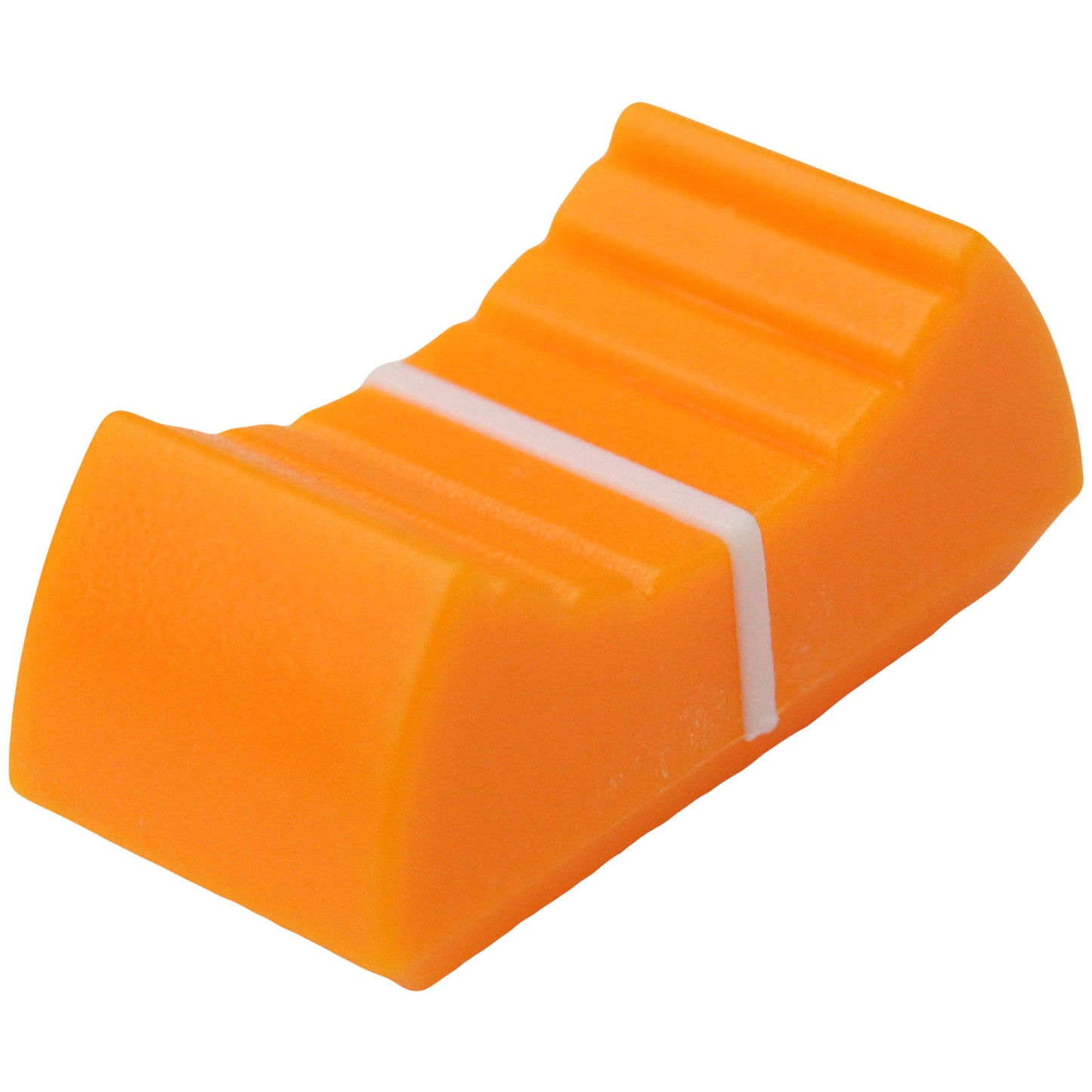

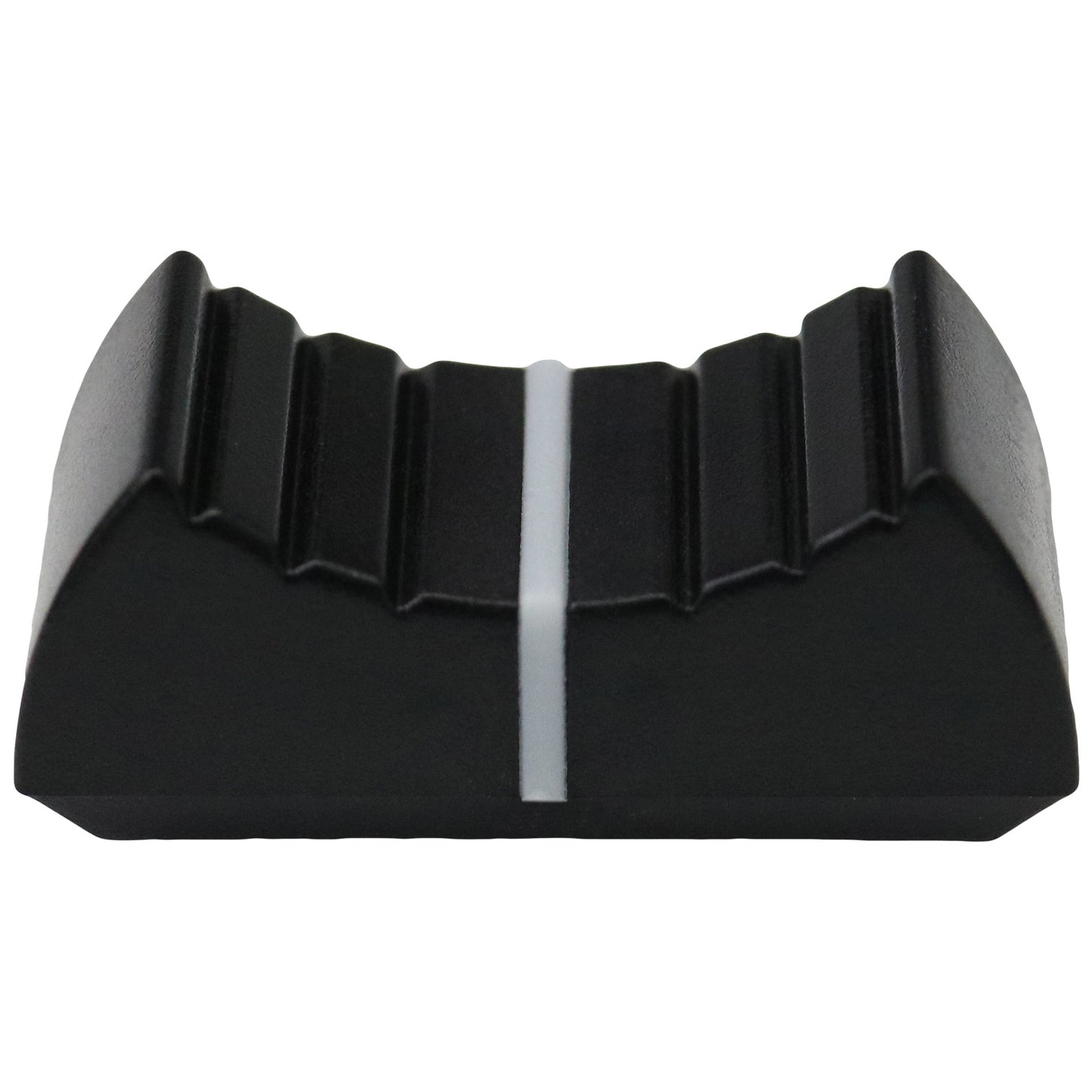

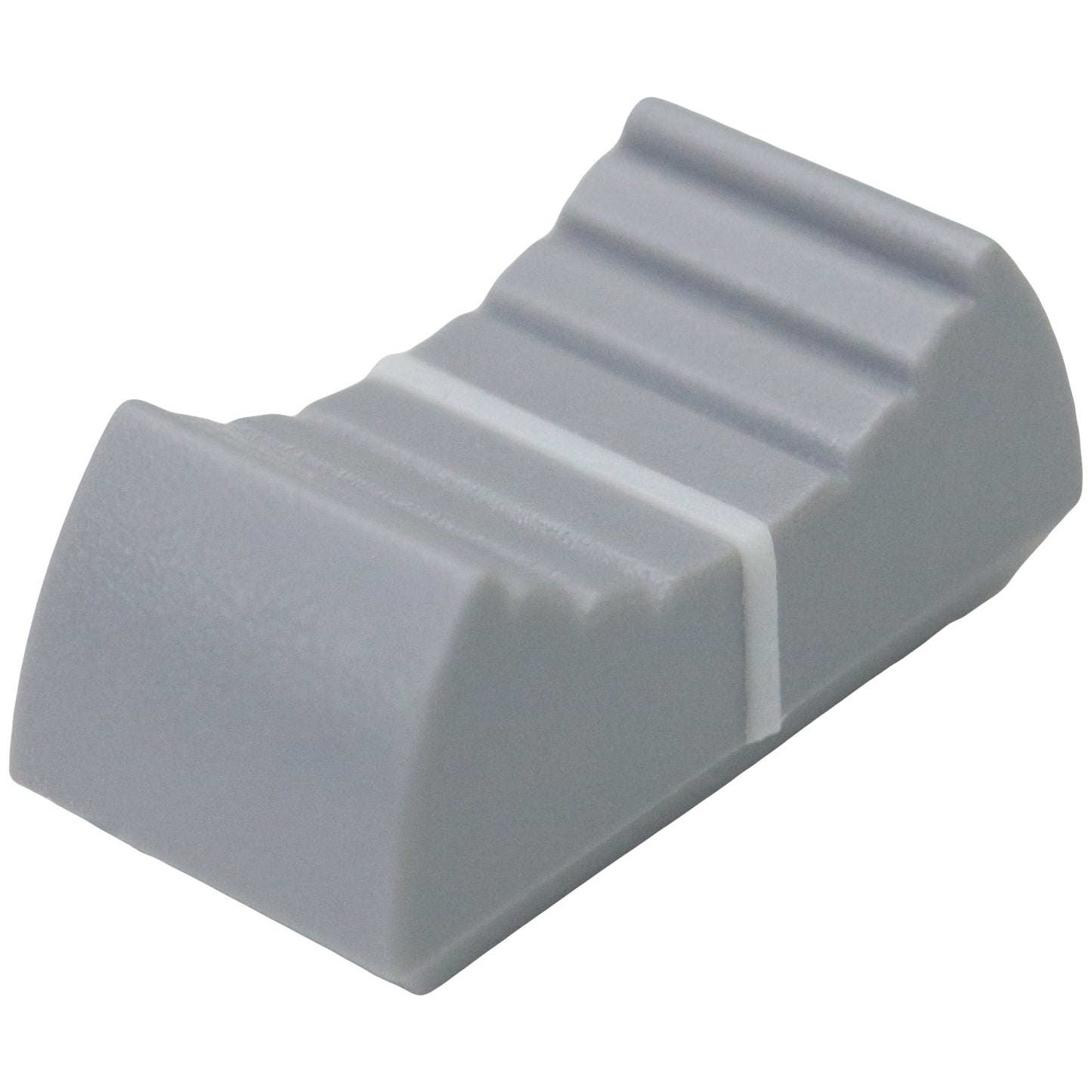

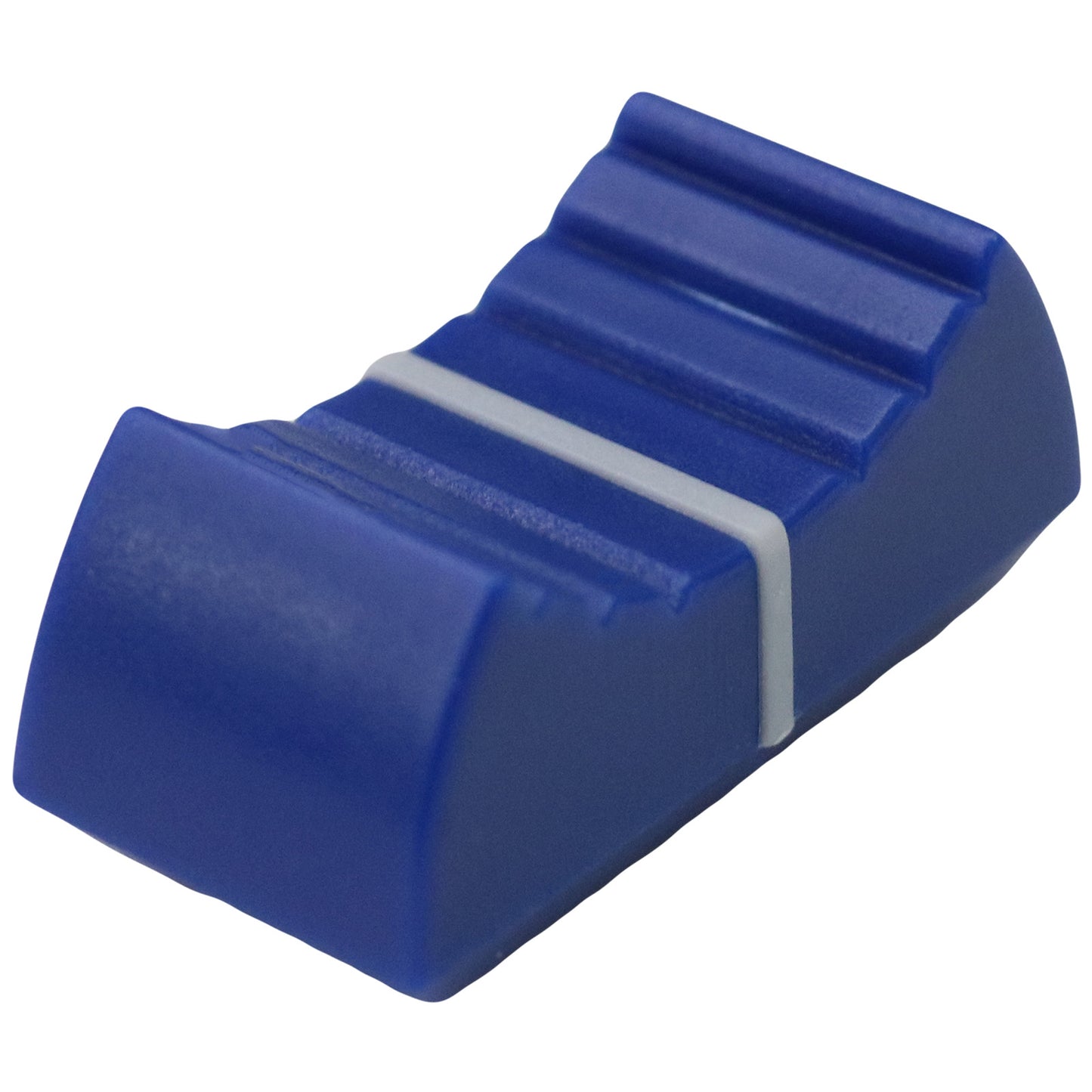

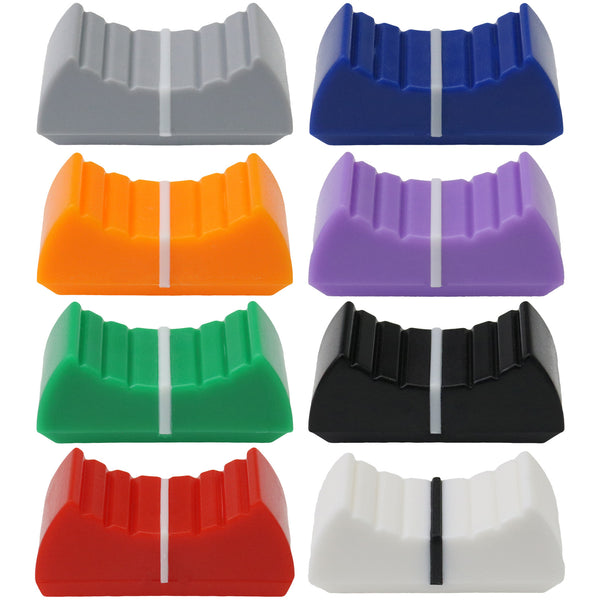

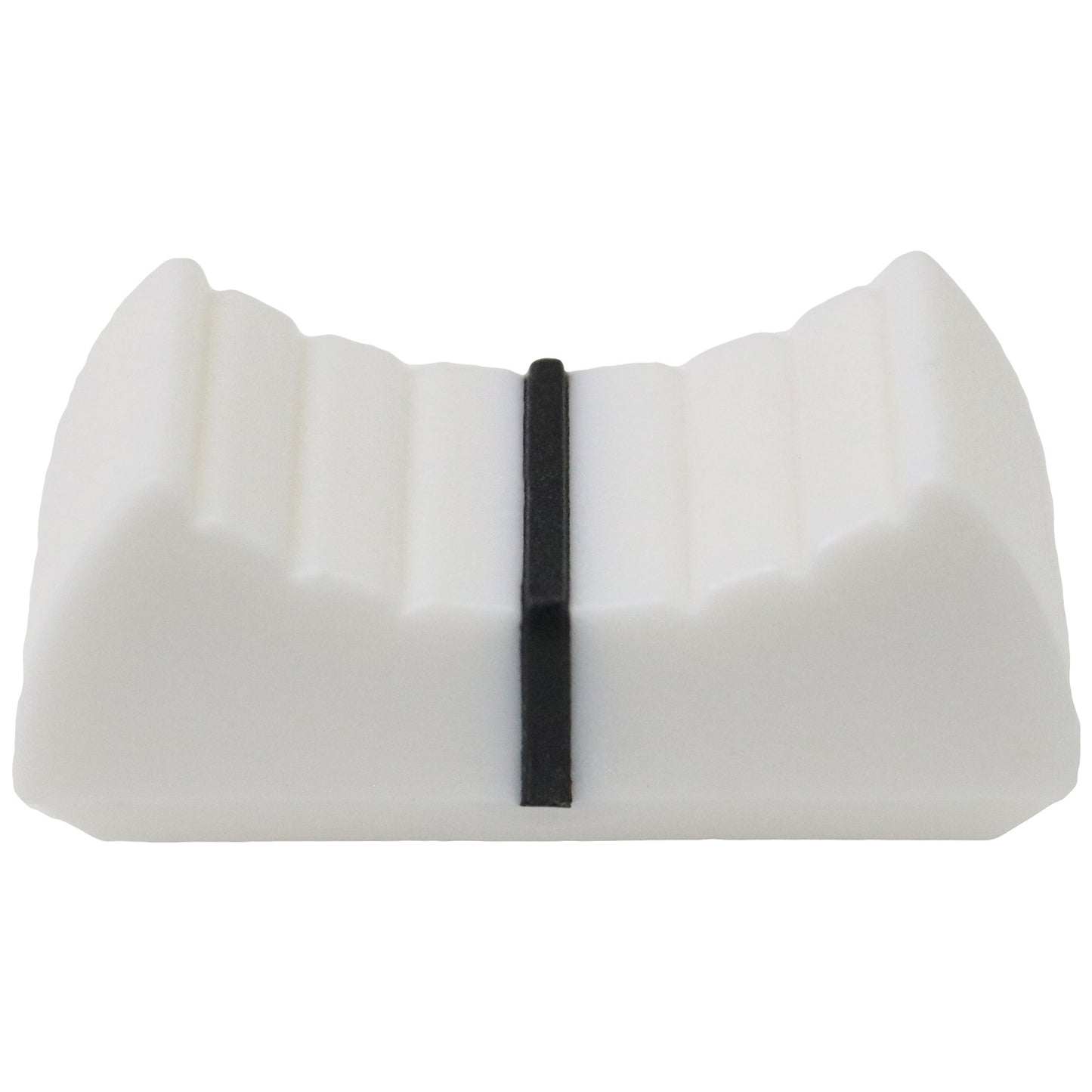

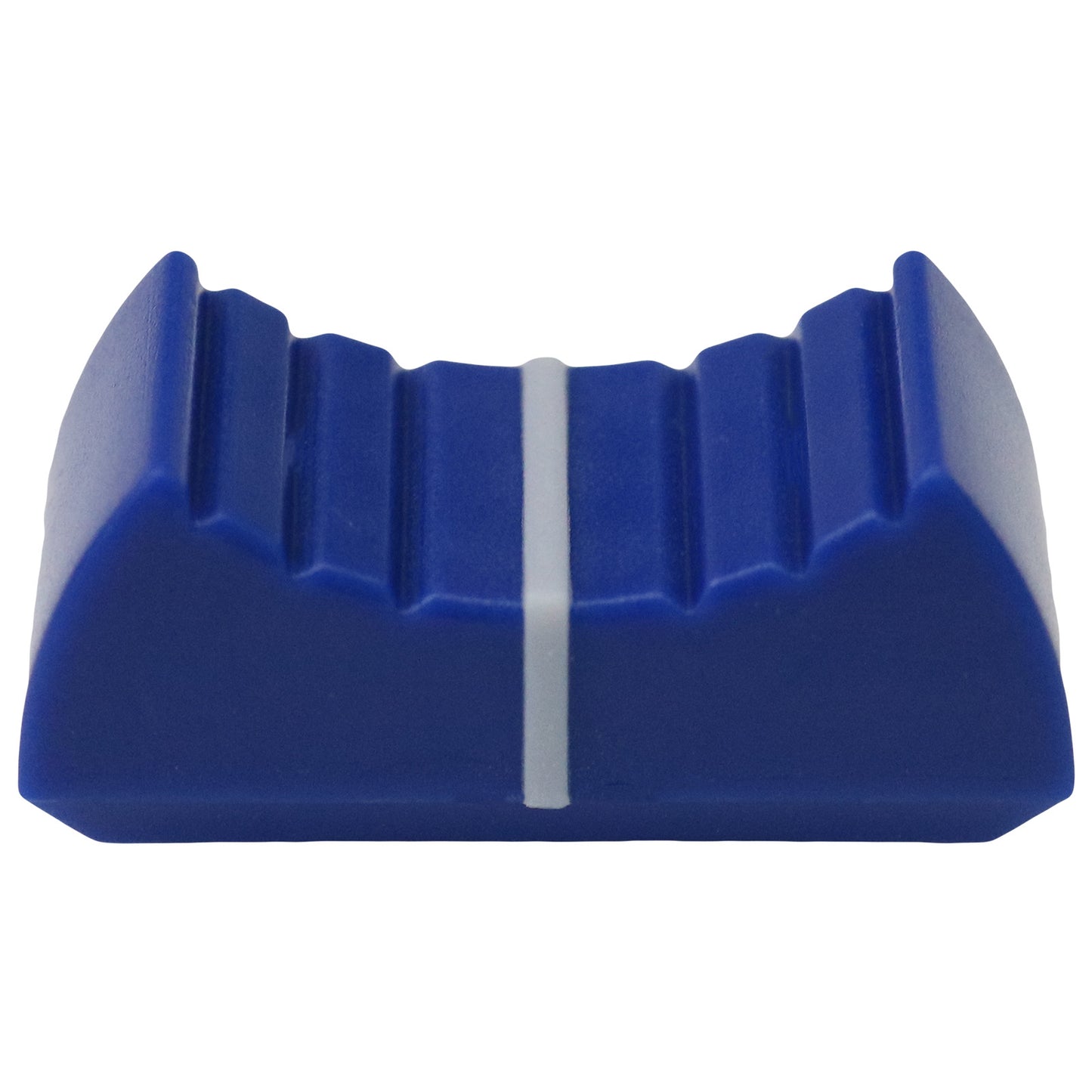

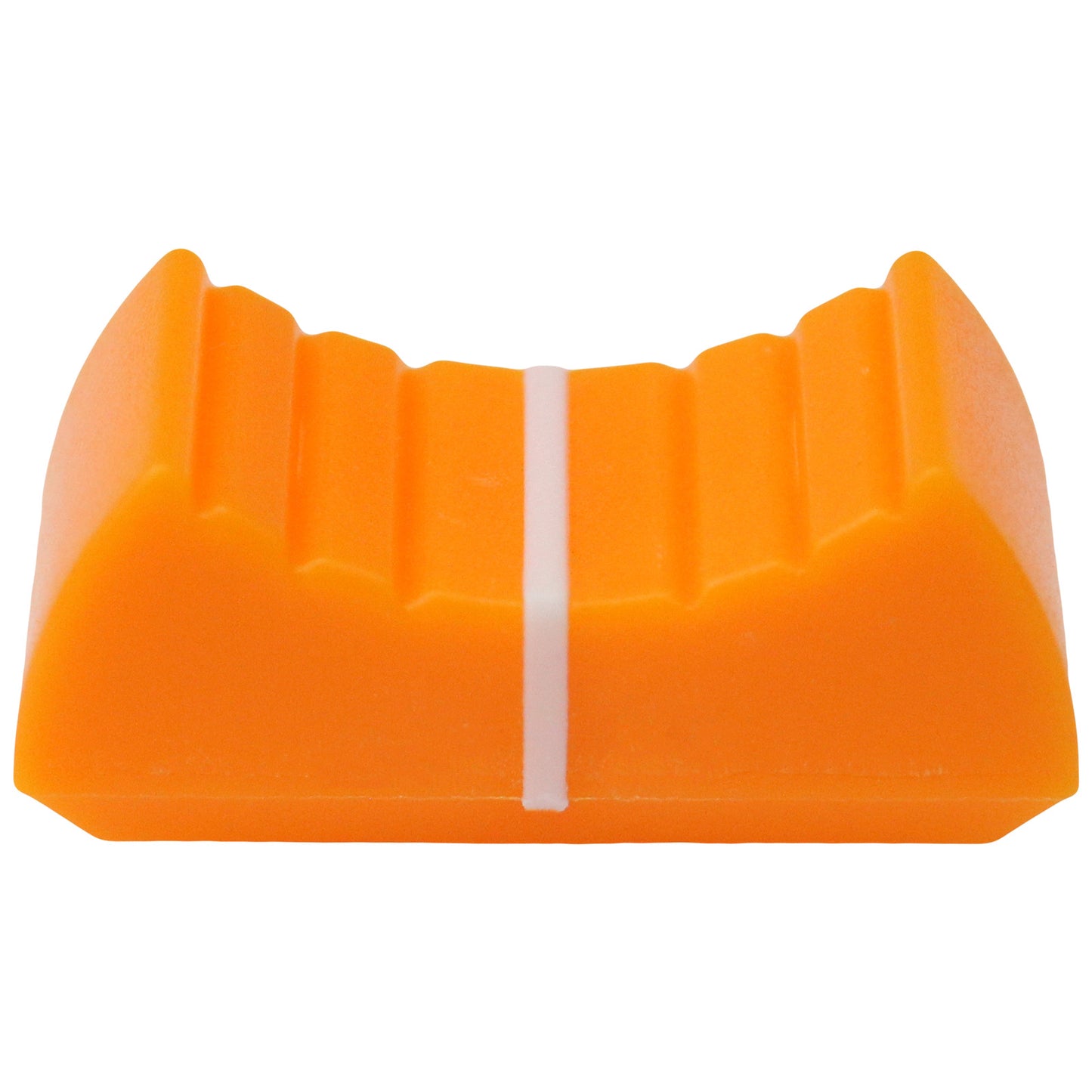

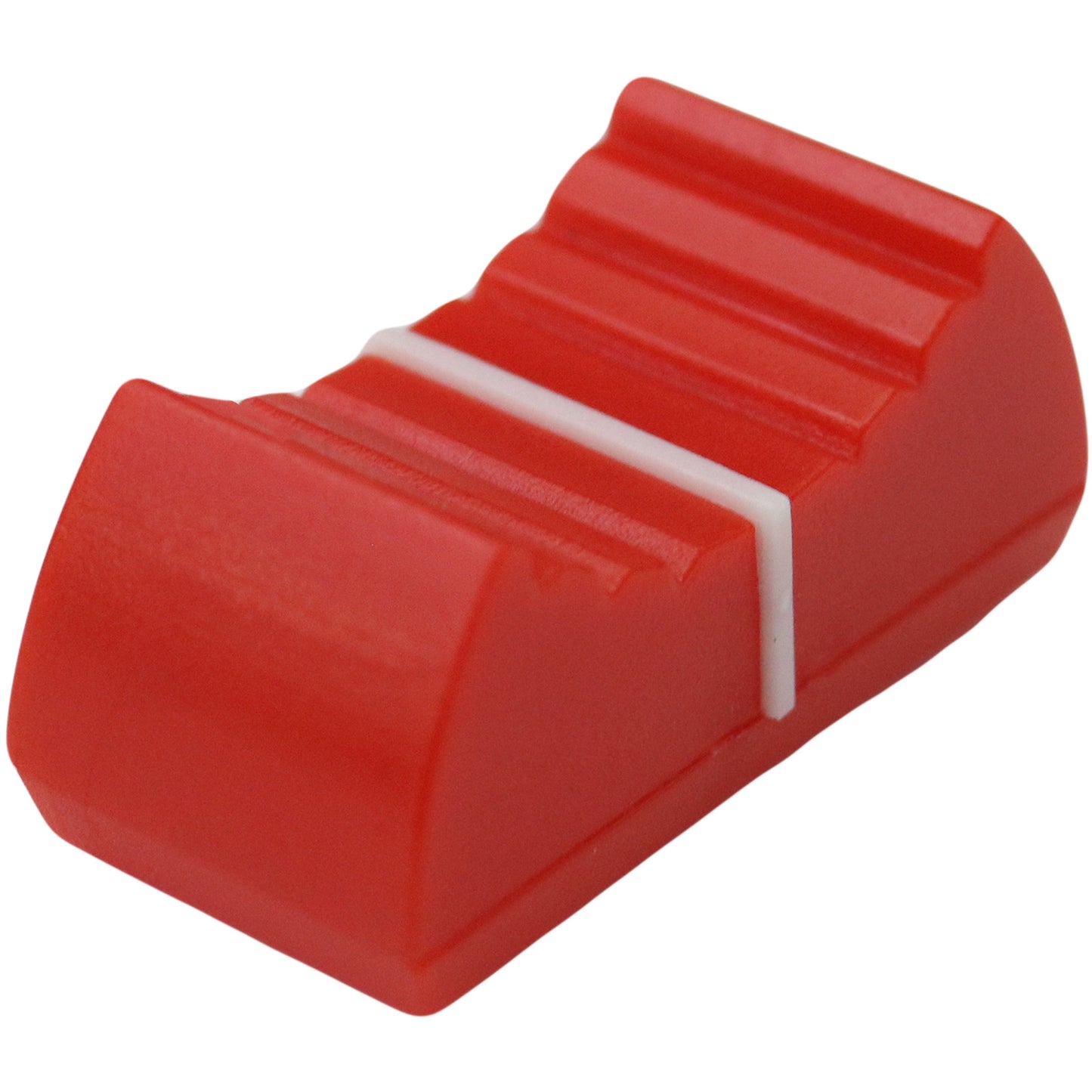

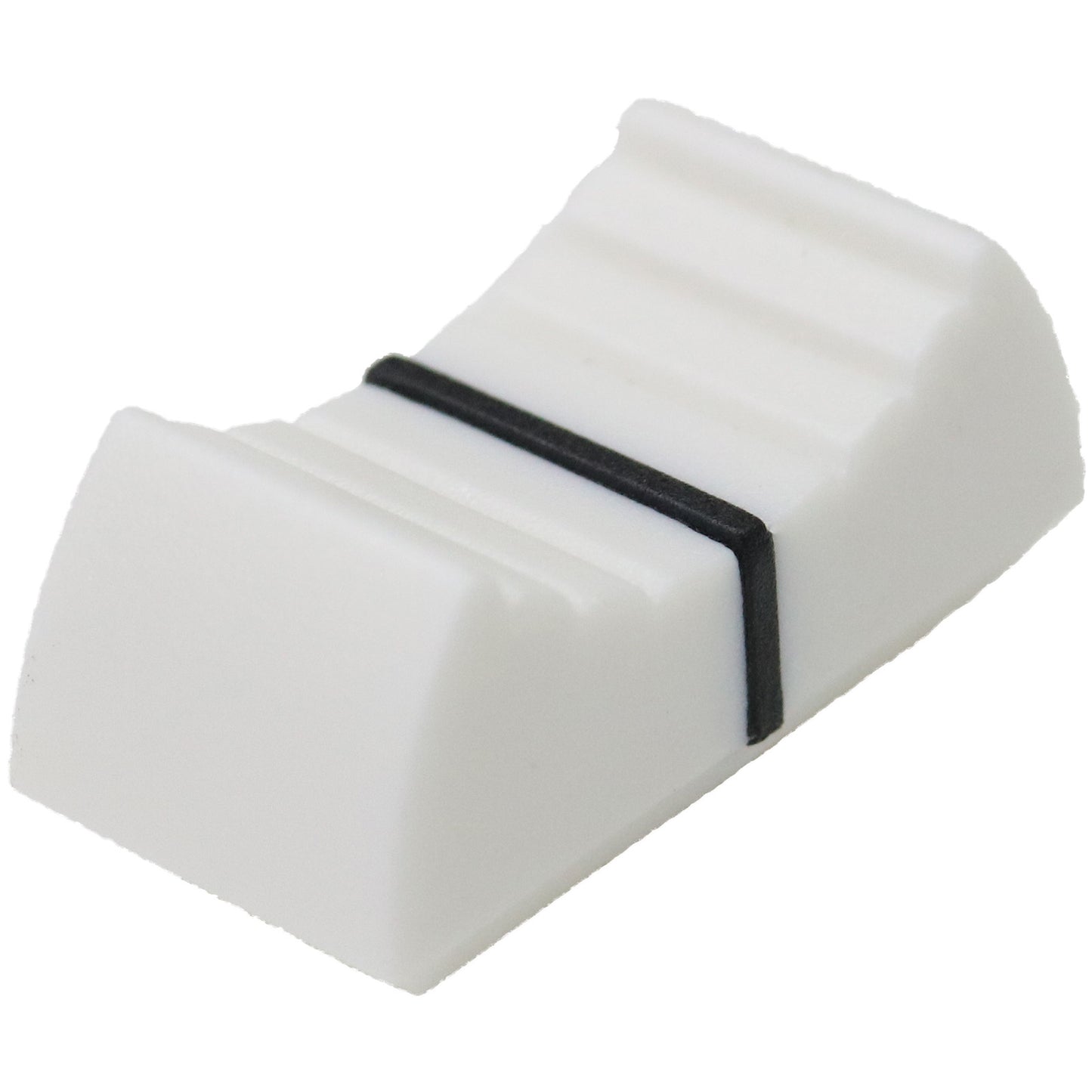

A series of colour body linear fader caps. These standard fader caps have an inward-curved top with groves for additional grip for firm finger operation. They feature a position indicator line through the centre that extends down the sides of the body for precise positioning.
| Quantity | Unit Price |
|---|---|
| 1+ | £0.28 |
| 10+ | £0.224 |
| 20+ | £0.196 |
| 50+ | £0.168 |
| 100+ | £0.14 |
| 500+ | £0.112 |
Couldn't load pickup availability
Fitting
| Knob Type | Slider |
|---|---|
| Shaft Type | Shaft |
| Shaft Fixing | Push-Fit |
| Hole Size | 4mm x 1.2mm |
Appearance
| Identity Colour | Grey |
|---|---|
| Body Colour | Grey |
| Accent Colour | |
| Position Indicator Colour | White |
| Position Indicator Shape | Line |
Measurements
| Minimum Shaft Depth | 3.0mm |
|---|---|
| Maximum Shaft Depth | 6.5mm |
| Body Diameter | mm |
| Maximum Diameter | mm |
| Width | 11.5mm |
| Length | 23.7mm |
| Height | 11.0mm |
| Additional Measurements | |
| Unit Weight | 1.25g |
Hole Type
4mm Shaft Hole

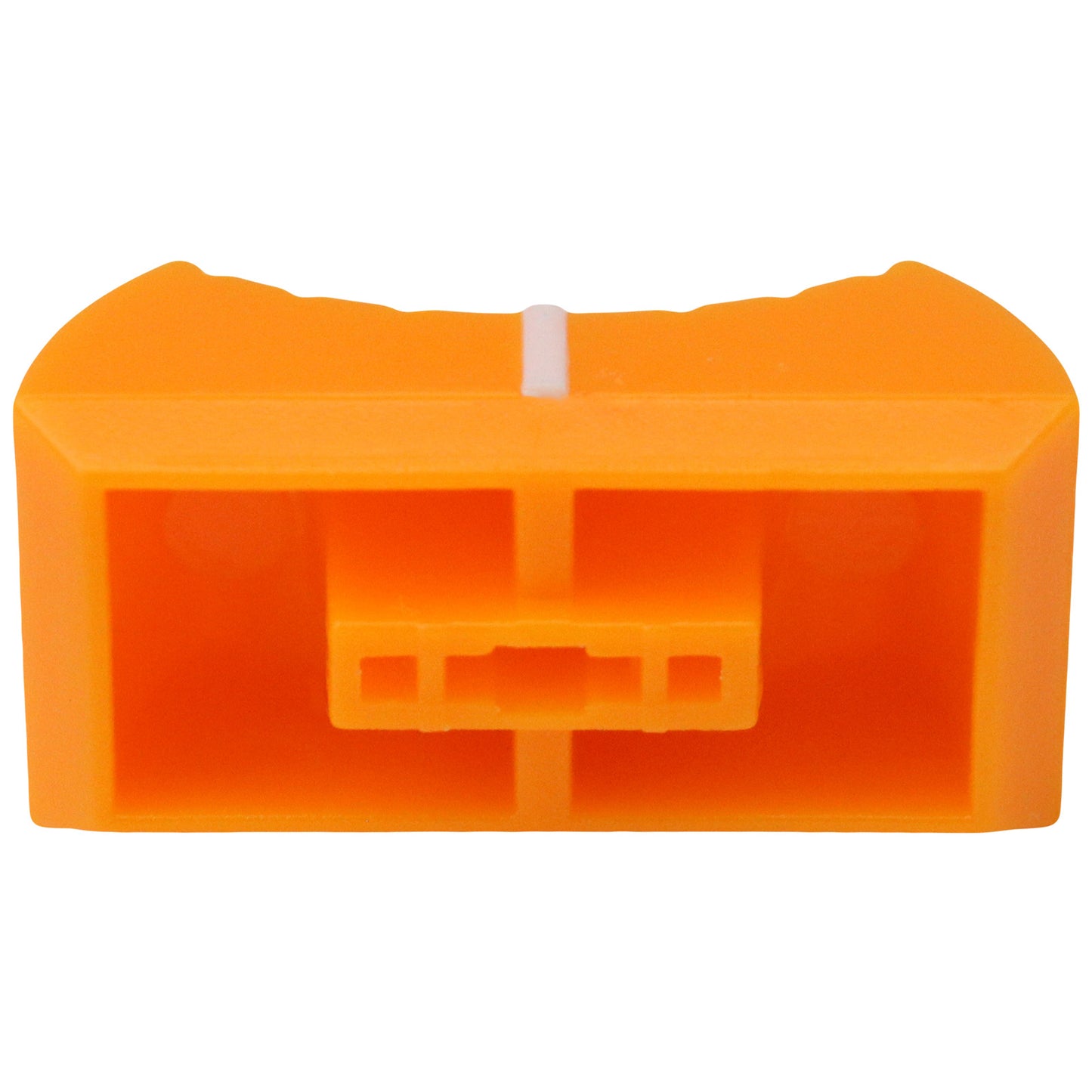

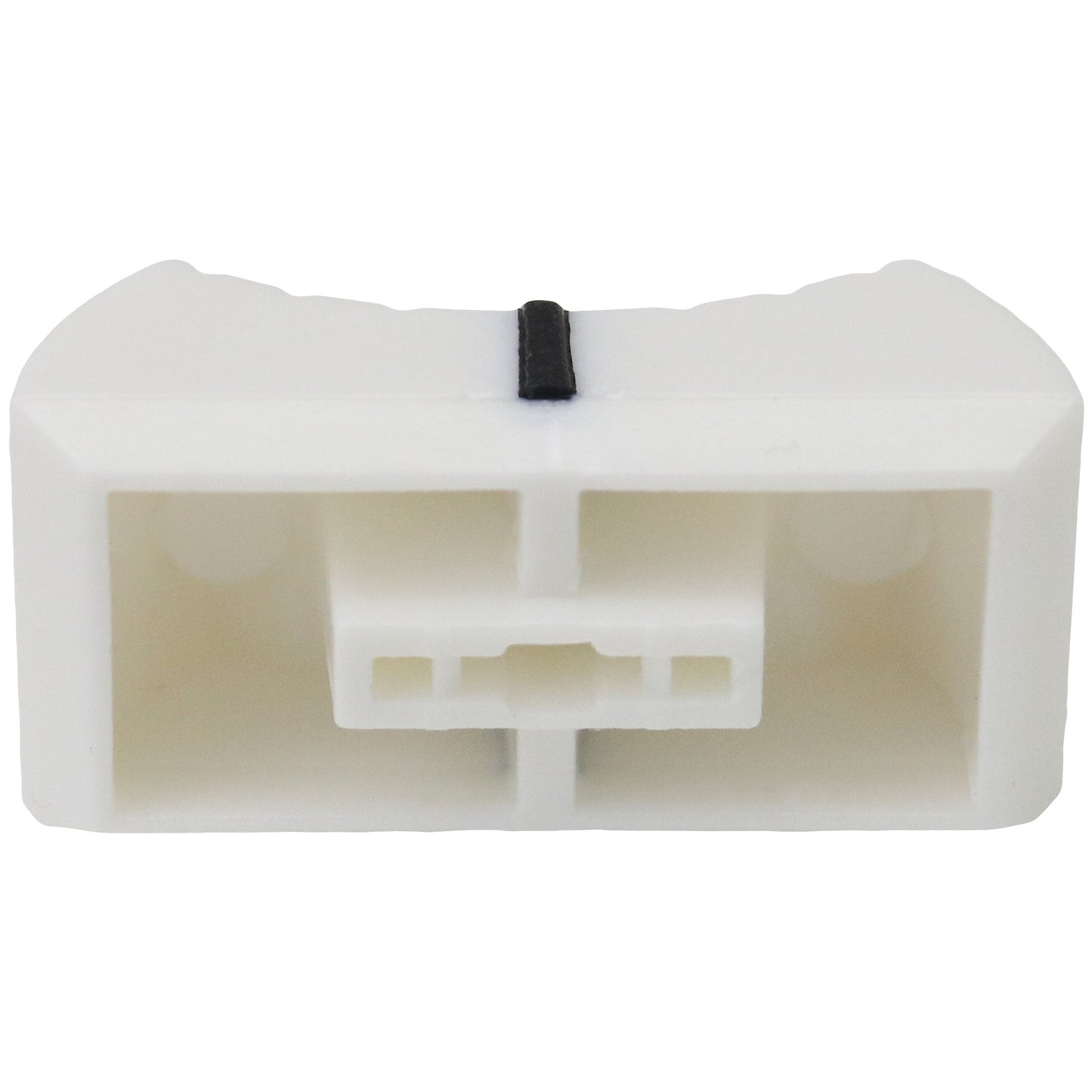

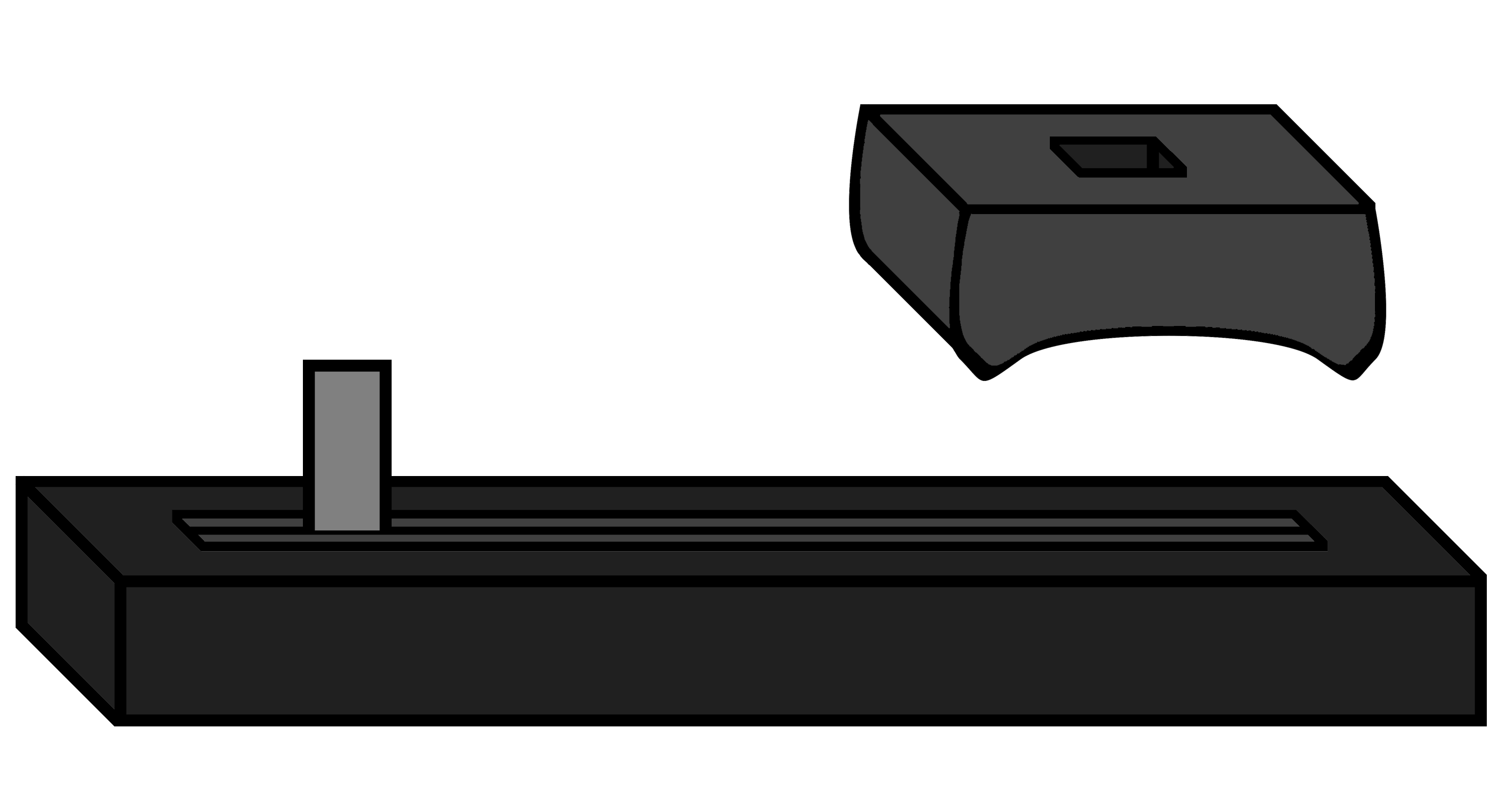

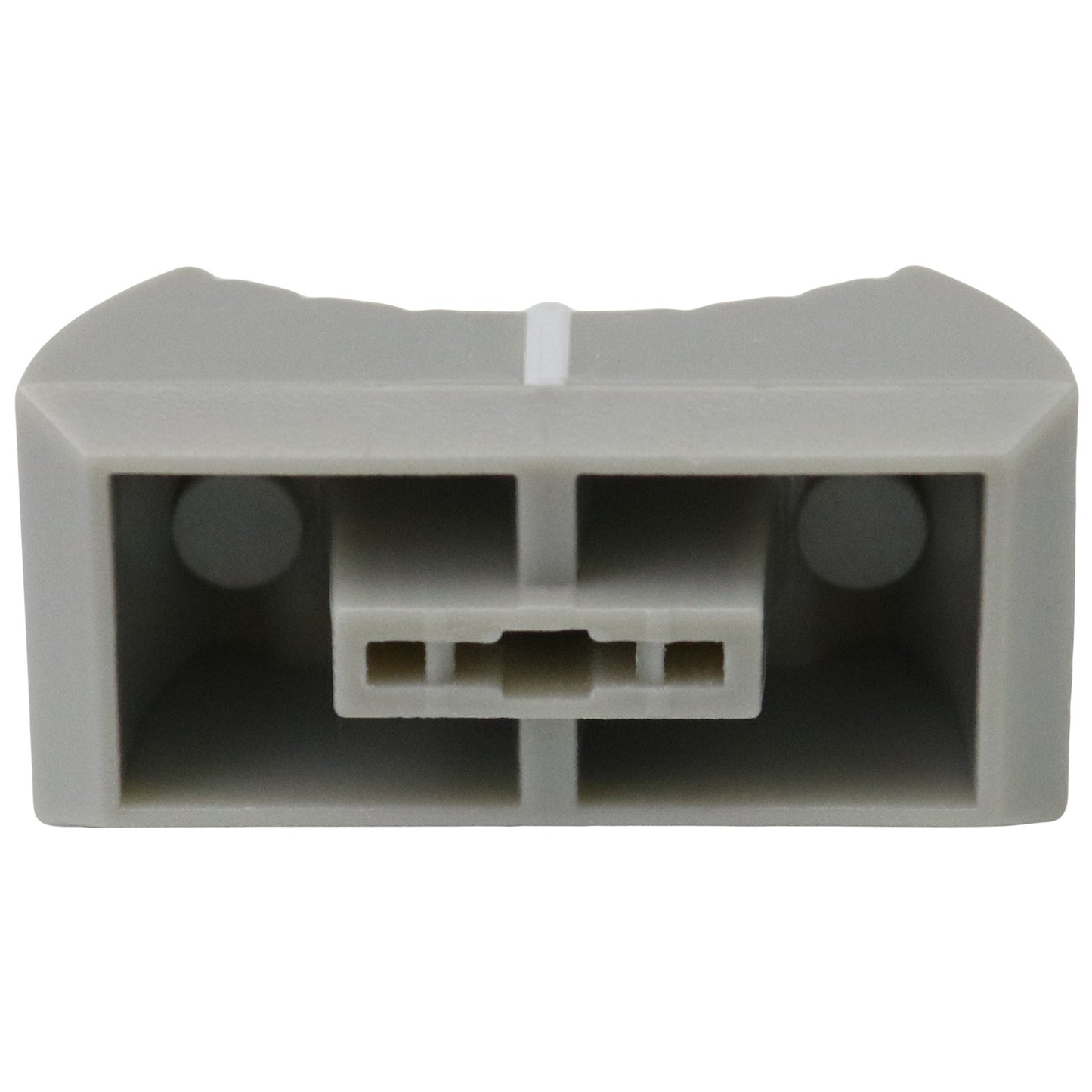

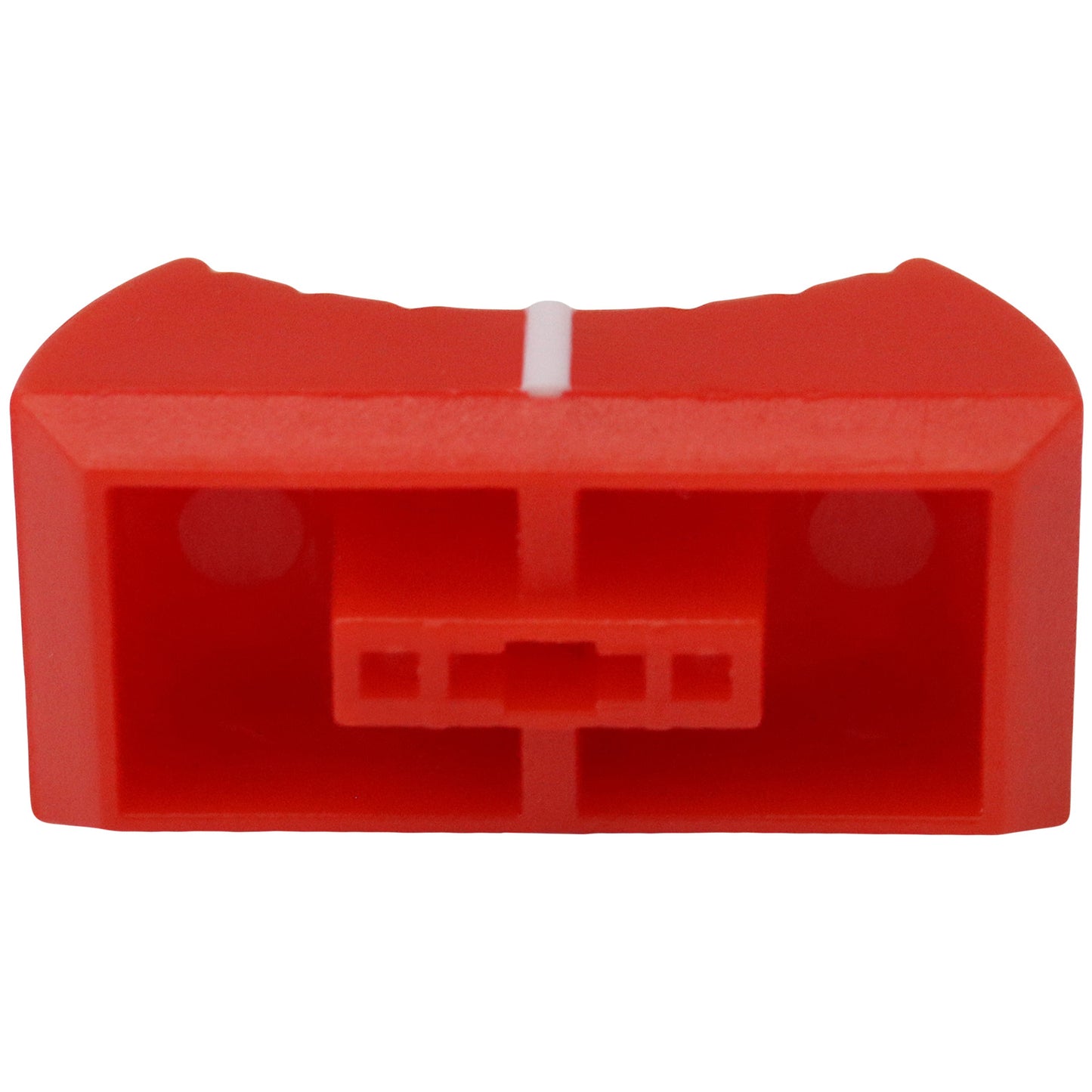

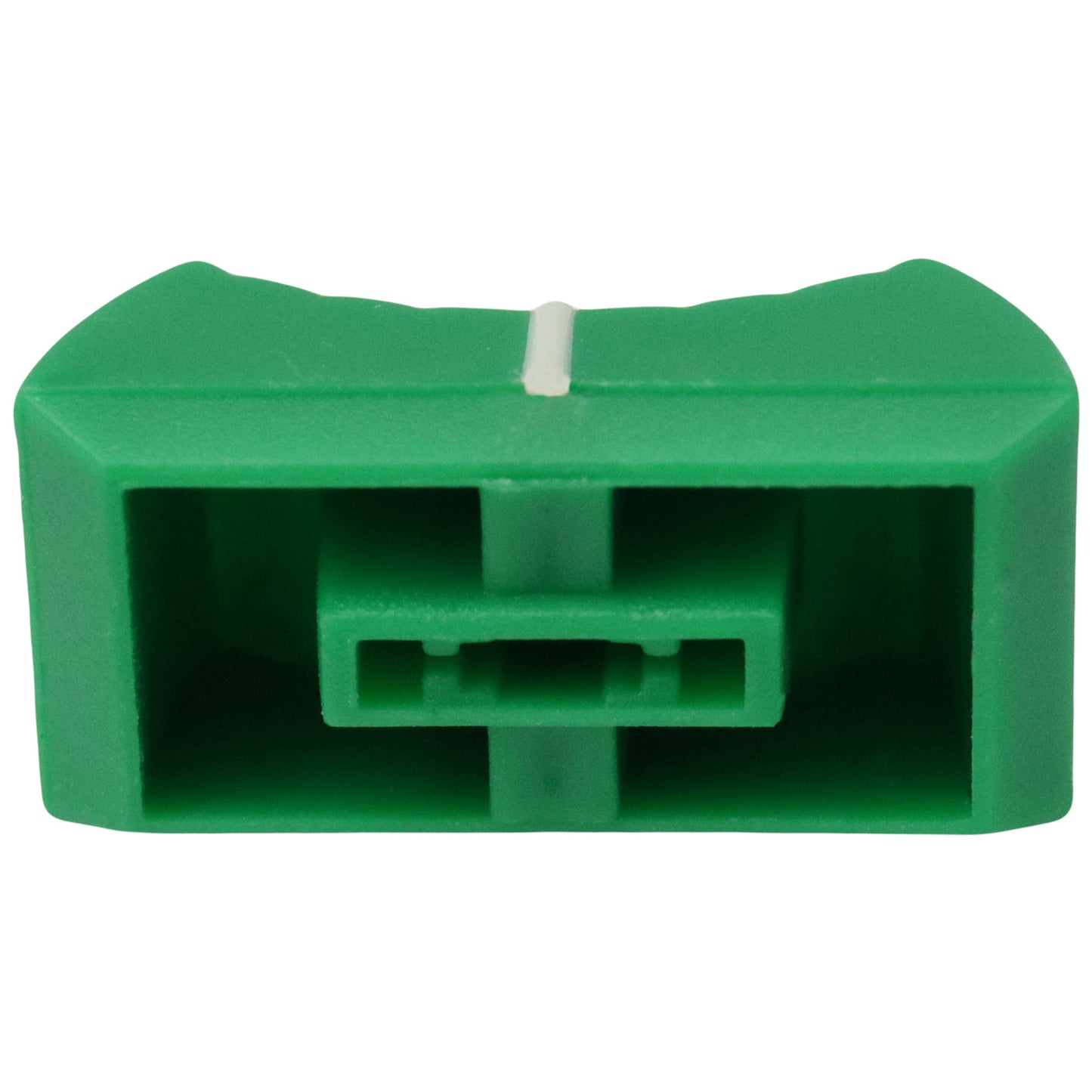

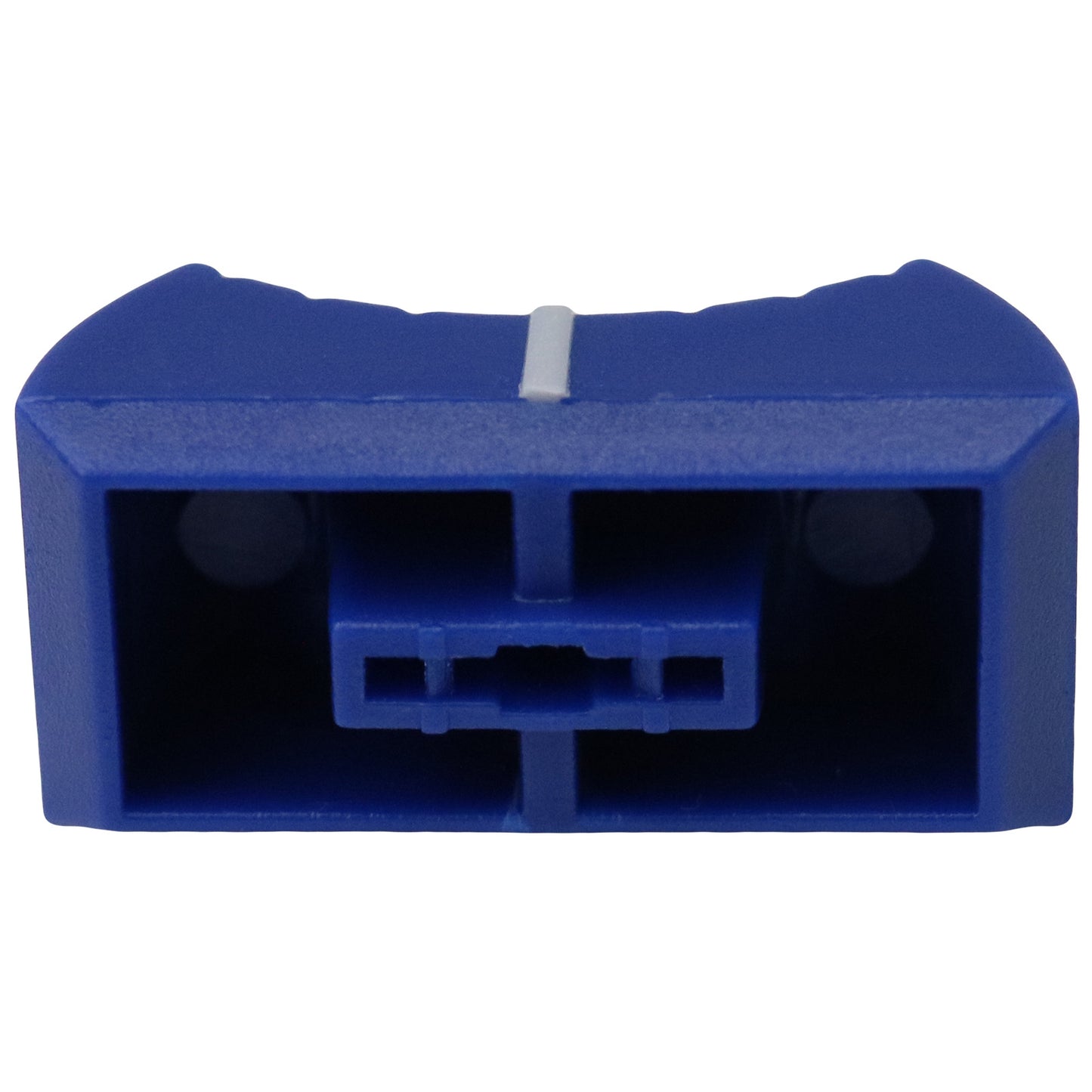

A control knob with a 4mm shaft hole will fit a 4mm x 1.2mm slider potentiometer shaft. The length of the hole (the dimension in direction of travel) is 4mm.
Measuring Slider Knobs
Read more about measuring Slider knobs here.
