Hex Grip Mixer Control Knob With Colour Ring
Hex Grip Mixer Control Knob With Colour Ring

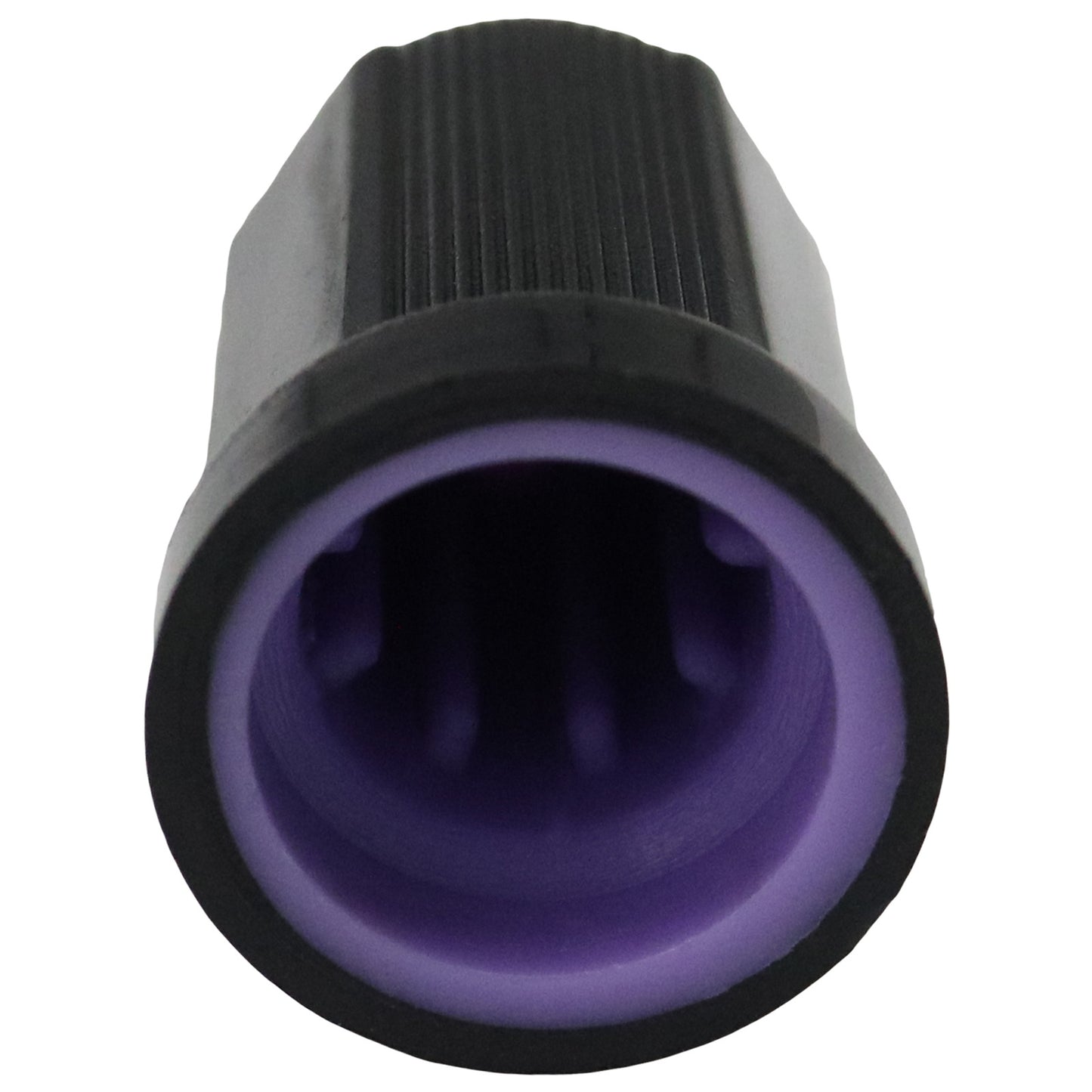

A series of black body rotary control knobs. These knobs feature a hex-shaped body with fine ridges on three of the surfaces for a strong finger grip area. A coloured line position indicator on the top of the cap provides positional information for the user and is accented by a coloured ring around the edge of the cap for additional colour identity. The knobs have a round skirt at the base.
| Quantity | Unit Price |
|---|---|
| 1+ | £0.24 |
| 10+ | £0.192 |
| 20+ | £0.168 |
| 50+ | £0.144 |
| 100+ | £0.12 |
| 500+ | £0.096 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | Splined |
| Shaft Fixing | Push-Fit |
| Hole Size | 6mm |
Appearance
| Identity Colour | White |
|---|---|
| Body Colour | Black |
| Accent Colour | White |
| Position Indicator Colour | White |
| Position Indicator Shape | Rectangle |
Measurements
| Minimum Shaft Depth | 8.5mm |
|---|---|
| Maximum Shaft Depth | 15.2mm |
| Body Diameter | 10.9mm |
| Maximum Diameter | 12.2mm |
| Width | mm |
| Length | mm |
| Height | 16.6mm |
| Additional Measurements | |
| Unit Weight | 0.97g |
Hole Type
Splined Hole
Knobs designed for splined shafts have holes with multiple grooves or ridges that correspond to the splines on the shaft. This splined hole creates a very tight and secure fit, preventing any movement between the knob and the shaft.
The position indicator can be placed in any of 18 different directions, in increments of 20°
The ridged interior of the hole ensures a strong connection, capable of handling high torque and frequent adjustments without the risk of slippage.
A control knob with a splined hole will not fit onto a round or D typ shaft.
