Rubber Soft Grip Vibrant Colour Body Mixer Knobs

Rubber Soft Grip Vibrant Colour Body Mixer Knobs

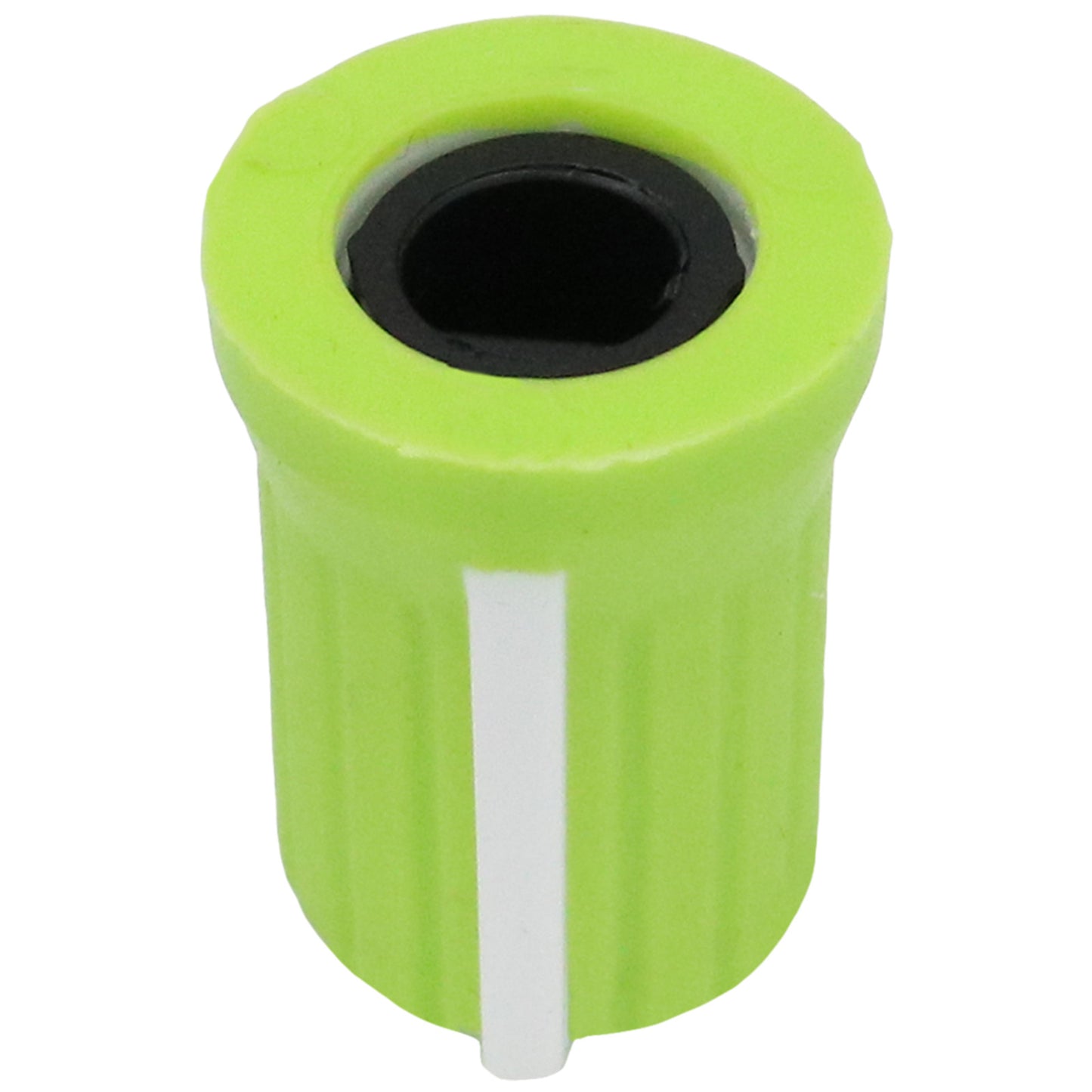

A series of soft-grip rotary control knobs. These knobs feature a rubber outer coating for a soft grip and a vivid appearance. They have a flat top and light ridging on the side for an enhanced grip area. A bold position indicator starts on the edge of the top cap and extends down to the skirt at the base. These knobs come with a fixing-insert that can be inserted as required into the knob body to allow fitting in the 0°, 90°, 180° or 270° position, making it suitable for almost all equipment that uses D-shat knobs.
Color
Quantity Unit Price
1+ £0.97
2+ £0.873
5+ £0.8245
10+ £0.776
20+ £0.7275
50+ £0.679
View full details

Fitting

Knob TypeRotary
Shaft TypeDX
Shaft FixingPush-Fit
Hole Size6mm

Appearance

Identity ColourBlack
Body ColourBlack
Accent Colour
Position Indicator ColourWhite
Position Indicator ShapeLine

Measurements

Minimum Shaft Depth9.5mm
Maximum Shaft Depth15.1mm
Body Diameter12.8mm
Maximum Diameter15.0mm
Widthmm
Lengthmm
Height19.4mm
Additional MeasurementsPosition Indicator Width: 1.9mm
Unit Weight1.88g
Rubber Soft Grip Vibrant Colour Body Mixer Knobs

Hole Type

D Shaft Hole

A D-shaft knob features a hole with a D-shaped cross-section, having one flat side and the rest round. This configuration ensures that the knob fits snugly onto the shaft, preventing any slippage and provides absolute psoitoning of the position indicator.

The flat side of the hole aligns with the flattened side of the D-shaft, providing precise control and secure attachment. This type of hole is commonly found in knobs used in audio equipment, industrial controls, and automotive applications.

This type of hole dictates the angle of the position indicator, relative to the flat of the D shape. This is measured in degrees of rotation being either 0°, 90°, 180° or 270°.

A View from the underside of the knob showing the possible positions of the D flat relative to the position indicator. This knob features a removable insert that allows the knob to be in any position listed below:

Measuring Rotary Knobs

Body Diameter

The body diameter is measured at the base of the gripping surface and excludes any non-grippable flange or skirt and also excludes any protruding pinters or tails.

This knob has a body diameter of 12.8mm.

Maximum Diameter

The maximum diameter is measured at the widest part of the knob and excludes any non-grippable flange or skirt and also excludes any protruding pinters or tails. The widest round part of the knob.

This knob has a maximum diameter of 15.0mm.

Minimum Shaft Depth

The minimum shaft depth is the minimum amount that the shaft must be inserted into the body of the knob, in order to make suitable contact with the shaft fixing.

This knob has a minimum shaft depth of 9.5mm.

Maximum Shaft Depth

The maximum shaft depth is the maximum amount that the shaft can be inserted into the body of the knob. This is measured from the lowest part of the base of the knob to the bottom of the hole.

This knob has a minimum shaft depth of 15.1mm.

Height

The height of the knob is measured from the lowest part to the highest including any pointers, inserts, skirts or domed end caps.

This knob has a height of 19.4mm.

Clearance

The clearance is the space between the bottom of the knob and the equipment it is mounted to. While this is not a direct specification of the knob it is important to consider this dimension when selecting a control knob.

An appropiate level of clearence between the base of the knob and the surface of the equipment is nessessary to ensure smooth control and to prevent damage. If your equipment has a recessed area around the control knob shaft you will need to consider this in conjunction with the maximum shaft depth and maximum diameter.
