8mm Colour Body Linear Slider / Fader Caps

8mm Colour Body Linear Slider / Fader Caps

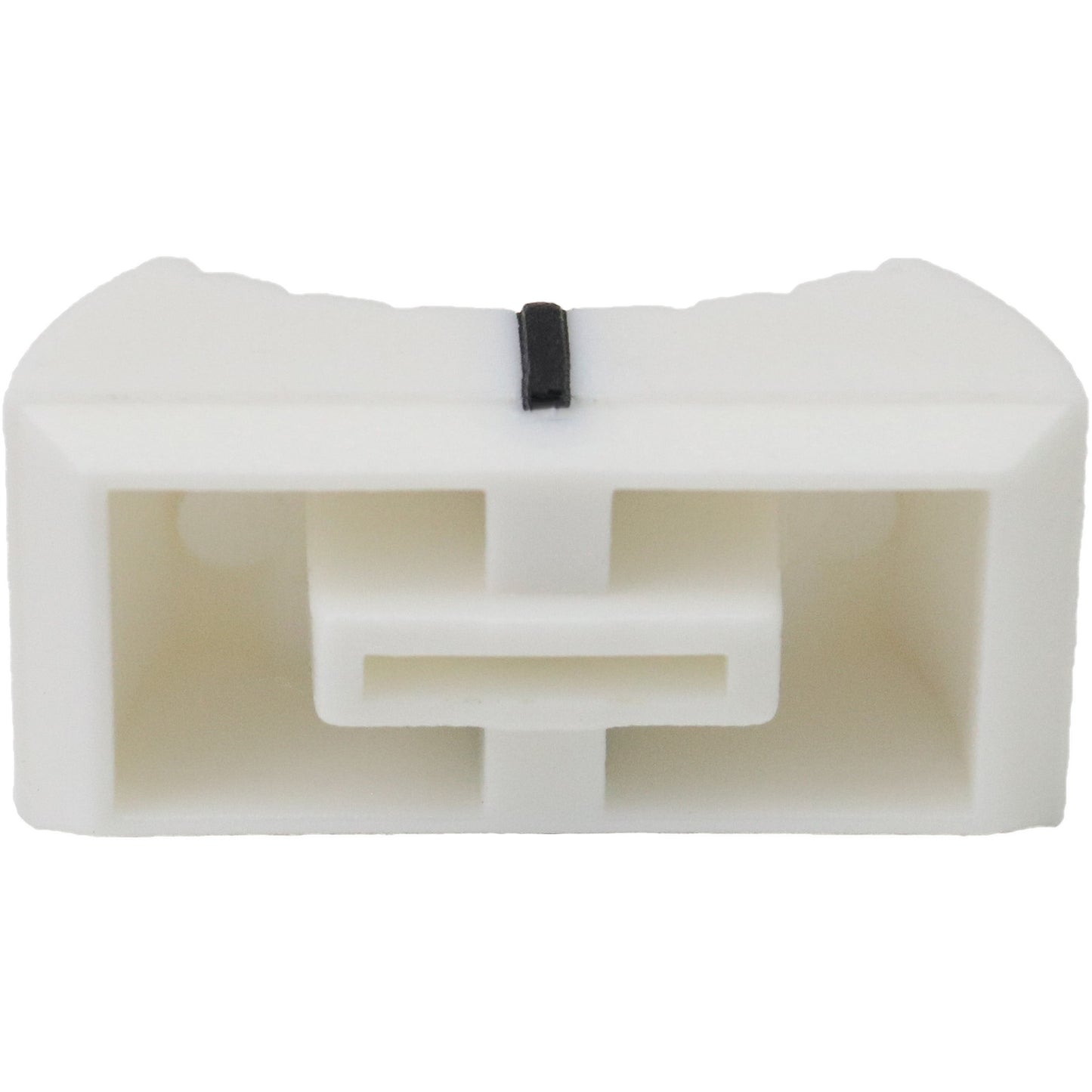

A series of colour body linear fader caps. These standard fader caps have an inward-curved top with groves for additional grip for firm finger operation. They feature a position indicator line through the centre that extends down the sides of the body for precise positioning.
Colour
Quantity Unit Price
1+ £0.28
10+ £0.224
20+ £0.196
50+ £0.168
100+ £0.14
500+ £0.112
View full details

Fitting

Knob TypeSlider
Shaft TypeShaft
Shaft FixingPush-Fit
Hole Size8mm x 1.2mm

Appearance

Identity ColourGrey
Body ColourGrey
Accent Colour
Position Indicator ColourWhite
Position Indicator ShapeLine

Measurements

Minimum Shaft Depth3.0mm
Maximum Shaft Depth6.5mm
Body Diametermm
Maximum Diametermm
Width11.5mm
Length23.7mm
Height11.0mm
Additional Measurements
Unit Weight1.25g
8mm Colour Body Linear Slider / Fader Caps

Hole Type

8mm Shaft Hole

A control knob with a 8mm shaft hole will fit a 8mm x 1.2mm slider potentiometer shaft. The length of the hole (the dimension in direction of travel) is 8mm.

Measuring Slider Knobs

Width

The width is measured from one side of the body to the other at it's widest point, including any protruding position indicator markings. This dimension is perpendicular to the slider movement direction.

This knob has a width of 11.5mm.

Length

The length is measured from the top to the bottom, at the widest part of the body. This dimension is in the same orientation as the slider movement direction.

This knob has a length of 23.7mm.

Minimum Shaft Depth

The minimum shaft depth is the minimum amount that the shaft must be inserted into the body of the knob, in order to make suitable contact with the shaft fixing.

This knob has a minimum shaft depth of 3.0mm.

Maximum Shaft Depth

The maximum shaft depth is the maximum amount that the shaft can be inserted into the body of the knob. This is measured from the lowest part of the base of the knob to the bottom of the hole.

This knob has a minimum shaft depth of 6.5mm.

Height

The height of the knob is measured from the lowest part to the highest including any position indicators.

This knob has a height of 11.0mm.

Clearance

The clearance is the space between the bottom of the knob and the equipment it is mounted to. While this is not a direct specification of the knob it is important to consider this dimension when selecting a control knob.

An appropiate level of clearence between the base of the knob and the surface of the equipment is nessessary to ensure smooth control and to prevent damage.
