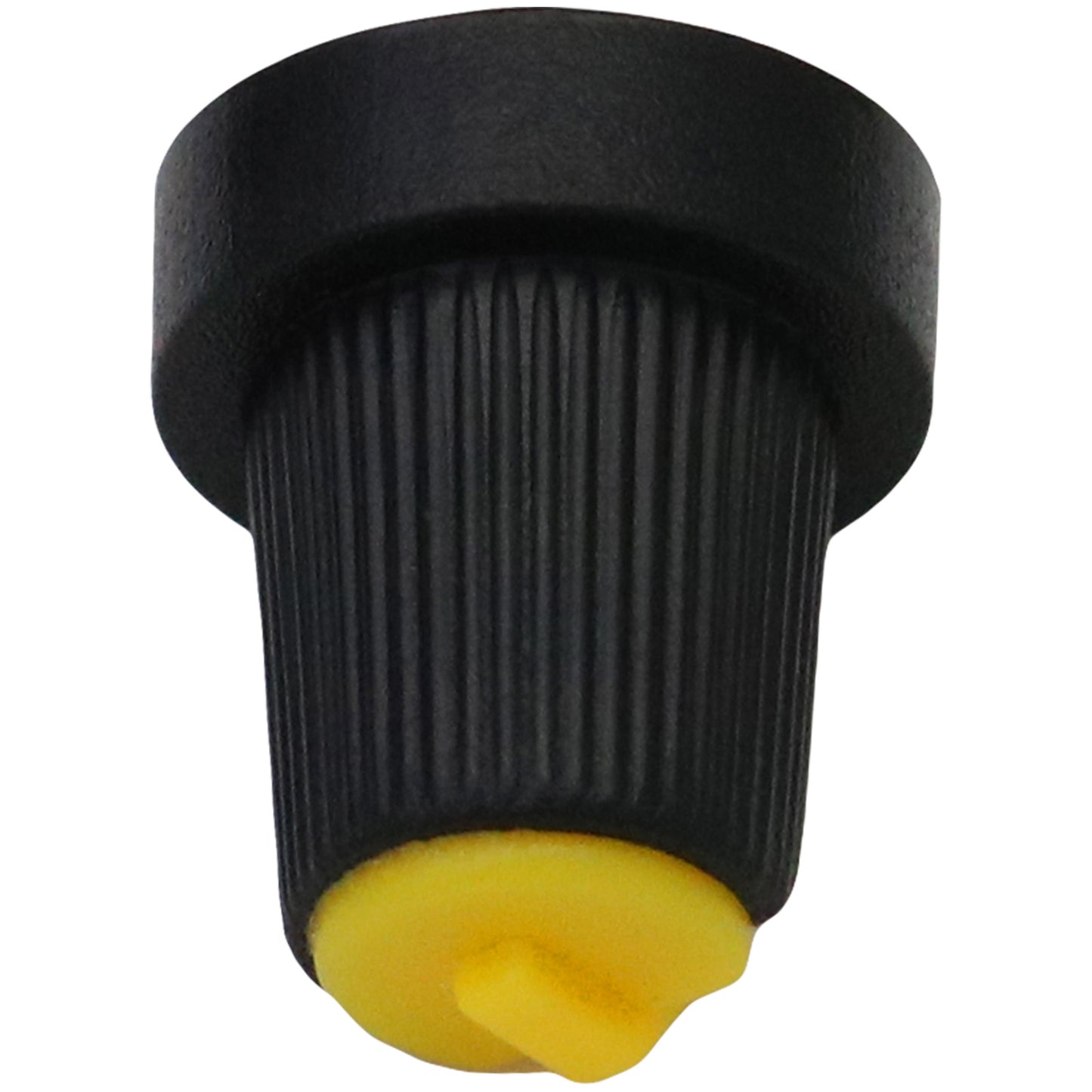

AG5 Black Body Plastic Colour Indicator Control Knob
AG5 Black Body Plastic Colour Indicator Control Knob
| Quantity | Unit Price |
|---|---|
| 1+ | £0.23 |
| 10+ | £0.184 |
| 20+ | £0.161 |
| 50+ | £0.138 |
| 100+ | £0.115 |
| 500+ | £0.092 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | Splined |
| Shaft Fixing | Push-Fit |
| Hole Size | 6mm |
Appearance
| Identity Colour | White |
|---|---|
| Body Colour | Black |
| Accent Colour | White |
| Position Indicator Colour | White |
| Position Indicator Shape | Ridged Line |
Measurements
| Minimum Shaft Depth | 9.3mm |
|---|---|
| Maximum Shaft Depth | 15.7mm |
| Body Diameter | 11.5mm |
| Maximum Diameter | 15.4mm |
| Width | mm |
| Length | mm |
| Height | 18.0mm |
| Additional Measurements | Pointer Width: 1.7mm |
| Unit Weight | 1.03g |
Hole Type
Splined Hole
Knobs designed for splined shafts have holes with multiple grooves or ridges that correspond to the splines on the shaft. This splined hole creates a very tight and secure fit, preventing any movement between the knob and the shaft.
The position indicator can be placed in any of 18 different directions, in increments of 20°
The ridged interior of the hole ensures a strong connection, capable of handling high torque and frequent adjustments without the risk of slippage.
A control knob with a splined hole will not fit onto a round or D typ shaft.
Measuring Rotary Knobs
Body Diameter
The body diameter is measured at the base of the gripping surface and excludes any non-grippable flange or skirt and also excludes any protruding pinters or tails.
This knob has a body diameter of 11.5mm.
Maximum Diameter
The maximum diameter is measured at the widest part of the knob and excludes any non-grippable flange or skirt and also excludes any protruding pinters or tails. The widest round part of the knob.
This knob has a maximum diameter of 15.4mm.
Minimum Shaft Depth
The minimum shaft depth is the minimum amount that the shaft must be inserted into the body of the knob, in order to make suitable contact with the shaft fixing.
This knob has a minimum shaft depth of 9.3mm.
Maximum Shaft Depth
The maximum shaft depth is the maximum amount that the shaft can be inserted into the body of the knob. This is measured from the lowest part of the base of the knob to the bottom of the hole.
This knob has a minimum shaft depth of 15.7mm.
Height
The height of the knob is measured from the lowest part to the highest including any pointers, inserts, skirts or domed end caps.
This knob has a height of 18.0mm.
Clearance
The clearance is the space between the bottom of the knob and the equipment it is mounted to. While this is not a direct specification of the knob it is important to consider this dimension when selecting a control knob.
An appropiate level of clearence between the base of the knob and the surface of the equipment is nessessary to ensure smooth control and to prevent damage. If your equipment has a recessed area around the control knob shaft you will need to consider this in conjunction with the maximum shaft depth and maximum diameter.
