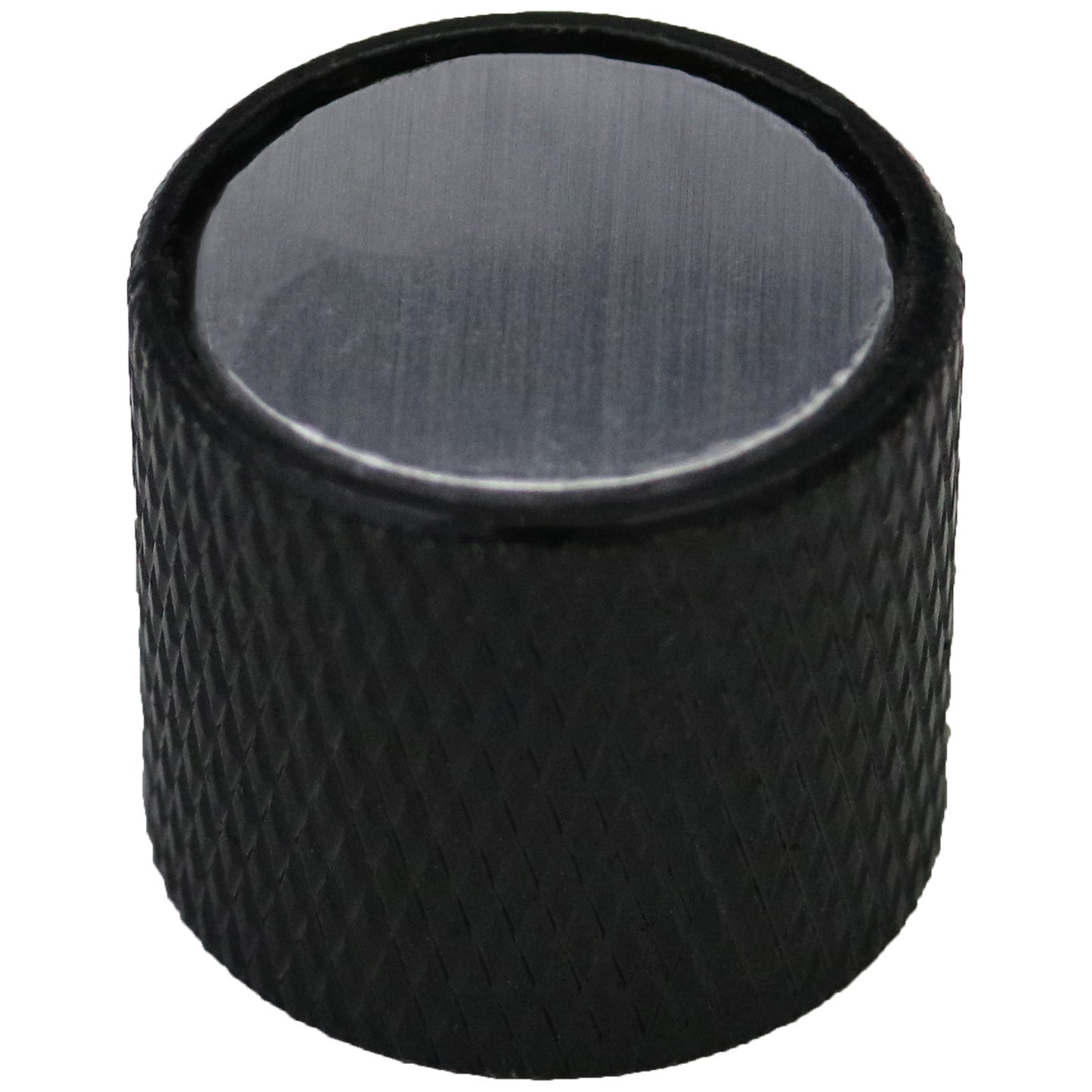

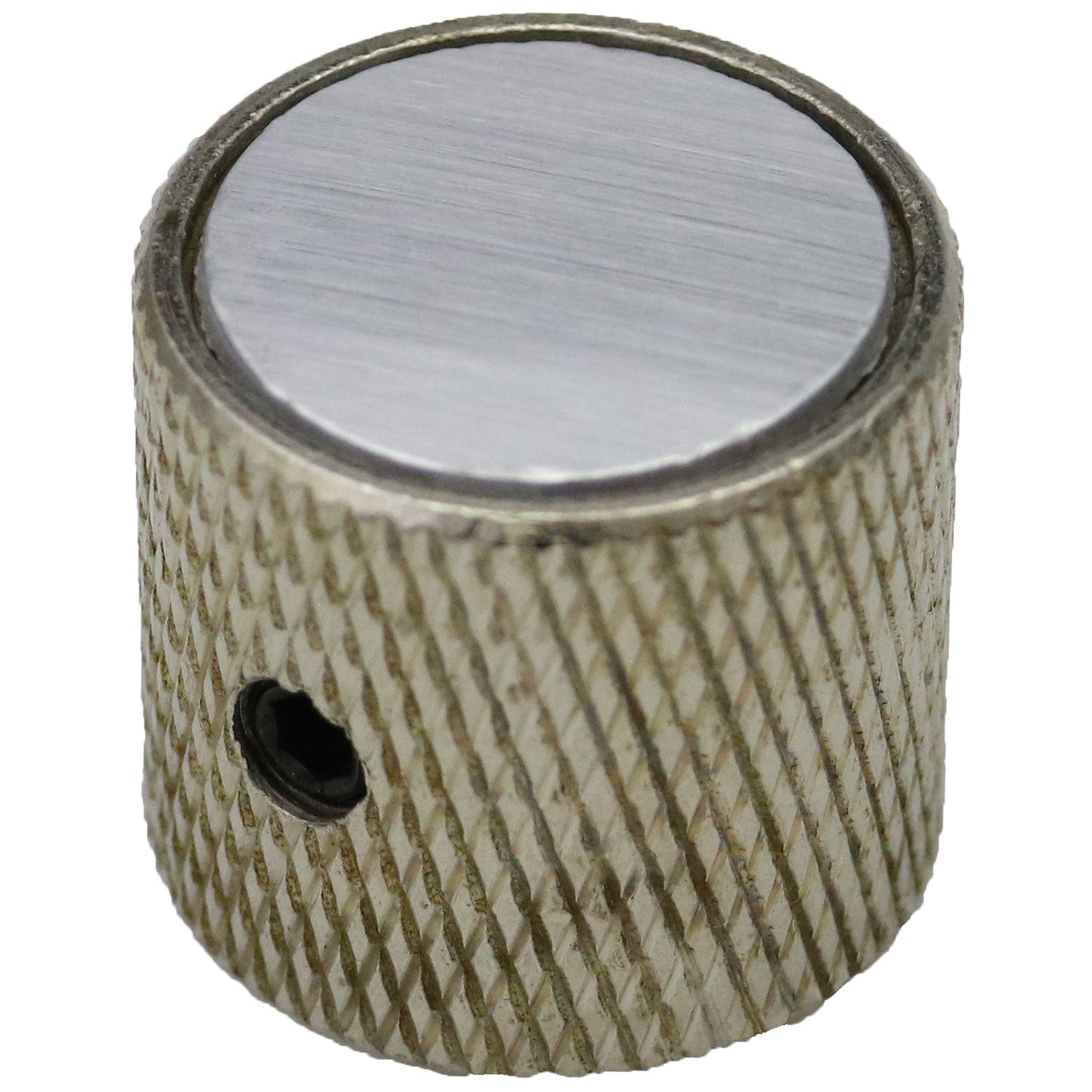

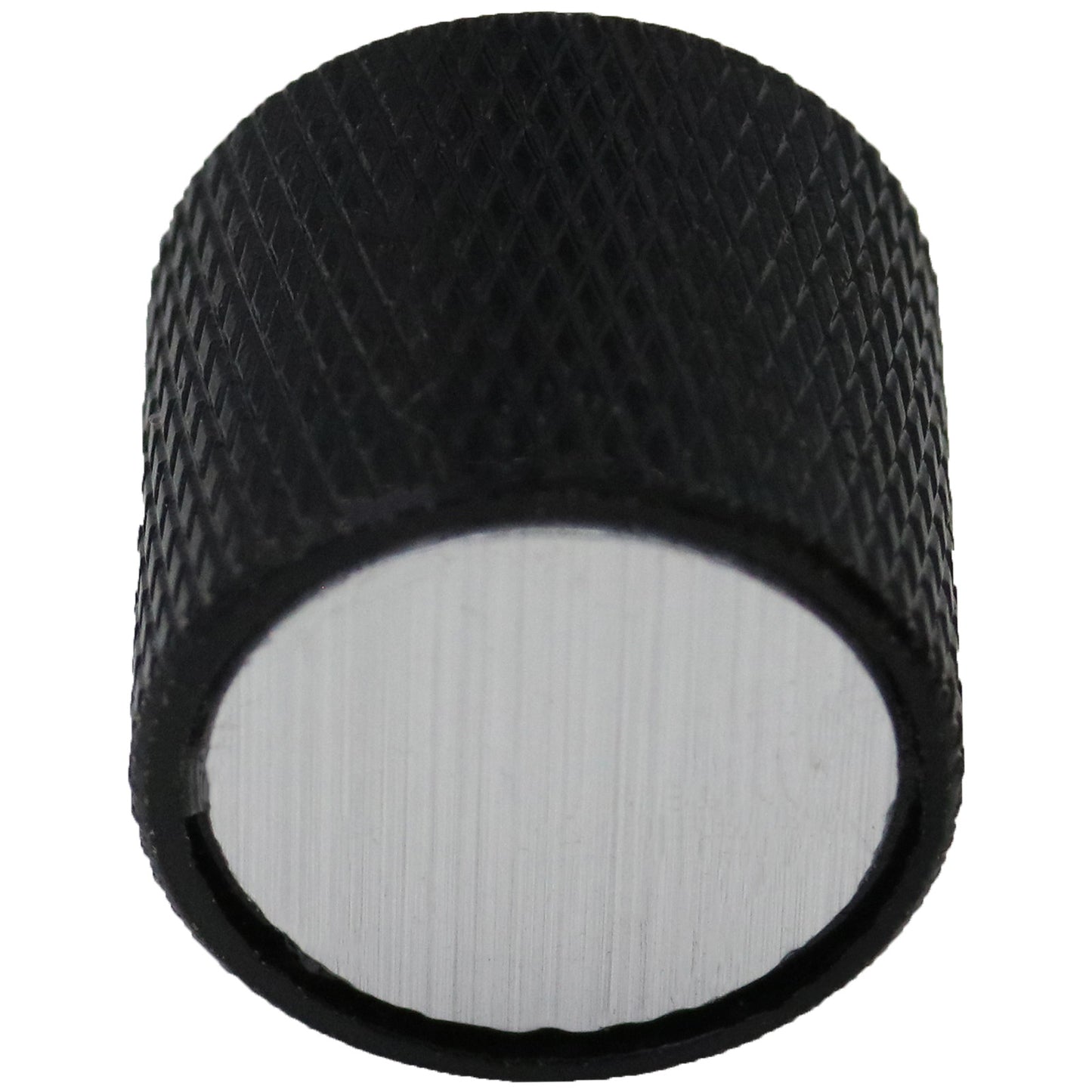

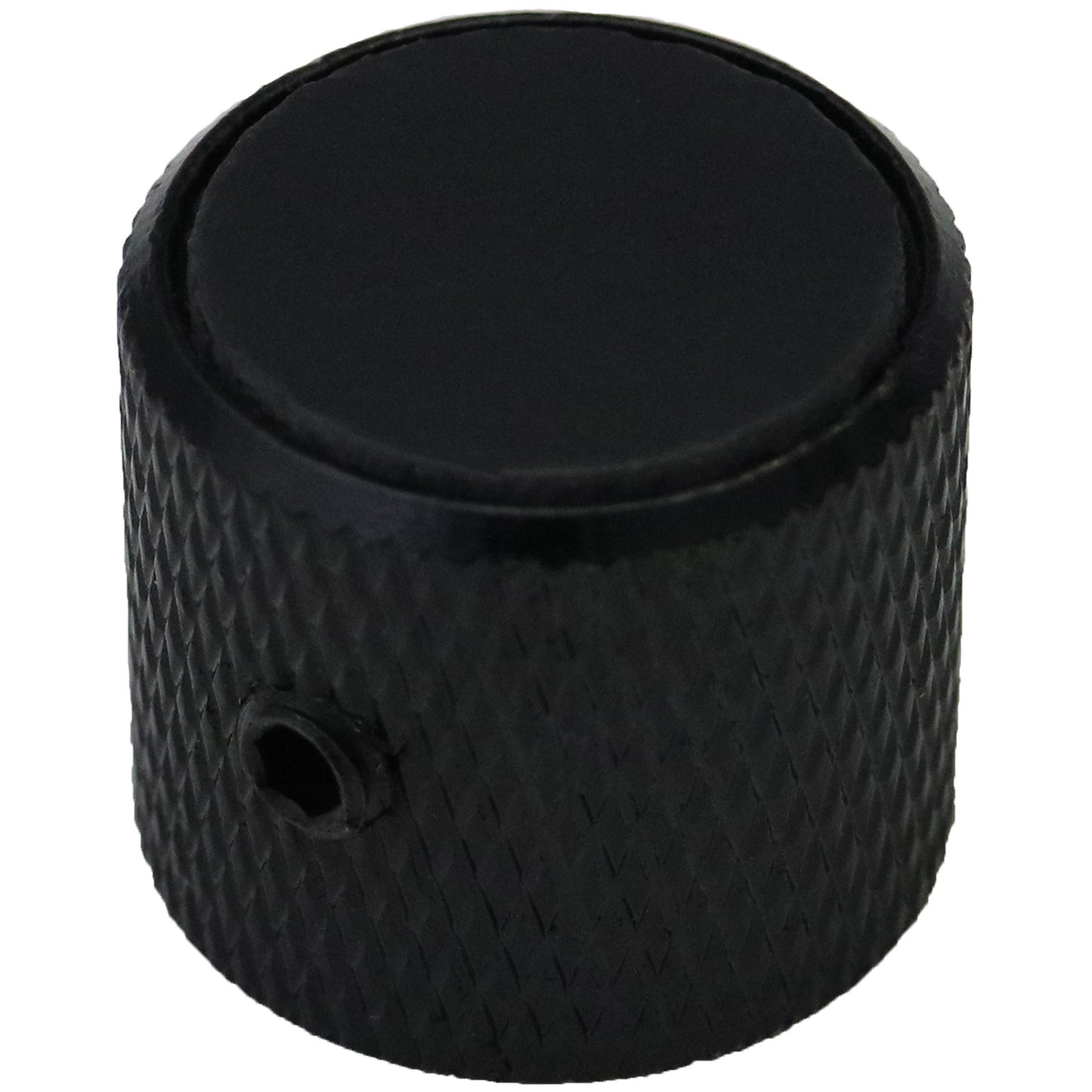

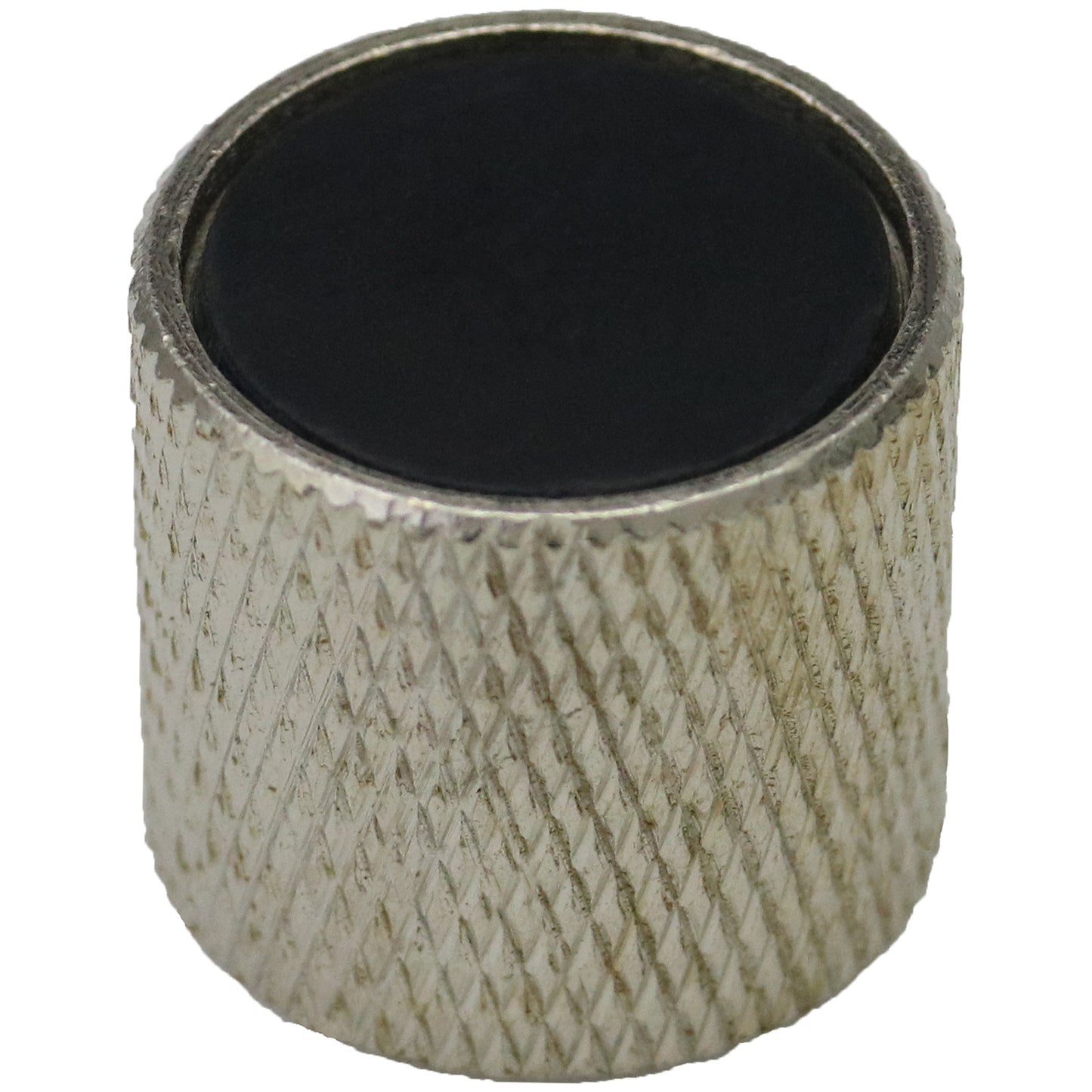

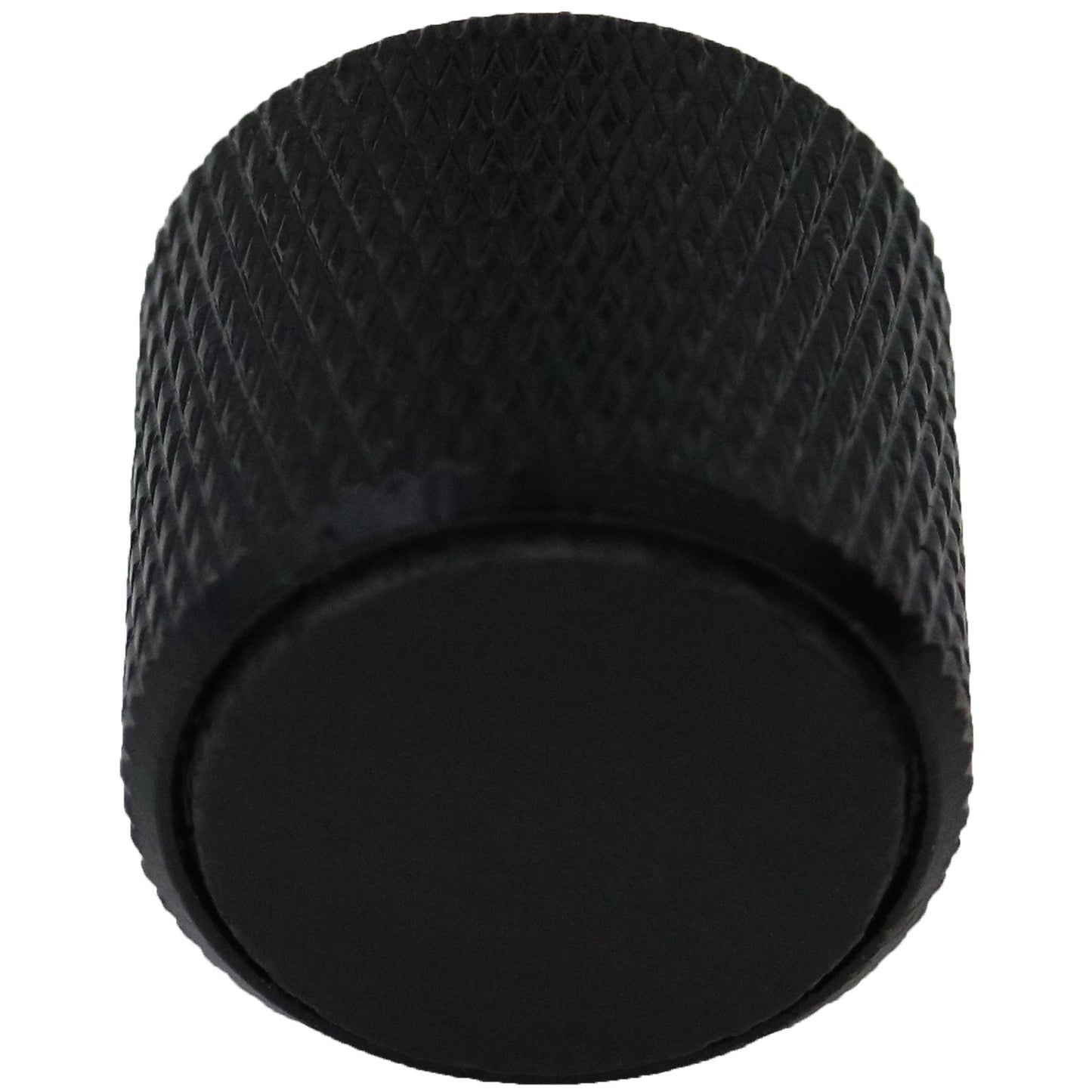

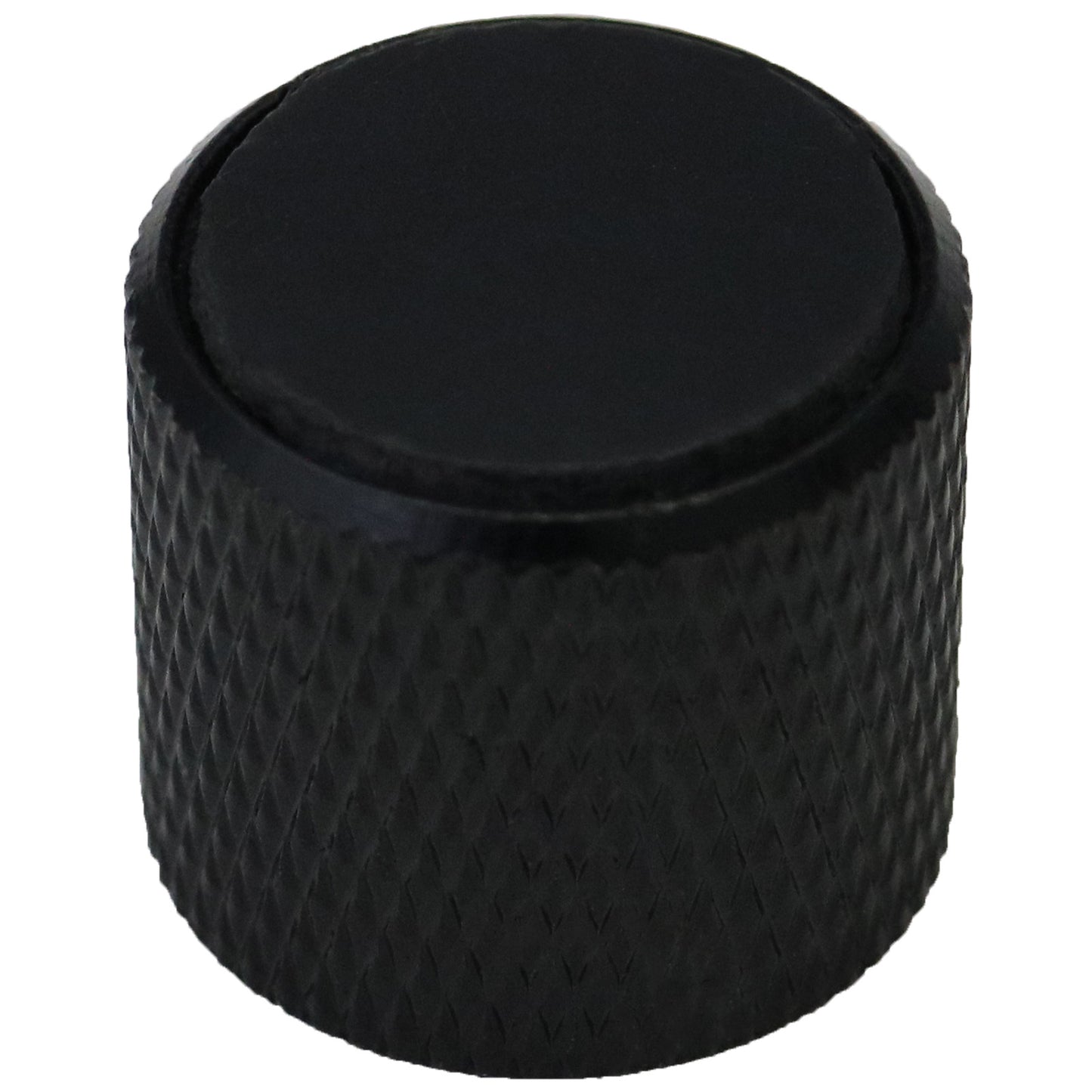

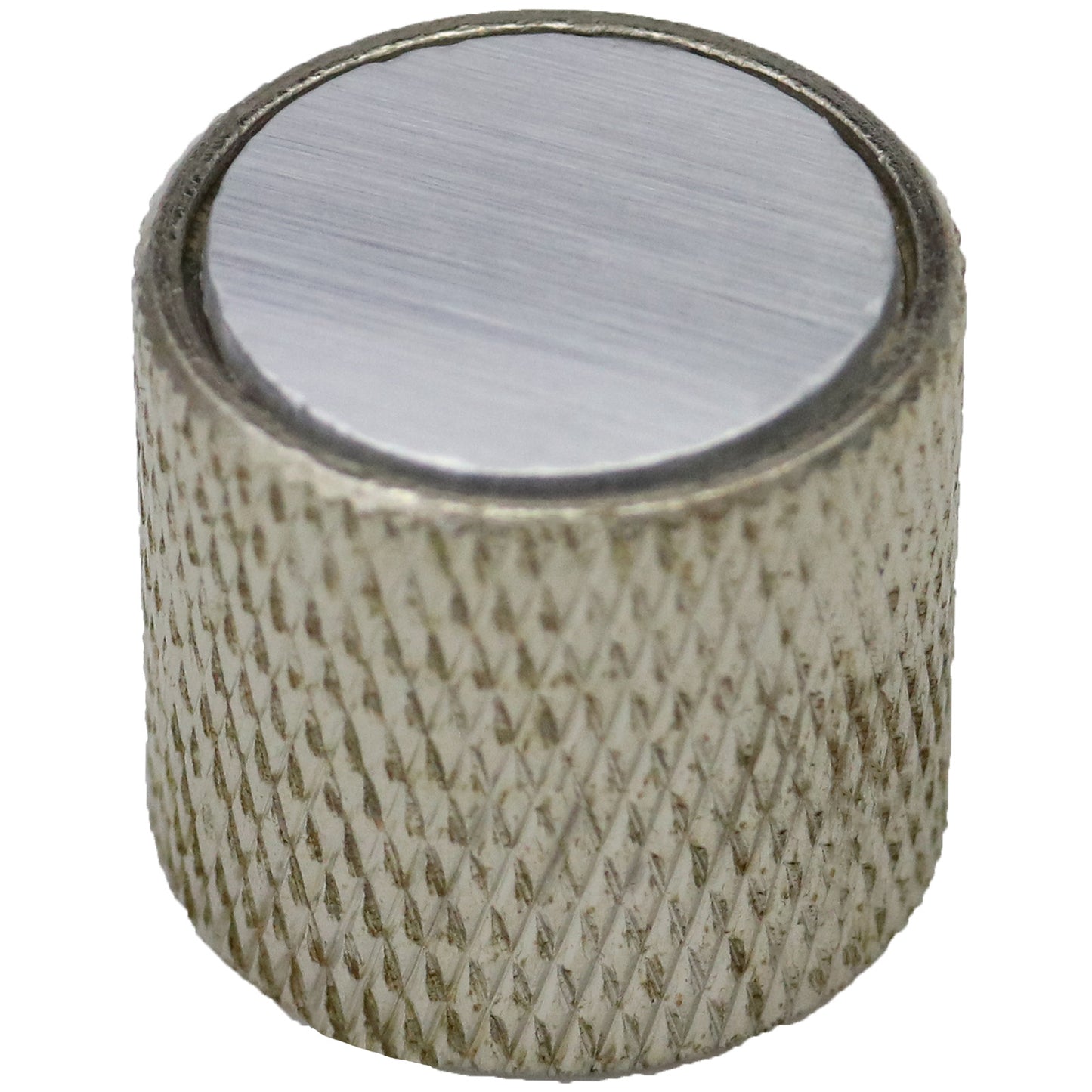

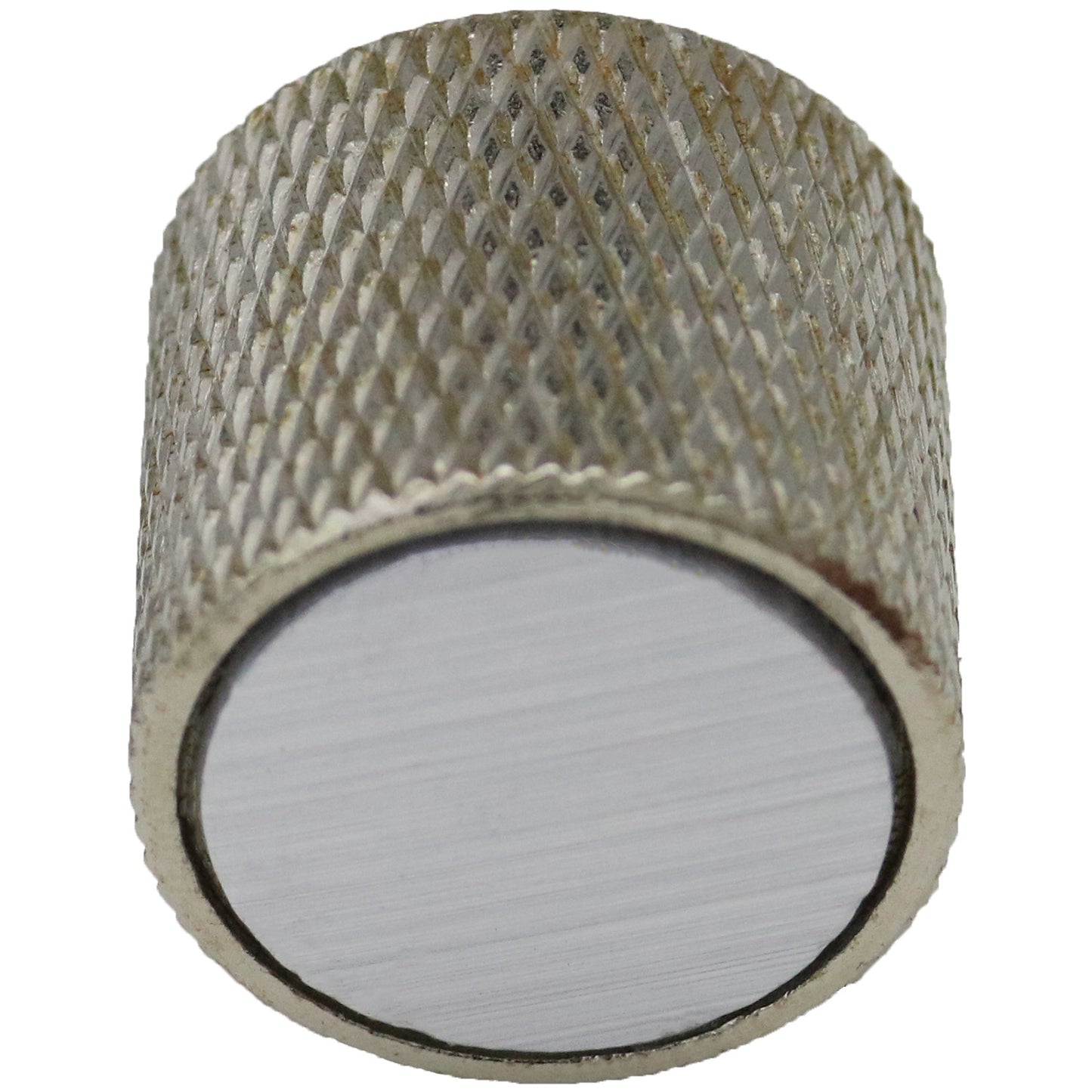

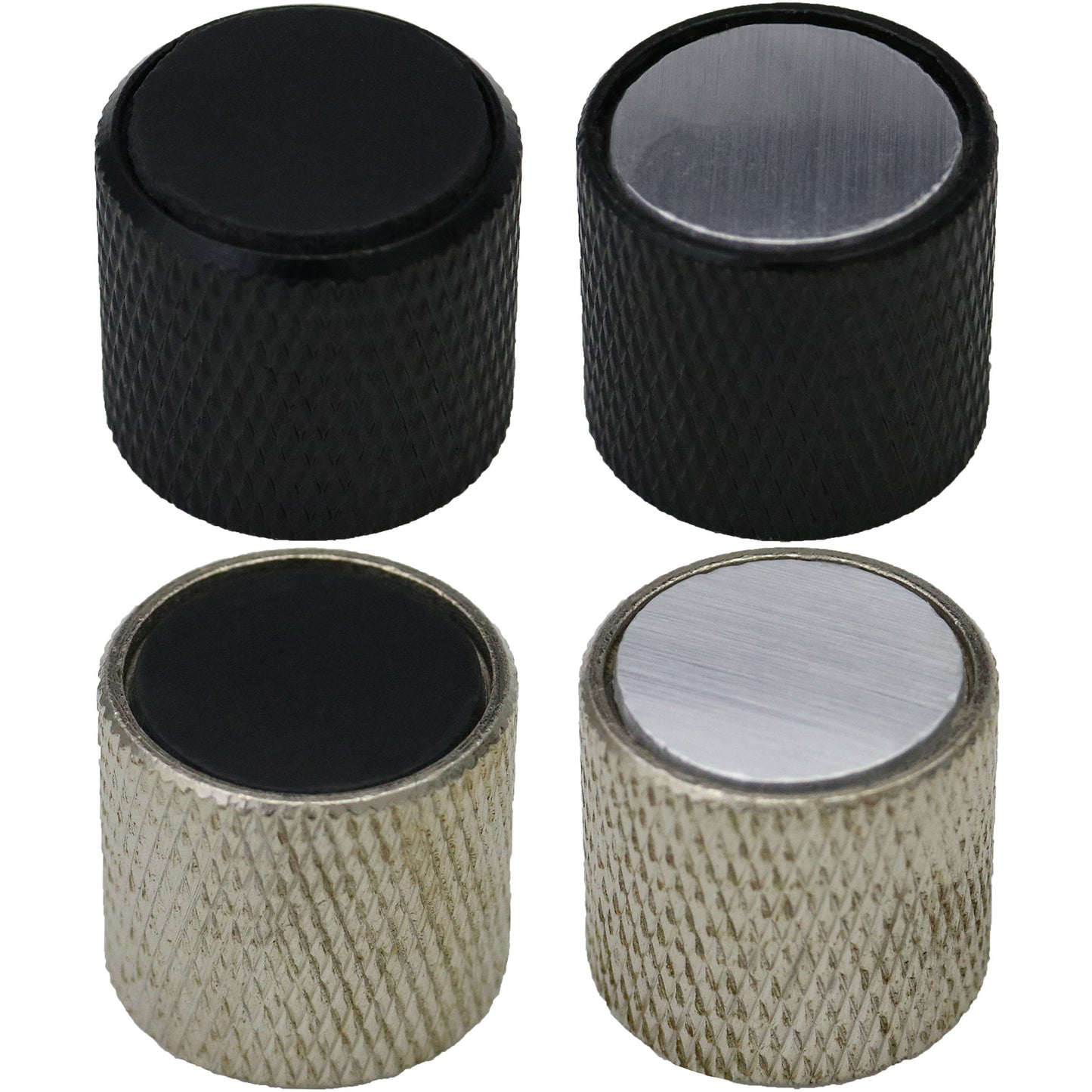

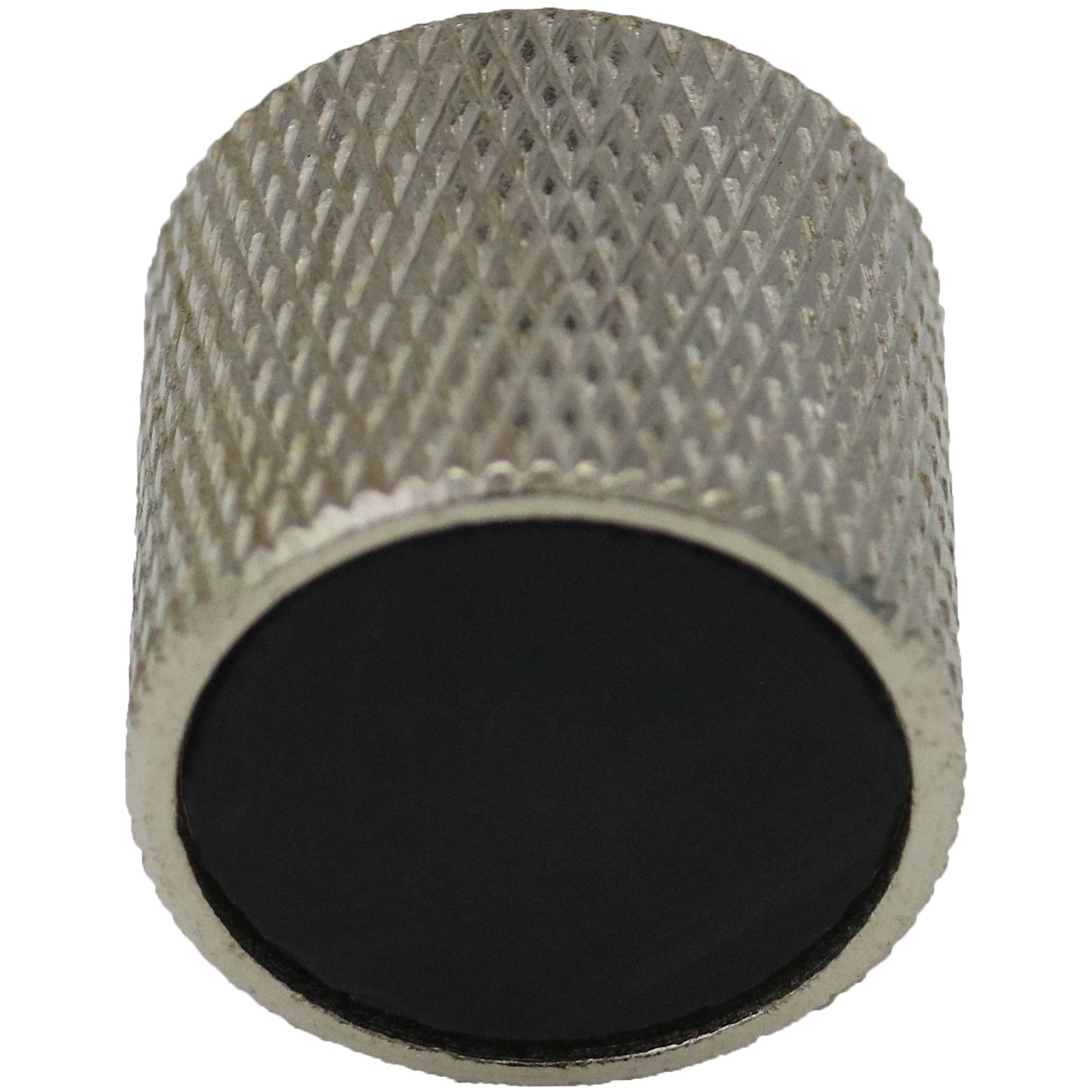

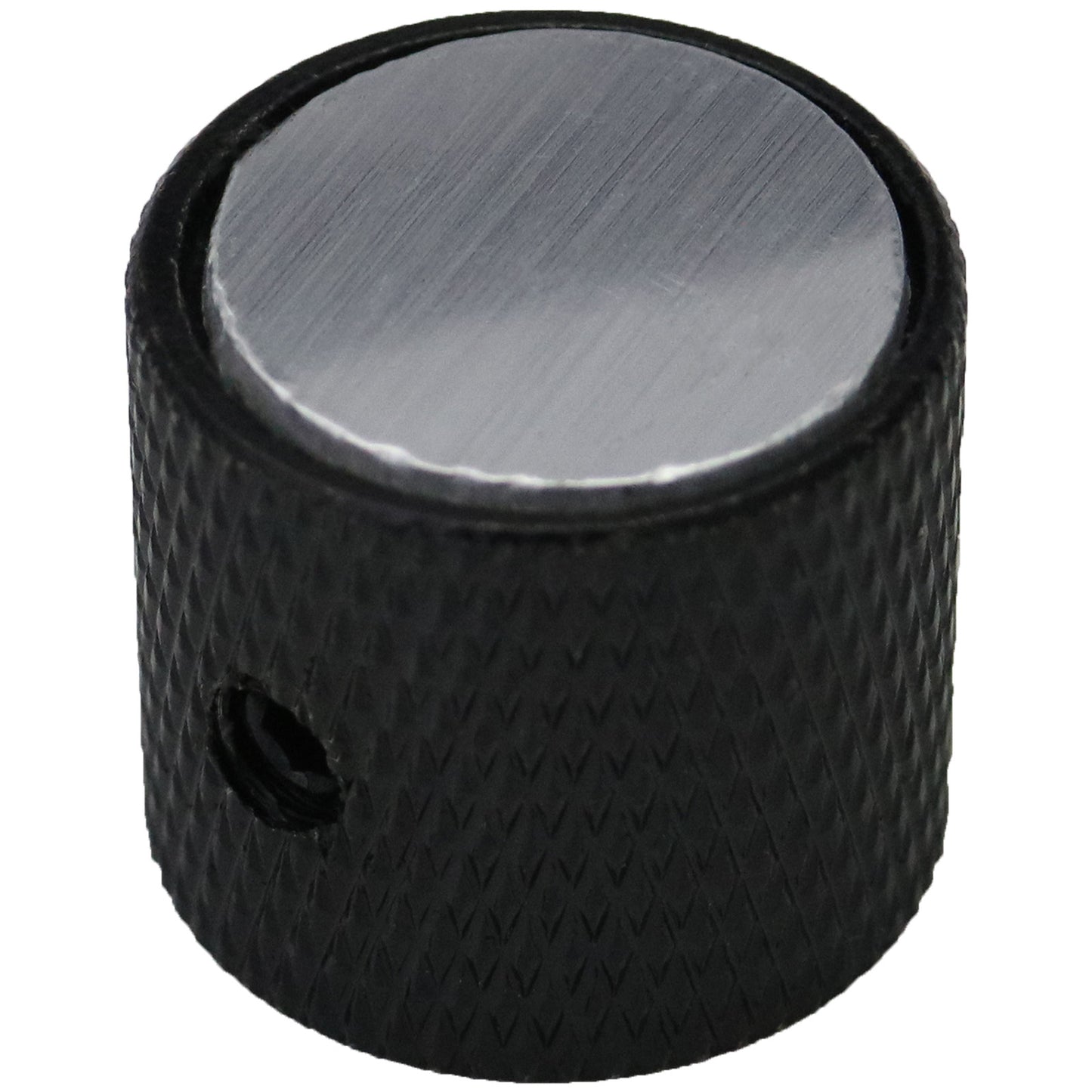

Solid Metal Guitar Control Knobs With Metal Cap
Solid Metal Guitar Control Knobs With Metal Cap
| Quantity | Unit Price |
|---|---|
| 1+ | £2.43 |
| 2+ | £1.944 |
| 5+ | £1.8225 |
| 10+ | £1.701 |
| 20+ | £1.6767 |
| 50+ | £1.6281 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | Round |
| Shaft Fixing | Grub Screw |
| Hole Size | 6mm |
Appearance
| Identity Colour | Black |
|---|---|
| Body Colour | Black |
| Accent Colour | Black |
| Position Indicator Colour | |
| Position Indicator Shape | None |
Measurements
| Minimum Shaft Depth | 10.5mm |
|---|---|
| Maximum Shaft Depth | 15.9mm |
| Body Diameter | 18.0mm |
| Maximum Diameter | 18.0mm |
| Width | mm |
| Length | mm |
| Height | 16.8mm |
| Additional Measurements | |
| Unit Weight | 22.65g |
Hole Type
Round Hole
A knob designed for a round shaft has a smooth, cylindrical hole that matches the shaft's shape. This type of hole allows the knob to slide easily onto the shaft, relying on a grub screw / set screw or friction to keep it in place. This design is widely used in audio equipment, consumer electronics, and control panels due to its simplicity and versatility
A knob with a round hole can typically also be used on a D type shaft in the 180° position (where the position indicator is opposite to the flat of the D) and can often also be mouned to splined shafts in low torque applications.

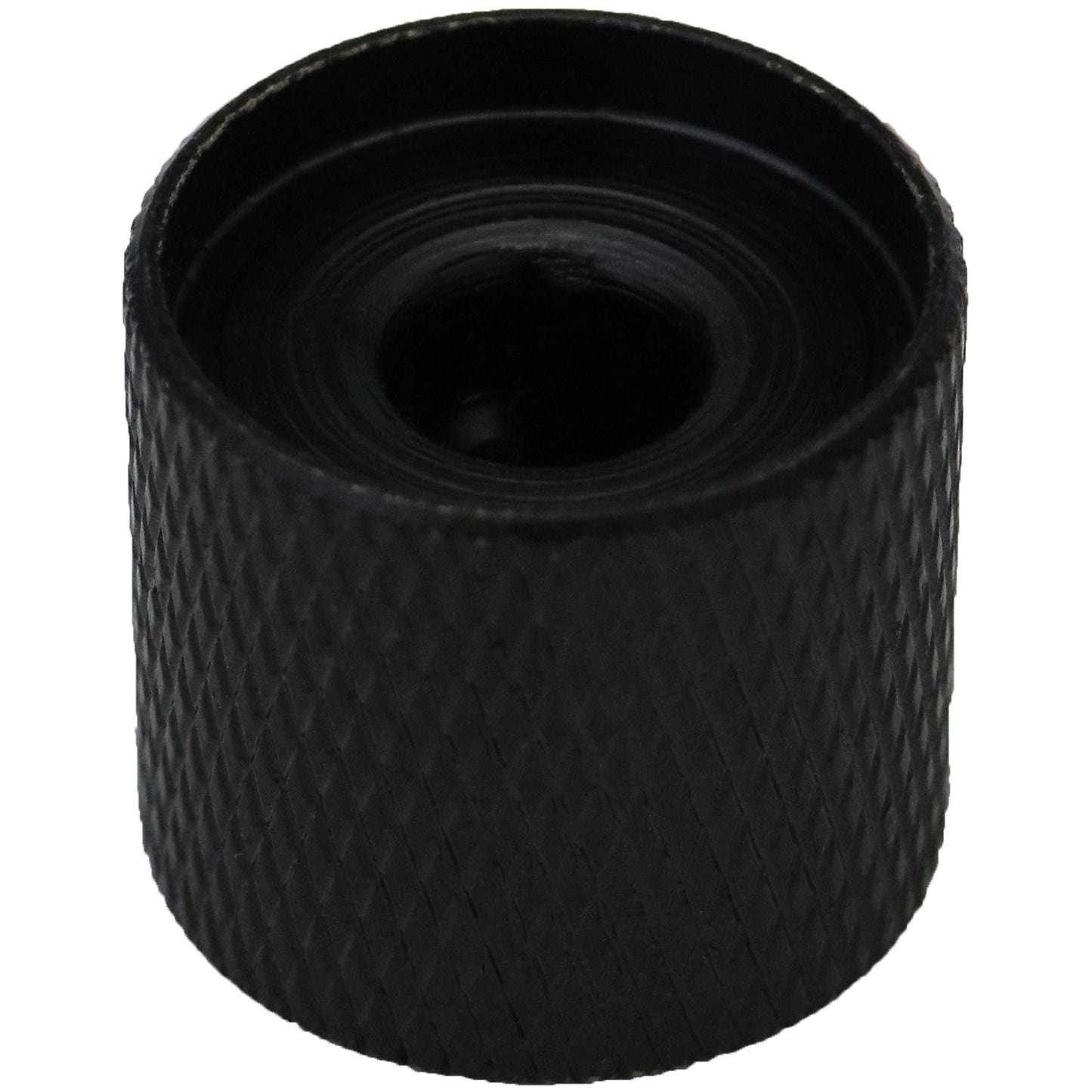

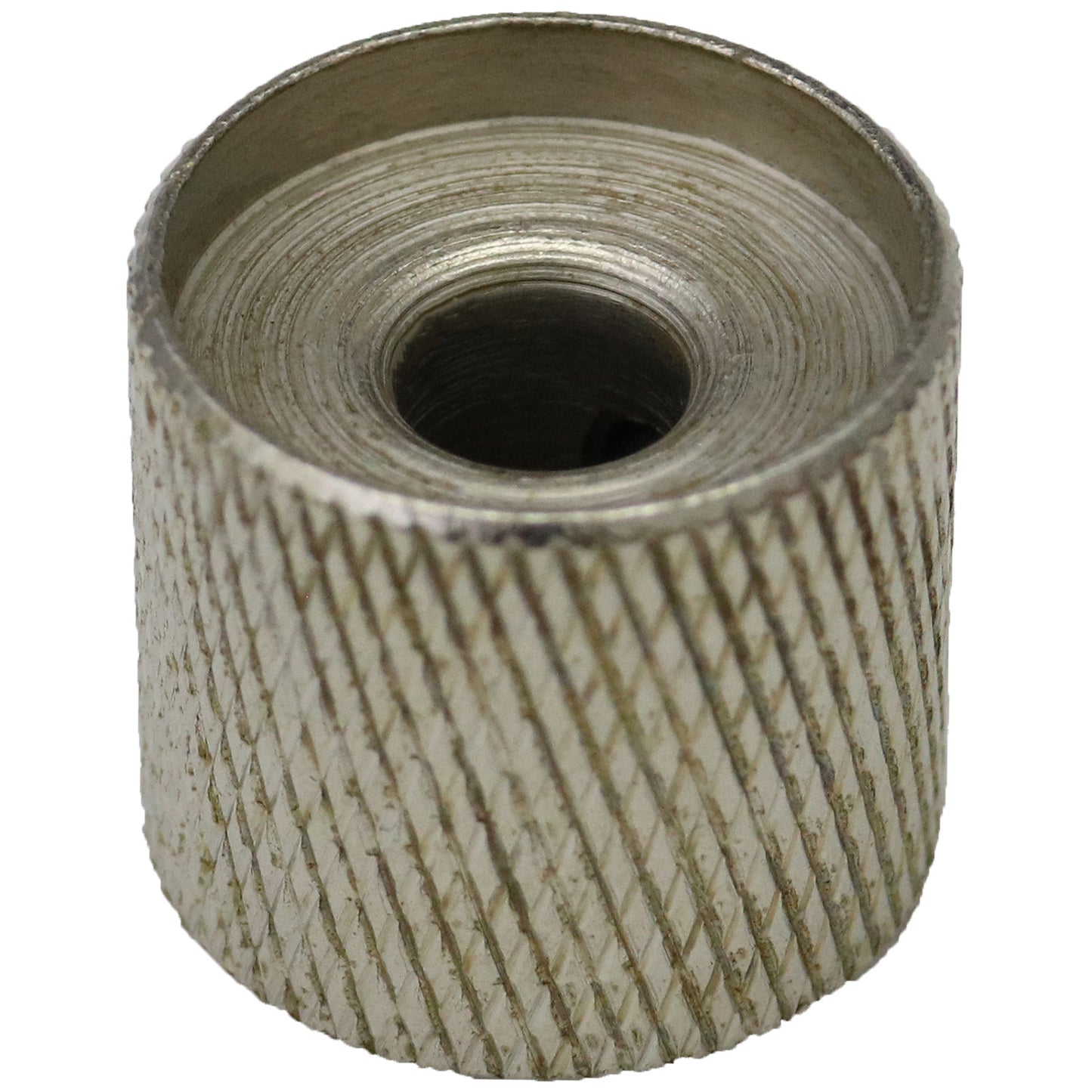

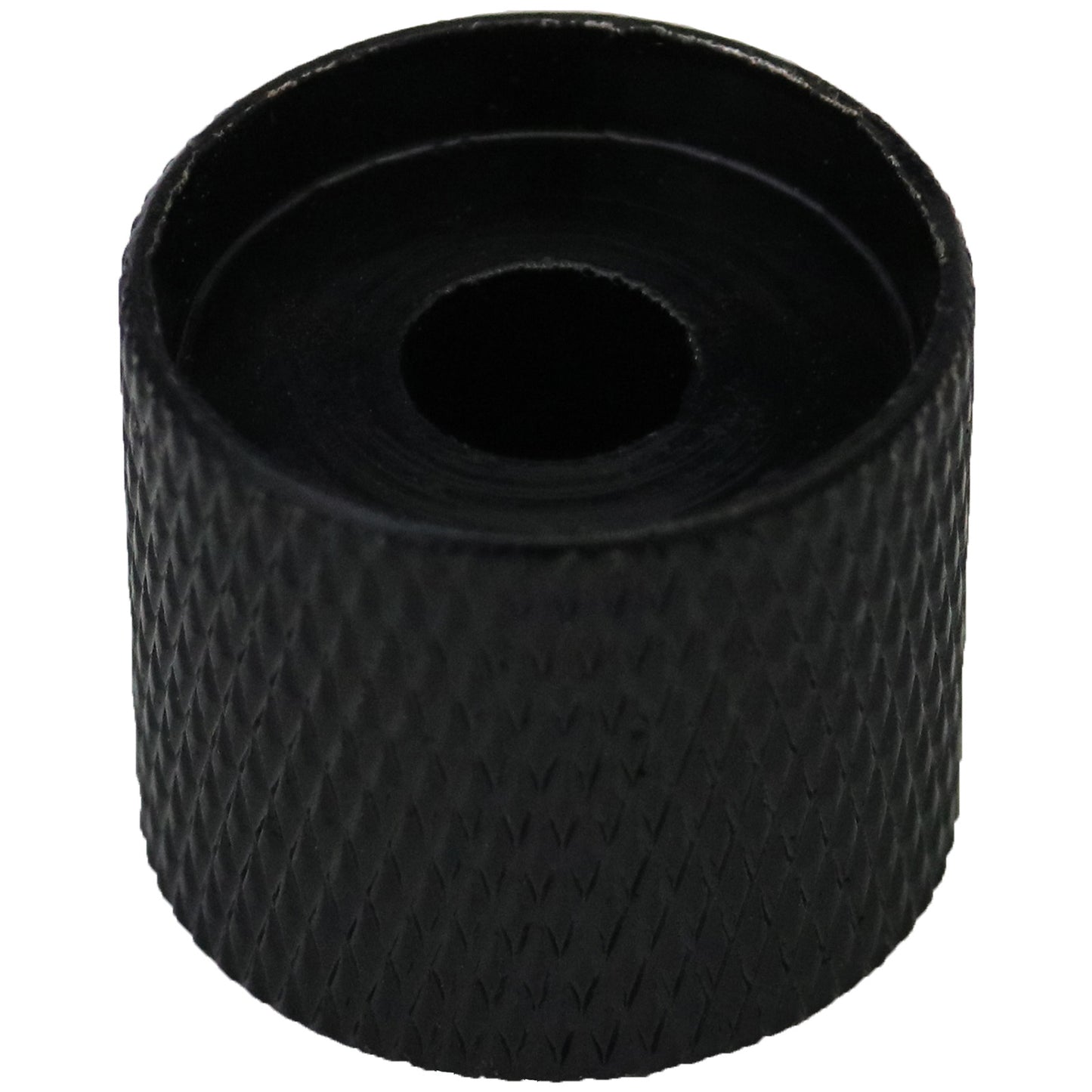

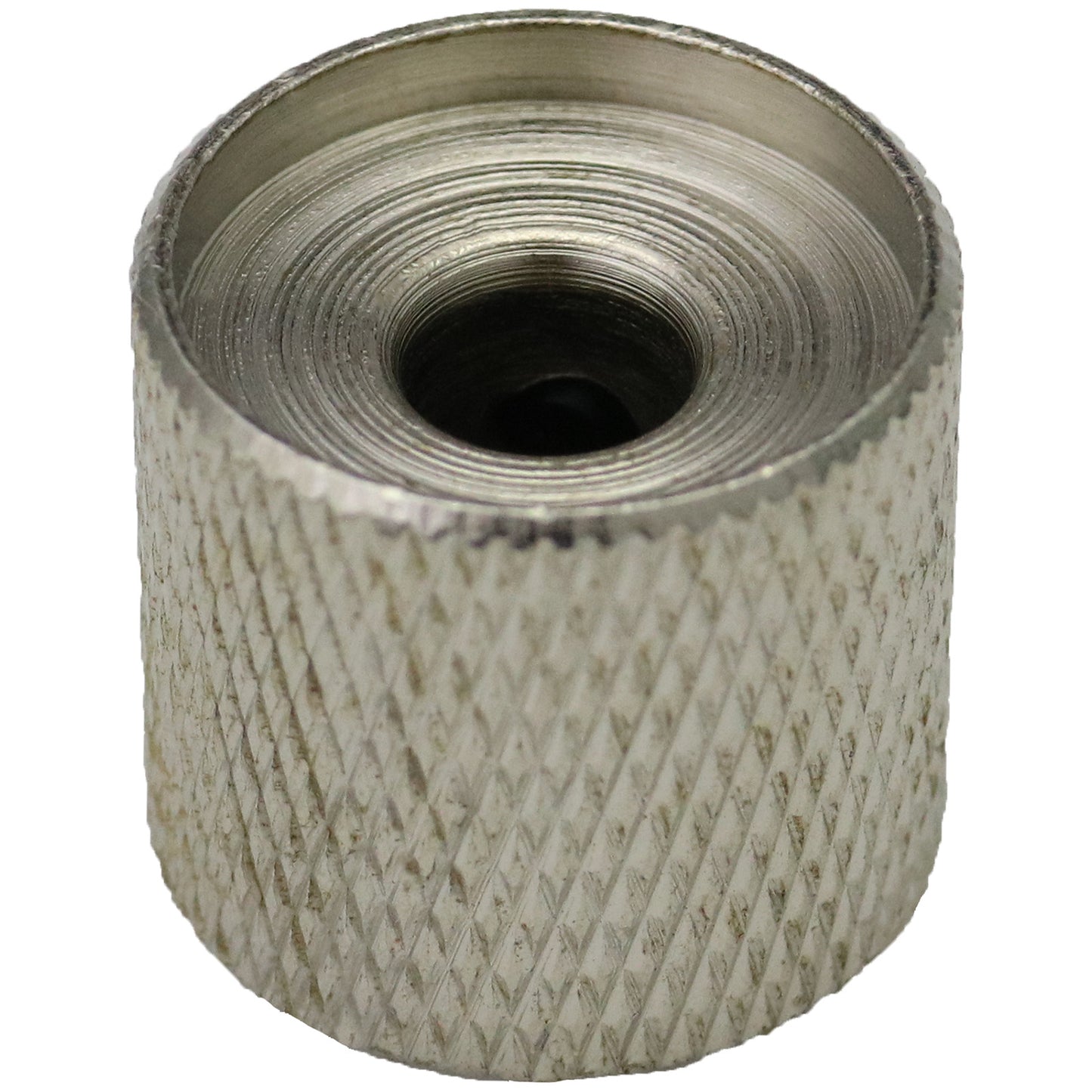

A View from the underside of the knob when fitting a round hole knob to a D shaft, showing the grub screw position relative to the position indicator:
