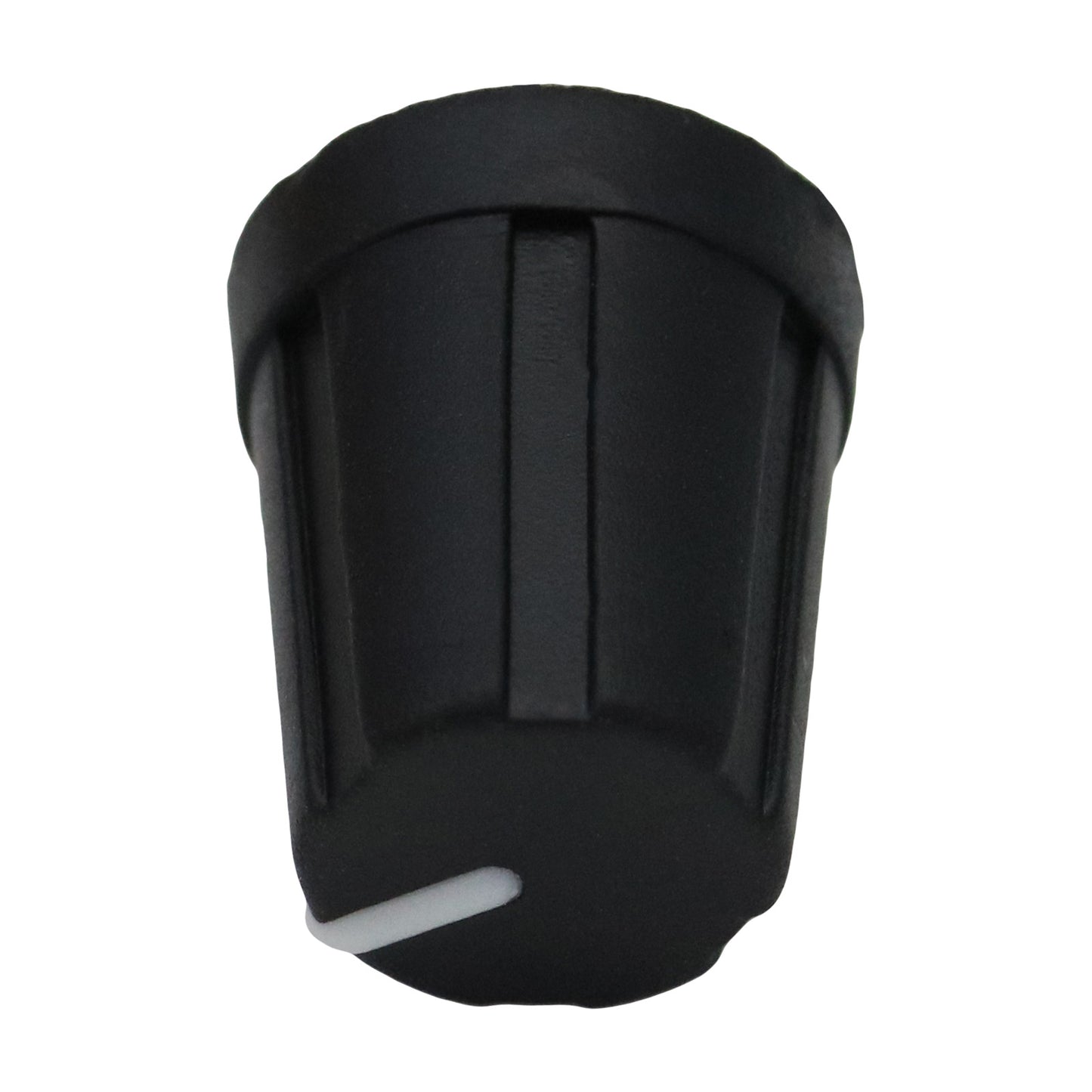

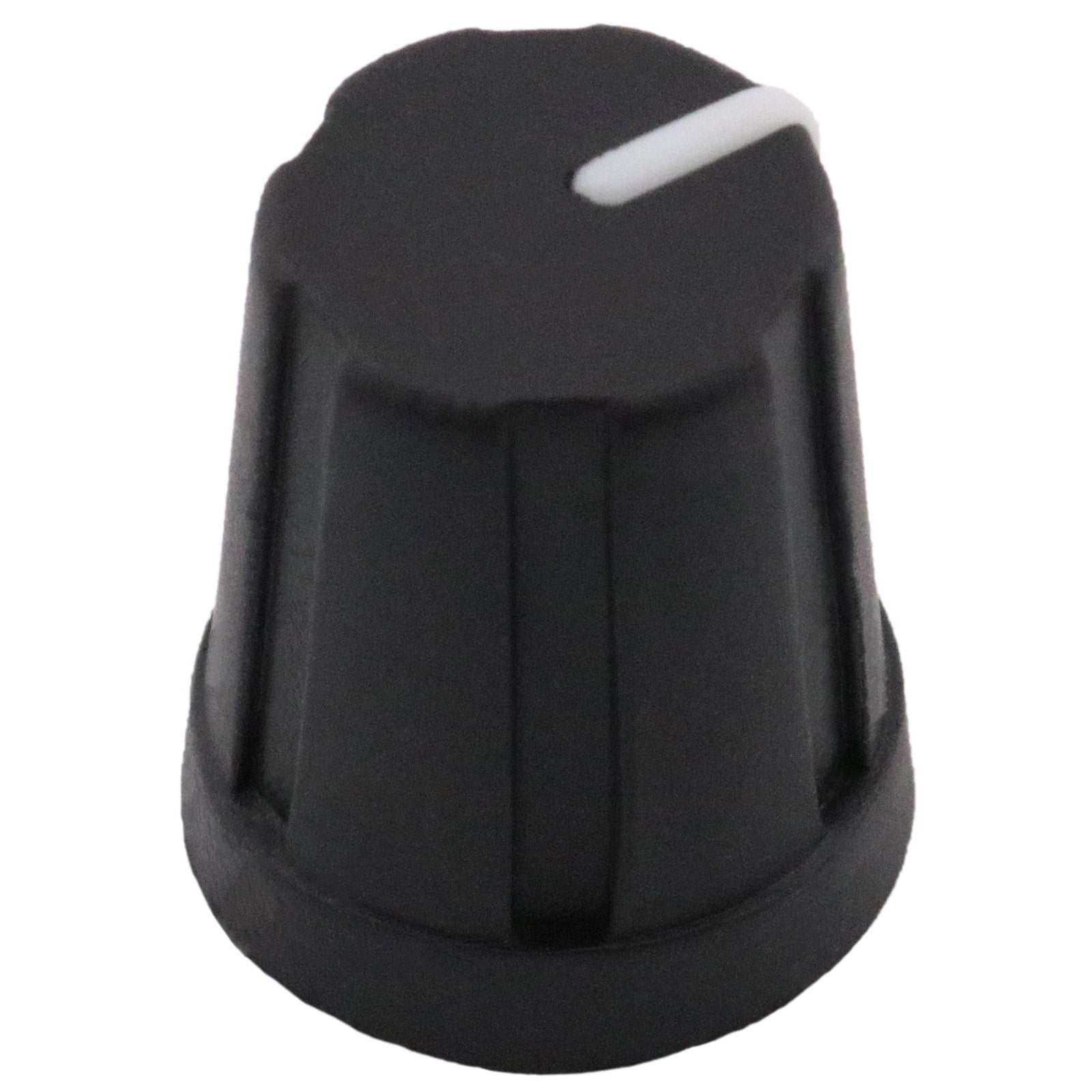

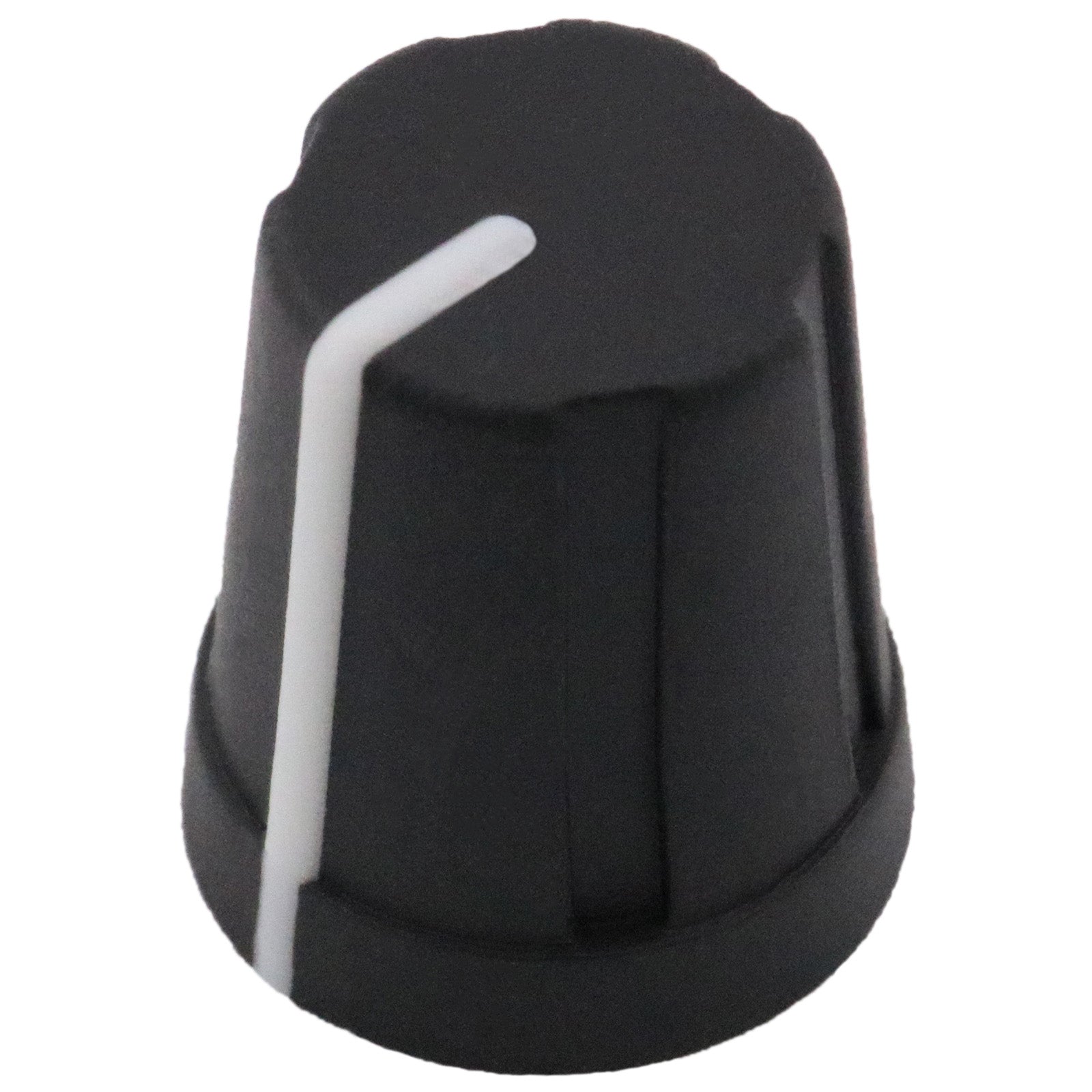

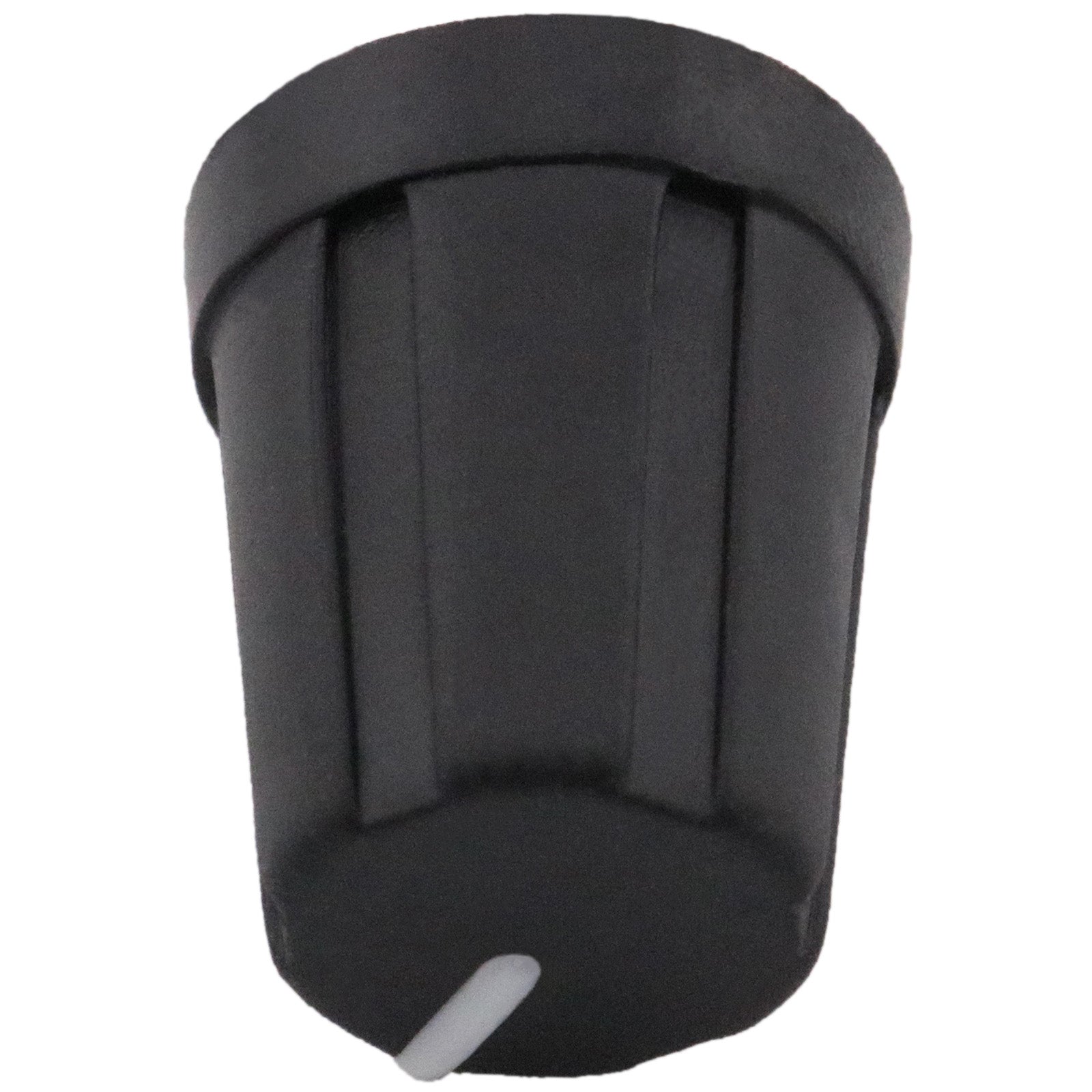

Black Rubber Grip Control Knob

Black Rubber Grip Control Knob

A black rotary control knob with a rubber coating for an enhanced grip surface.
Quantity Unit Price
1+ £0.54
5+ £0.432
10+ £0.378
20+ £0.324
50+ £0.27
100+ £0.216
View full details

Fitting

Knob TypeRotary
Shaft TypeD0
Shaft FixingPush-Fit
Hole Size6mm

Appearance

Identity ColourBlack
Body ColourBlack
Accent Colour
Position Indicator ColourWhite
Position Indicator ShapeLine

Measurements

Minimum Shaft Depth7.0mm
Maximum Shaft Depth14.0mm
Body Diameter12.6mm
Maximum Diameter13.6mm
Widthmm
Lengthmm
Height15.9mm
Additional Measurements
Unit Weight1.03g
Black Rubber Grip Control Knob

Hole Type

D Shaft Hole

A D-shaft knob features a hole with a D-shaped cross-section, having one flat side and the rest round. This configuration ensures that the knob fits snugly onto the shaft, preventing any slippage and provides absolute psoitoning of the position indicator.

The flat side of the hole aligns with the flattened side of the D-shaft, providing precise control and secure attachment. This type of hole is commonly found in knobs used in audio equipment, industrial controls, and automotive applications.

This type of hole dictates the angle of the position indicator, relative to the flat of the D shape. This is measured in degrees of rotation being either 0°, 90°, 180° or 270°.

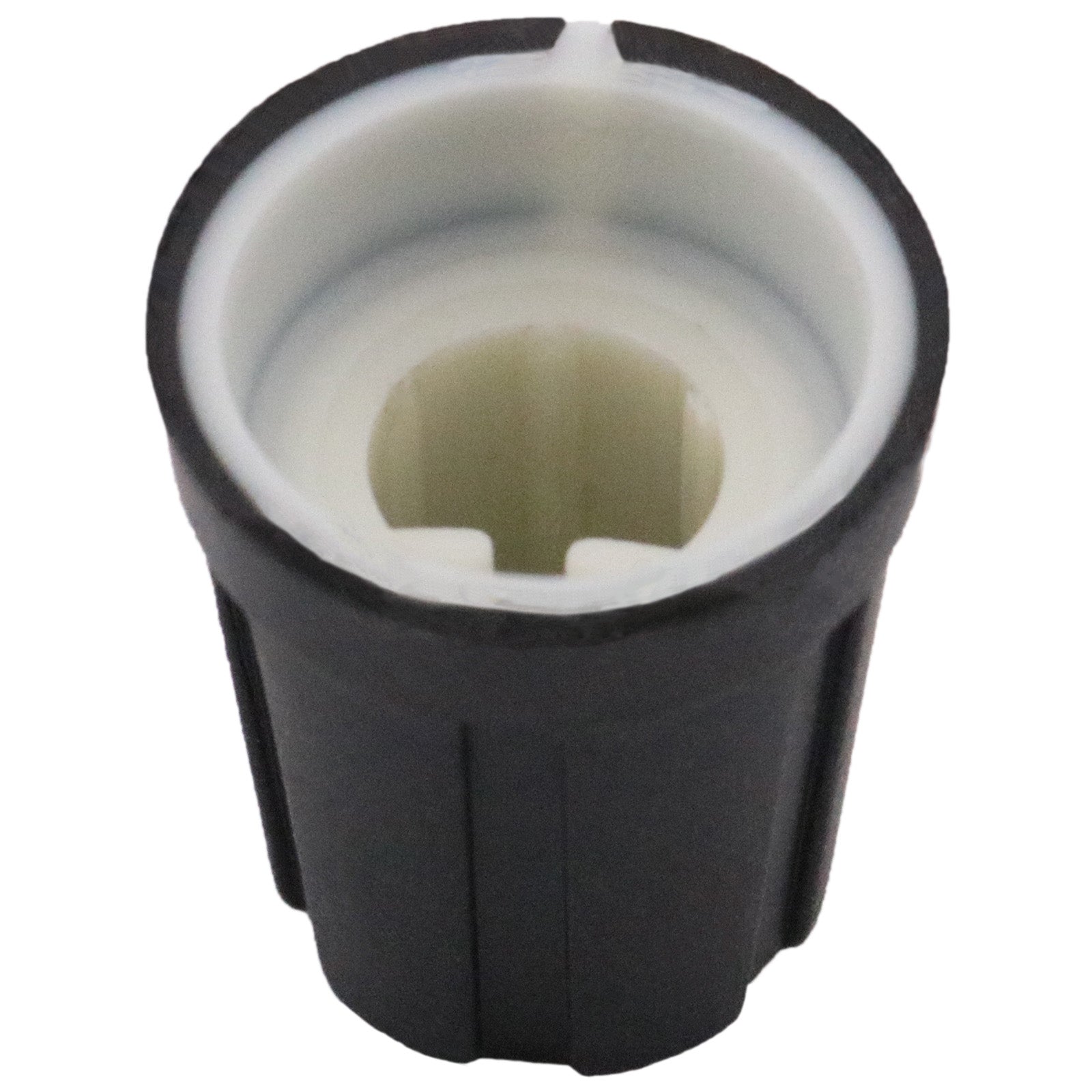

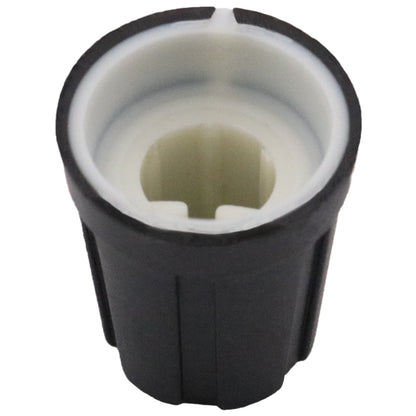

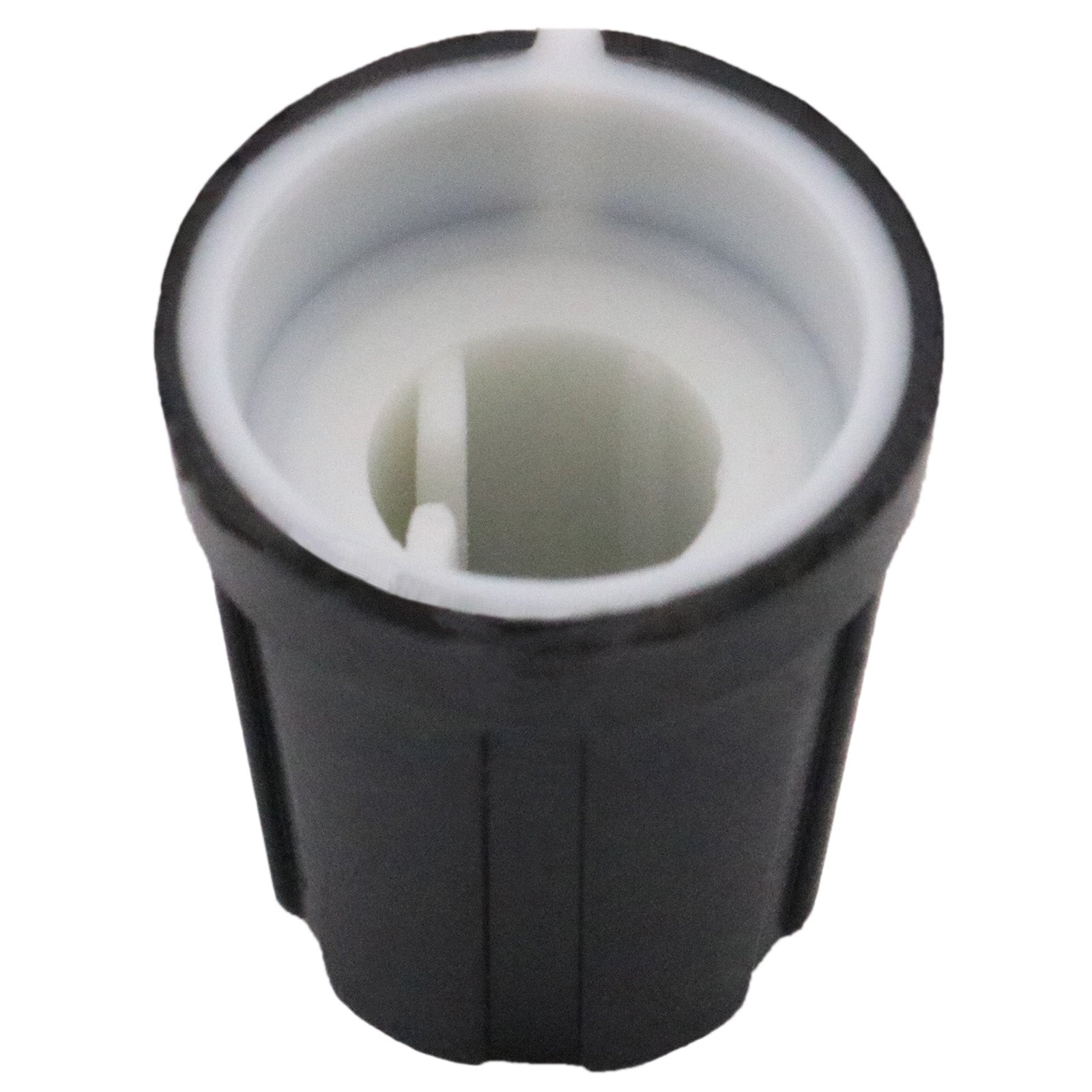

A View from the underside of the knob showing the possible positions of the D flat relative to the position indicator. This knob is in the D0 position and is highlighted:

Measuring Rotary Knobs

Read more about measuring rotary knobs here.
