Black Triangle Gem Style Edge Control Knob
Black Triangle Gem Style Edge Control Knob

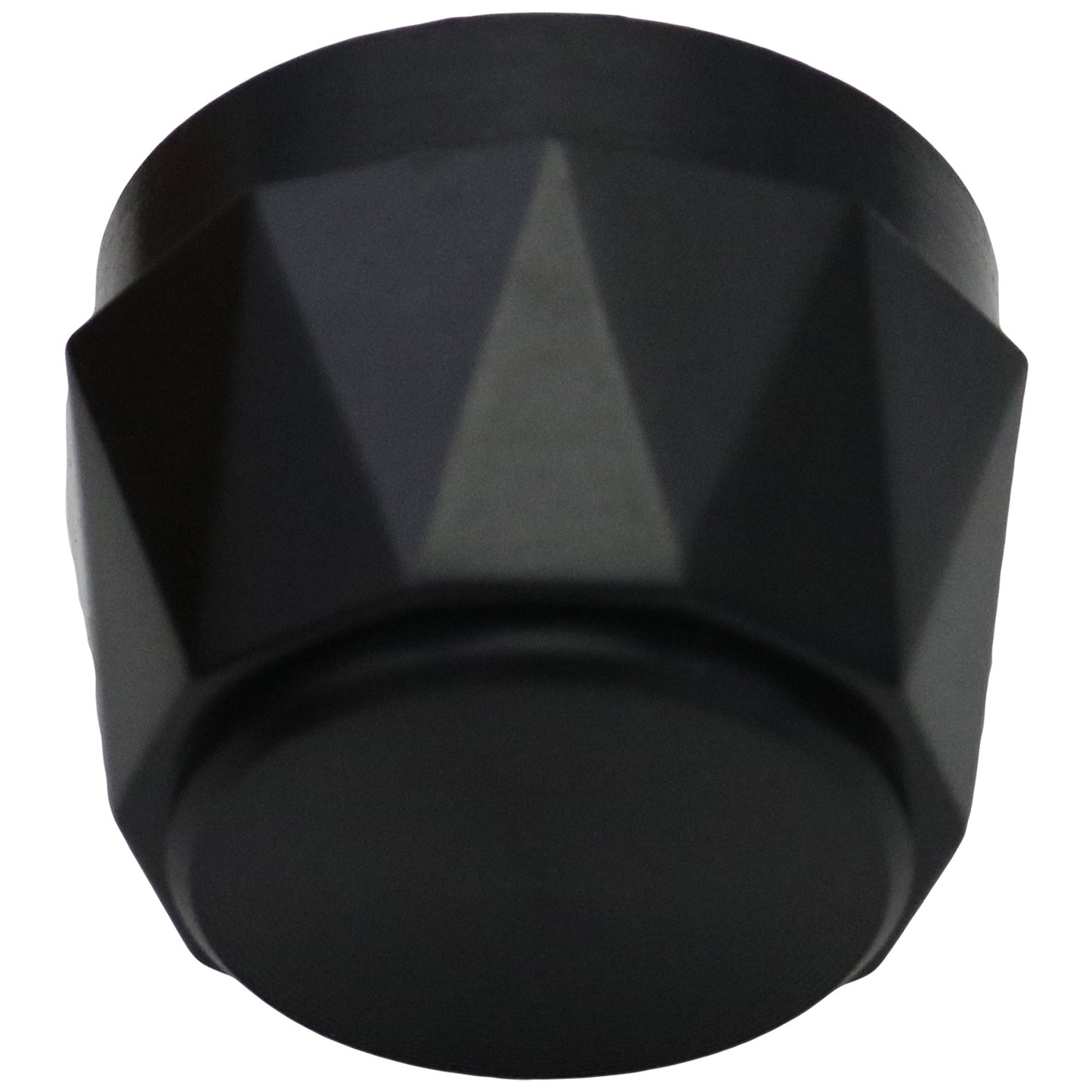

A black control knob with a triangular shaped edge pattern grip surface.
| Quantity | Unit Price |
|---|---|
| 1+ | £0.52 |
| 10+ | £0.416 |
| 20+ | £0.364 |
| 50+ | £0.312 |
| 100+ | £0.26 |
| 500+ | £0.208 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | Splined |
| Shaft Fixing | Push-Fit |
| Hole Size | 6mm |
Appearance
| Identity Colour | Black |
|---|---|
| Body Colour | Black |
| Accent Colour | |
| Position Indicator Colour | |
| Position Indicator Shape | None |
Measurements
| Minimum Shaft Depth | 5.3mm |
|---|---|
| Maximum Shaft Depth | 14.5mm |
| Body Diameter | 21.7mm |
| Maximum Diameter | 21.7mm |
| Width | mm |
| Length | mm |
| Height | 15.8mm |
| Additional Measurements | |
| Unit Weight | 2.25g |
Hole Type
Splined Hole
Knobs designed for splined shafts have holes with multiple grooves or ridges that correspond to the splines on the shaft. This splined hole creates a very tight and secure fit, preventing any movement between the knob and the shaft.
The position indicator can be placed in any of 18 different directions, in increments of 20°
The ridged interior of the hole ensures a strong connection, capable of handling high torque and frequent adjustments without the risk of slippage.
A control knob with a splined hole will not fit onto a round or D typ shaft.
