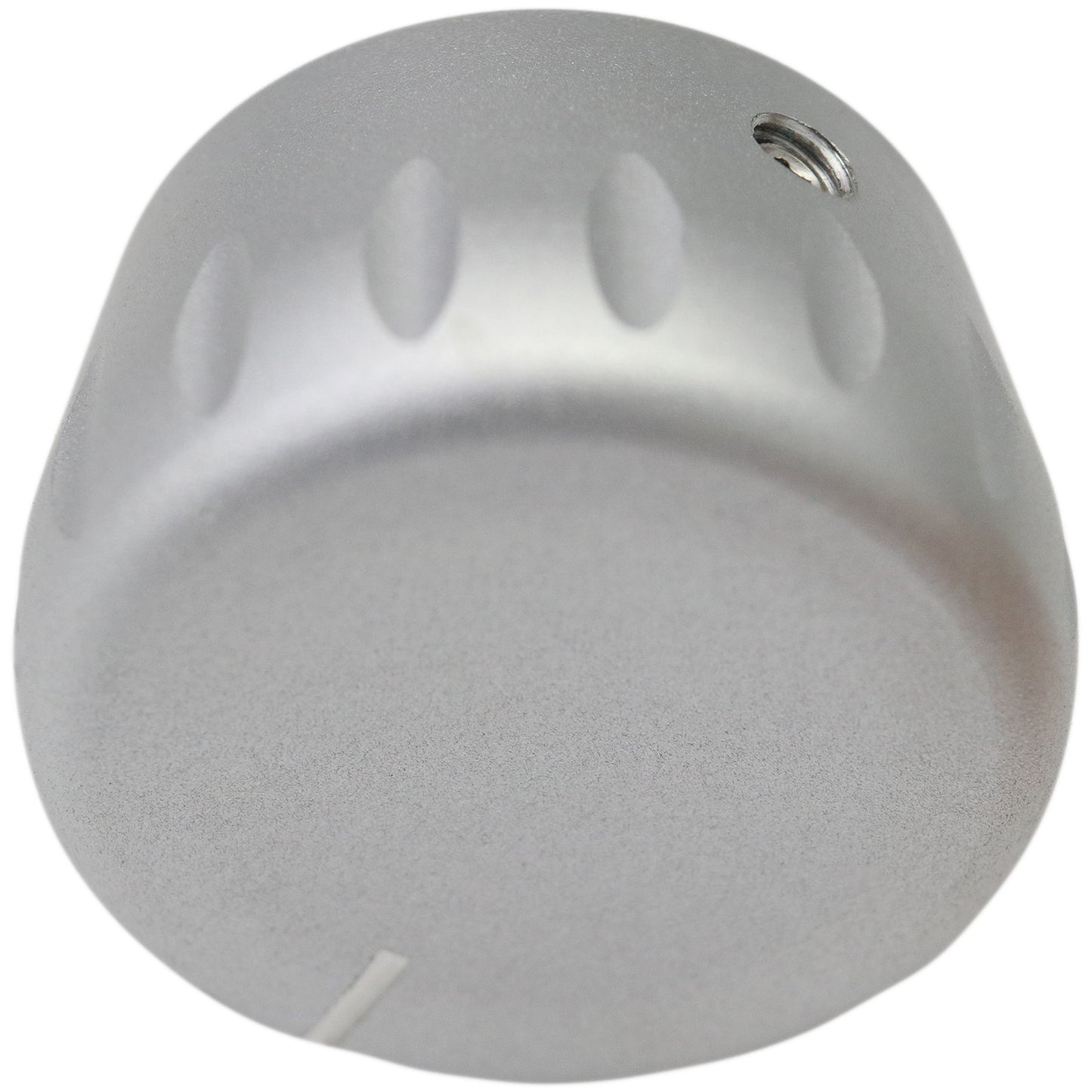

Large Solid Aluminium HiFi Control Knob

Large Solid Aluminium HiFi Control Knob

A large solid aluminium control knob ideally suited for HiFi volume control. This knob features an enhanced grip around the edge and a slightly concave face.
Colour
Quantity Unit Price
1+ £8.89
2+ £7.112
5+ £6.6675
10+ £6.223
20+ £6.1341
50+ £5.9563
View full details

Fitting

Knob TypeRotary
Shaft TypeRound
Shaft FixingGrub Screw
Hole Size6mm

Appearance

Identity ColourBlack
Body ColourBlack
Accent Colour
Position Indicator ColourSilver
Position Indicator ShapeLine

Measurements

Minimum Shaft Depth8.7mm
Maximum Shaft Depth17.2mm
Body Diameter30.3mm
Maximum Diameter34.0mm
Widthmm
Lengthmm
Height20.0mm
Additional Measurements
Unit Weight38.98g
Large Solid Aluminium HiFi Control Knob

Hole Type

Round Hole

A knob designed for a round shaft has a smooth, cylindrical hole that matches the shaft's shape. This type of hole allows the knob to slide easily onto the shaft, relying on a grub screw / set screw or friction to keep it in place. This design is widely used in audio equipment, consumer electronics, and control panels due to its simplicity and versatility

A knob with a round hole can typically also be used on a D type shaft in the 180° position (where the position indicator is opposite to the flat of the D) and can often also be mouned to splined shafts in low torque applications.

A View from the underside of the knob when fitting a round hole knob to a D shaft, showing the grub screw position relative to the position indicator:

Measuring Rotary Knobs

Read more about measuring rotary knobs here.
