Square Knurled Aluminium Control Knob with Triangle Indicator
Square Knurled Aluminium Control Knob with Triangle Indicator

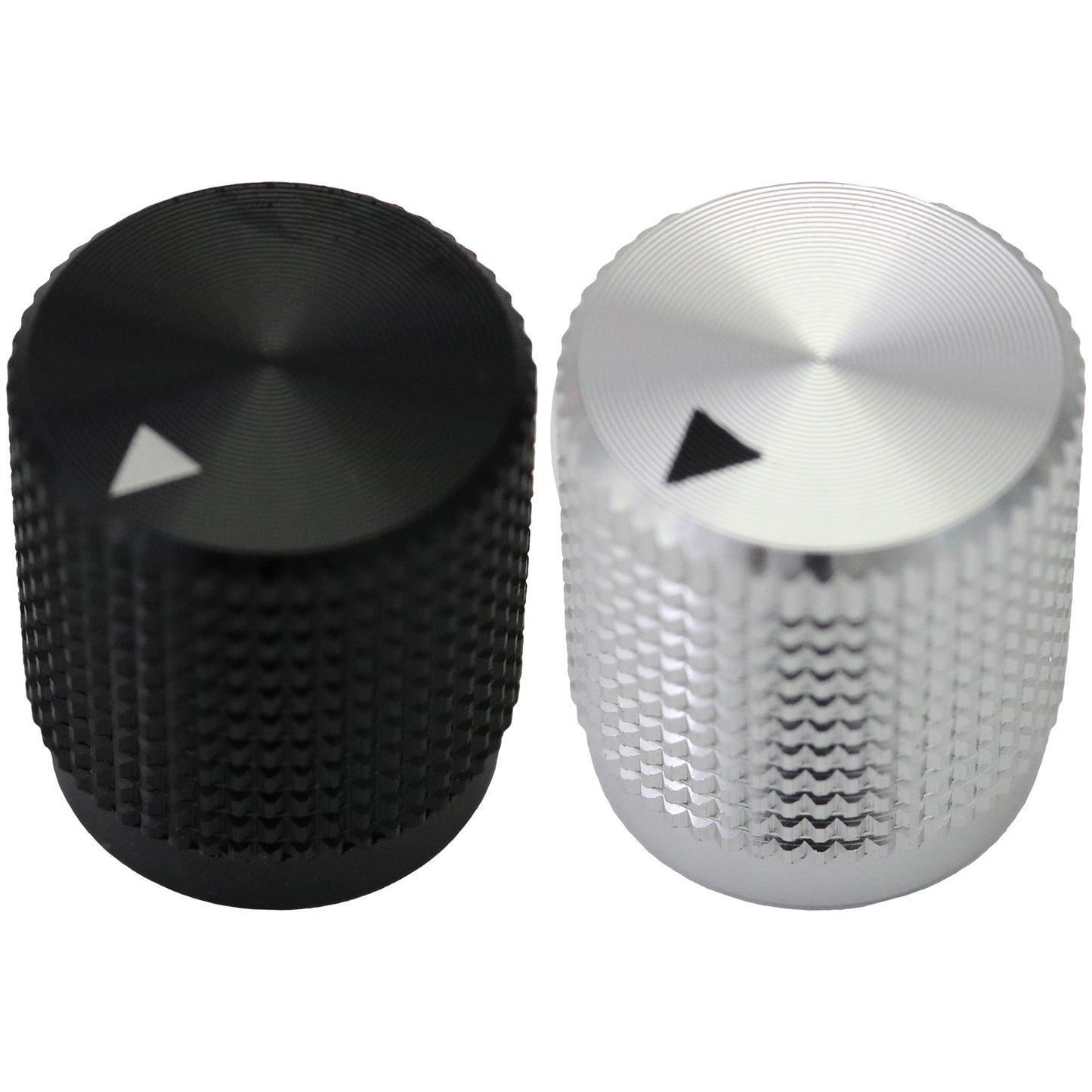

This precision-engineered control knob features a distinctive square knurled grip pattern around its circumference, providing exceptional tactile control and visual appeal. The solid aluminium construction ensures durability whilst maintaining a professional appearance suitable for high-end audio equipment and electronic devices.

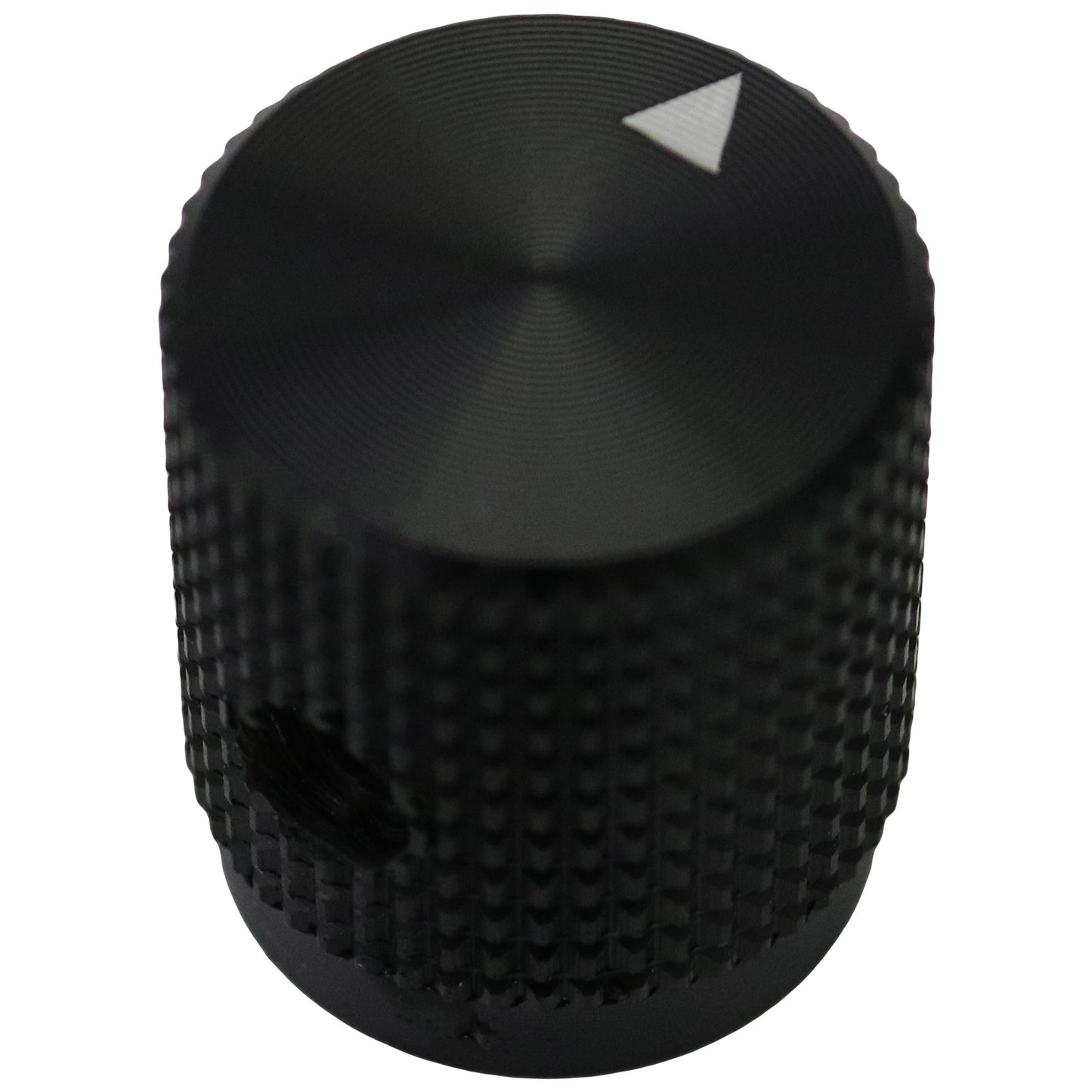

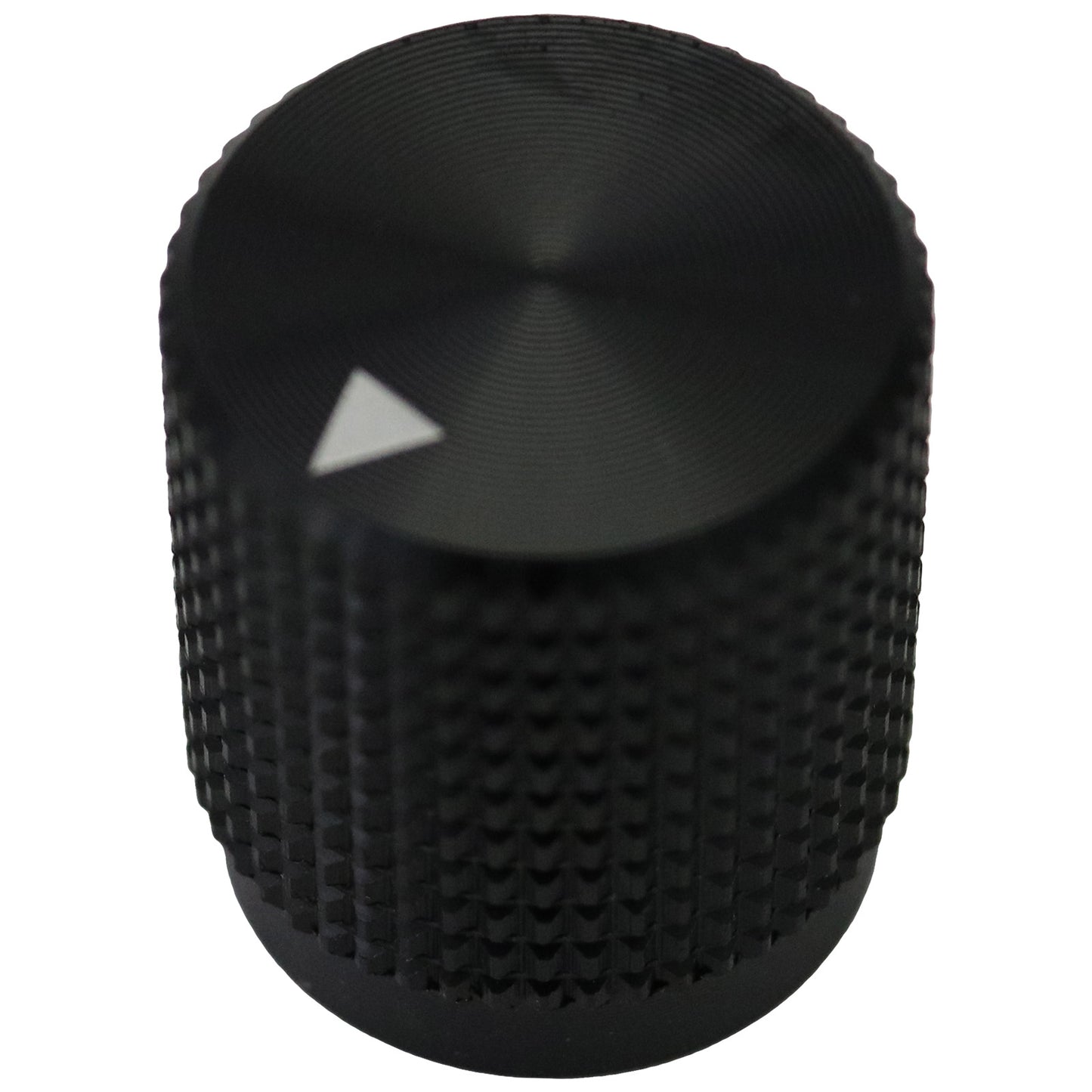

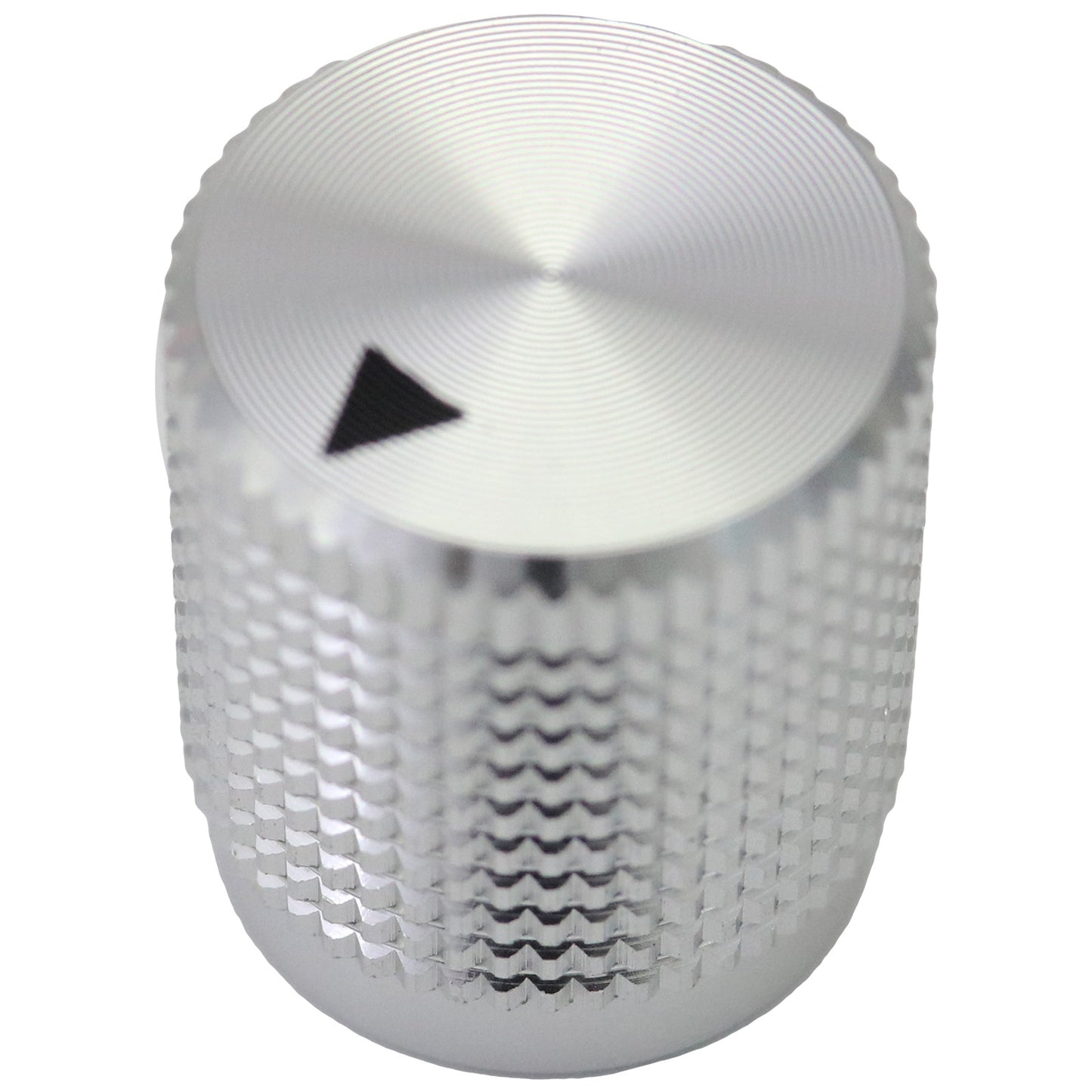

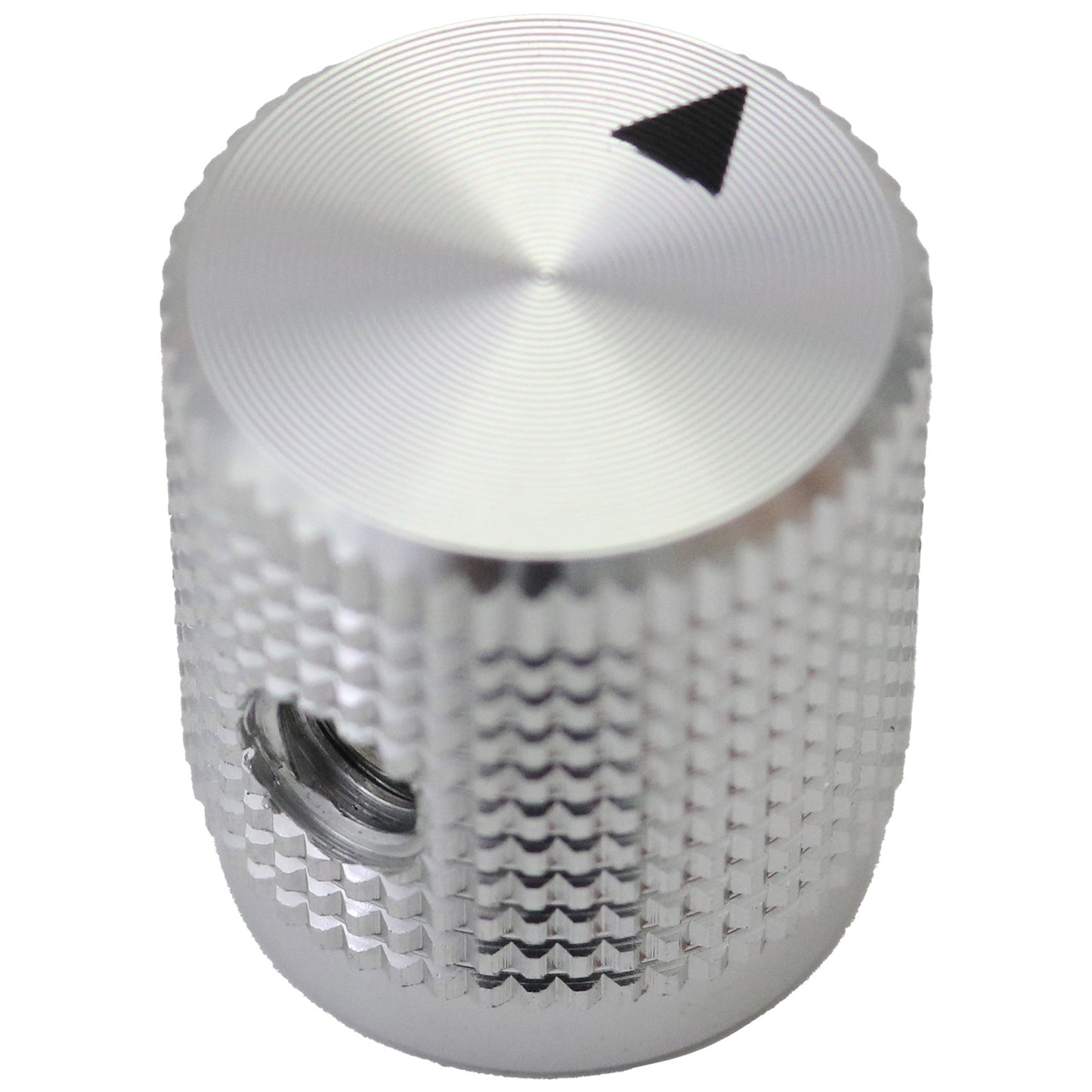

The flat top surface incorporates a clear triangular position indicator that provides precise visual feedback of the knob's current setting. The robust square knurling pattern not only enhances grip but also creates an attractive geometric texture that catches light beautifully, making it ideal for premium audio interfaces, mixing consoles, and professional control panels where both functionality and aesthetics matter.
| Quantity | Unit Price |
|---|---|
| 1+ | £3.03 |
| 2+ | £2.424 |
| 5+ | £2.2725 |
| 10+ | £2.121 |
| 20+ | £2.0907 |
| 50+ | £2.0301 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | Round |
| Shaft Fixing | Grub Screw |
| Hole Size | 6mm |
Appearance
| Identity Colour | Black |
|---|---|
| Body Colour | Black |
| Accent Colour | |
| Position Indicator Colour | White |
| Position Indicator Shape | Triangle |
Measurements
| Minimum Shaft Depth | 10.0mm |
|---|---|
| Maximum Shaft Depth | 14.0mm |
| Body Diameter | 14.1mm |
| Maximum Diameter | 14.1mm |
| Width | mm |
| Length | mm |
| Height | 16.0mm |
| Additional Measurements | |
| Unit Weight | 4.29g |
Hole Type
Round Hole
A knob designed for a round shaft has a smooth, cylindrical hole that matches the shaft's shape. This type of hole allows the knob to slide easily onto the shaft, relying on a grub screw / set screw or friction to keep it in place. This design is widely used in audio equipment, consumer electronics, and control panels due to its simplicity and versatility
A knob with a round hole can typically also be used on a D type shaft in the 180° position (where the position indicator is opposite to the flat of the D) and can often also be mouned to splined shafts in low torque applications.

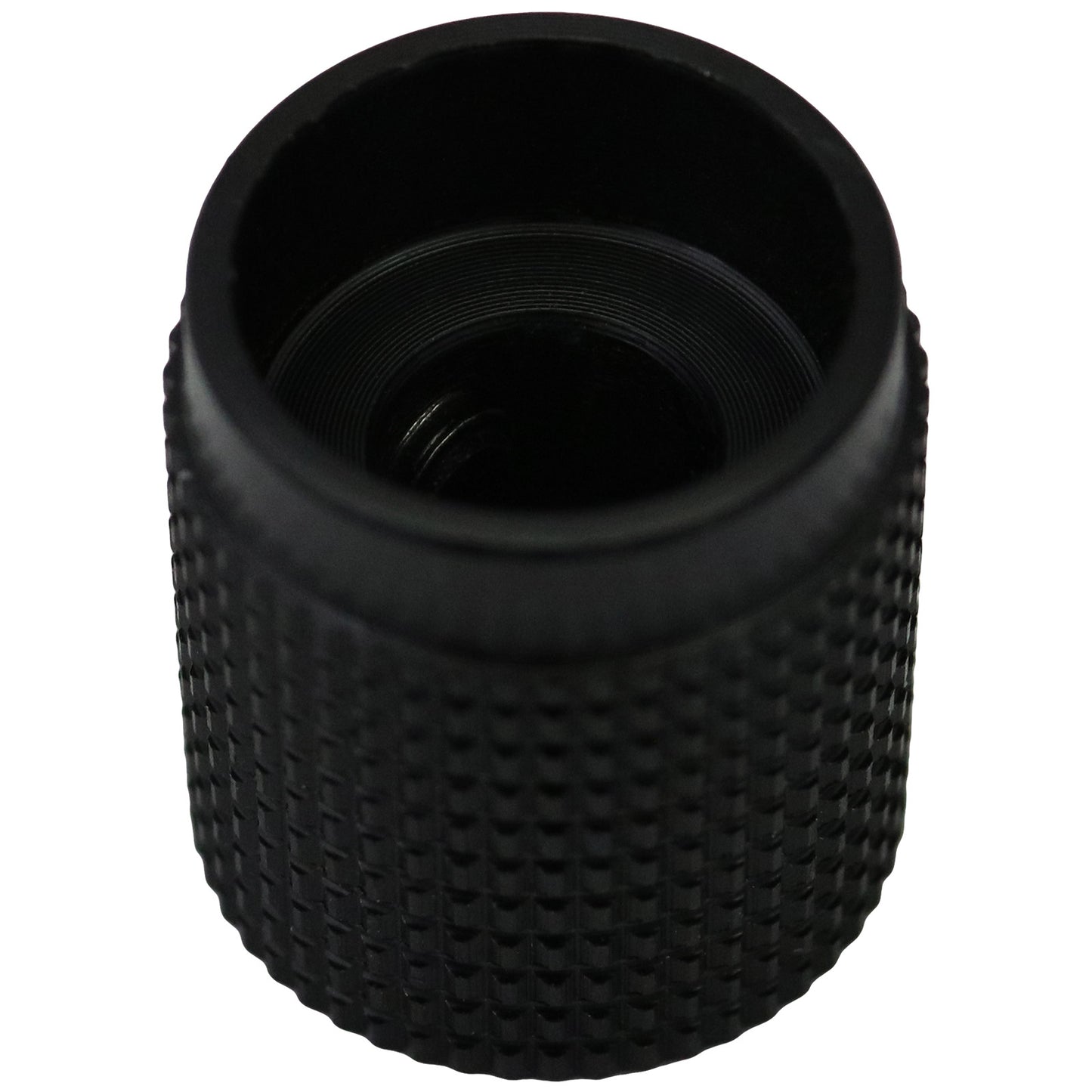

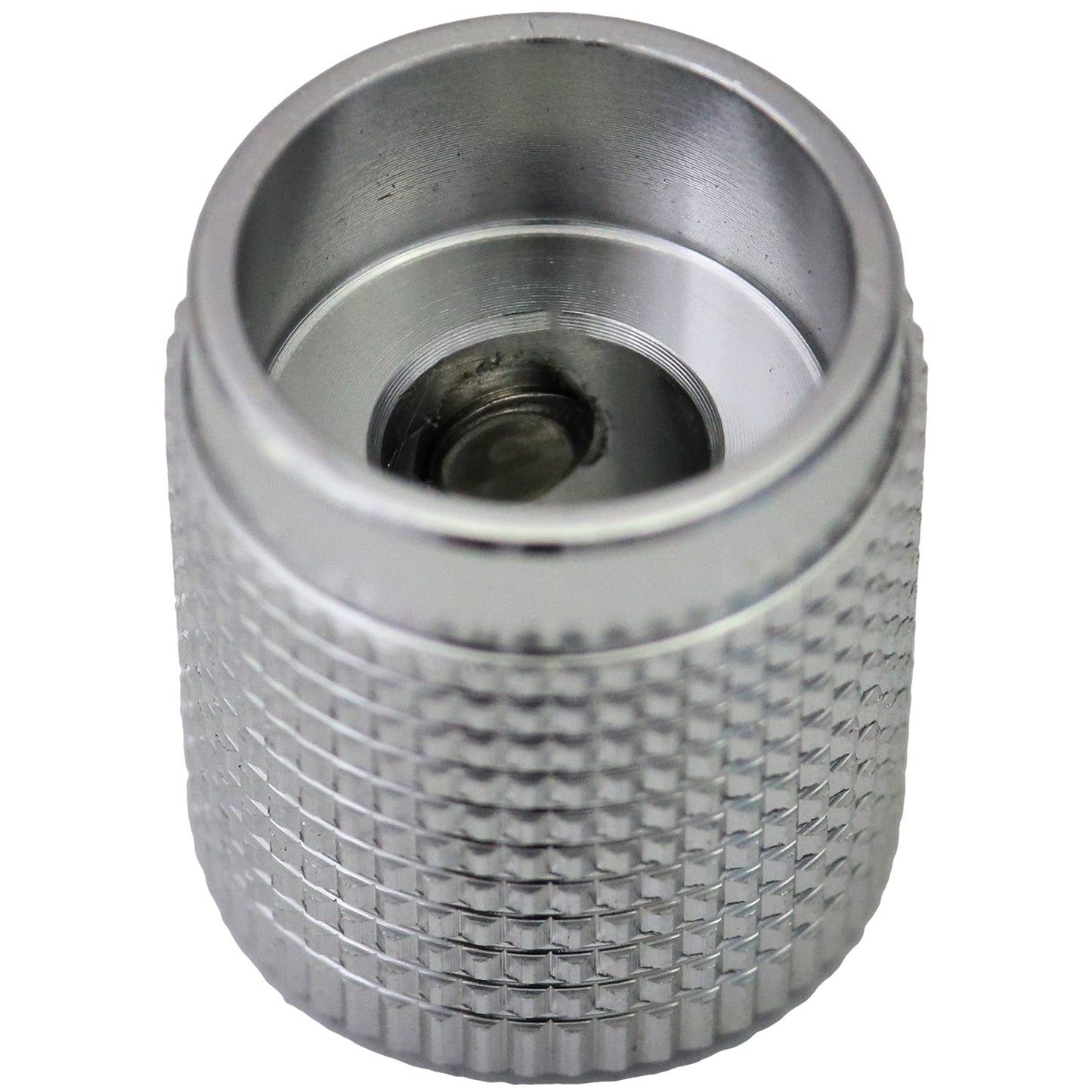

A View from the underside of the knob when fitting a round hole knob to a D shaft, showing the grub screw position relative to the position indicator:
