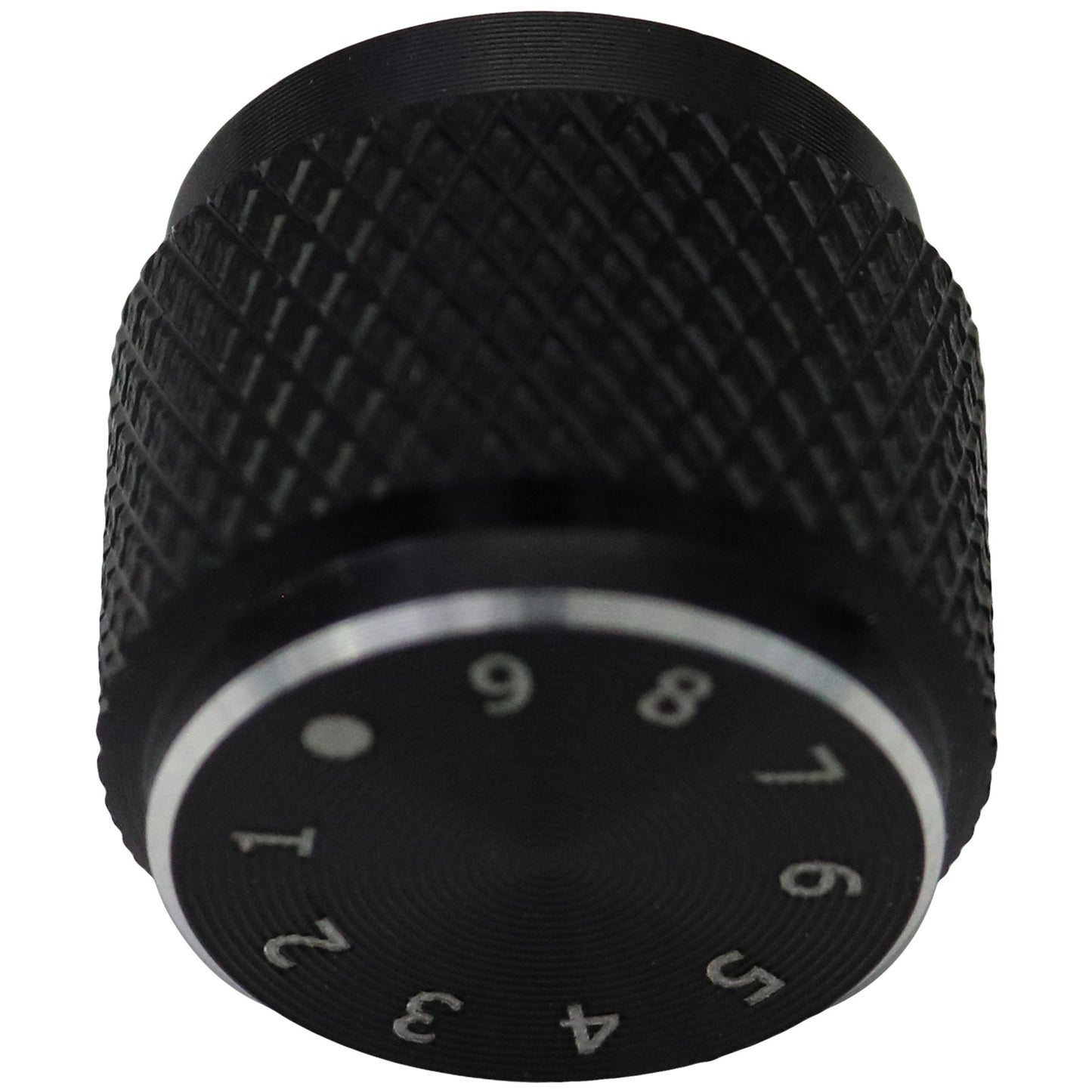

Small Short Solid Aluminium Control Knob With Printed Number Scale And Dot

Small Short Solid Aluminium Control Knob With Printed Number Scale And Dot

A small solid aluminium control knob with a printed number scale on the face including a dot, typically used for potentiometers that incorporate a switch.
Colour
Quantity Unit Price
1+ £3.44
2+ £2.752
5+ £2.58
10+ £2.408
20+ £2.3736
50+ £2.3048
View full details

Fitting

Knob TypeRotary
Shaft TypeRound
Shaft FixingGrub Screw
Hole Size6mm

Appearance

Identity ColourBlack
Body ColourBlack
Accent Colour
Position Indicator ColourWhite
Position Indicator ShapeNumbers

Measurements

Minimum Shaft Depth7.4mm
Maximum Shaft Depth9.0mm
Body Diameter12.6mm
Maximum Diameter12.6mm
Widthmm
Lengthmm
Height11.0mm
Additional Measurements
Unit Weight2.29g
Small Short Solid Aluminium Control Knob With Printed Number Scale And Dot

Hole Type

Round Hole

A knob designed for a round shaft has a smooth, cylindrical hole that matches the shaft's shape. This type of hole allows the knob to slide easily onto the shaft, relying on a grub screw / set screw or friction to keep it in place. This design is widely used in audio equipment, consumer electronics, and control panels due to its simplicity and versatility

A knob with a round hole can typically also be used on a D type shaft in the 180° position (where the position indicator is opposite to the flat of the D) and can often also be mouned to splined shafts in low torque applications.

A View from the underside of the knob when fitting a round hole knob to a D shaft, showing the grub screw position relative to the position indicator:

Measuring Rotary Knobs

Read more about measuring rotary knobs here.
