15x15 Plain Solid Aluminium Control Knob
15x15 Plain Solid Aluminium Control Knob

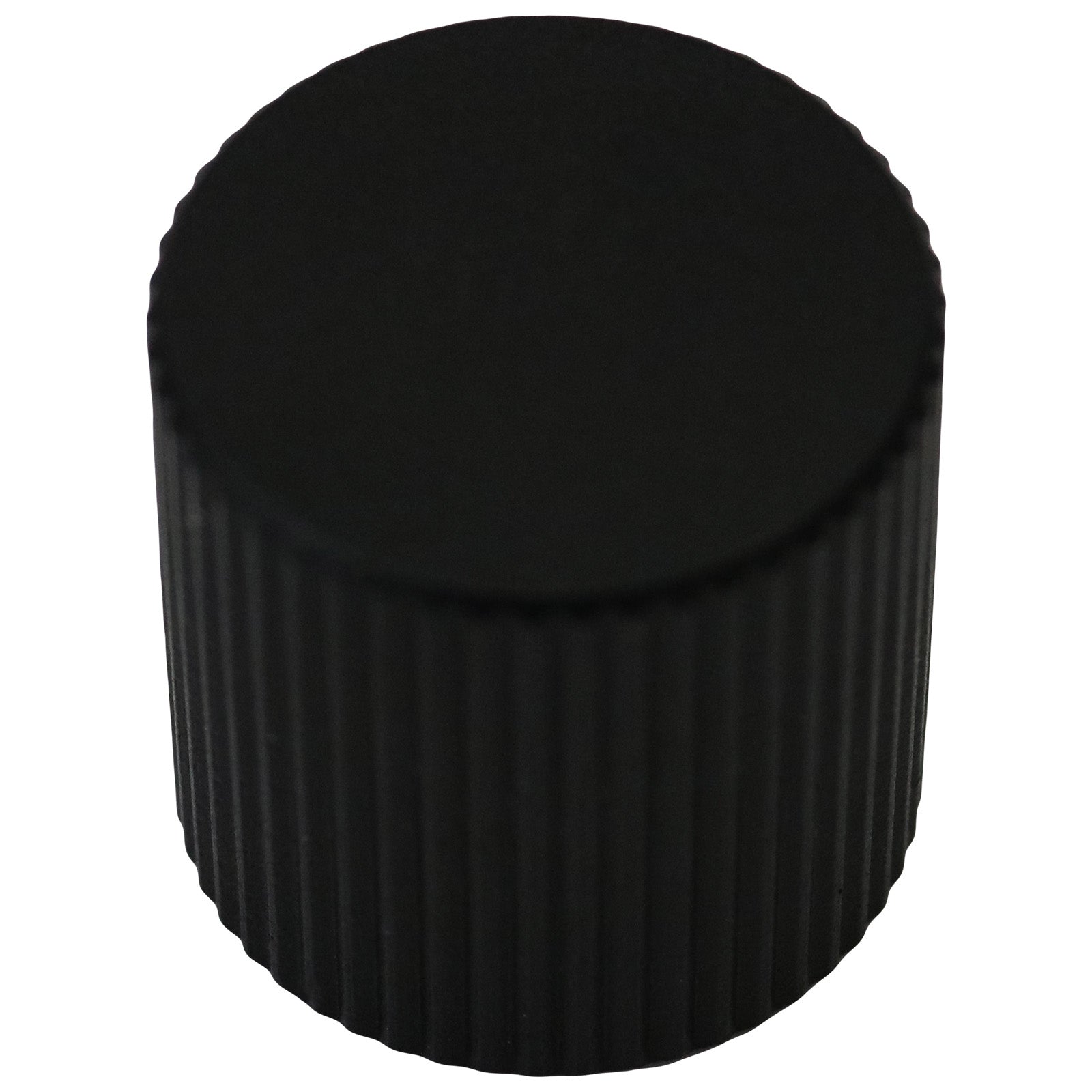

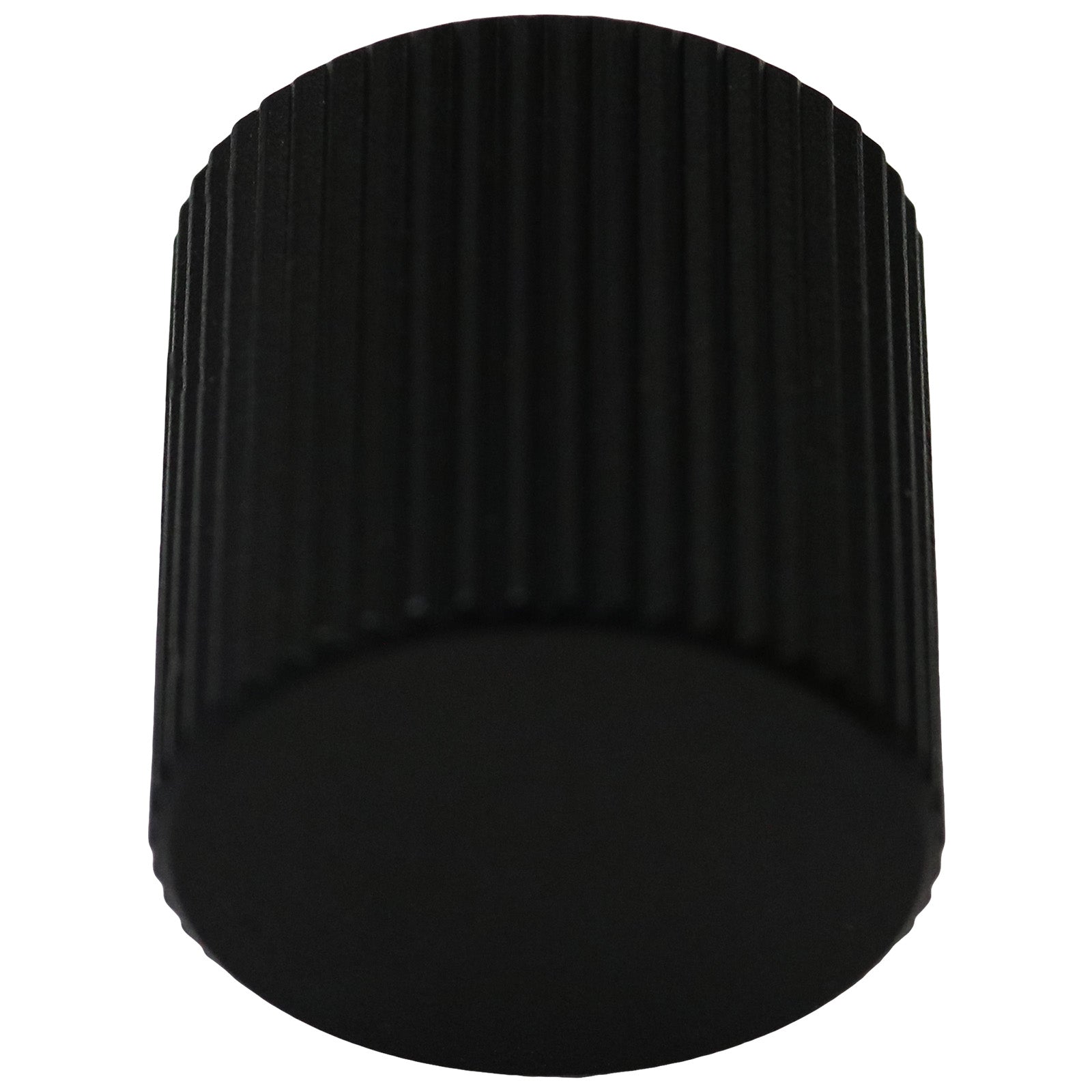

This cylindrical control knob features a solid aluminium construction with distinctive vertical ridges running around its circumference. The knob presents a clean, industrial appearance with a flat top surface and no position indicator, making it ideal for rotary encoder applications where continuous rotation is required.
The ridged surface provides excellent grip and tactile feedback, whilst the robust aluminium construction ensures durability in demanding environments. Its understated design makes it suitable for professional audio equipment, industrial controls, and electronic instruments where functionality takes precedence over decorative elements.
| Quantity | Unit Price |
|---|---|
| 1+ | £3.84 |
| 2+ | £3.072 |
| 5+ | £2.88 |
| 10+ | £2.688 |
| 20+ | £2.6496 |
| 50+ | £2.5728 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | Round |

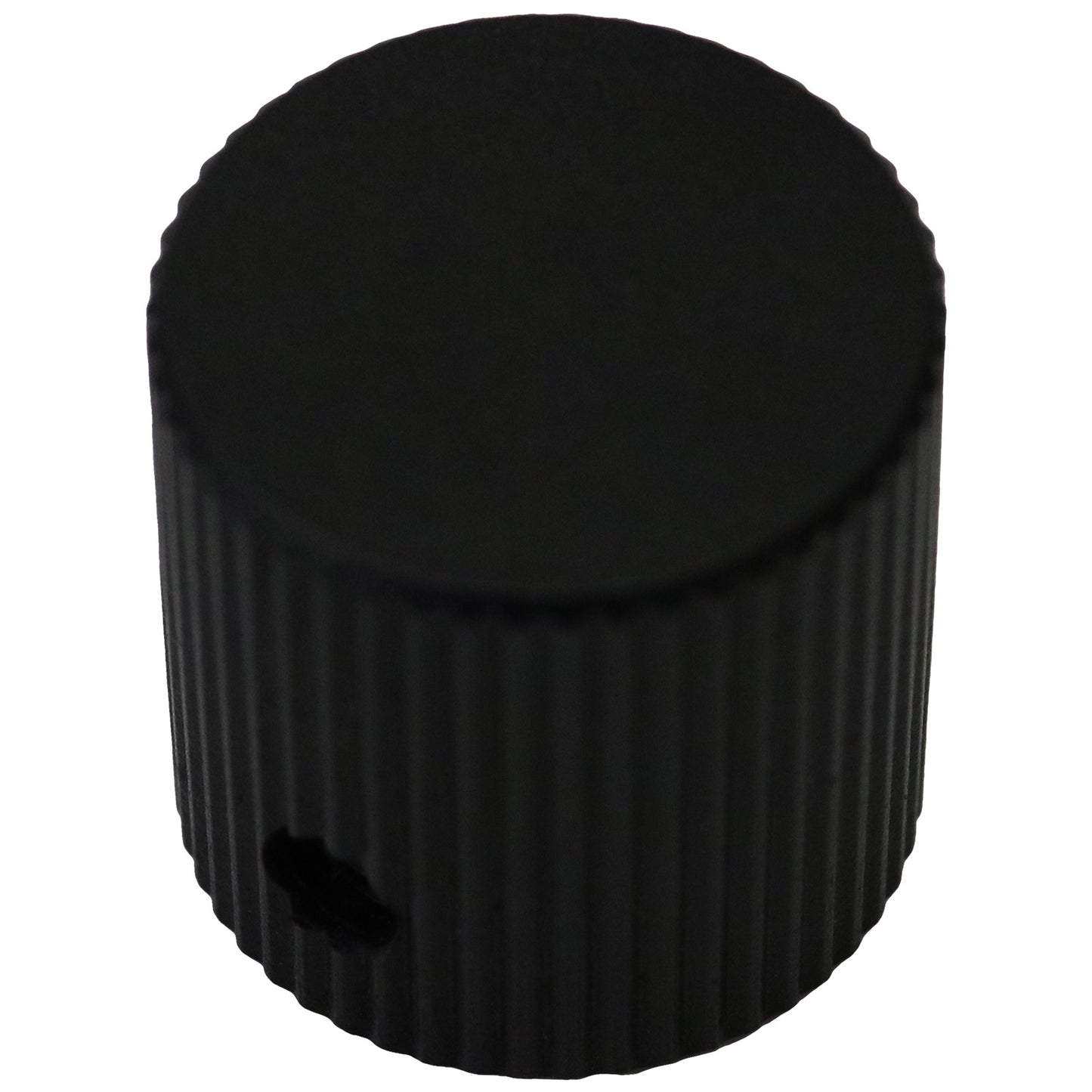

| Shaft Fixing | Grub Screw |
| Hole Size | 6mm |
Appearance
| Identity Colour | Black |
|---|---|
| Body Colour | Black |
| Accent Colour | |
| Position Indicator Colour | |
| Position Indicator Shape | None |
Measurements
| Minimum Shaft Depth | 6.0mm |
|---|---|
| Maximum Shaft Depth | 12.4mm |
| Body Diameter | 15.1mm |
| Maximum Diameter | 15.1mm |
| Width | mm |
| Length | mm |
| Height | 15.2mm |
| Additional Measurements | |
| Unit Weight | 6.23g |
Hole Type
Round Hole

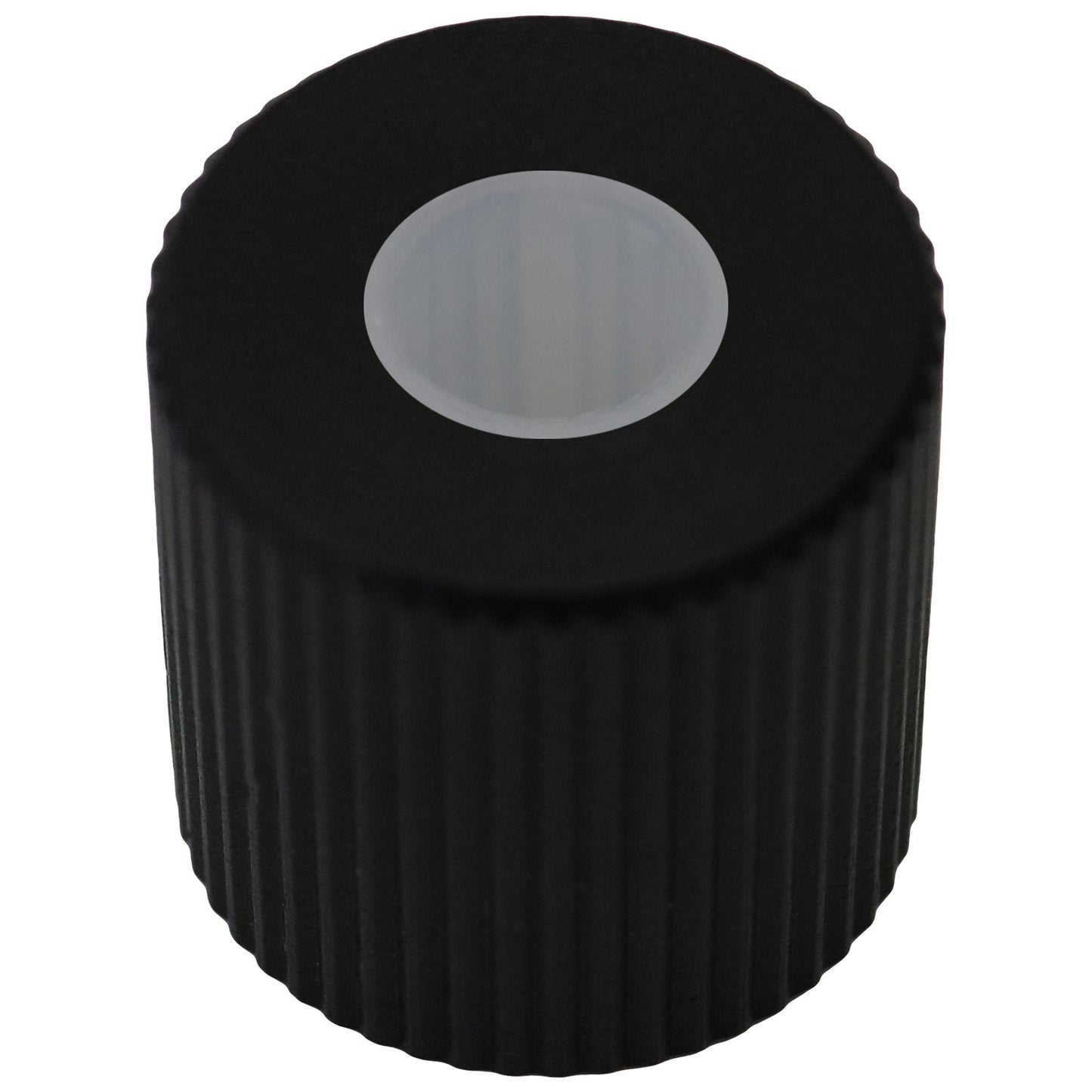

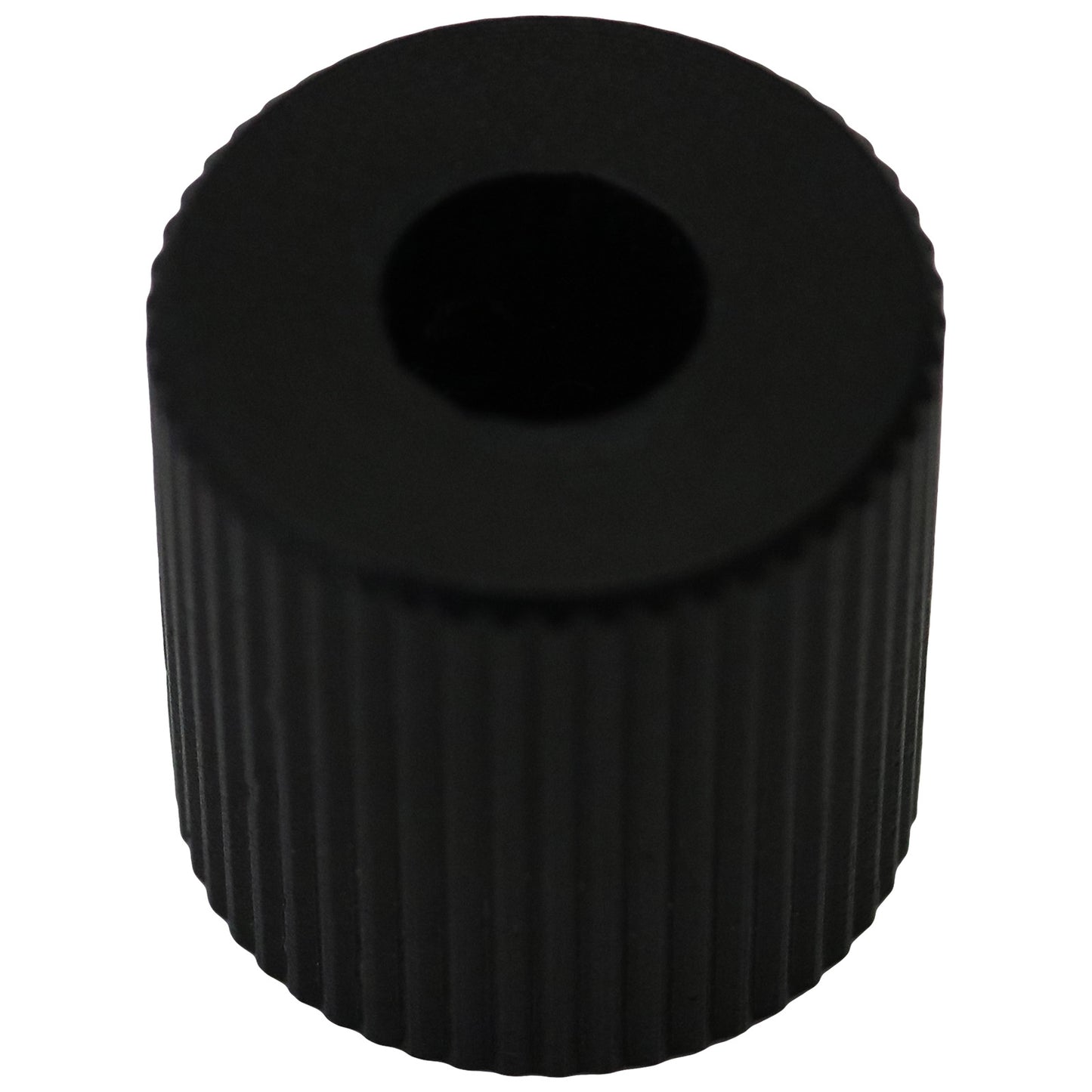

A knob designed for a round shaft has a smooth, cylindrical hole that matches the shaft's shape. This type of hole allows the knob to slide easily onto the shaft, relying on a grub screw / set screw or friction to keep it in place. This design is widely used in audio equipment, consumer electronics, and control panels due to its simplicity and versatility
A knob with a round hole can typically also be used on a D type shaft in the 180° position (where the position indicator is opposite to the flat of the D) and can often also be mouned to splined shafts in low torque applications.
A View from the underside of the knob when fitting a round hole knob to a D shaft, showing the grub screw position relative to the position indicator:
