Metal Skirted Number Scale Dial Control Knob With Metal End Cap
Metal Skirted Number Scale Dial Control Knob With Metal End Cap

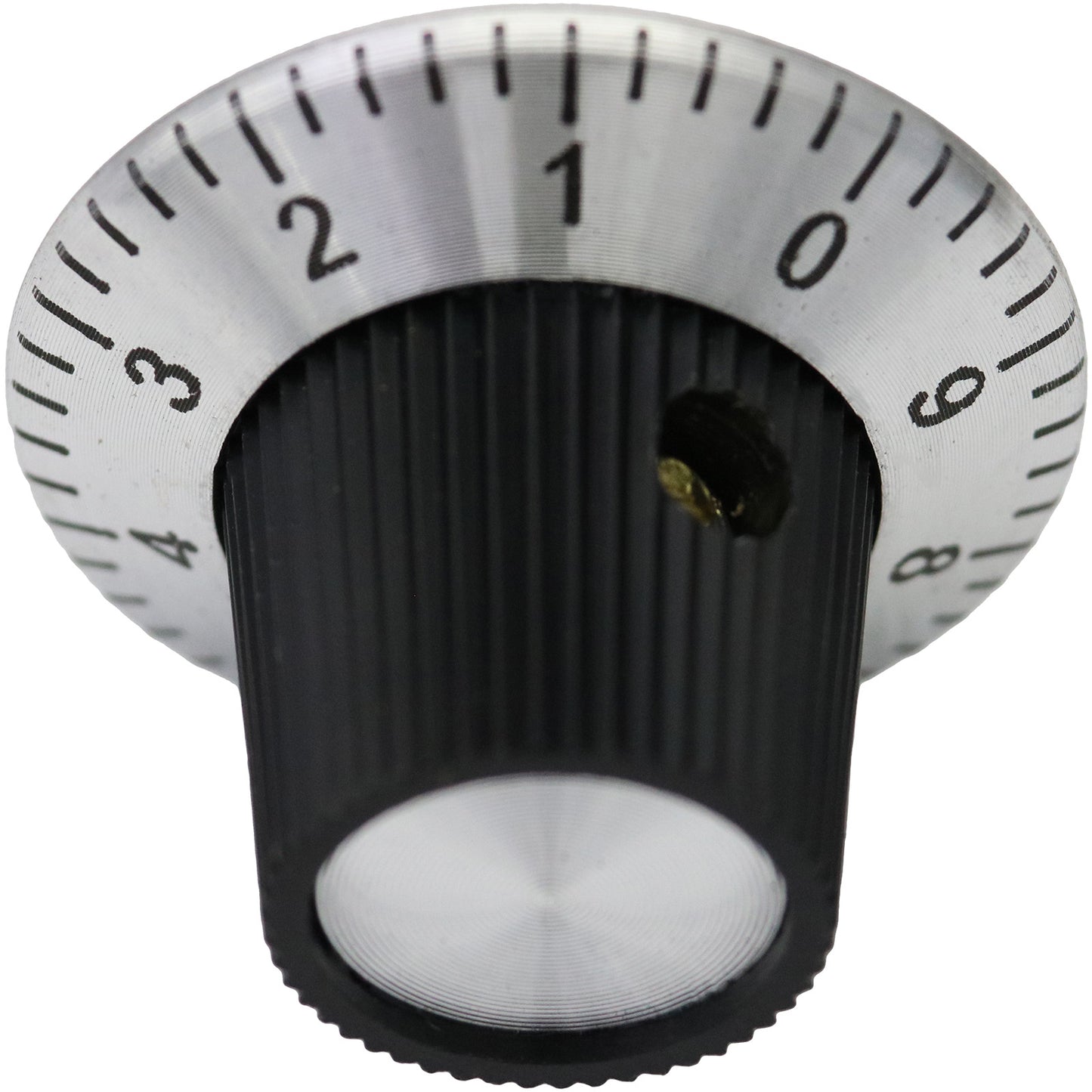

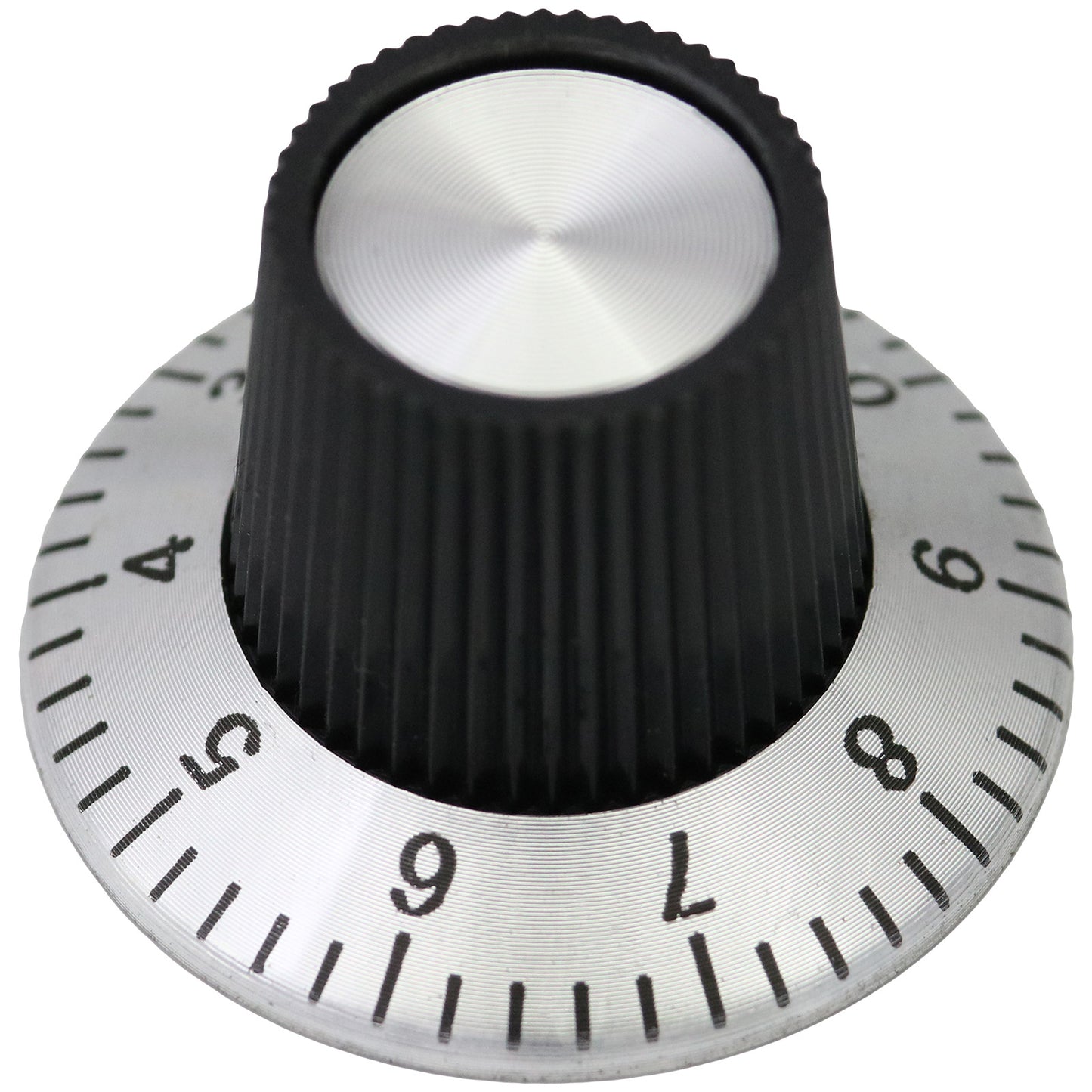

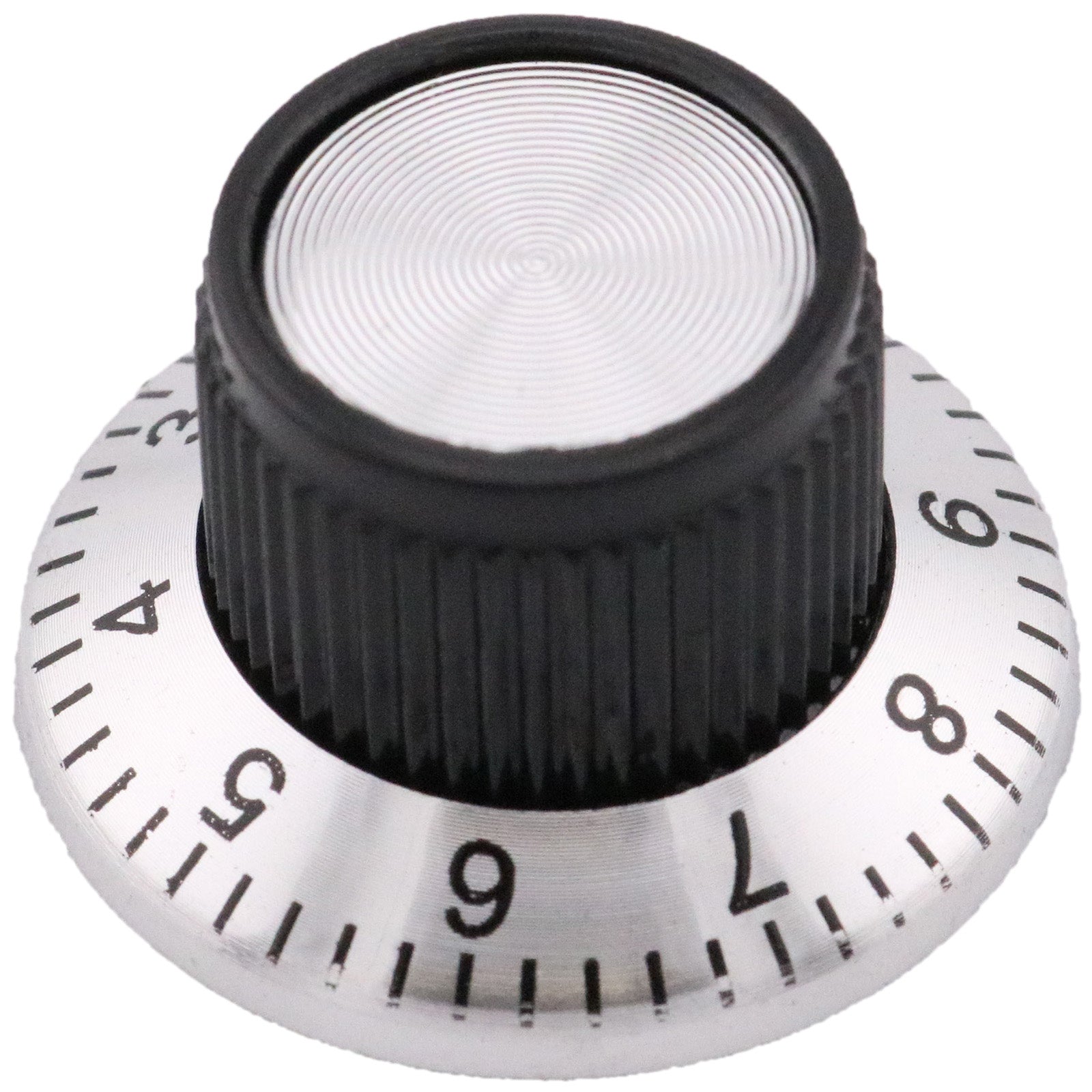

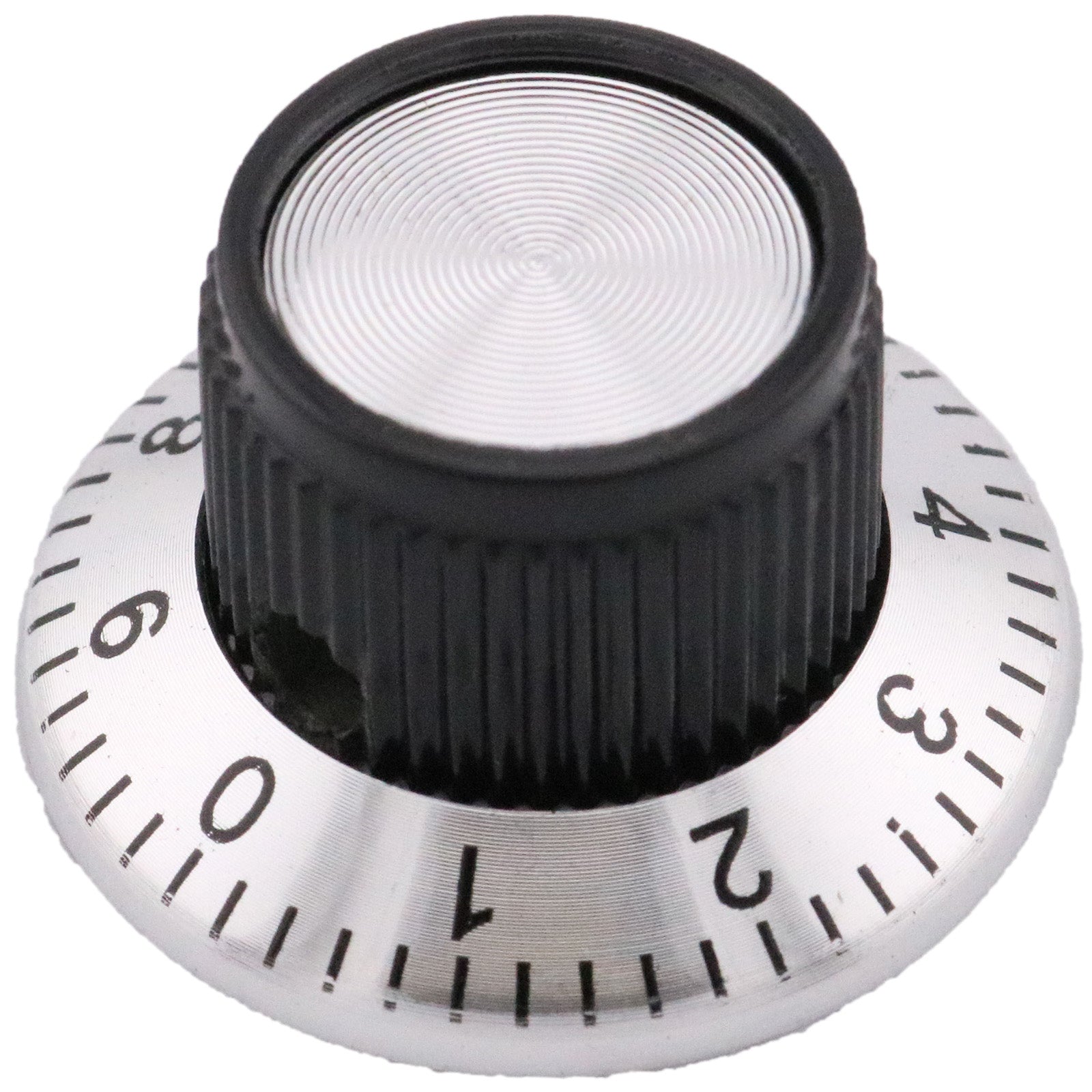

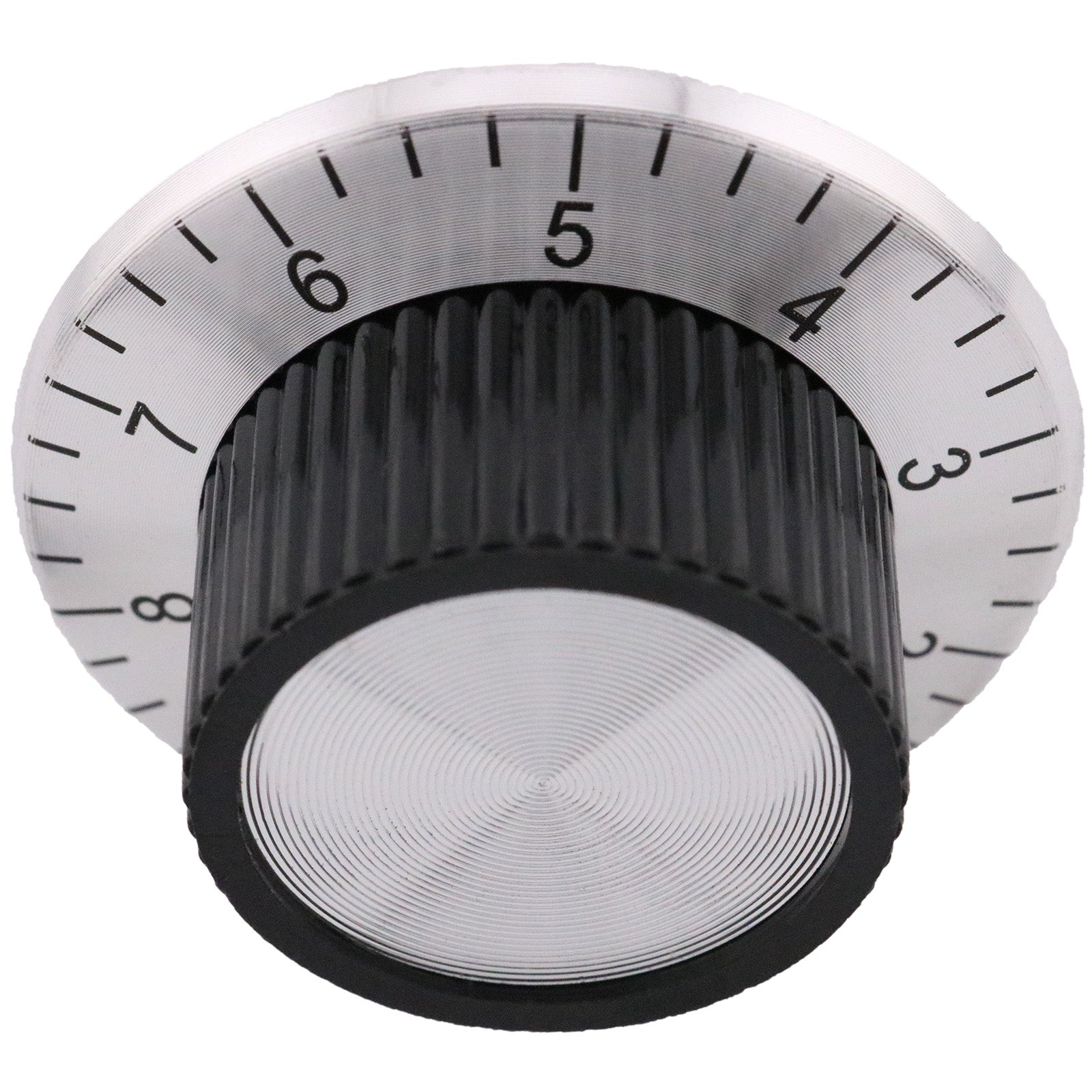

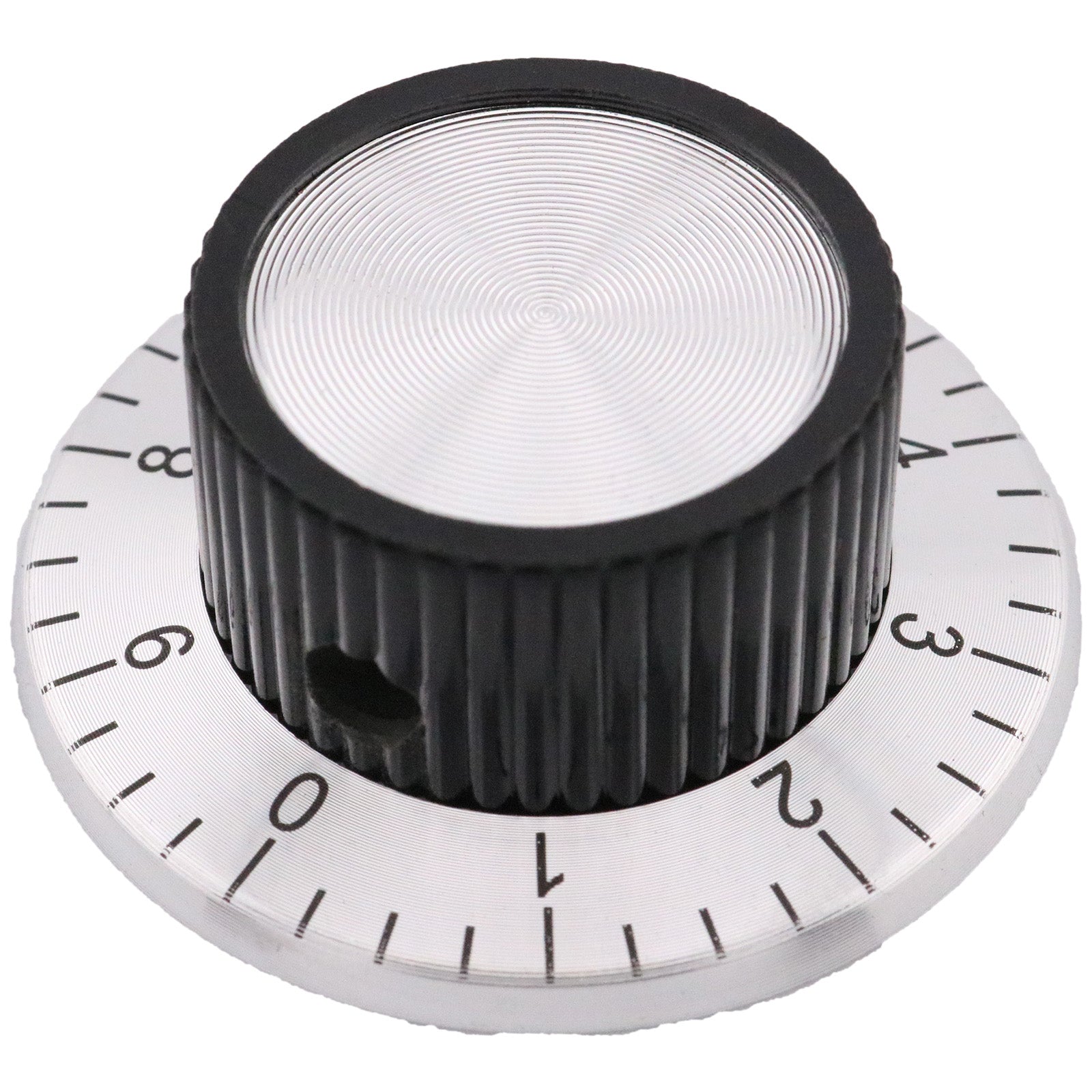

This distinctive control knob features a substantial aluminium skirt with clearly printed numerical markings around its entire circumference, providing precise position indication for professional applications. The tapered body showcases pronounced ridged detailing that extends around its full diameter, offering excellent grip and tactile feedback during operation.

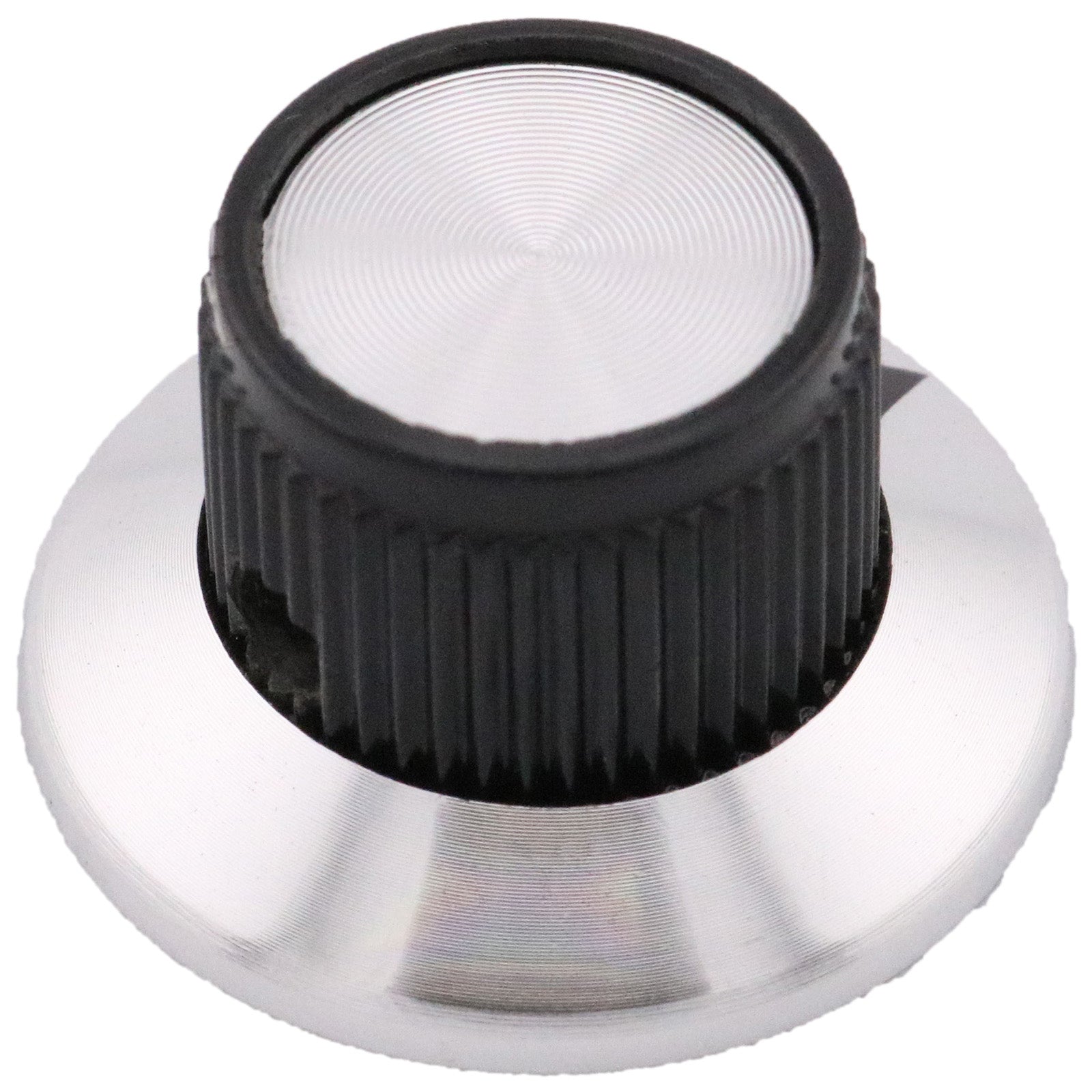

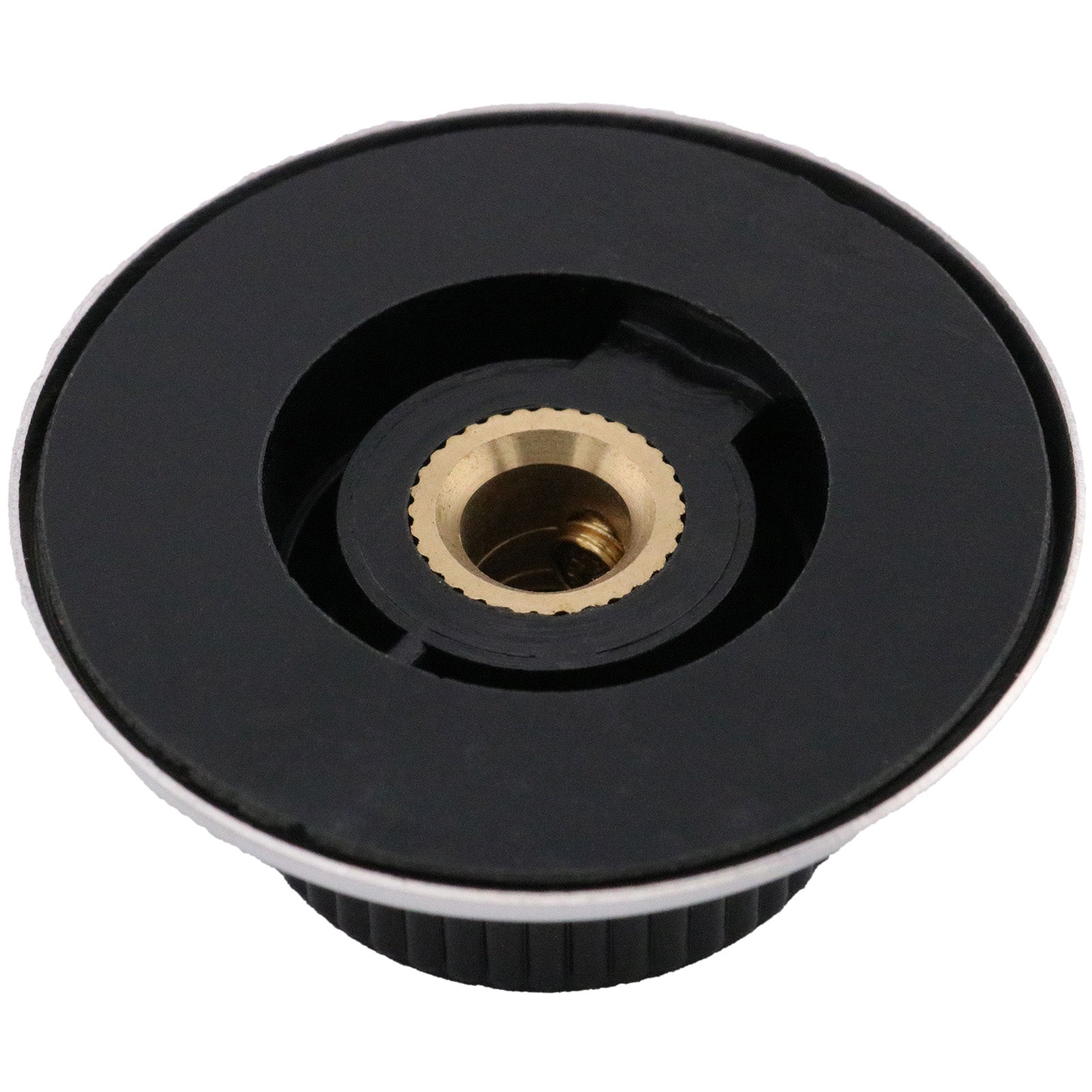

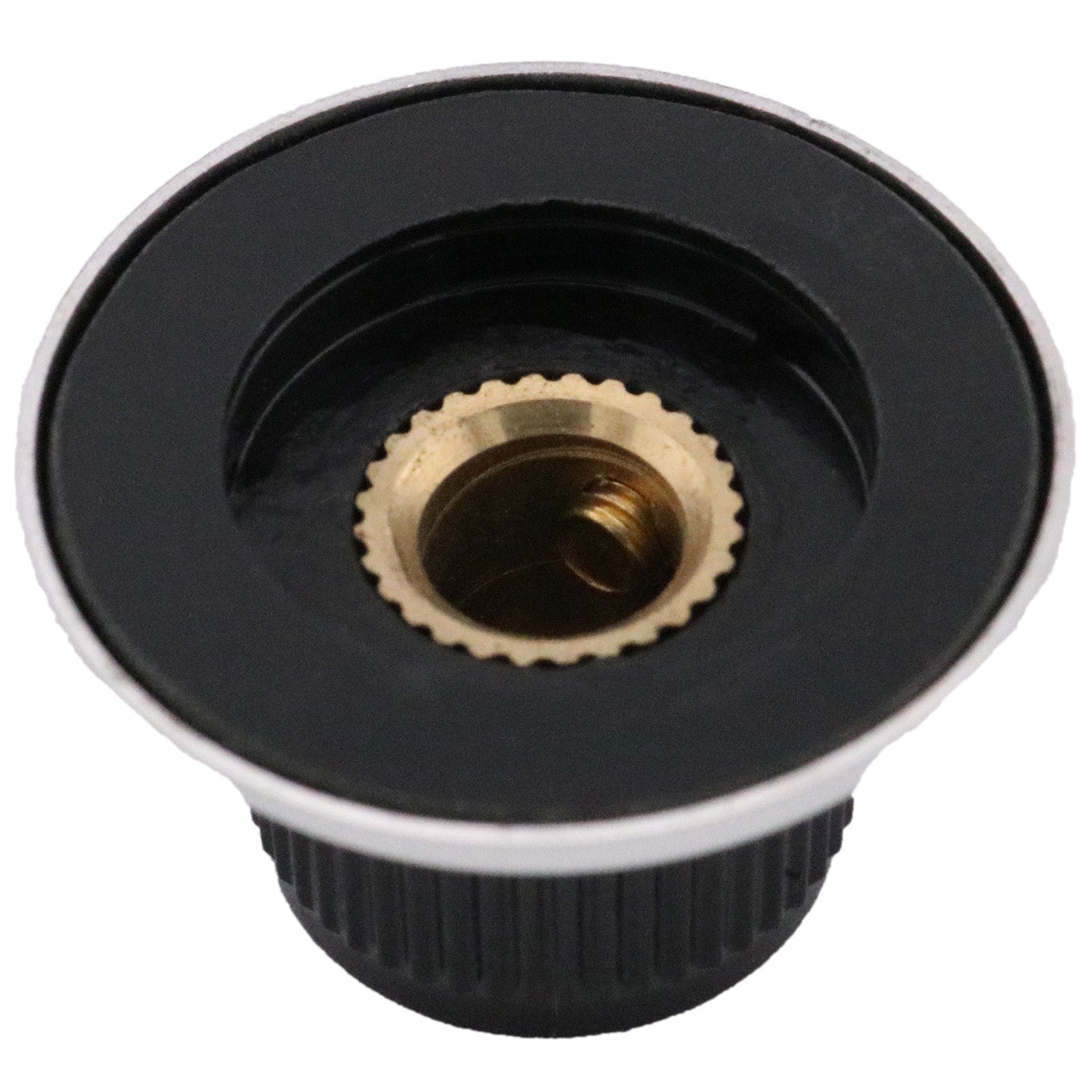

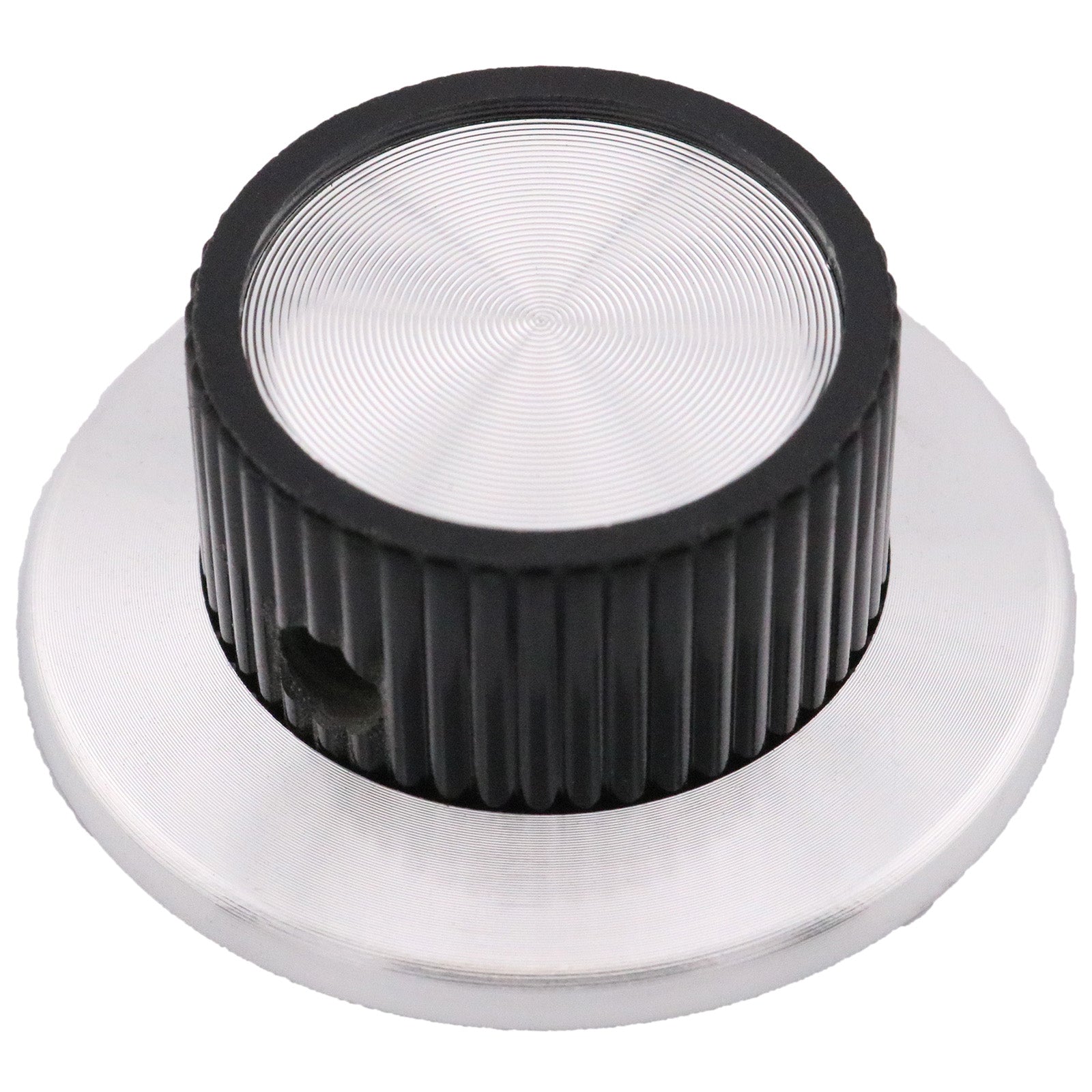

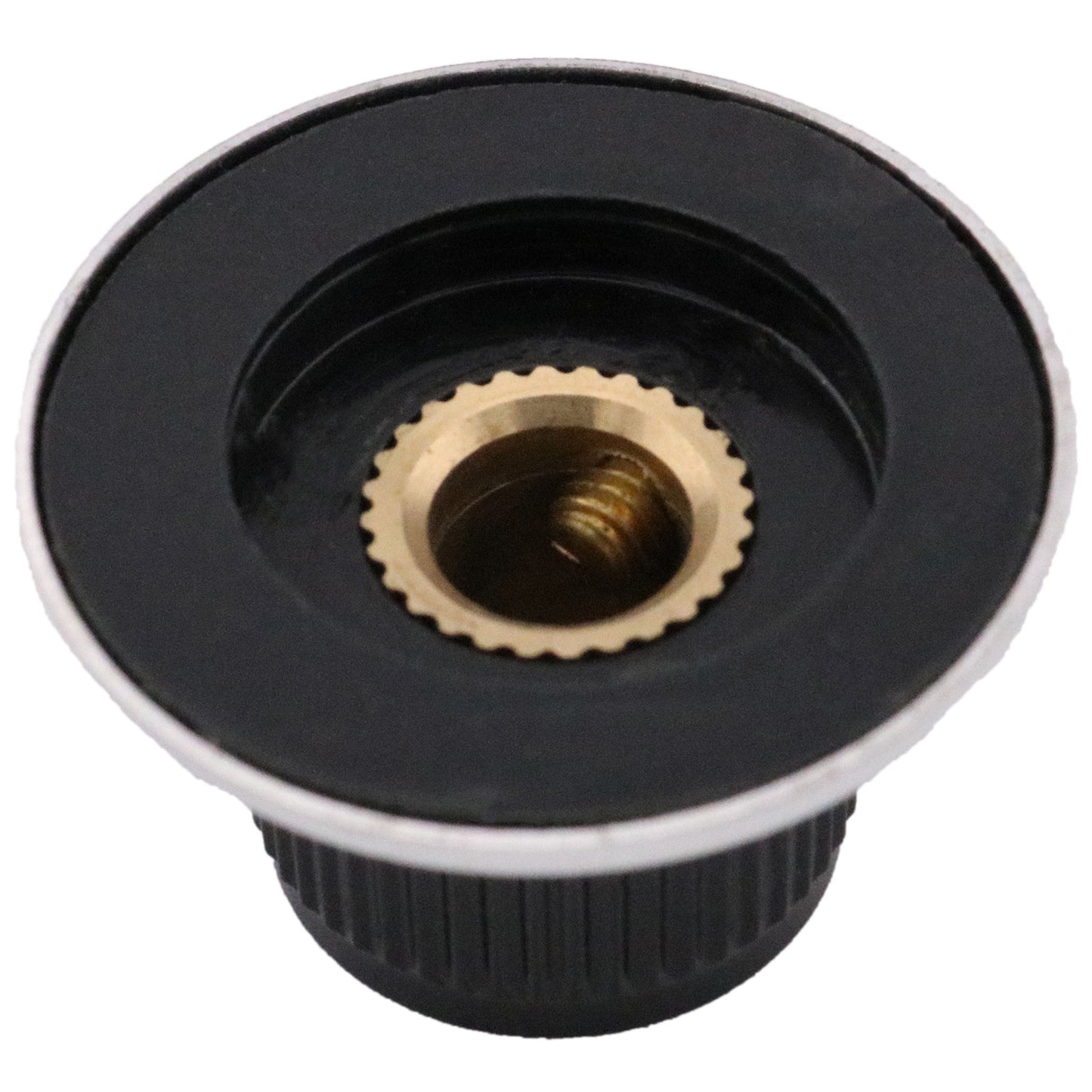

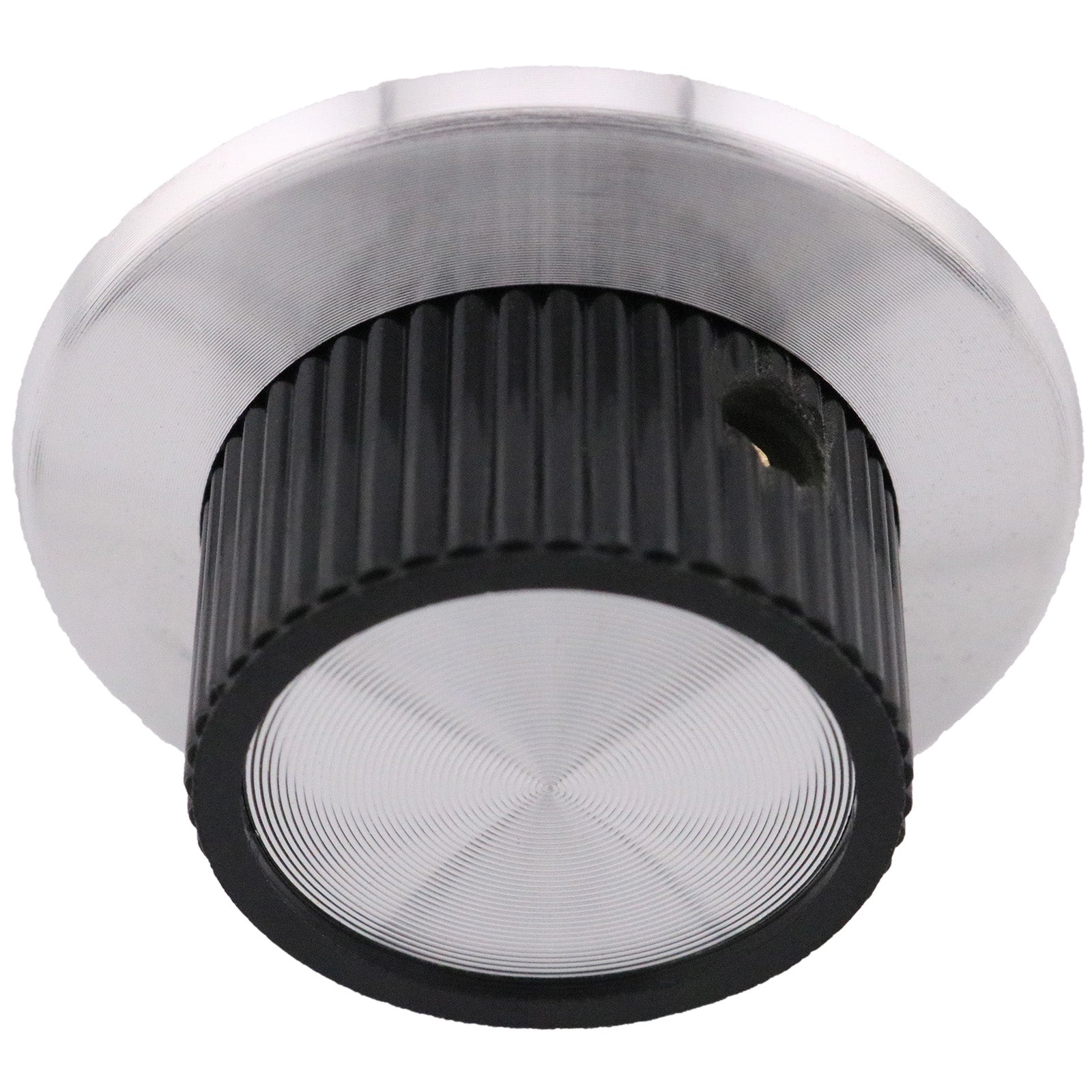

The knob is crowned with a polished aluminium end cap that complements the metallic skirt, creating a sophisticated two-tone appearance. The internal fitting incorporates a secure fixing mechanism for reliable shaft attachment. This design makes it particularly well-suited for audio equipment, test instruments, and precision control applications where accurate positioning and professional aesthetics are essential.
| Quantity | Unit Price |
|---|---|
| 1+ | £3.33 |
| 2+ | £2.664 |
| 5+ | £2.4975 |
| 10+ | £2.331 |
| 20+ | £2.2977 |
| 50+ | £2.2311 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | Round |

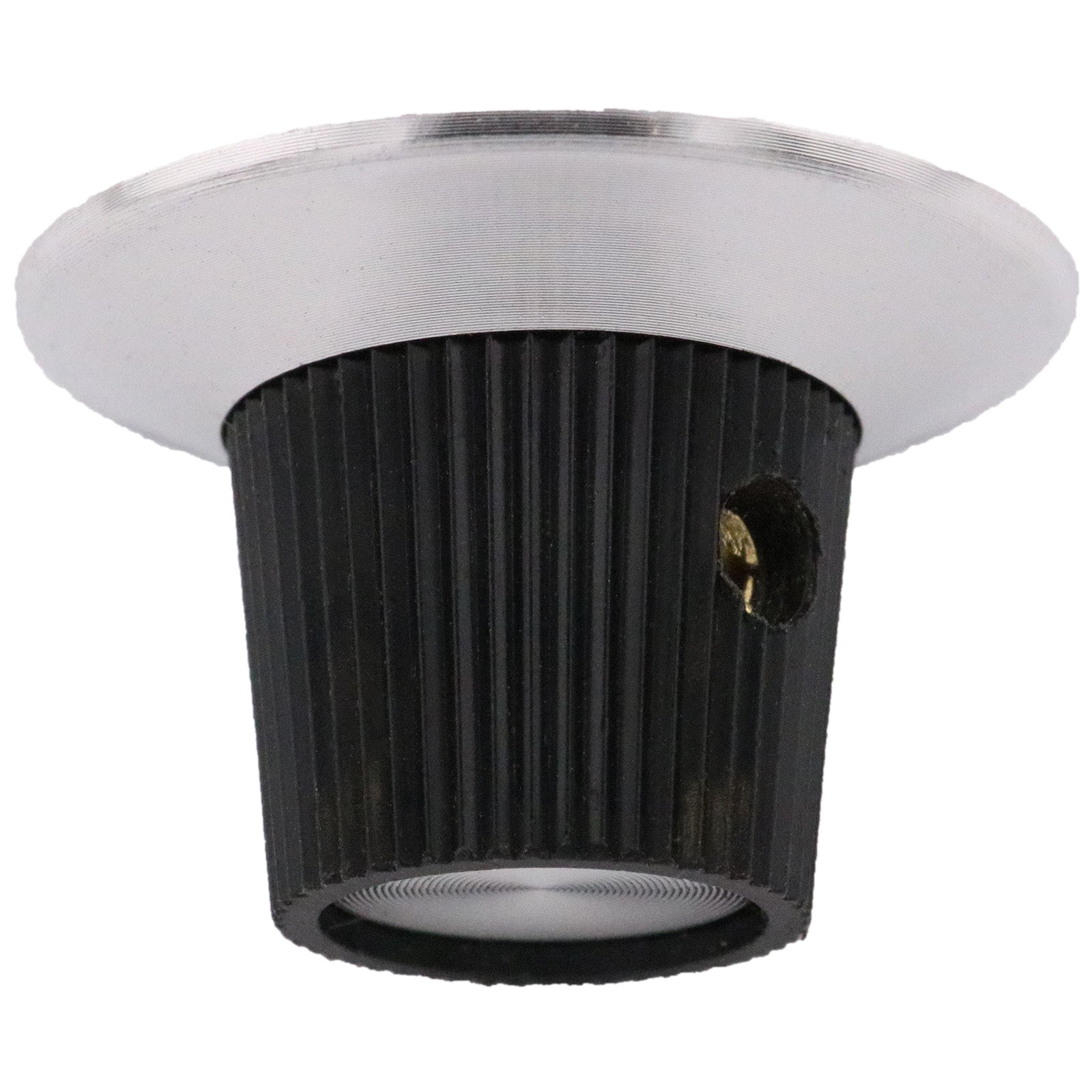

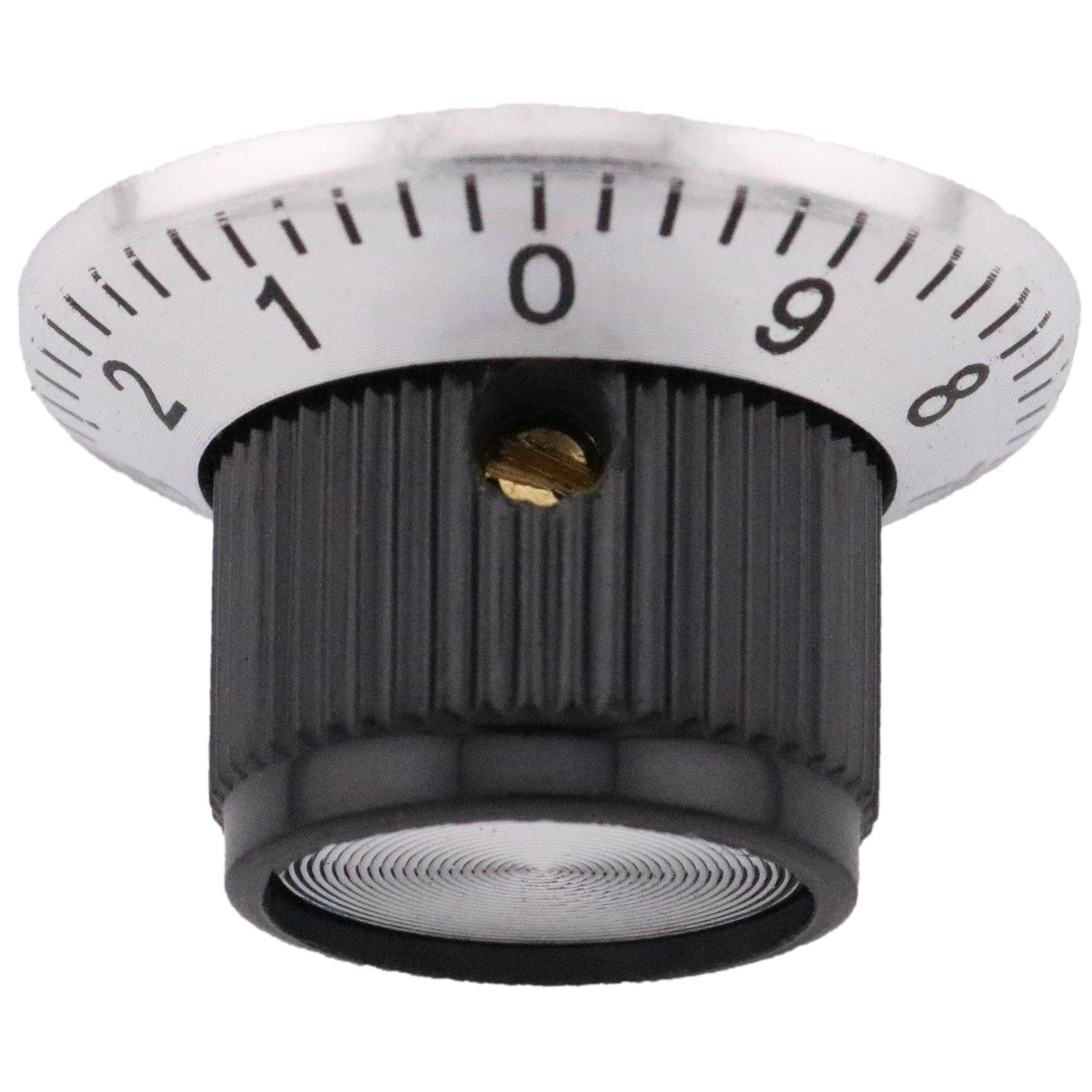

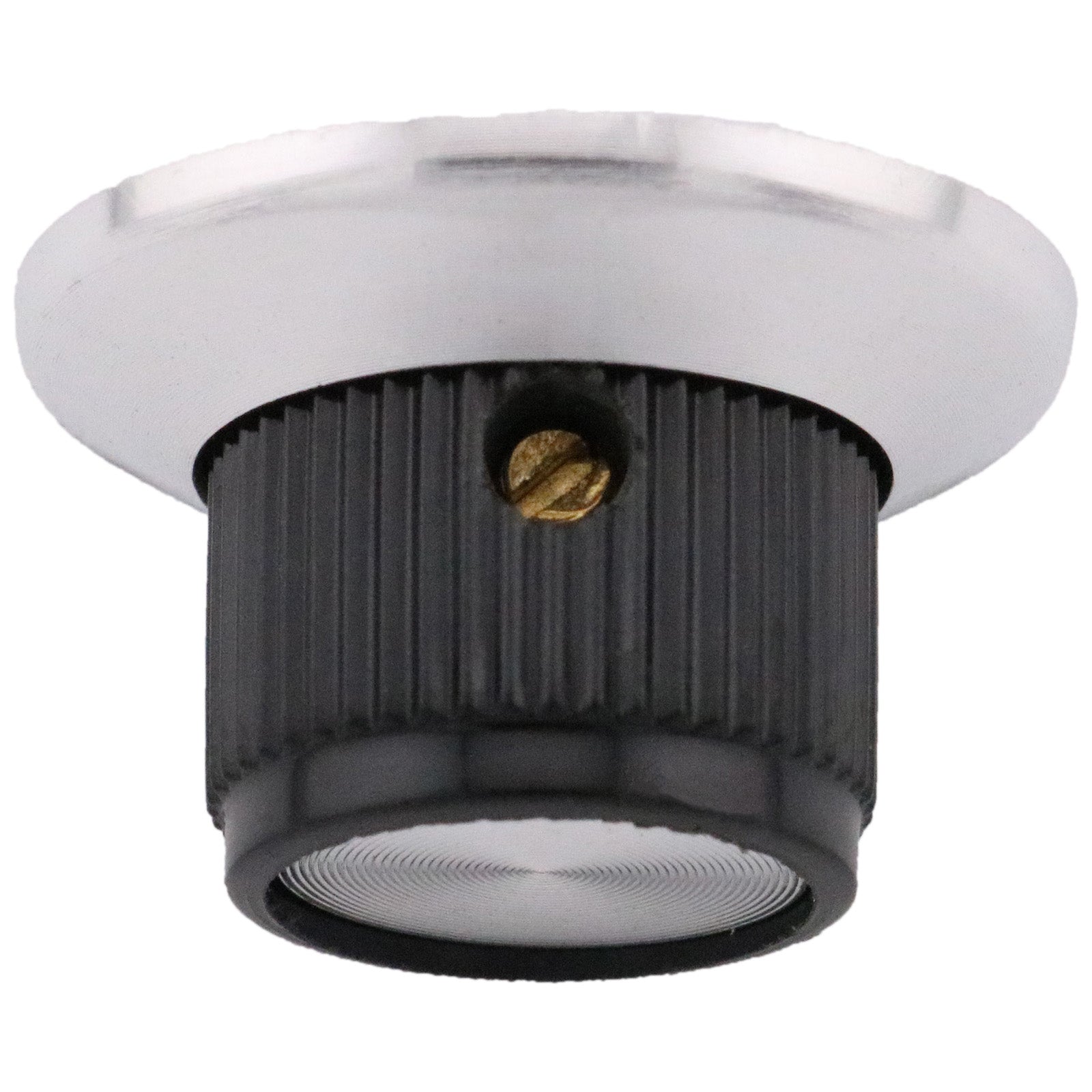

| Shaft Fixing | Grub Screw |
| Hole Size | 6mm |
Appearance
| Identity Colour | Silver |
|---|---|
| Body Colour | Black |
| Accent Colour | Silver |
| Position Indicator Colour | Black |
| Position Indicator Shape | Numbers |
Measurements
| Minimum Shaft Depth | 10.8mm |
|---|---|
| Maximum Shaft Depth | 14.0mm |
| Body Diameter | 17.3mm |
| Maximum Diameter | 29.2mm |
| Width | mm |
| Length | mm |
| Height | 17.9mm |
| Additional Measurements | |
| Unit Weight | 6.46g |
Hole Type
Round Hole
A knob designed for a round shaft has a smooth, cylindrical hole that matches the shaft's shape. This type of hole allows the knob to slide easily onto the shaft, relying on a grub screw / set screw or friction to keep it in place. This design is widely used in audio equipment, consumer electronics, and control panels due to its simplicity and versatility
A knob with a round hole can typically also be used on a D type shaft in the 180° position (where the position indicator is opposite to the flat of the D) and can often also be mouned to splined shafts in low torque applications.

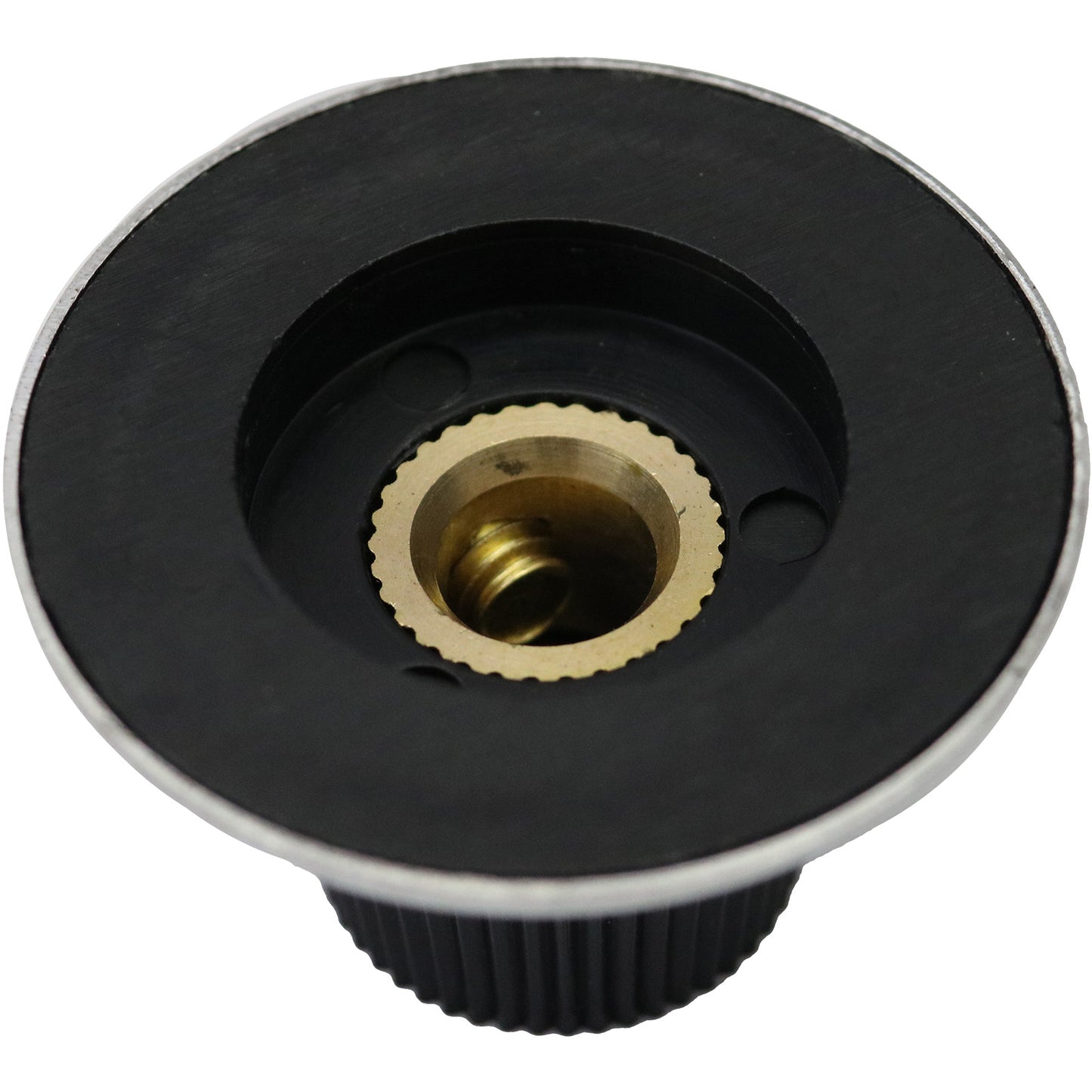

A View from the underside of the knob when fitting a round hole knob to a D shaft, showing the grub screw position relative to the position indicator:
