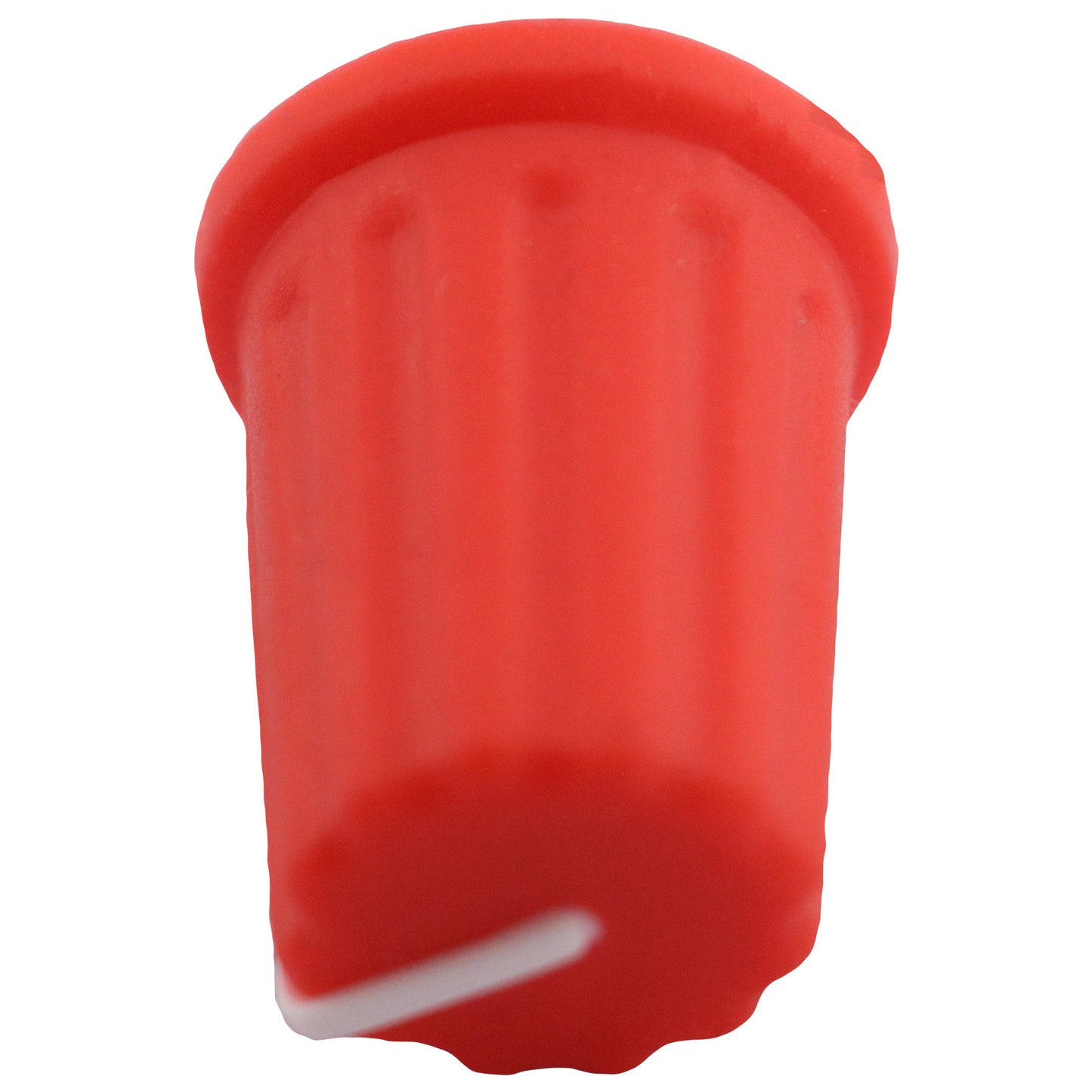

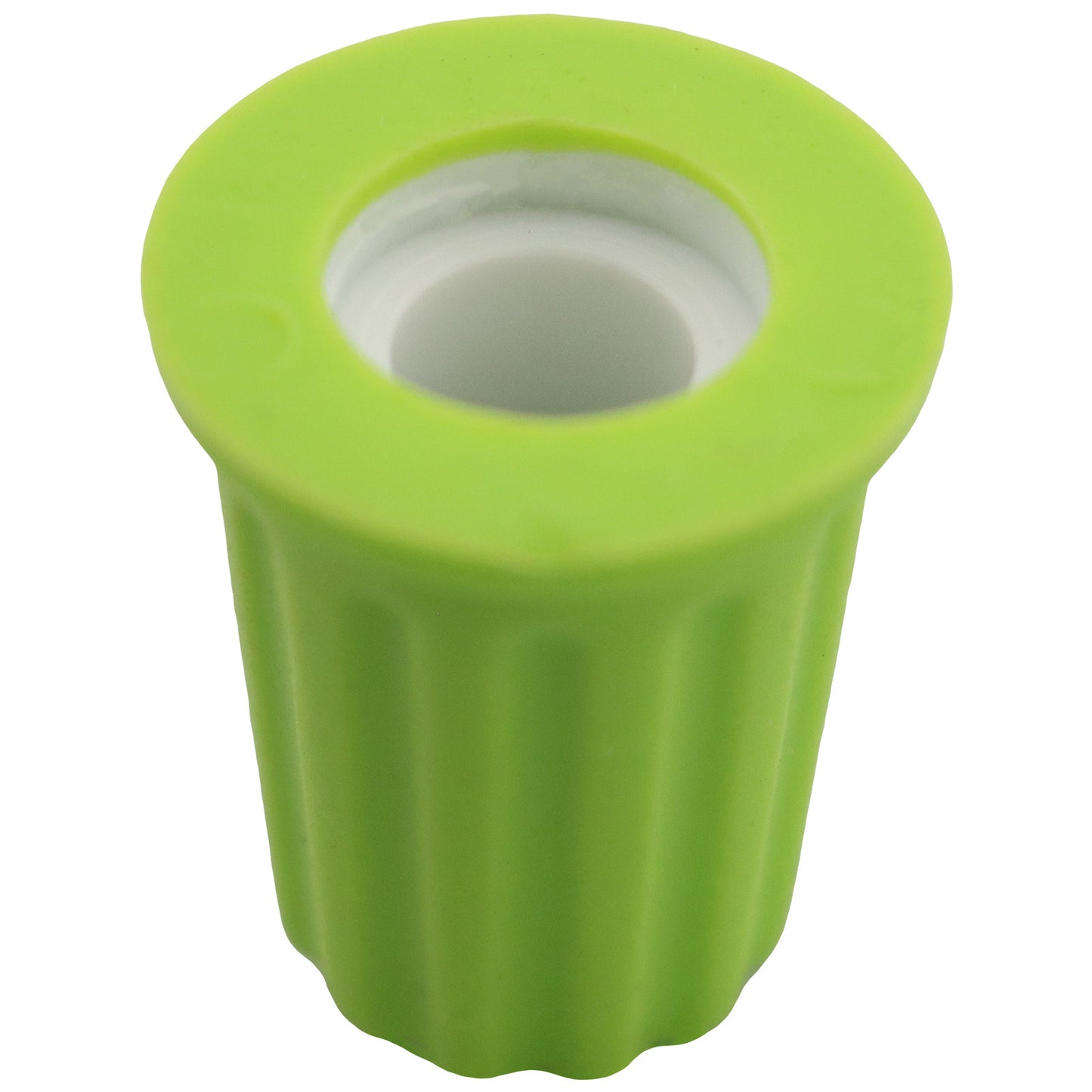

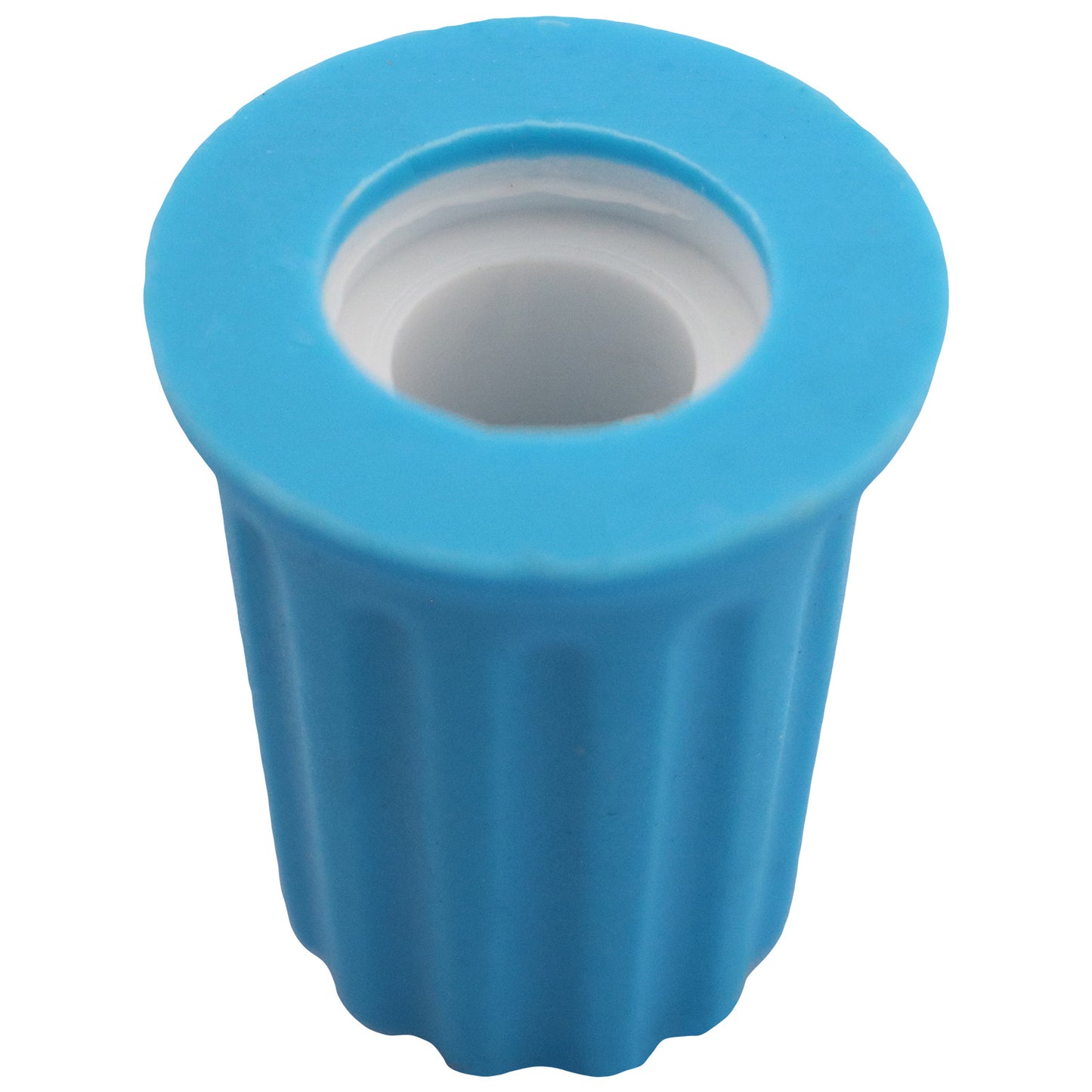

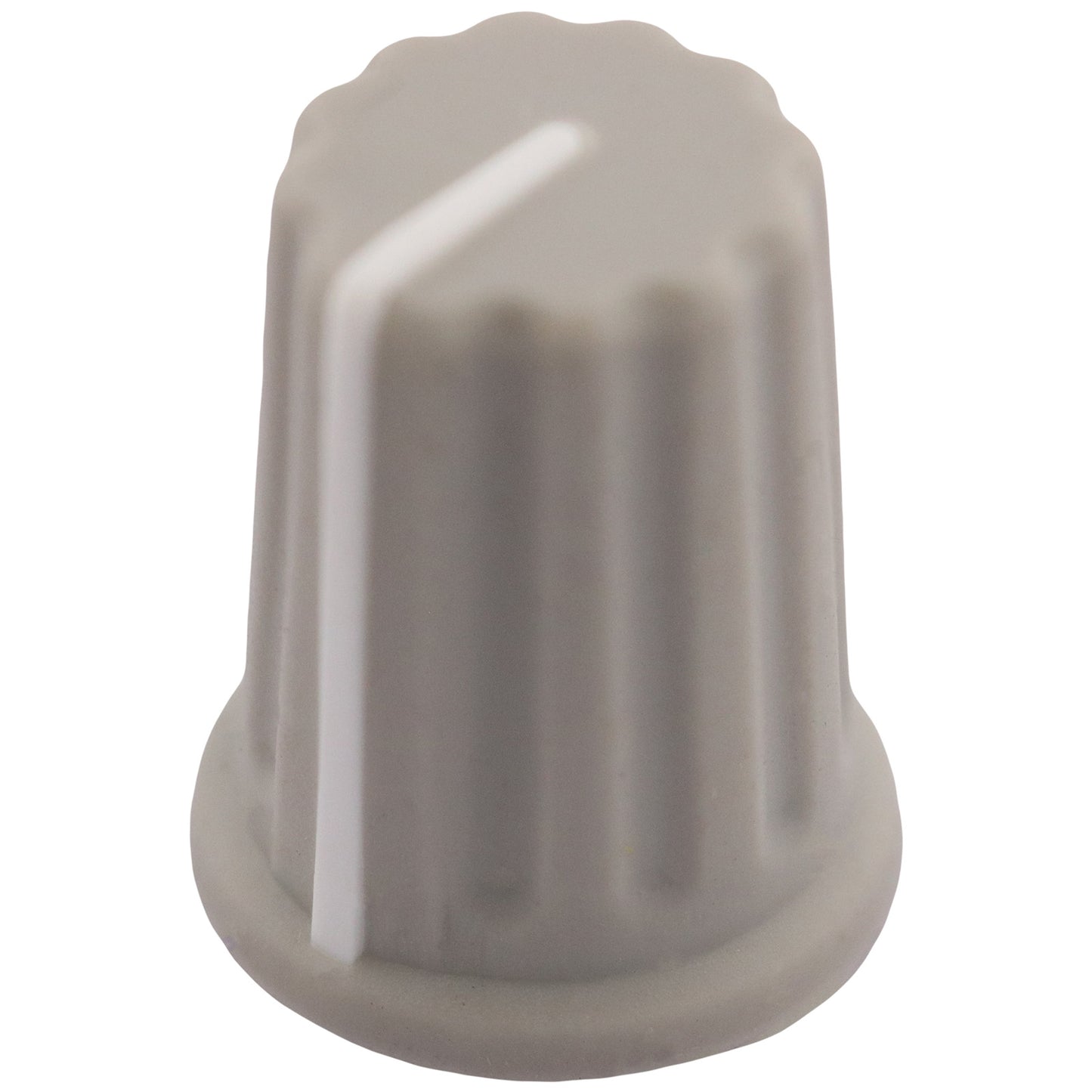

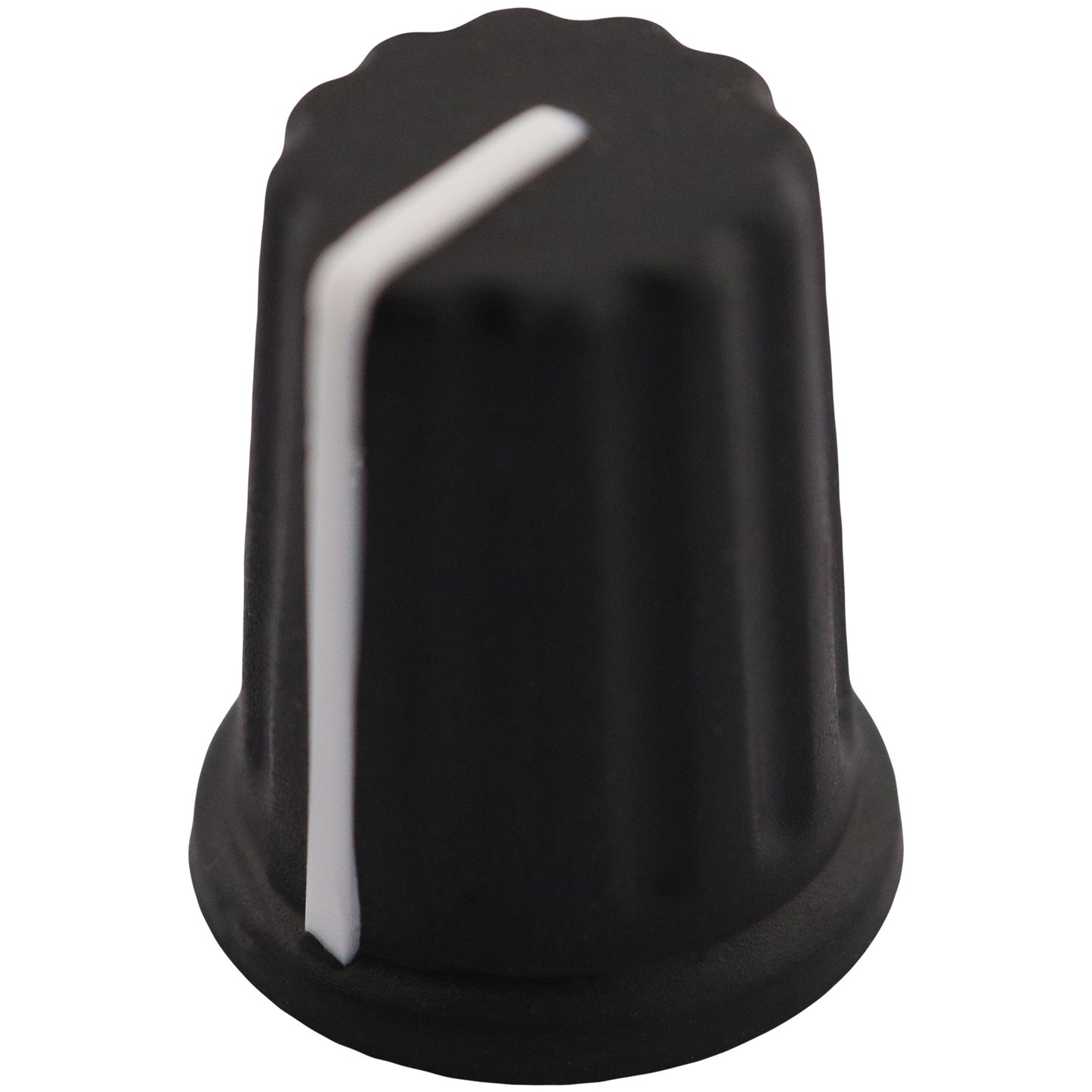

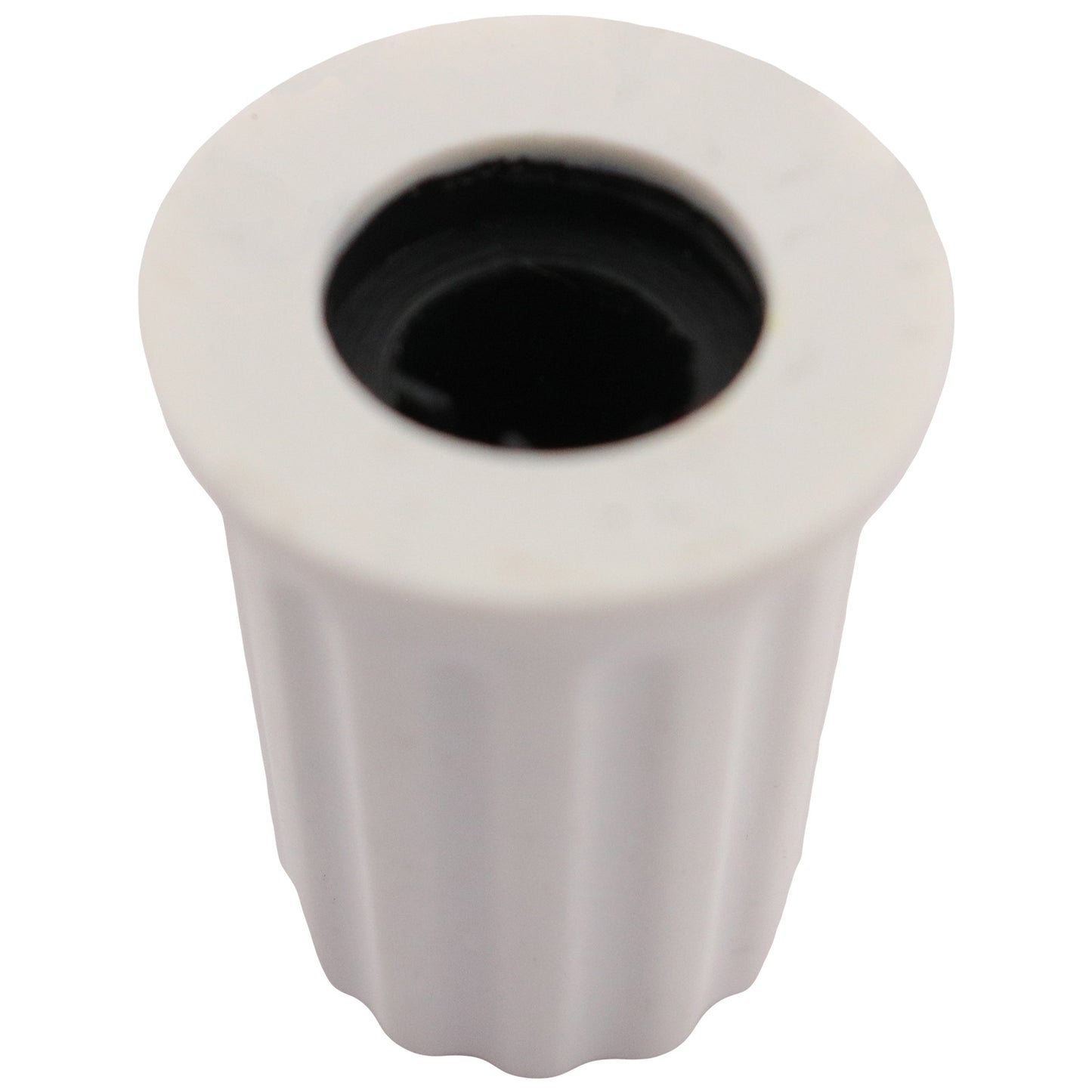

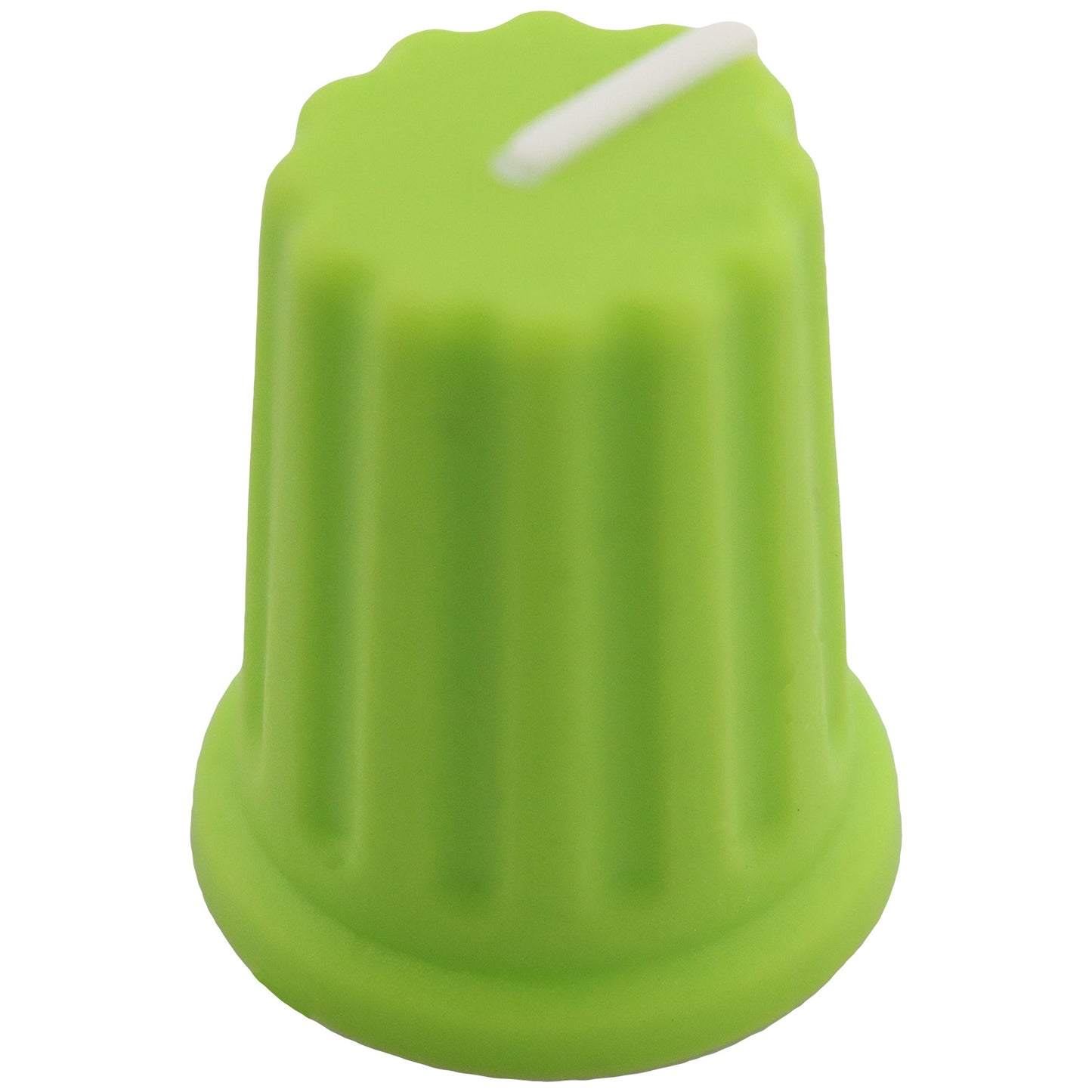

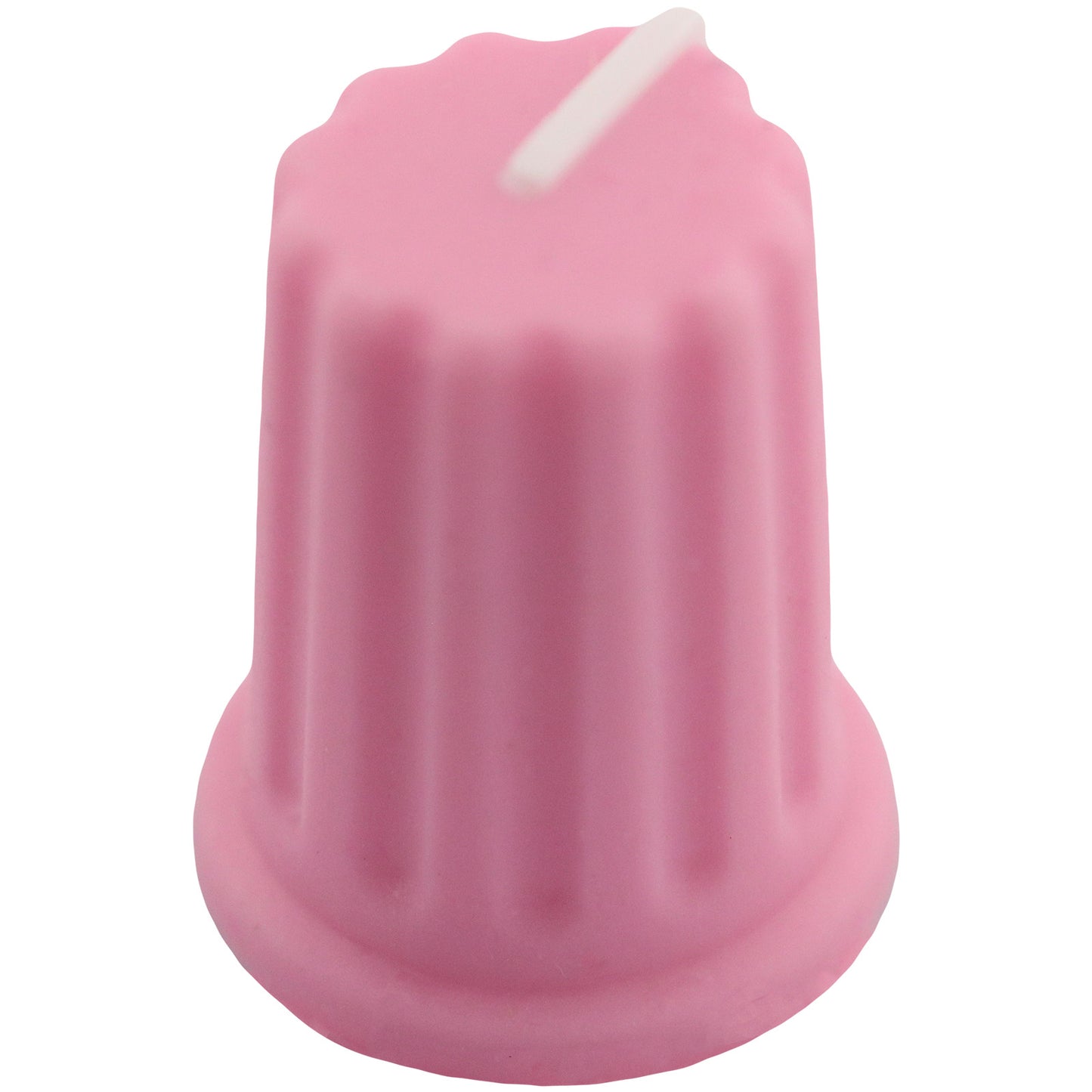

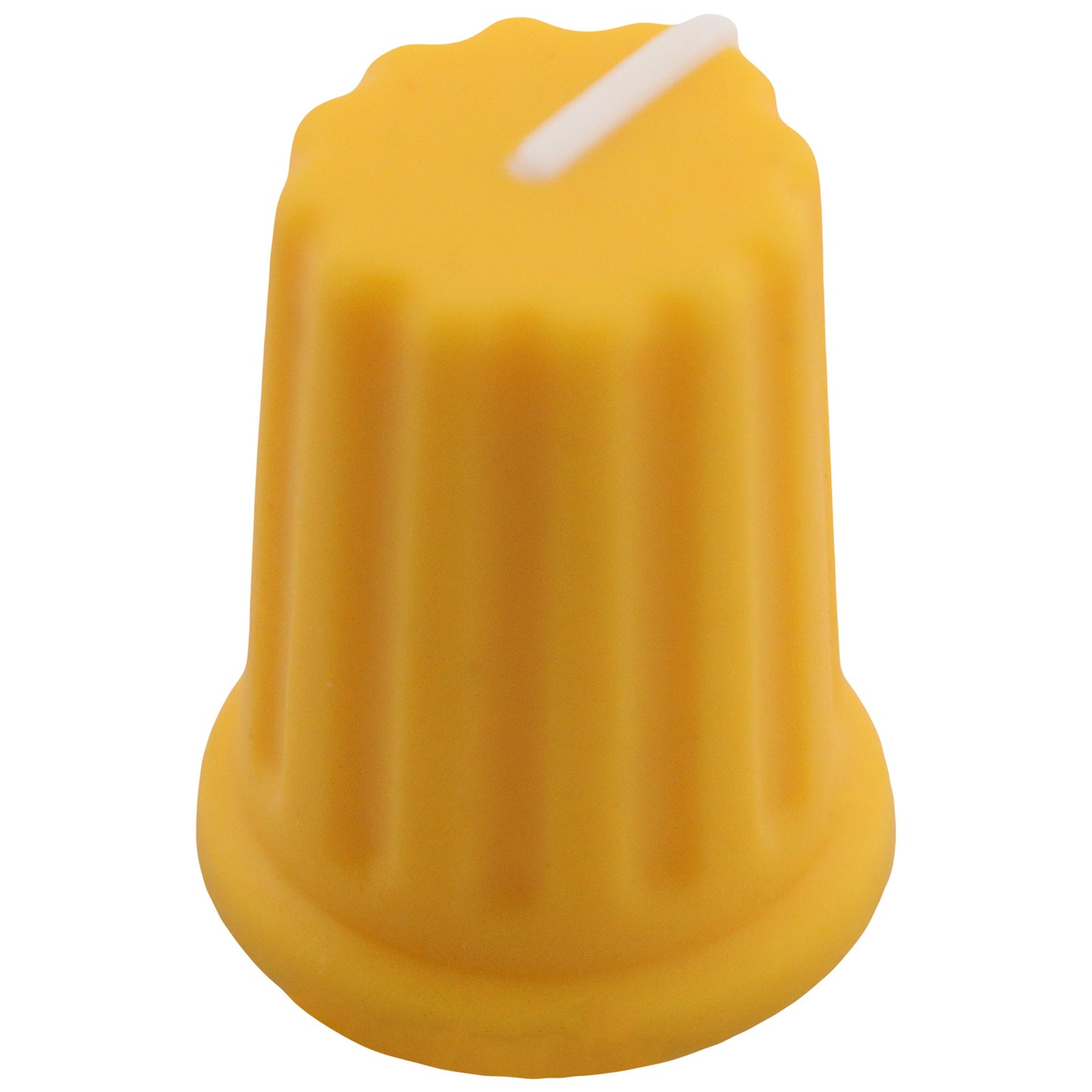

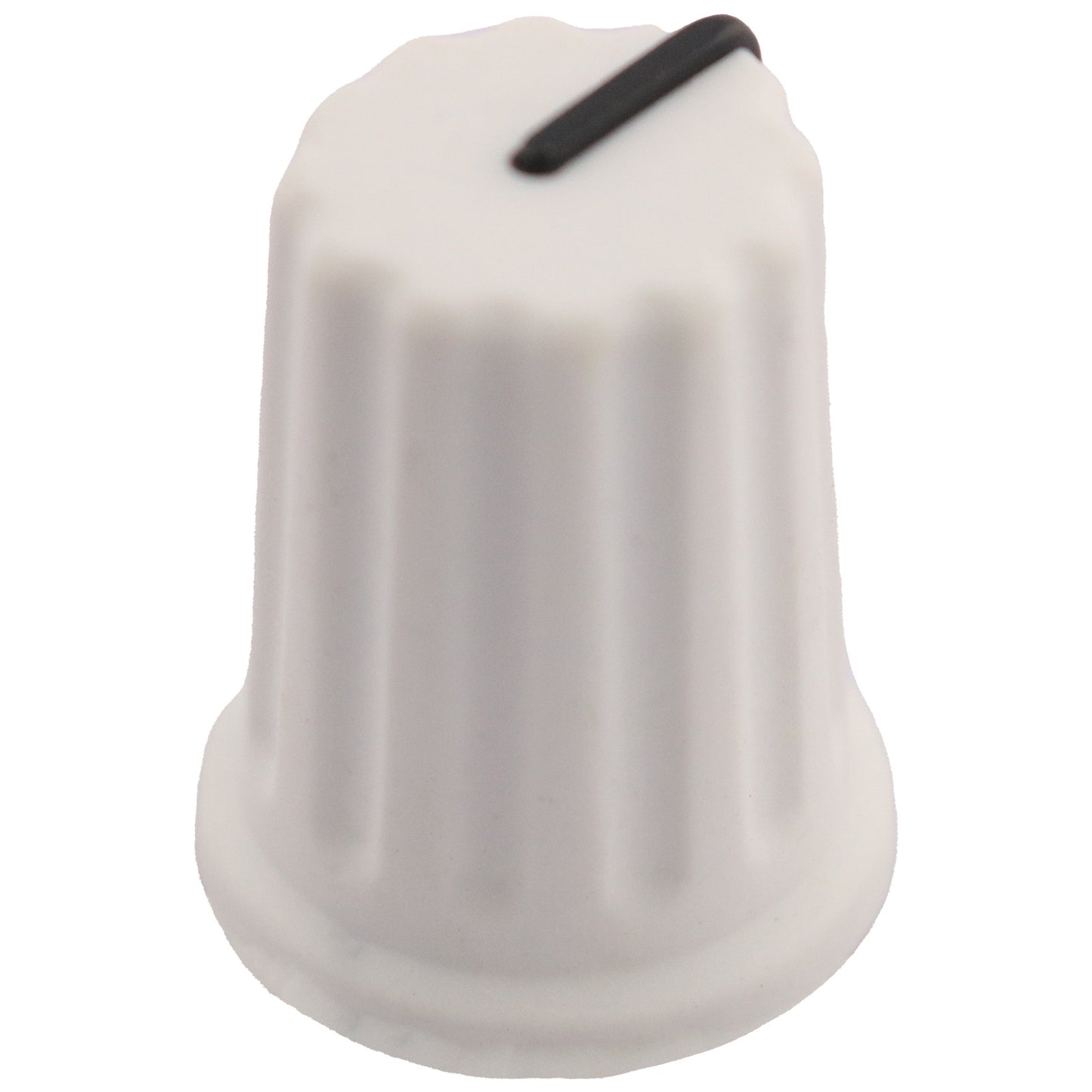

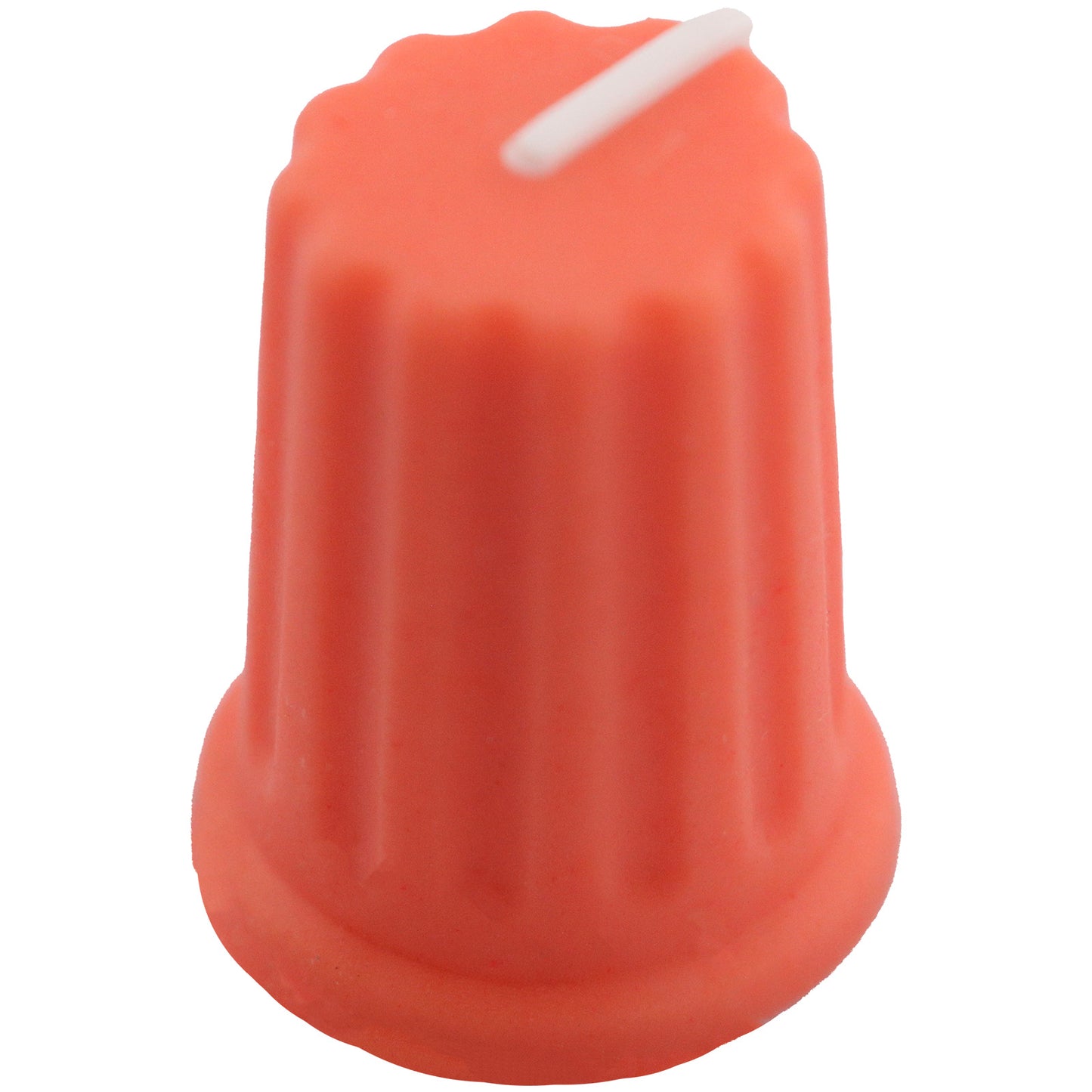

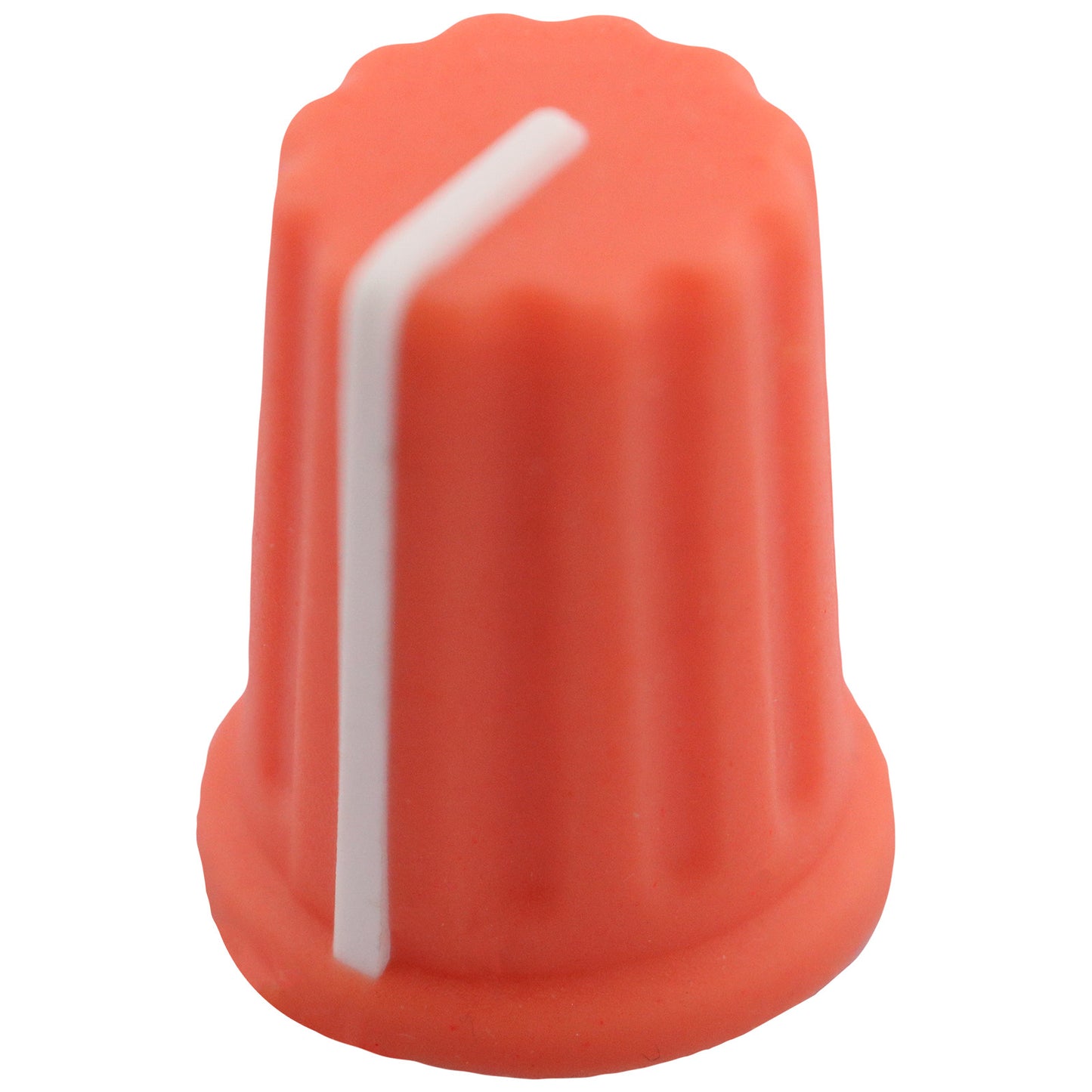

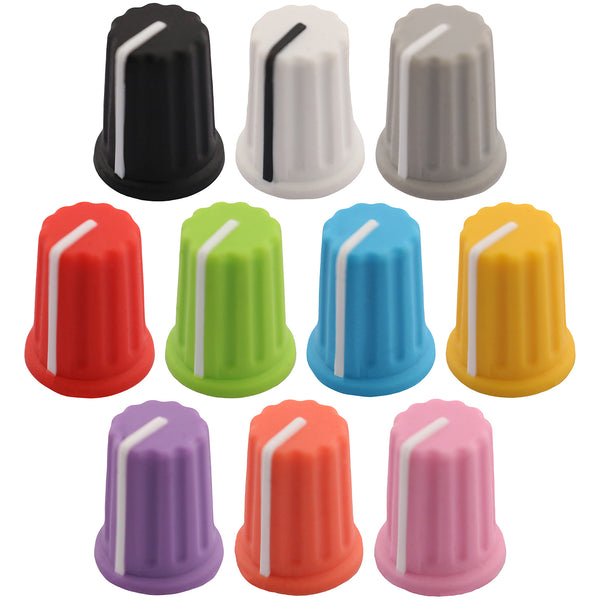

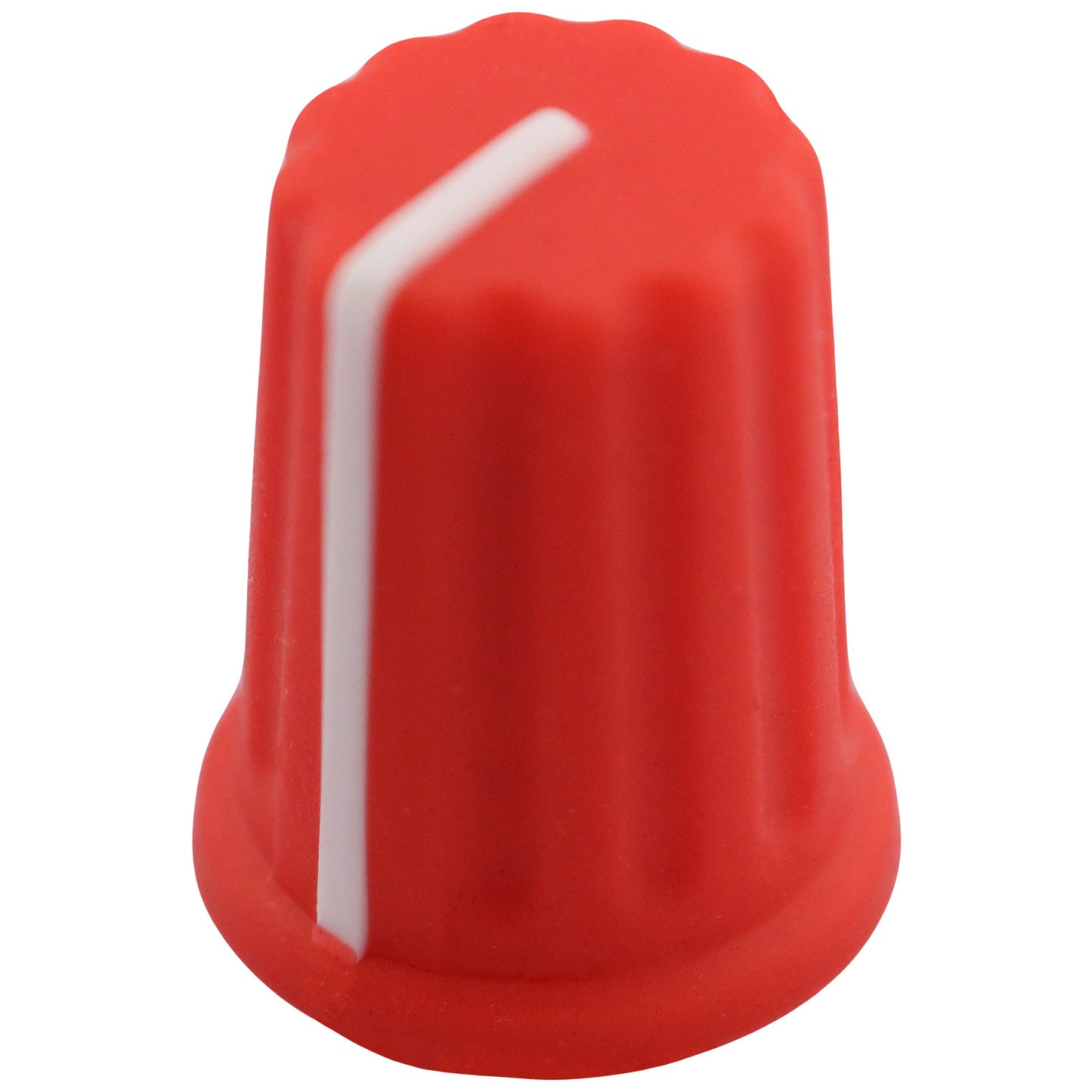

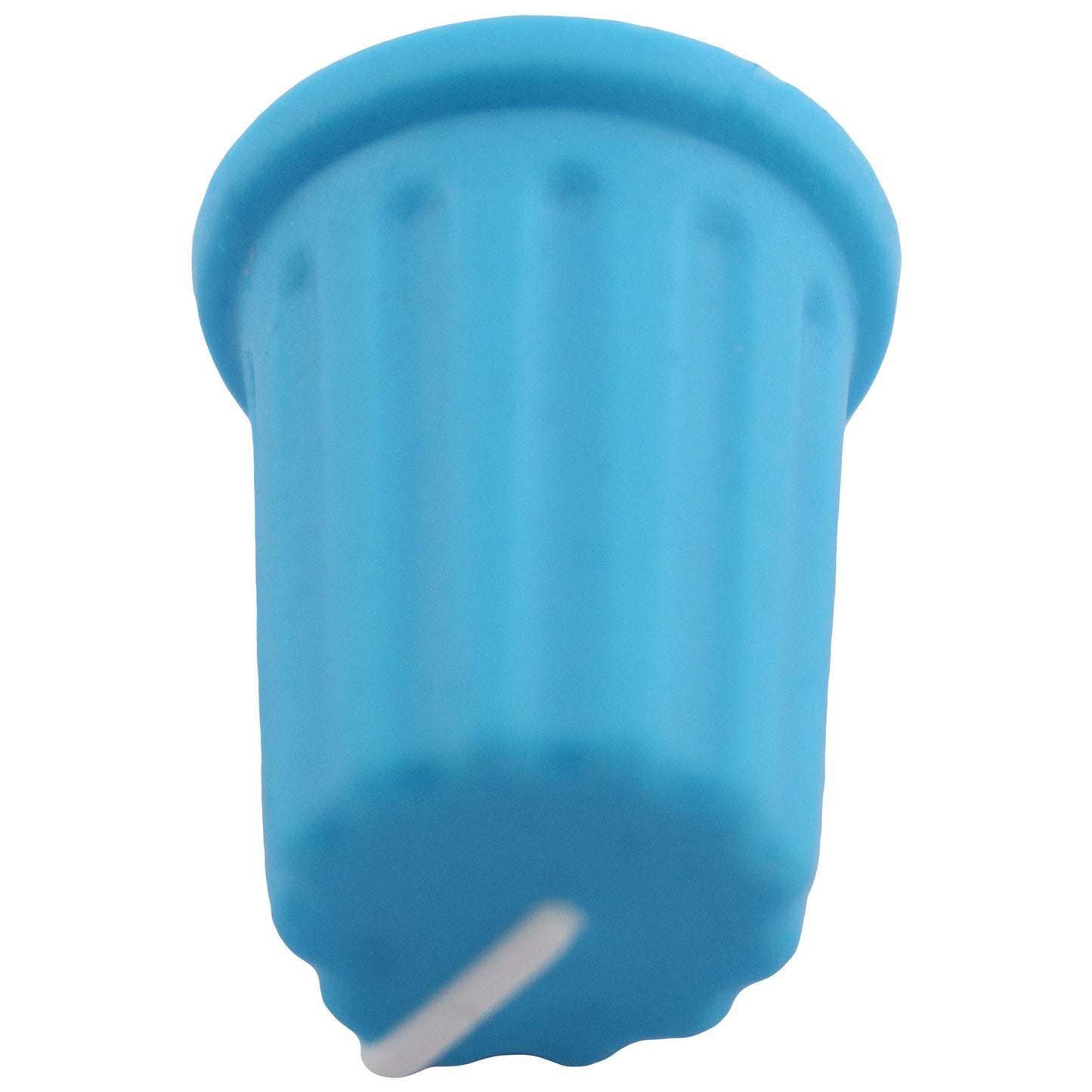

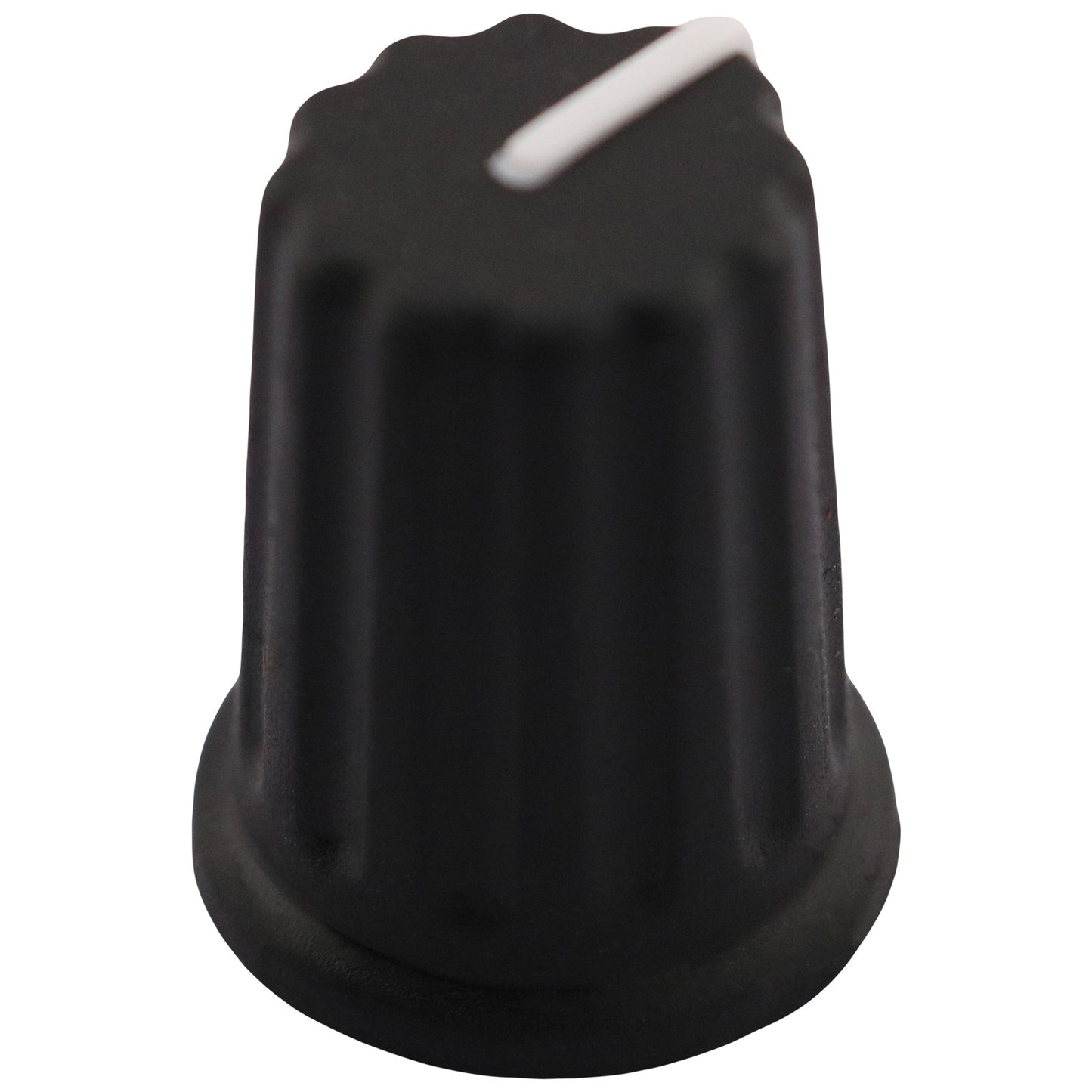

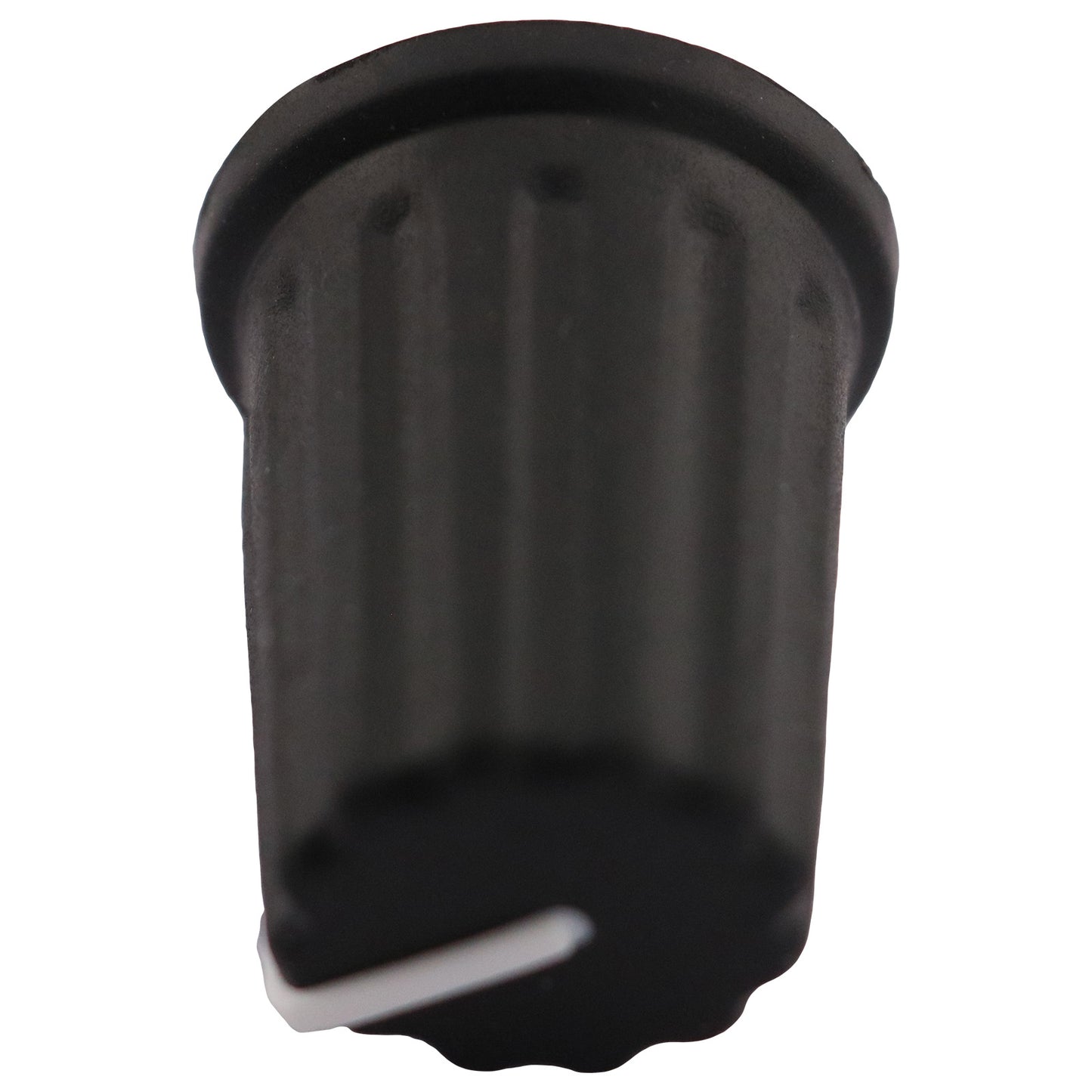

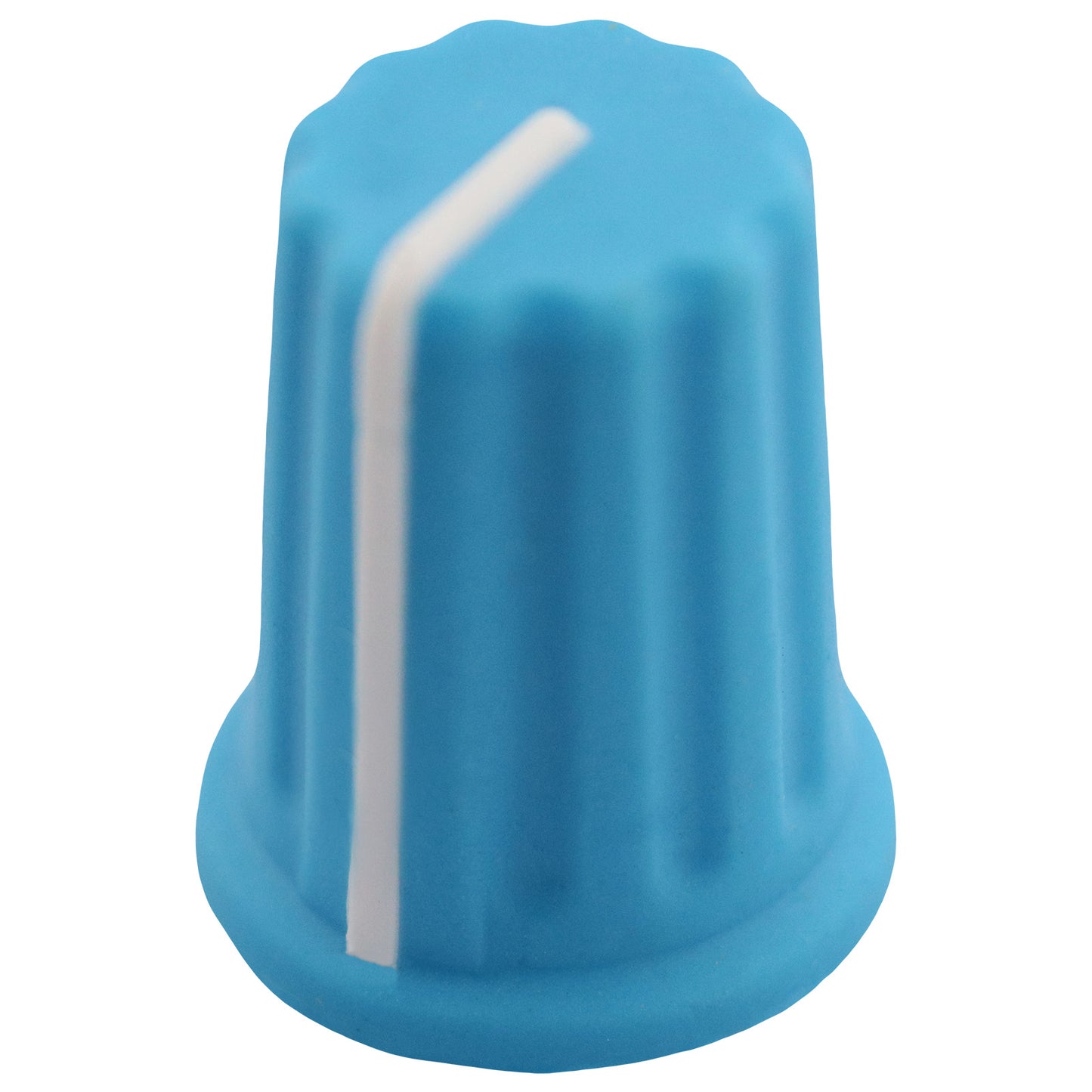

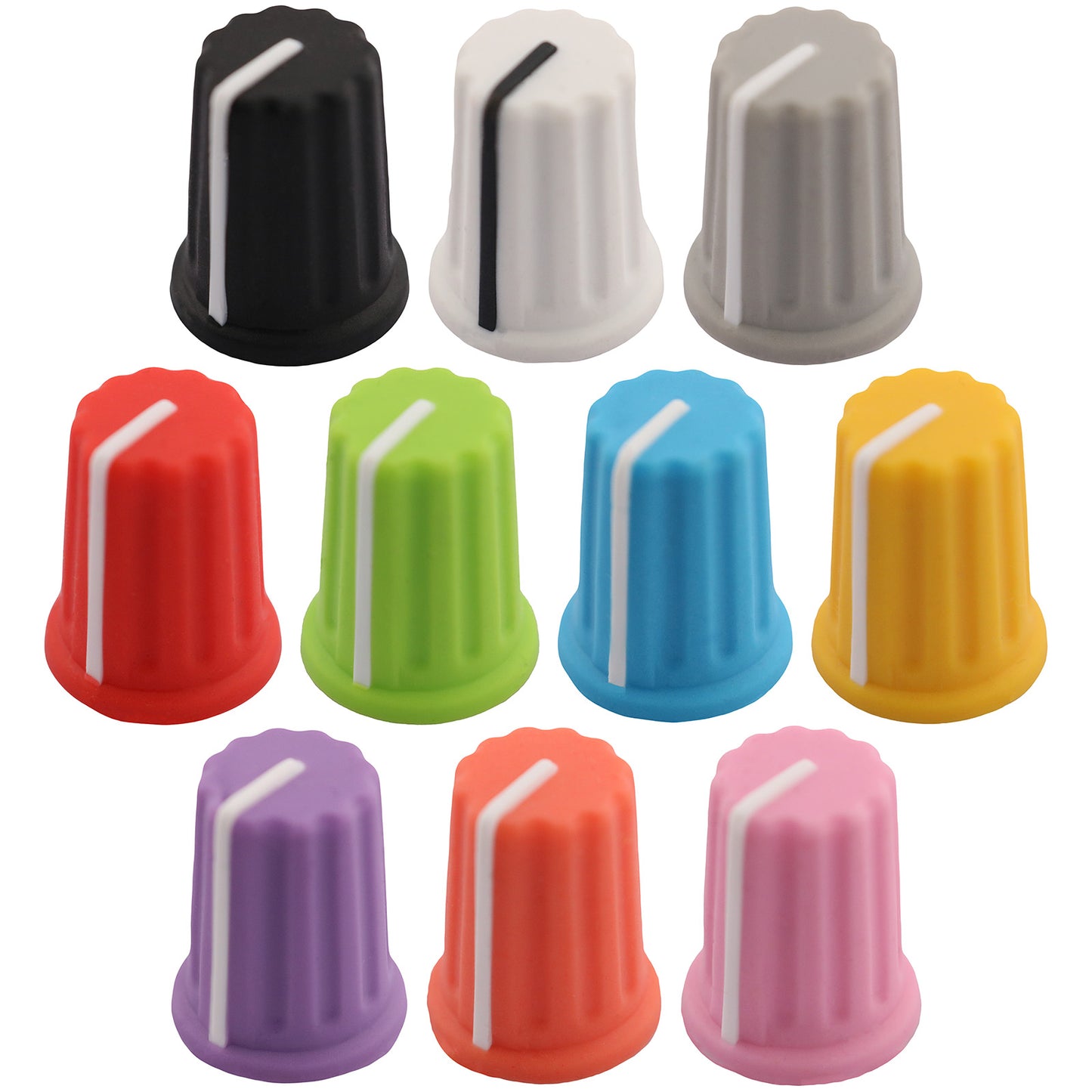

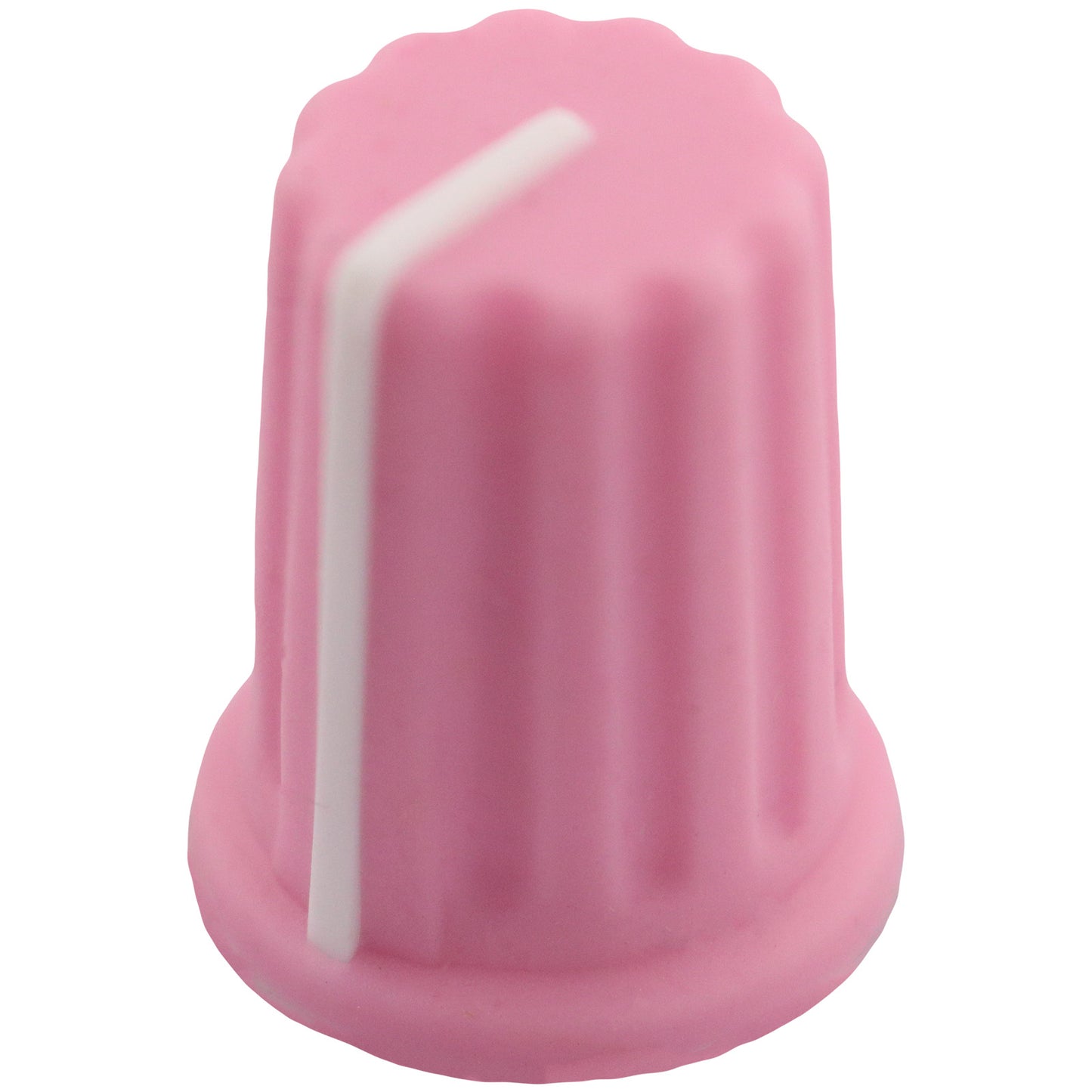

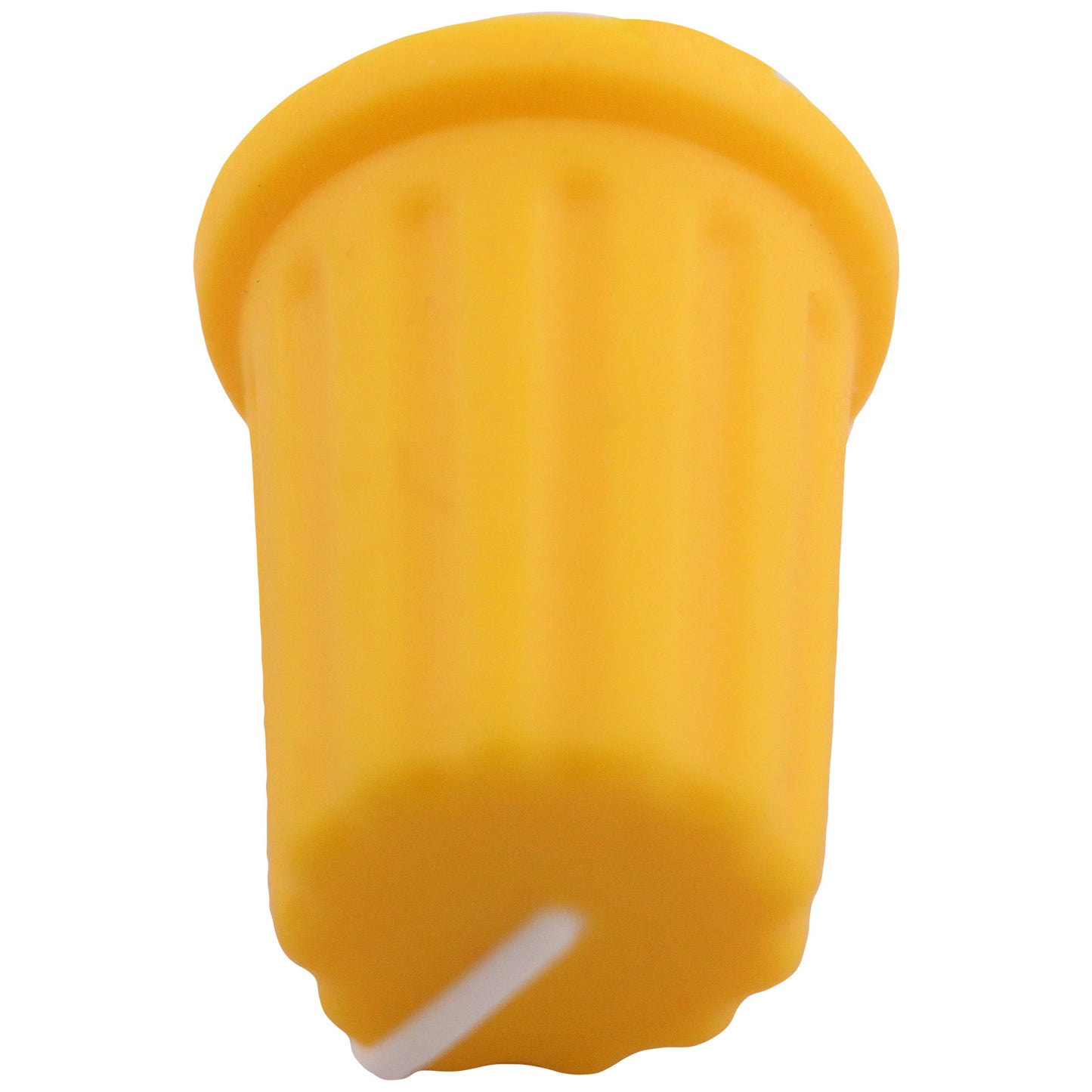

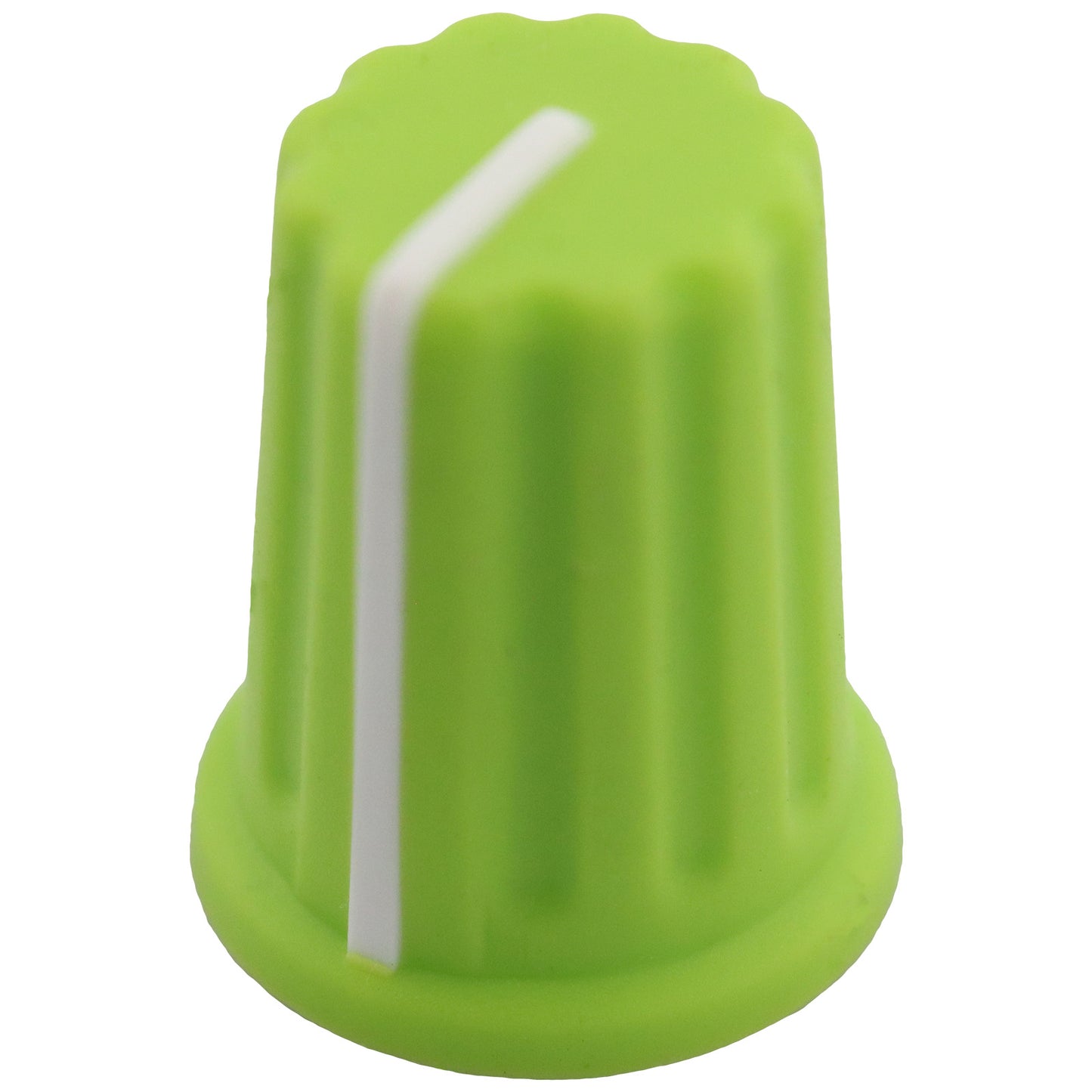

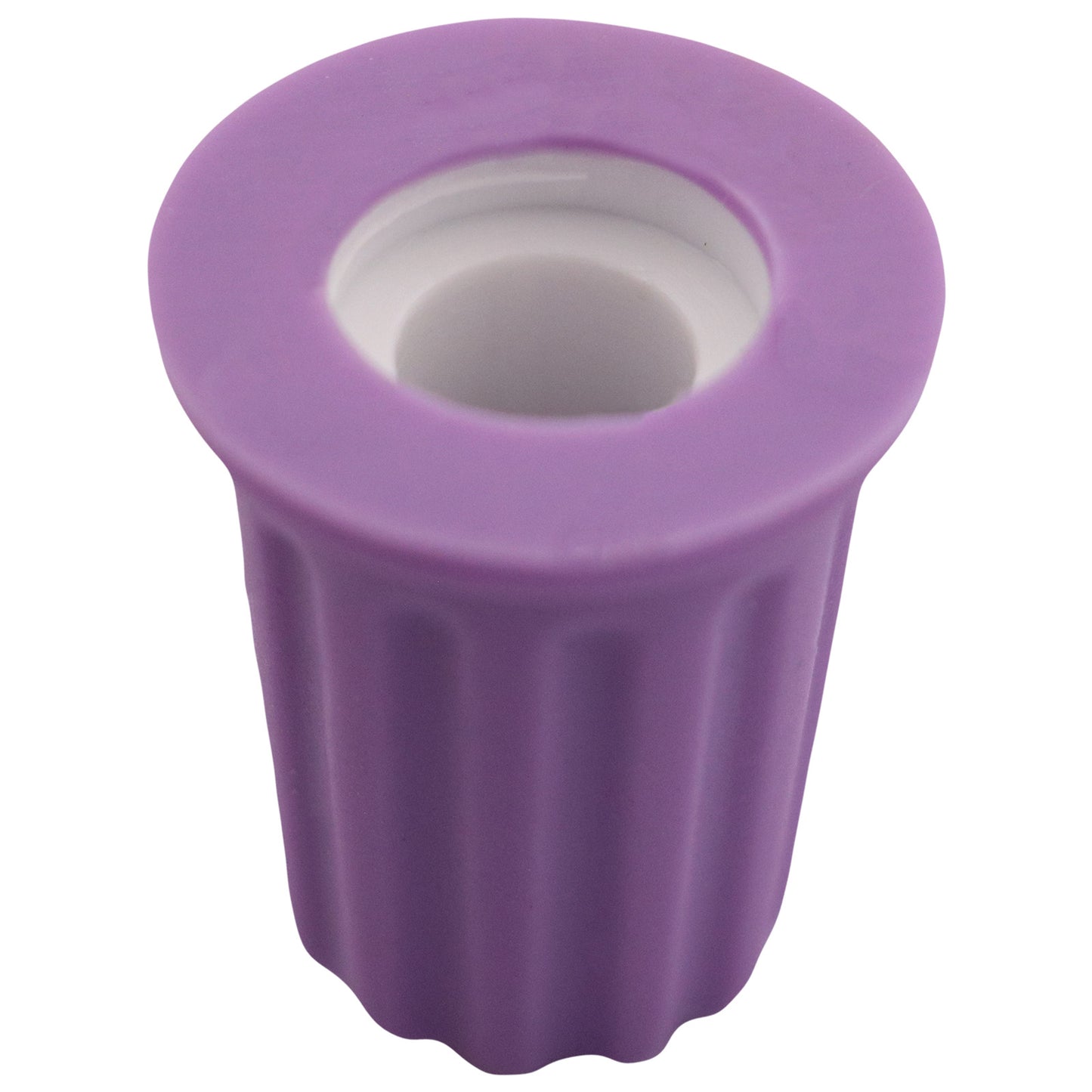

Rubber Grip Colour Body DJ Control Knob
Rubber Grip Colour Body DJ Control Knob
| Quantity | Unit Price |
|---|---|
| 1+ | £0.97 |
| 2+ | £0.873 |
| 5+ | £0.8245 |
| 10+ | £0.776 |
| 20+ | £0.7275 |
| 50+ | £0.679 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | D180 |
| Shaft Fixing | Push-Fit |
| Hole Size | 6mm |
Appearance
| Identity Colour | White |
|---|---|
| Body Colour | White |
| Accent Colour | |
| Position Indicator Colour | Black |
| Position Indicator Shape | Line |
Measurements
| Minimum Shaft Depth | 5.7mm |
|---|---|
| Maximum Shaft Depth | 15.9mm |
| Body Diameter | 13.5mm |
| Maximum Diameter | 16.0mm |
| Width | mm |
| Length | mm |
| Height | 19.3mm |
| Additional Measurements | |
| Unit Weight | 2.16g |
Hole Type
D Shaft Hole
A D-shaft knob features a hole with a D-shaped cross-section, having one flat side and the rest round. This configuration ensures that the knob fits snugly onto the shaft, preventing any slippage and provides absolute psoitoning of the position indicator.
The flat side of the hole aligns with the flattened side of the D-shaft, providing precise control and secure attachment. This type of hole is commonly found in knobs used in audio equipment, industrial controls, and automotive applications.
This type of hole dictates the angle of the position indicator, relative to the flat of the D shape. This is measured in degrees of rotation being either 0°, 90°, 180° or 270°.

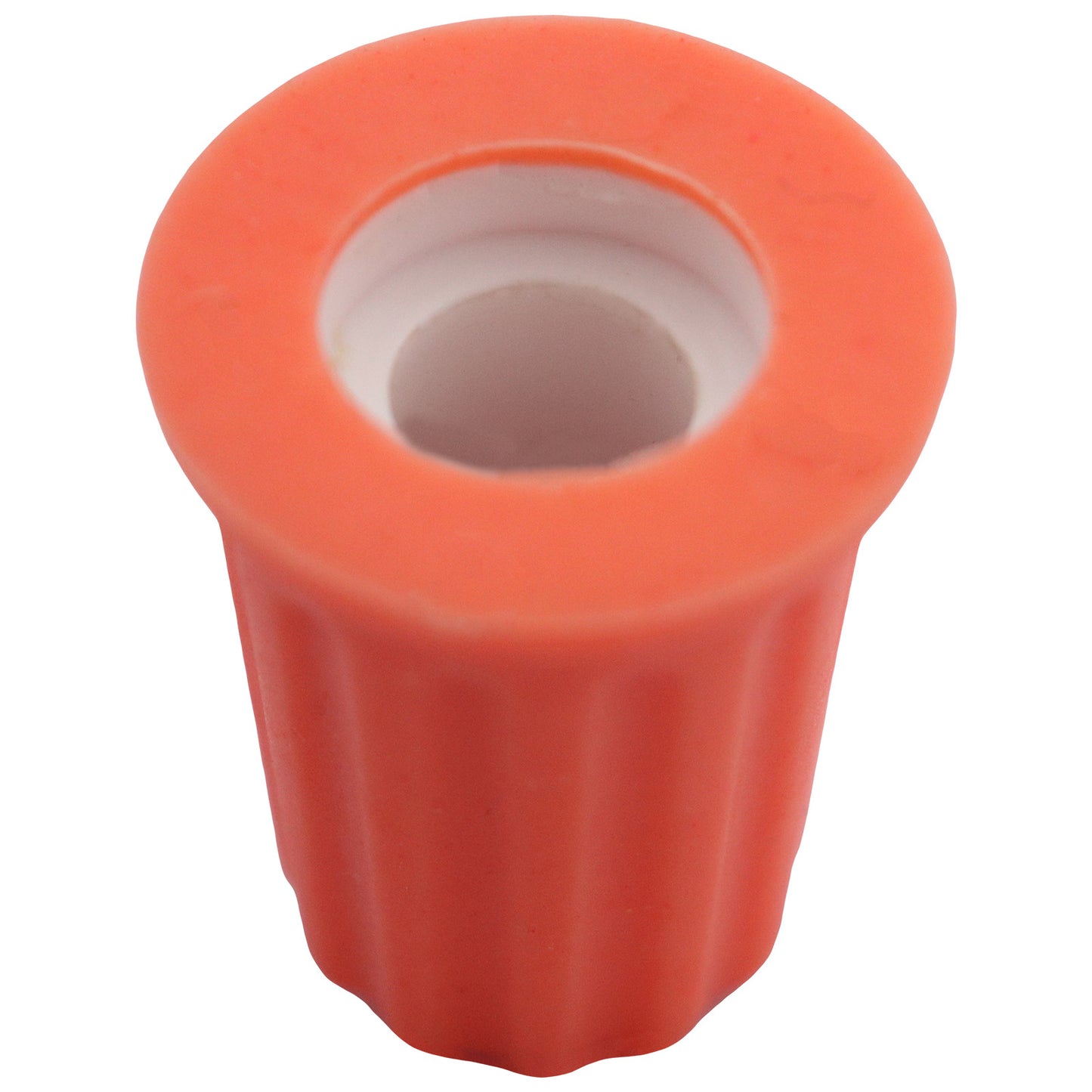

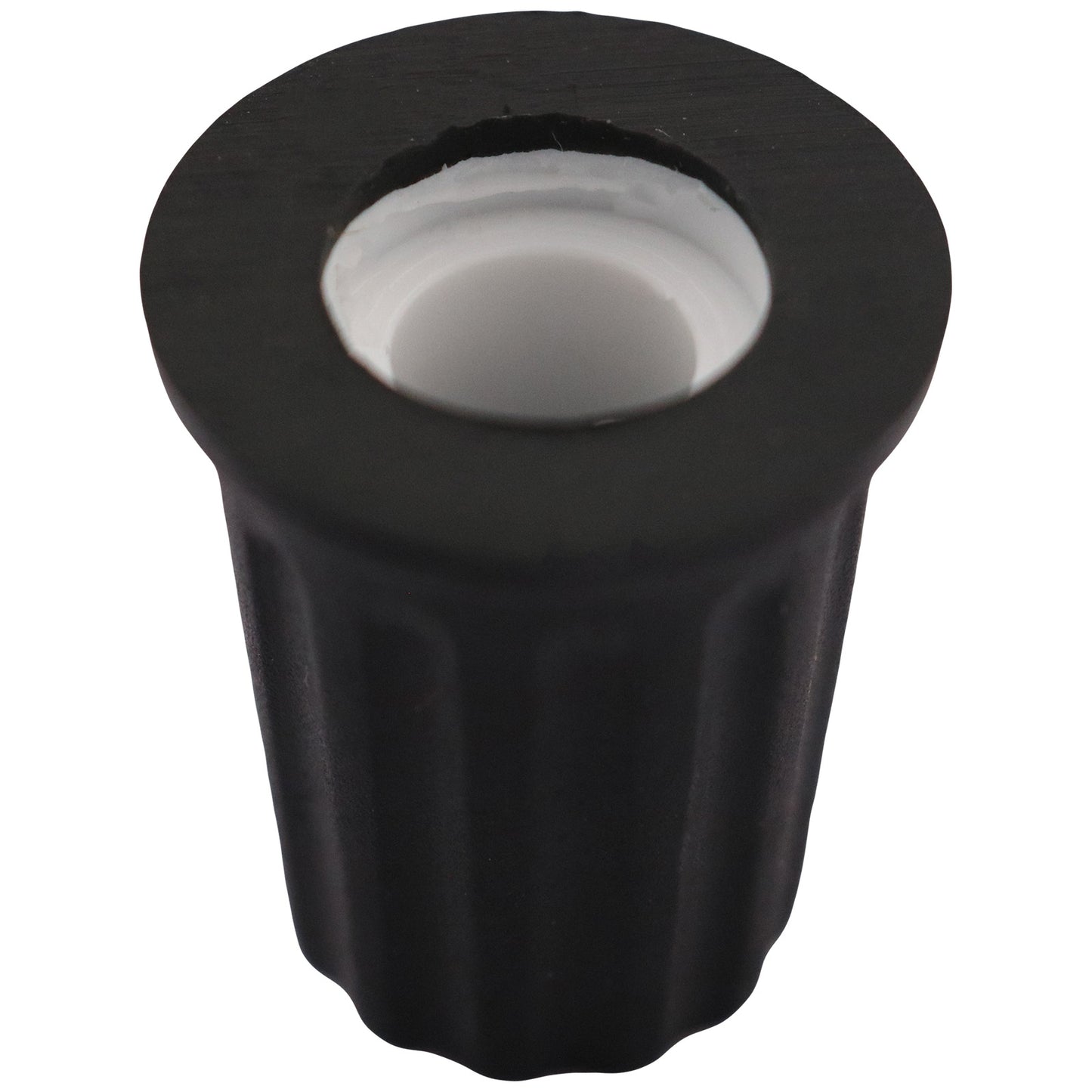

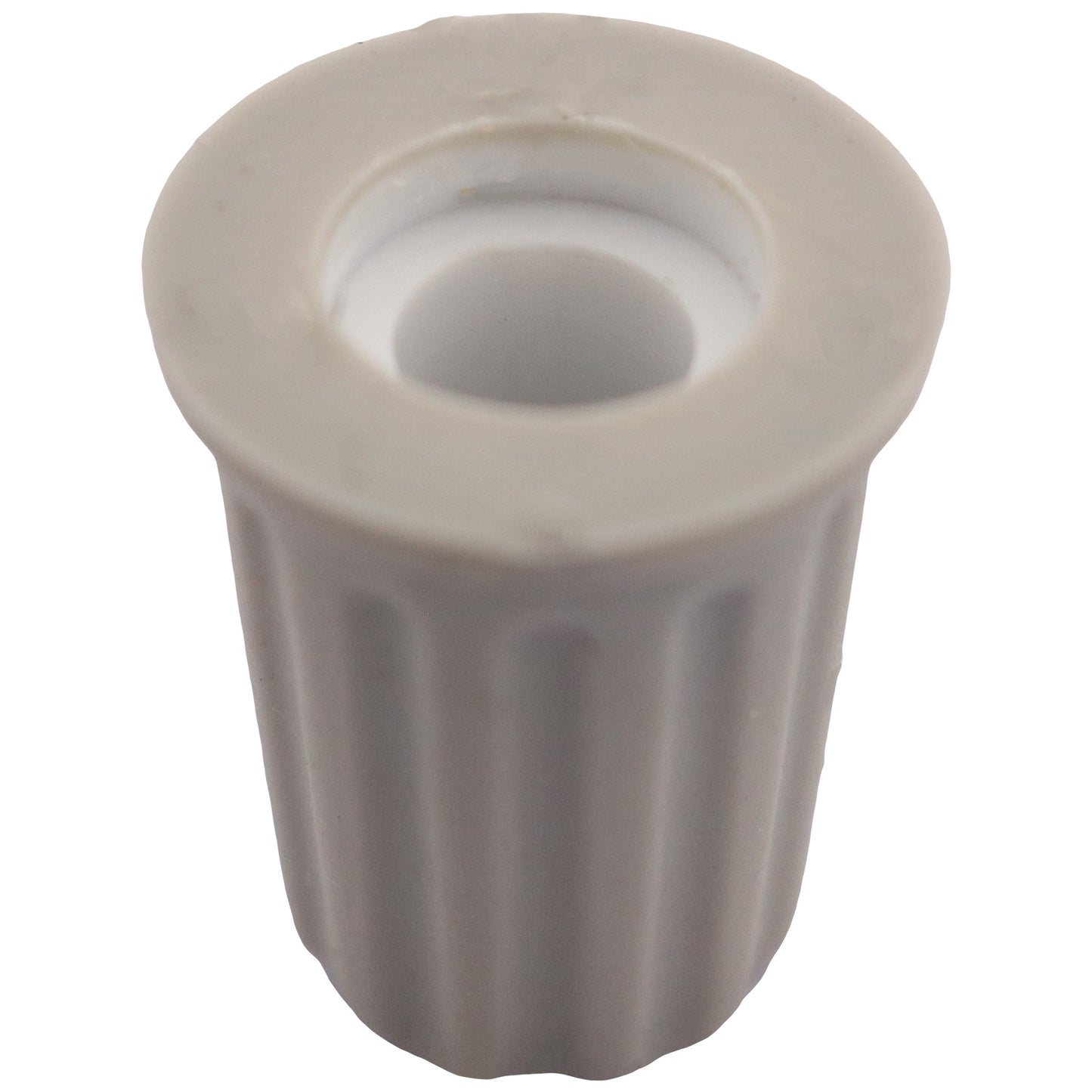

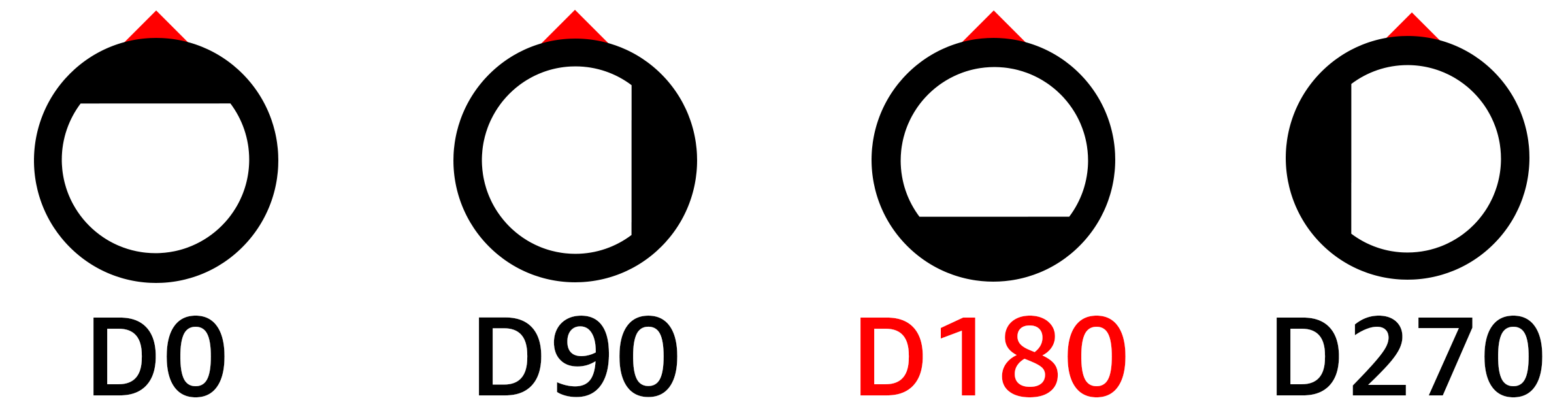

A View from the underside of the knob showing the possible positions of the D flat relative to the position indicator. This knob is in the D180 position and is highlighted:
