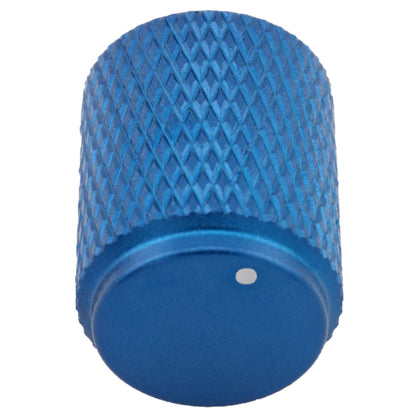

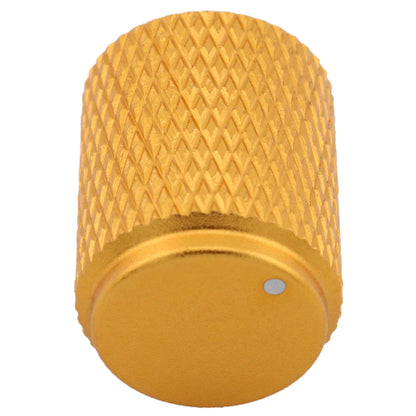

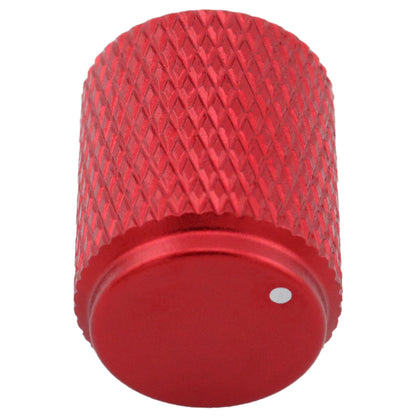

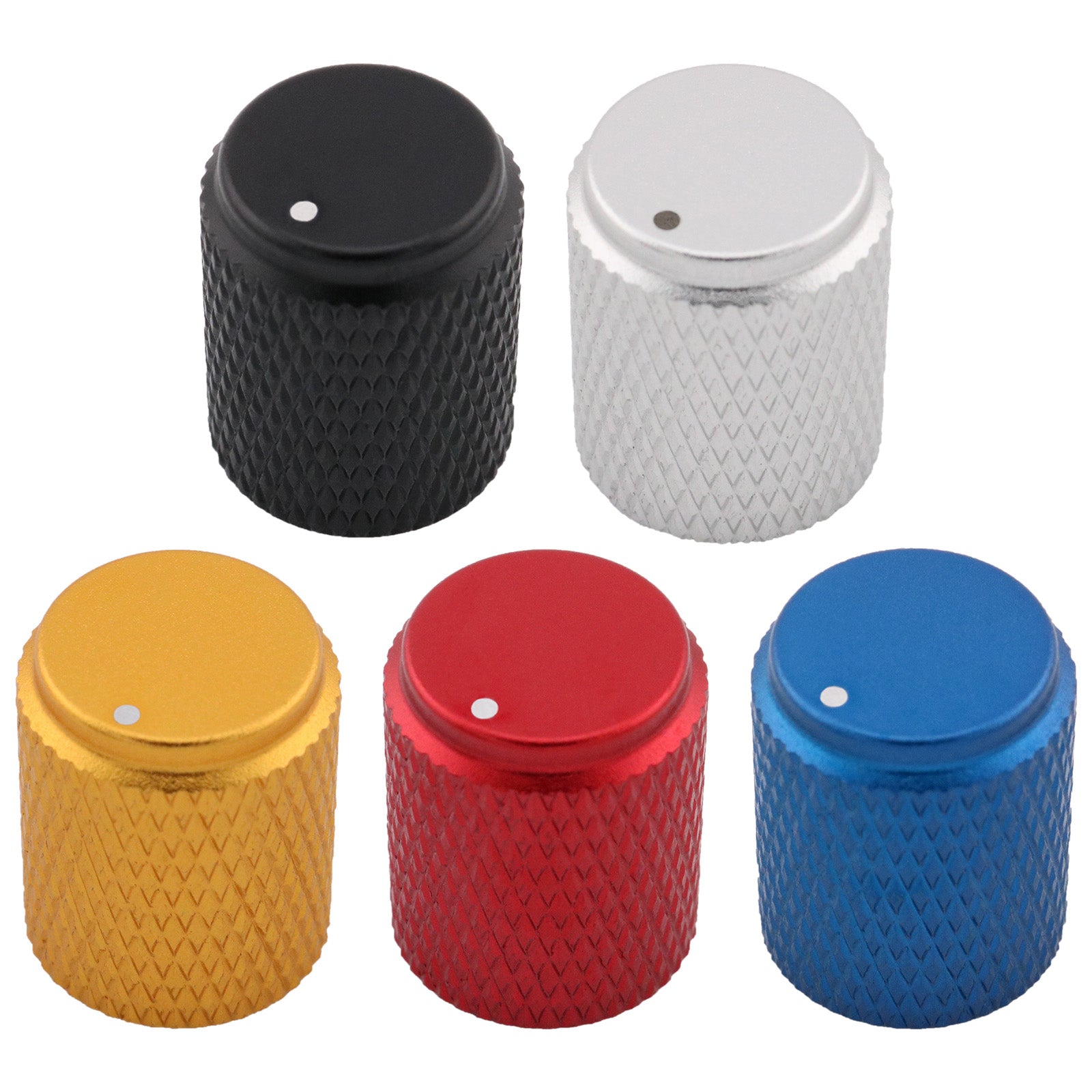

Knurled Grip Rotary Control Knob with Dot Position Indicator
Knurled Grip Rotary Control Knob with Dot Position Indicator

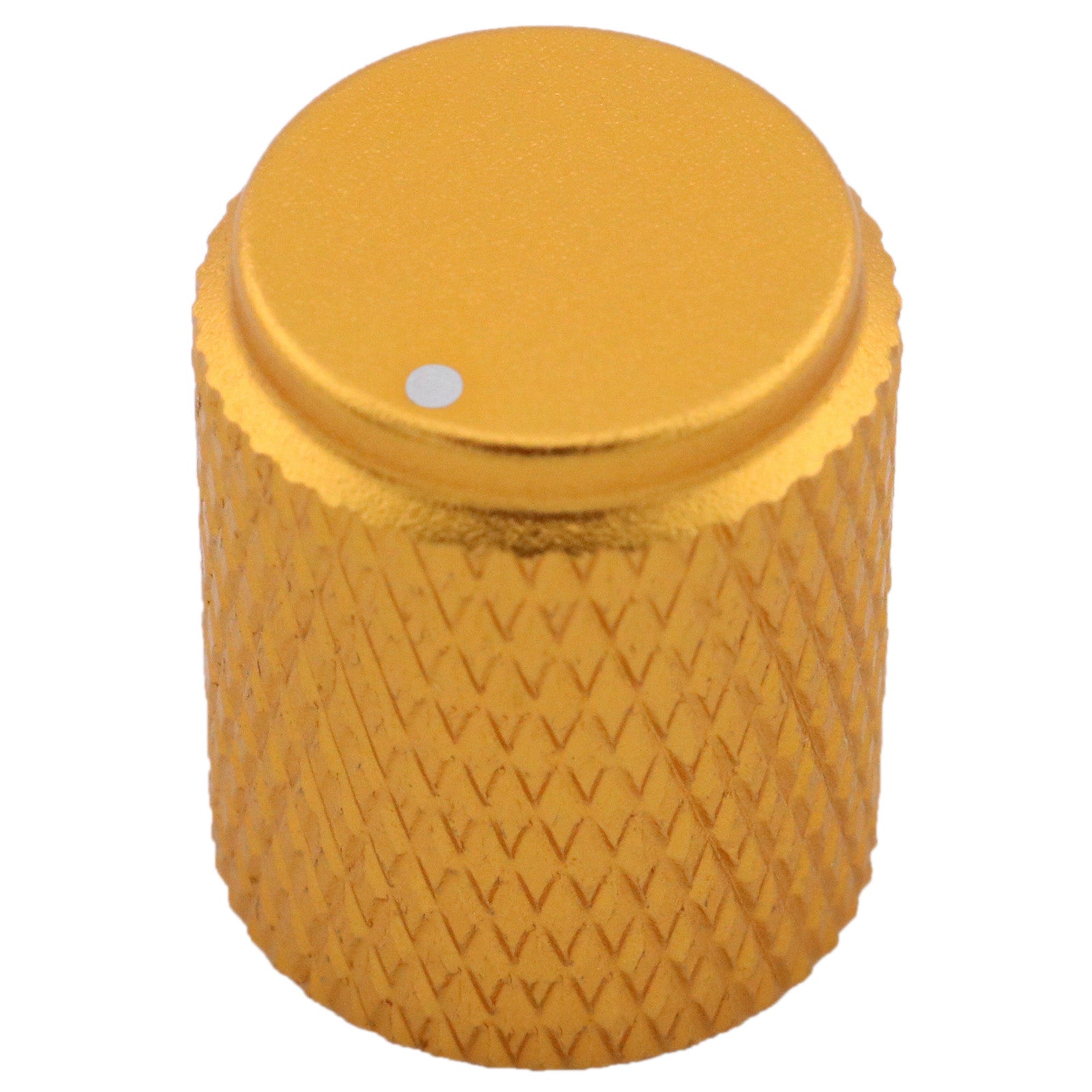

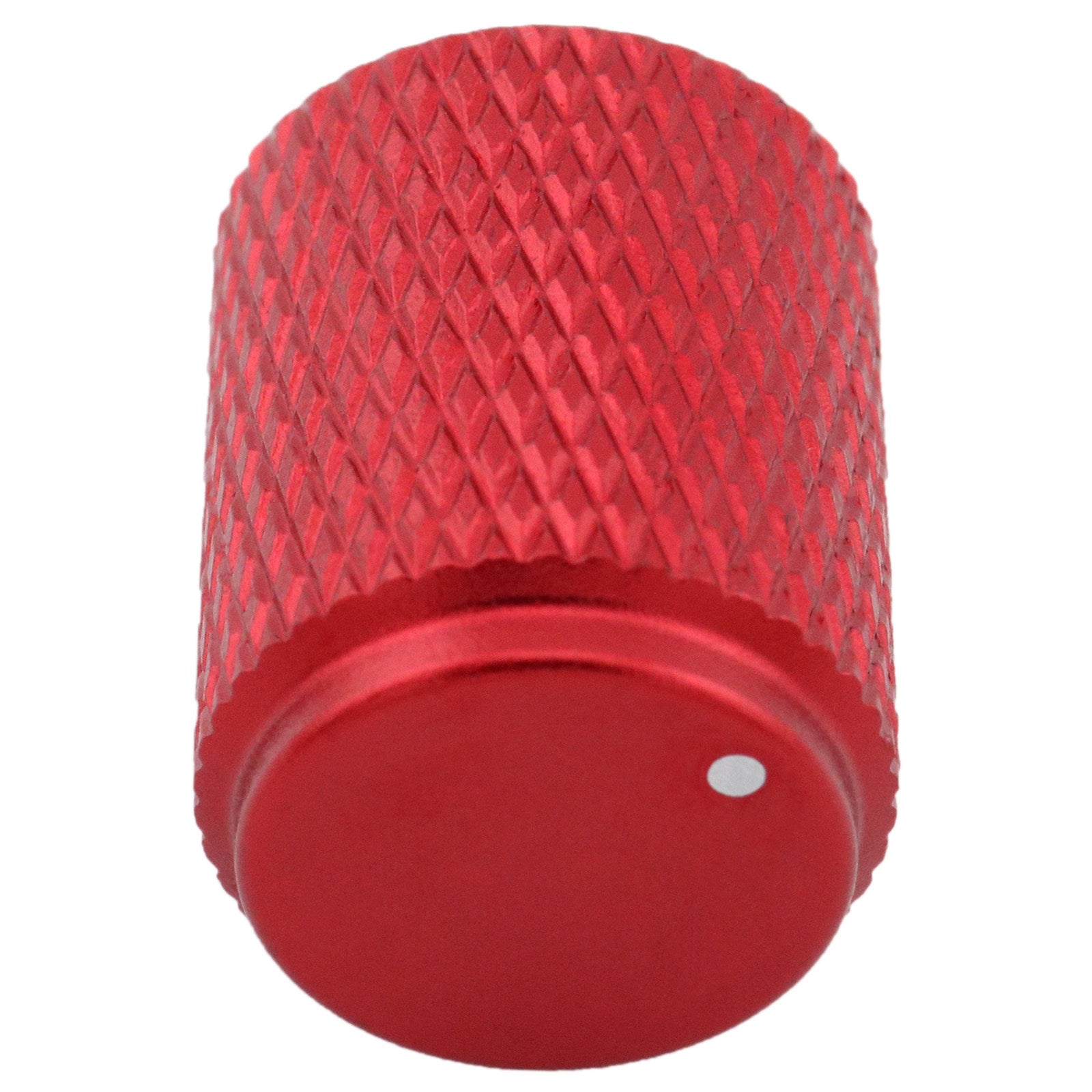

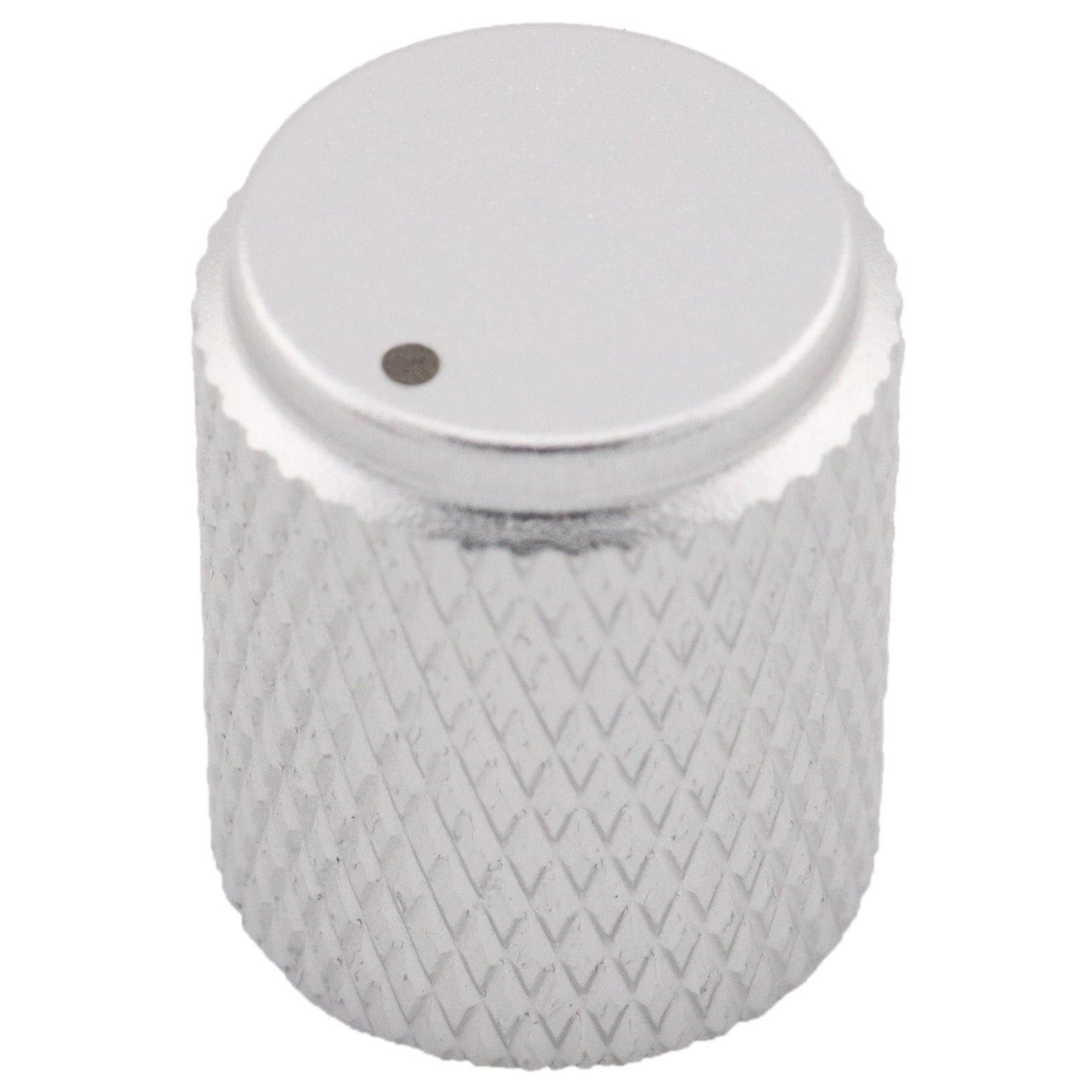

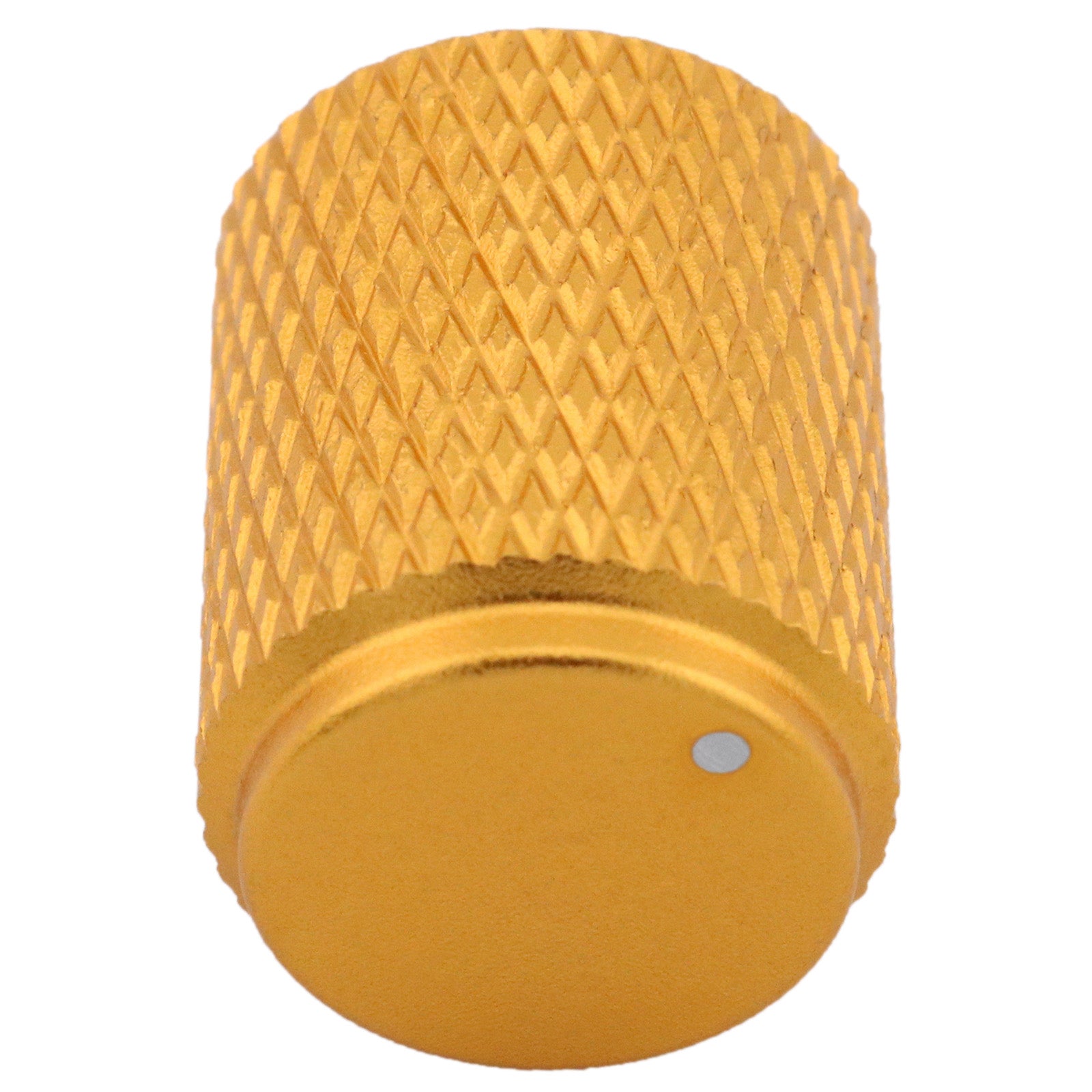

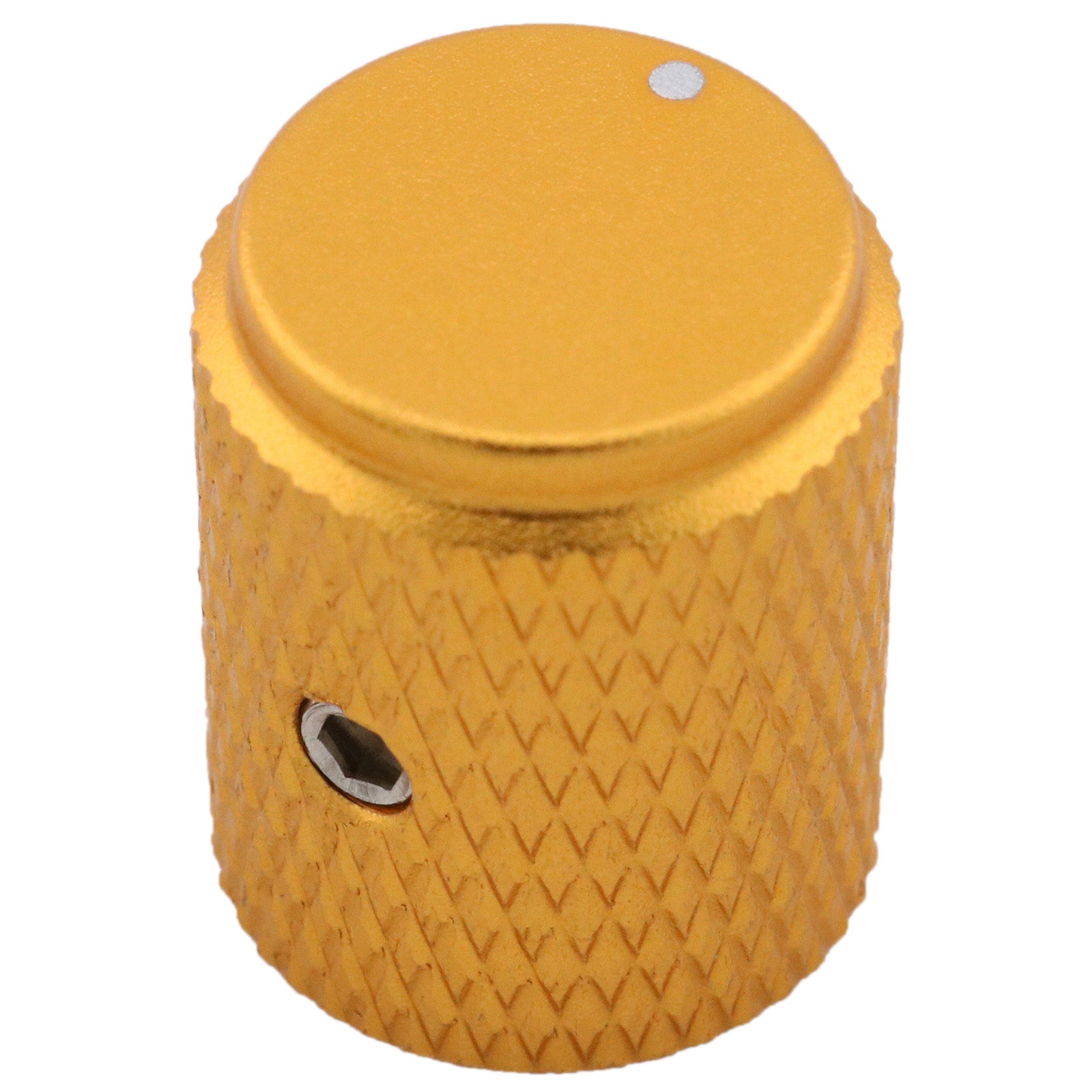

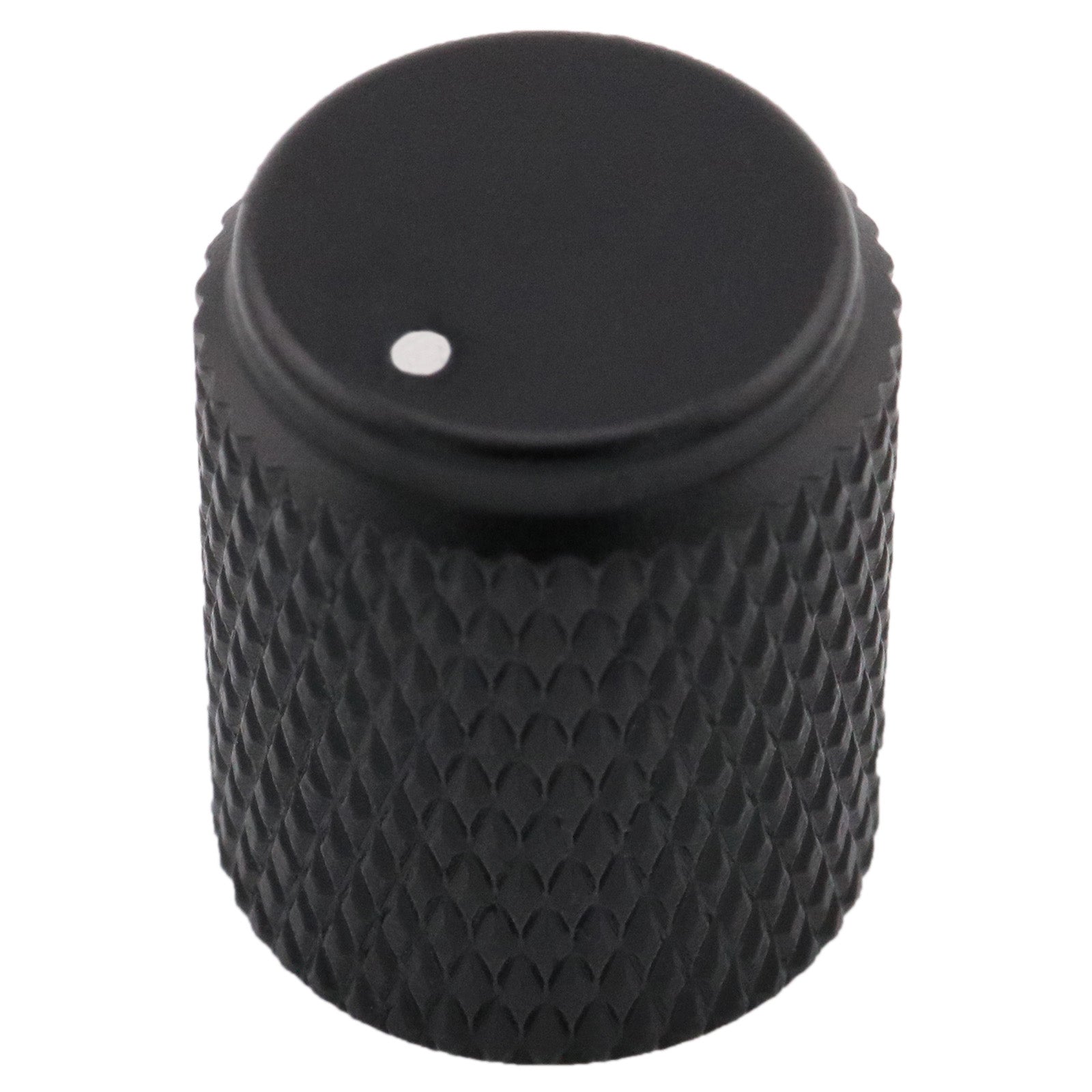

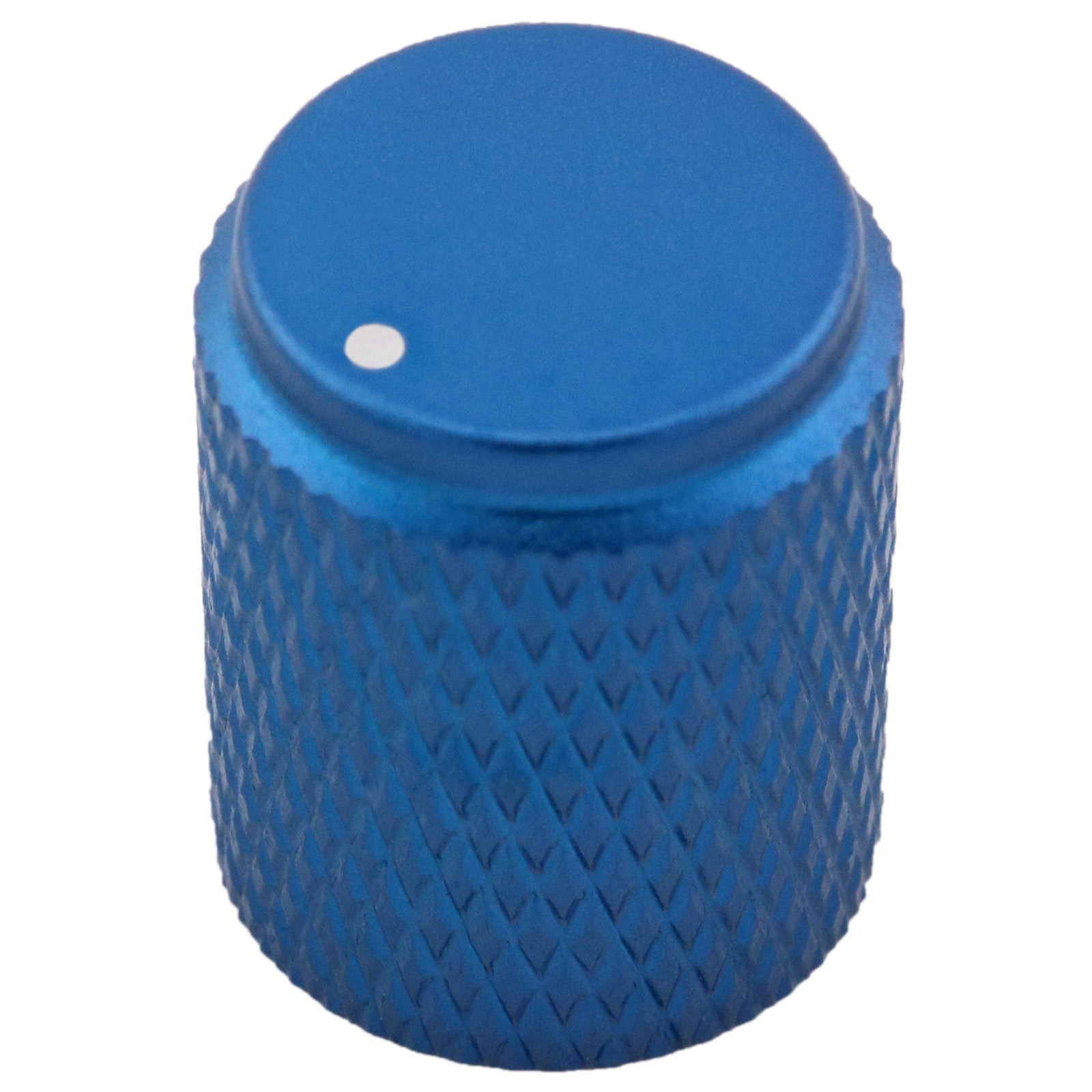

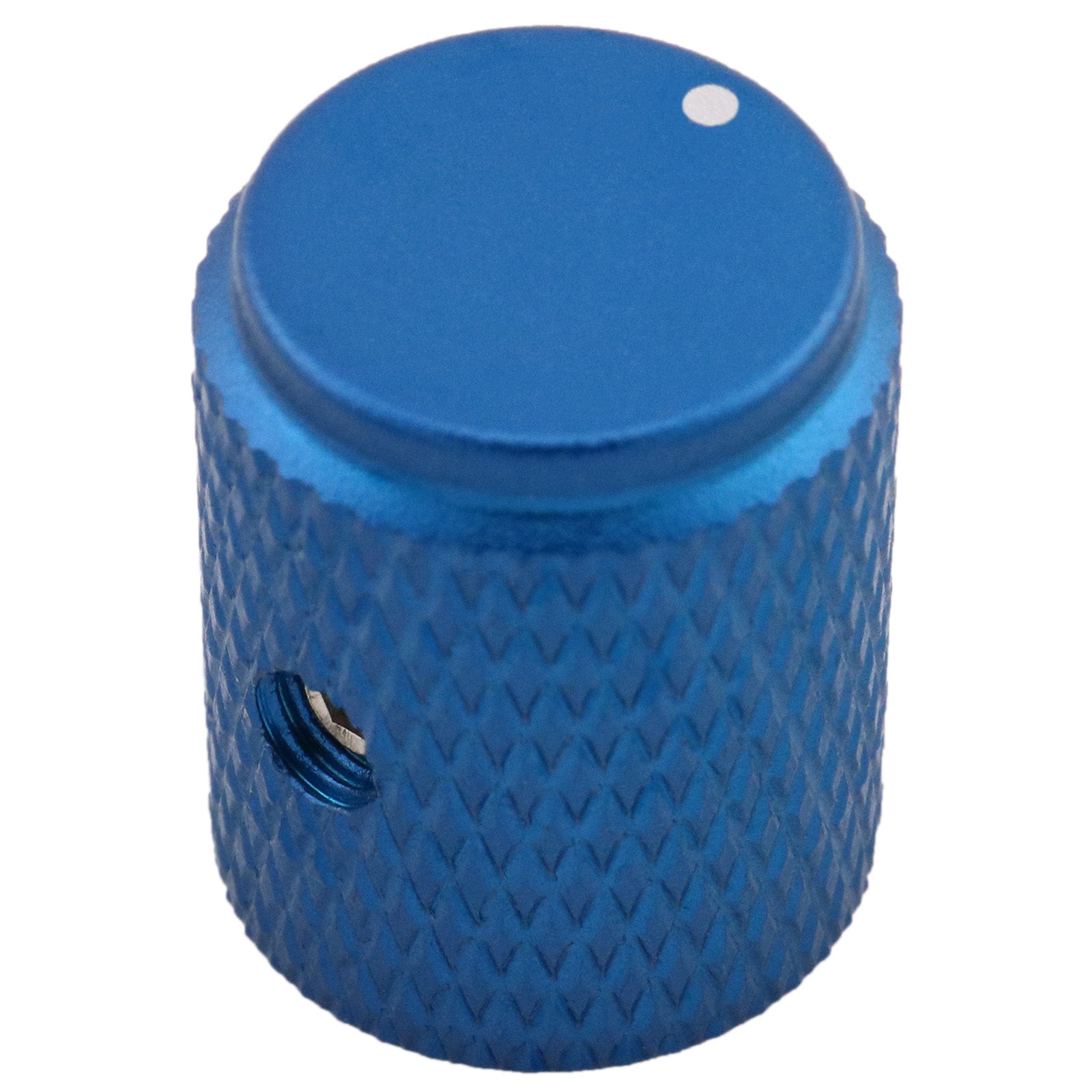

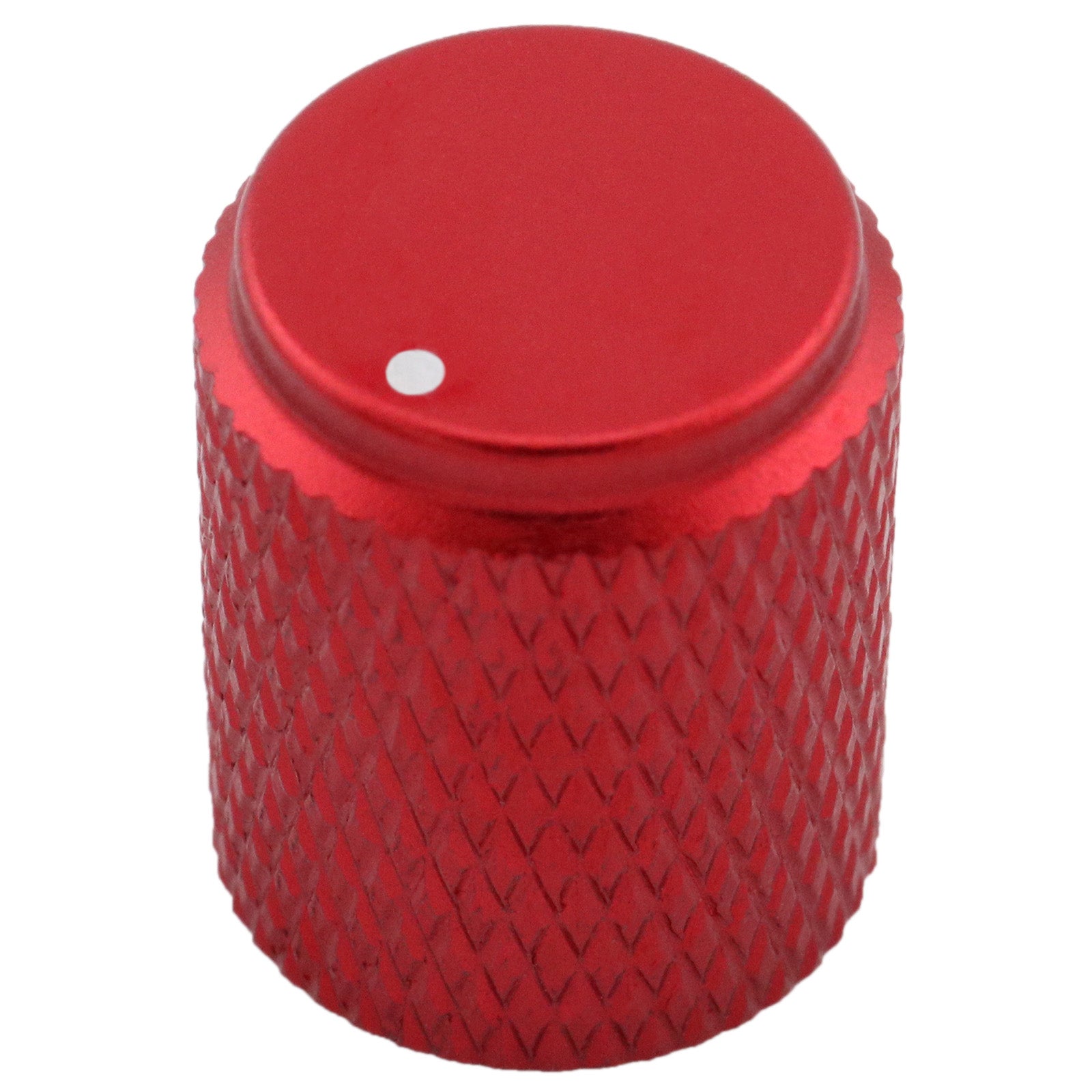

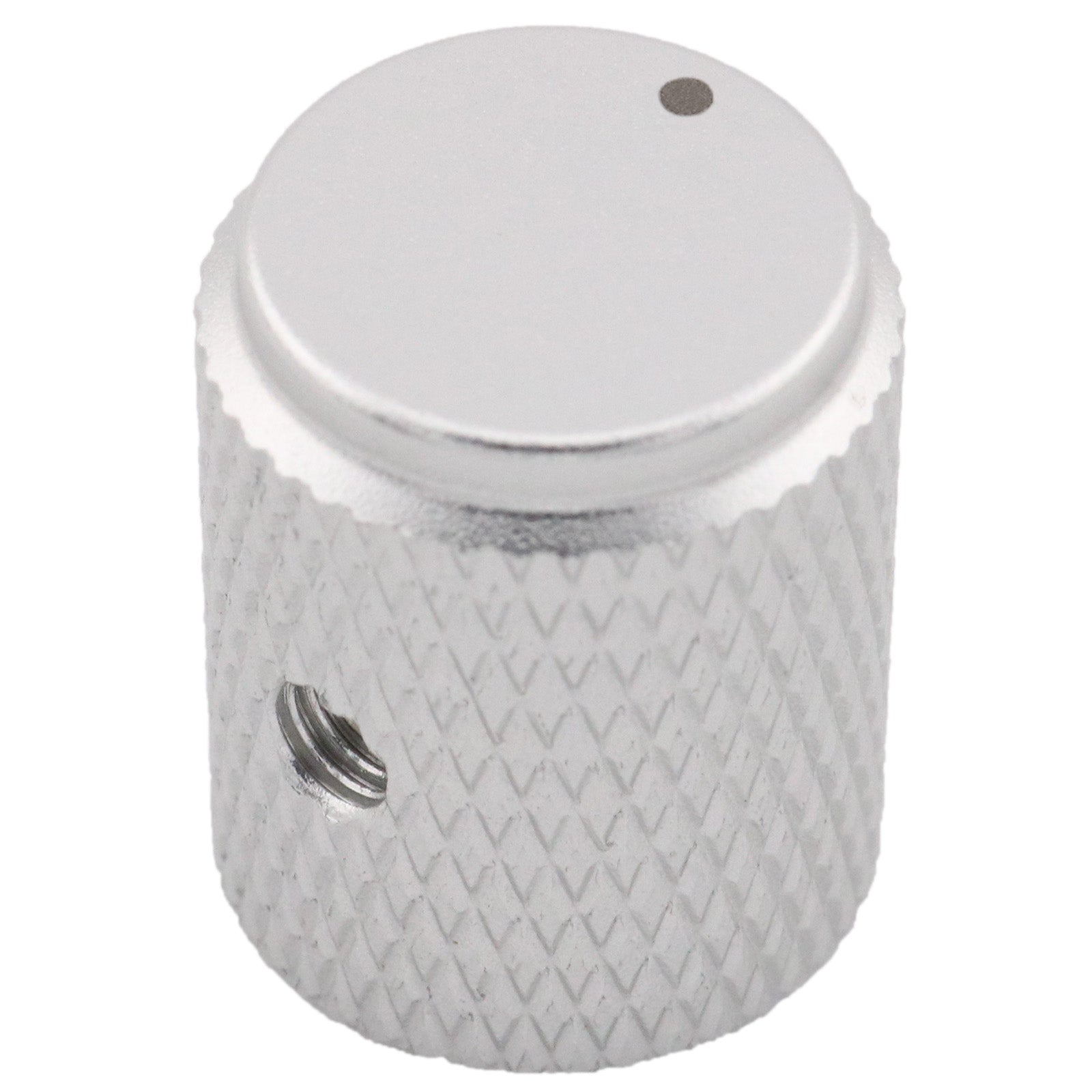

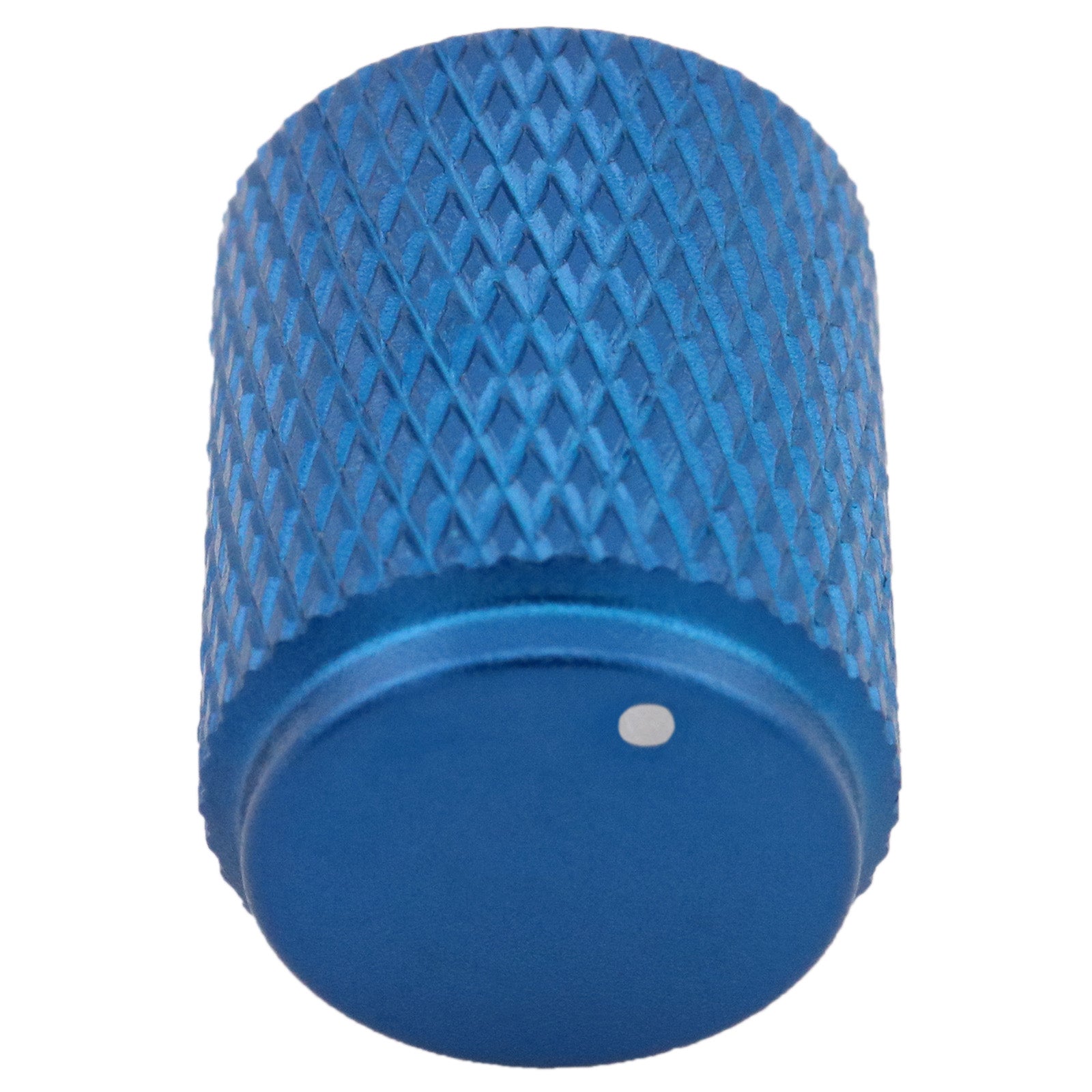

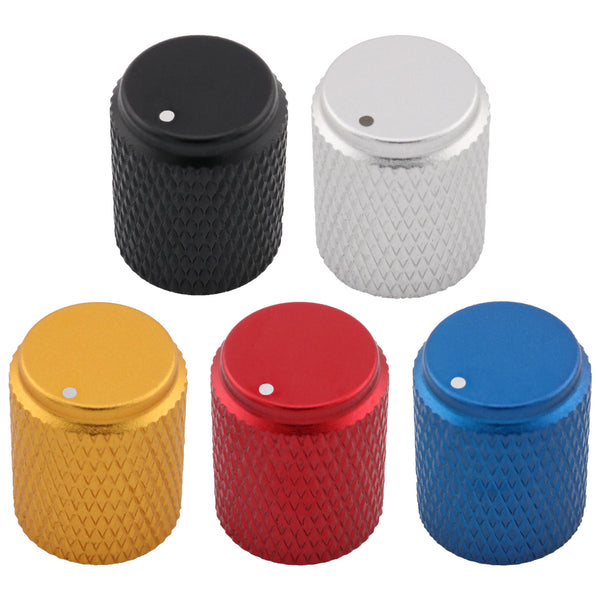

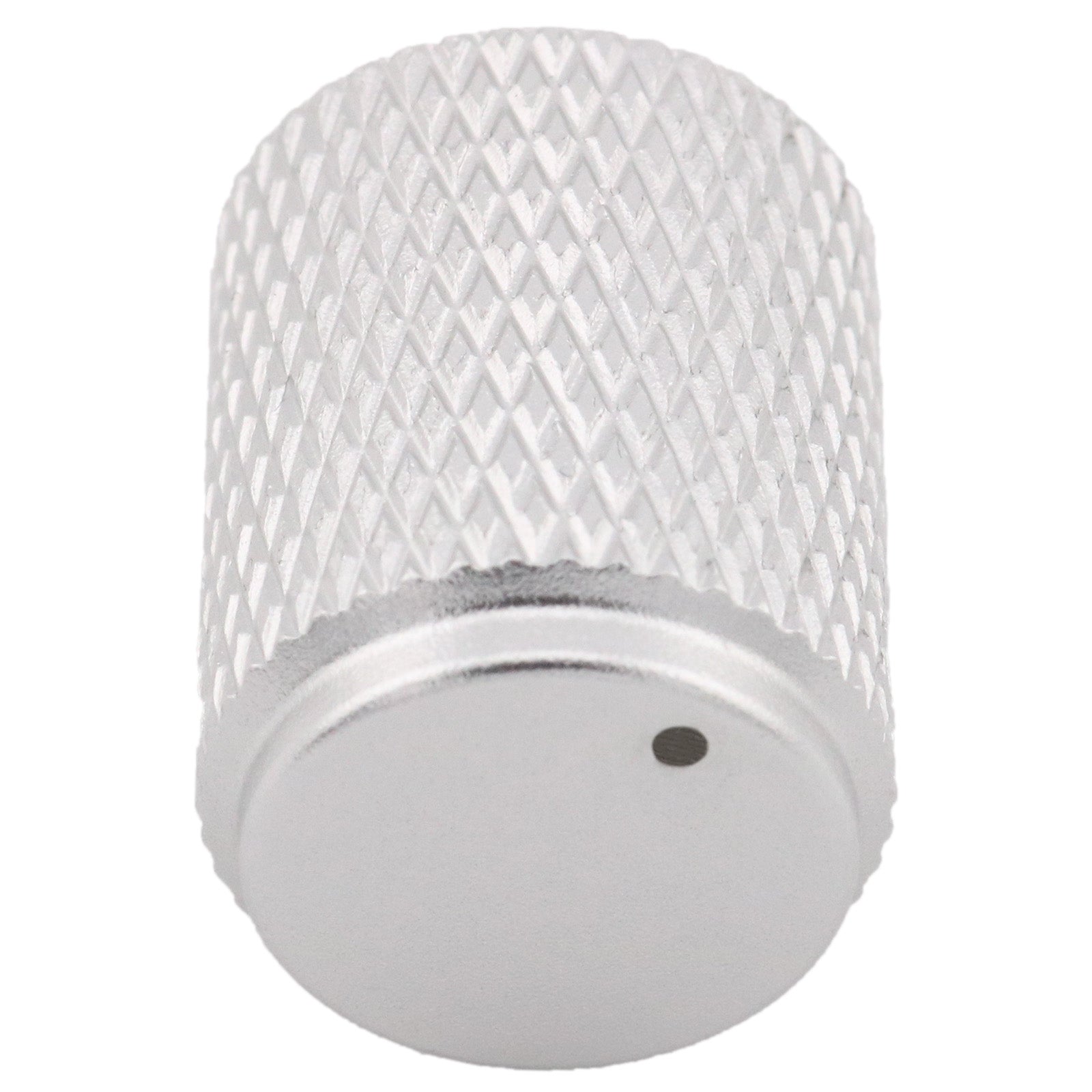

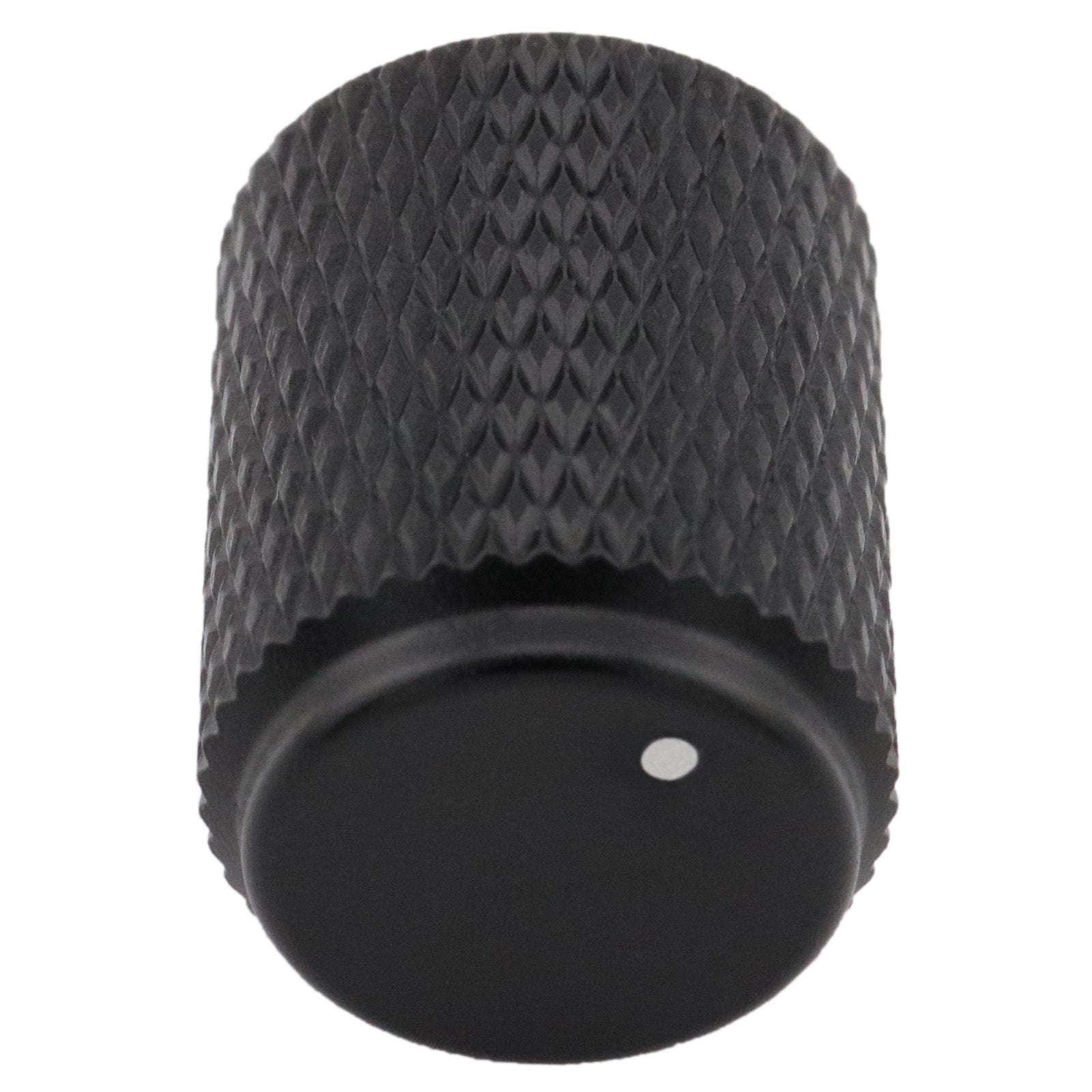

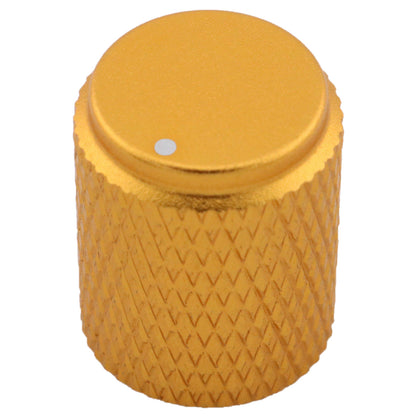

This compact rotary control knob features a fully knurled cylindrical body with a deep diamond-pattern texture that covers the entire surface, delivering exceptional grip and tactile confidence during operation. A smooth flat cap sits atop the body, separated by a clean raised collar, with a small dot position indicator set into the cap face for precise and unambiguous control positioning.

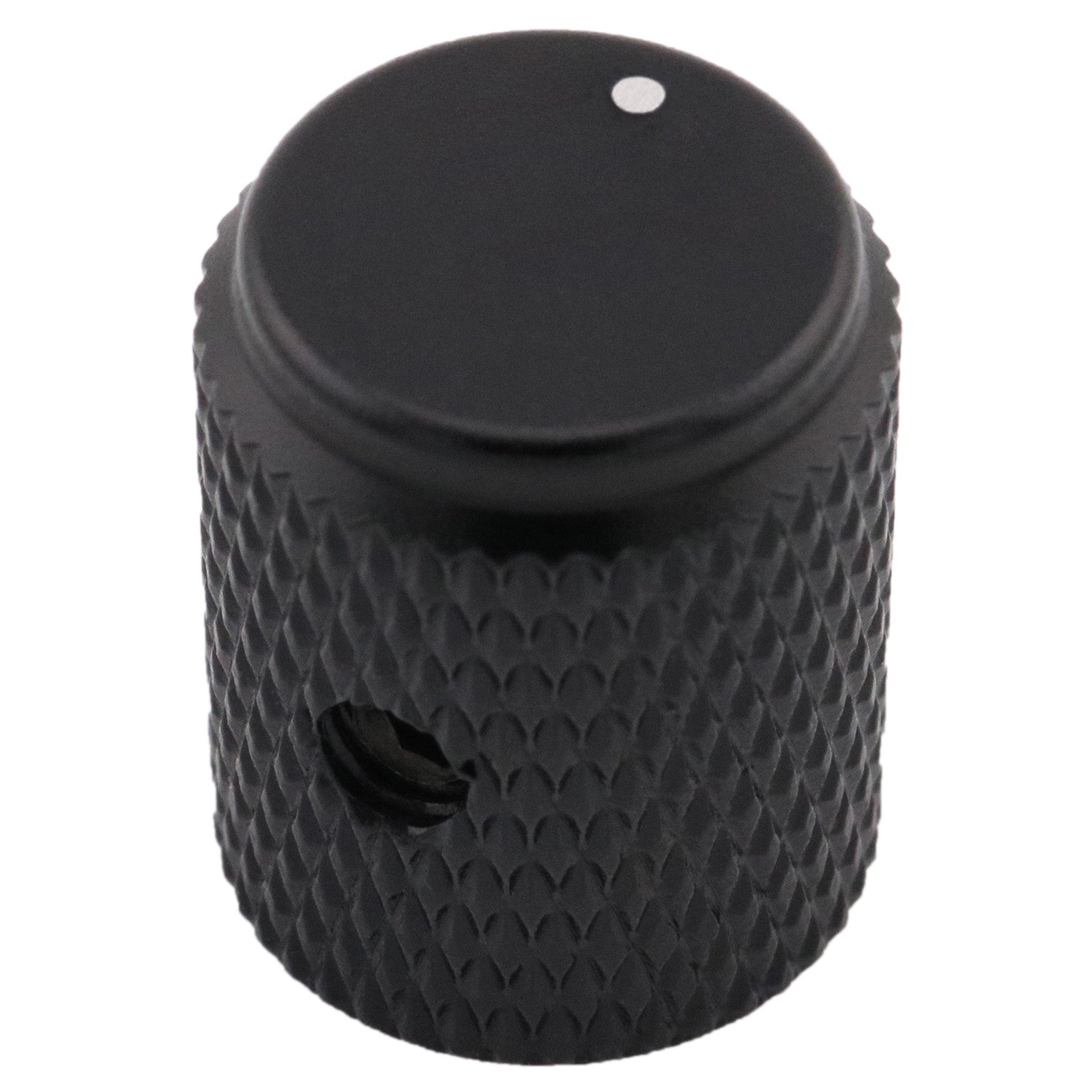

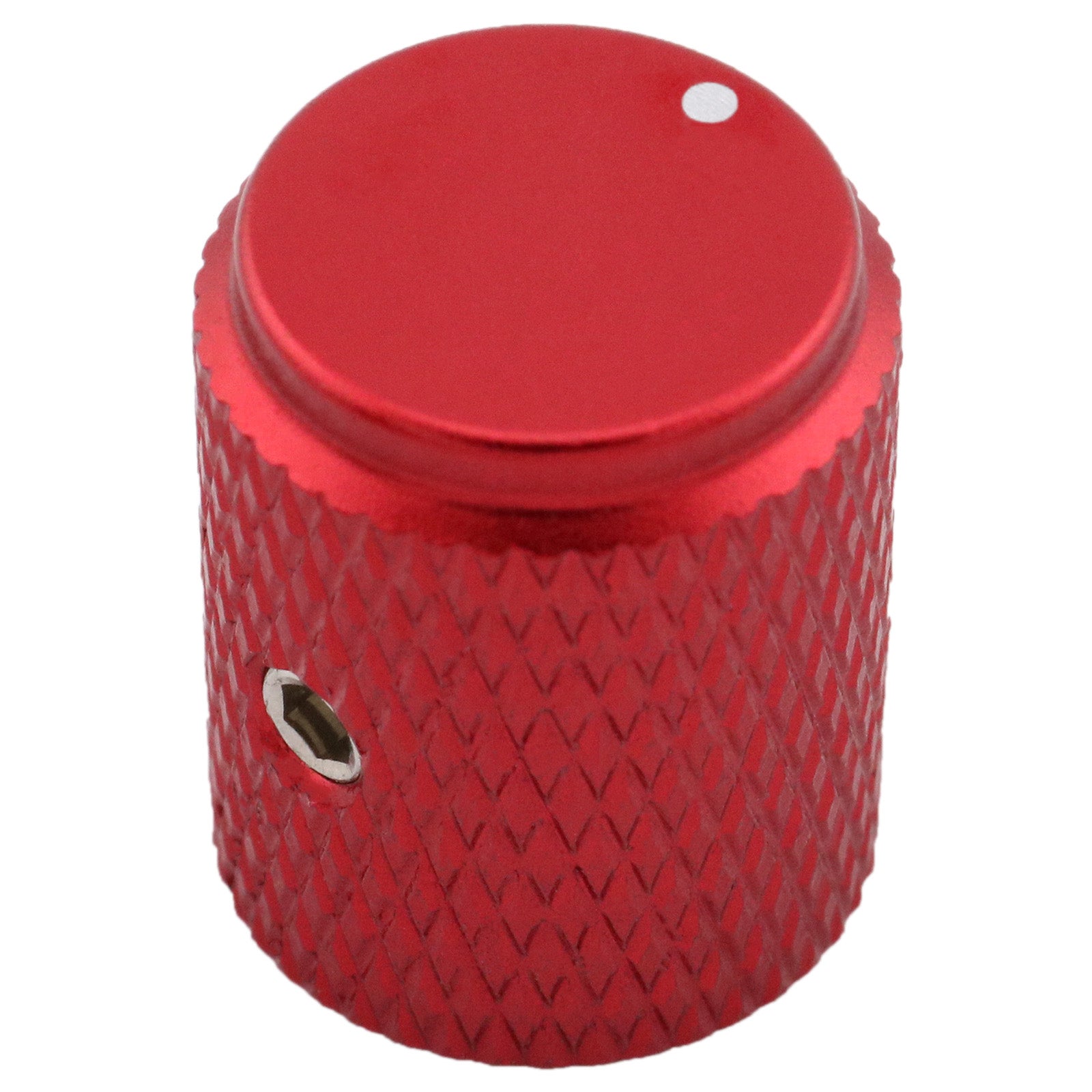

The all-over diamond knurl makes this knob particularly well-suited to applications where secure handling is essential, including audio mixing equipment, synthesisers, amplifiers, and instrument control panels. Secured via a grub screw onto a 6mm round shaft, it offers a reliable and play-free fit across a wide range of equipment builds and retrofit projects.
| Quantity | Unit Price |
|---|---|
| 1+ | £3.99 |
| 2+ | £3.192 |
| 5+ | £2.9925 |
| 10+ | £2.793 |
| 20+ | £2.7531 |
| 50+ | £2.6733 |
Couldn't load pickup availability
Fitting
| Knob Type | Rotary |
|---|---|
| Shaft Type | Round |
| Shaft Fixing | Grub Screw |
| Hole Size | 6mm |
Appearance
| Identity Colour | Black |
|---|---|
| Body Colour | Black |
| Accent Colour | |
| Position Indicator Colour | White |
| Position Indicator Shape | Dot |
Measurements
| Minimum Shaft Depth | 8.5mm |
|---|---|
| Maximum Shaft Depth | 13.2mm |
| Body Diameter | 12.1mm |
| Maximum Diameter | 12.1mm |
| Width | mm |
| Length | mm |
| Height | 15.0mm |
| Additional Measurements | |
| Unit Weight | 3.03g |
Hole Type
Round Hole

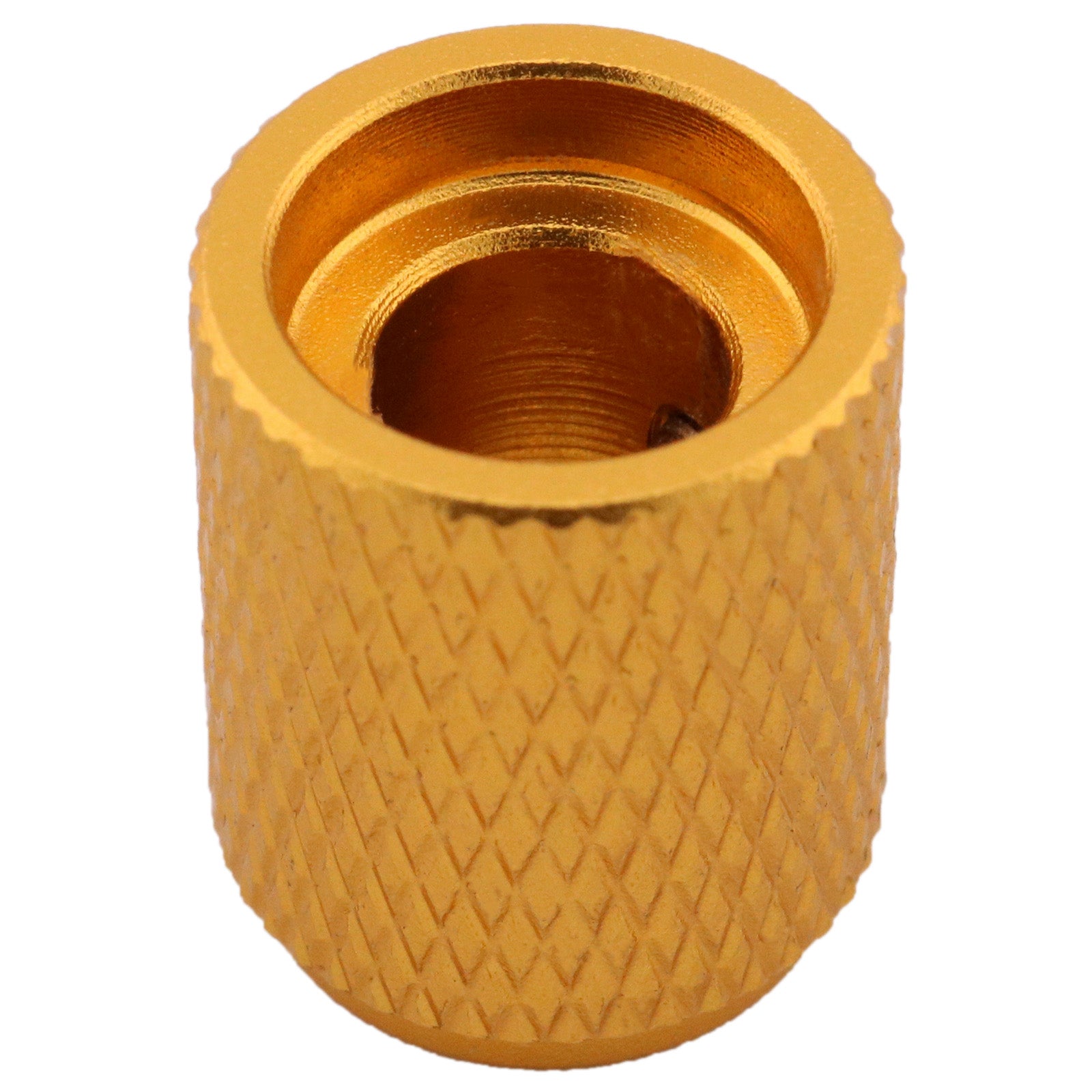

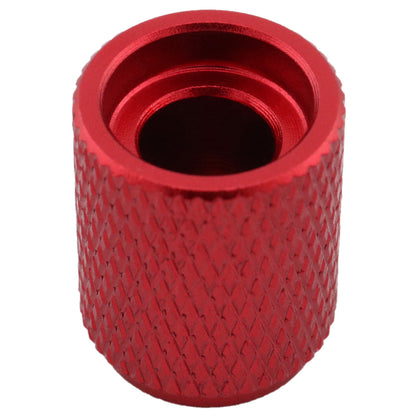

A knob designed for a round shaft has a smooth, cylindrical hole that matches the shaft's shape. This type of hole allows the knob to slide easily onto the shaft, relying on a grub screw / set screw or friction to keep it in place. This design is widely used in audio equipment, consumer electronics, and control panels due to its simplicity and versatility
A knob with a round hole can typically also be used on a D type shaft in the 180° position (where the position indicator is opposite to the flat of the D) and can often also be mouned to splined shafts in low torque applications.

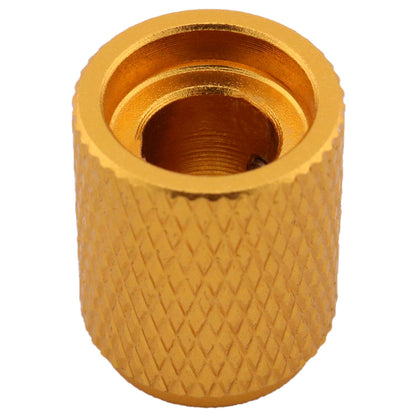

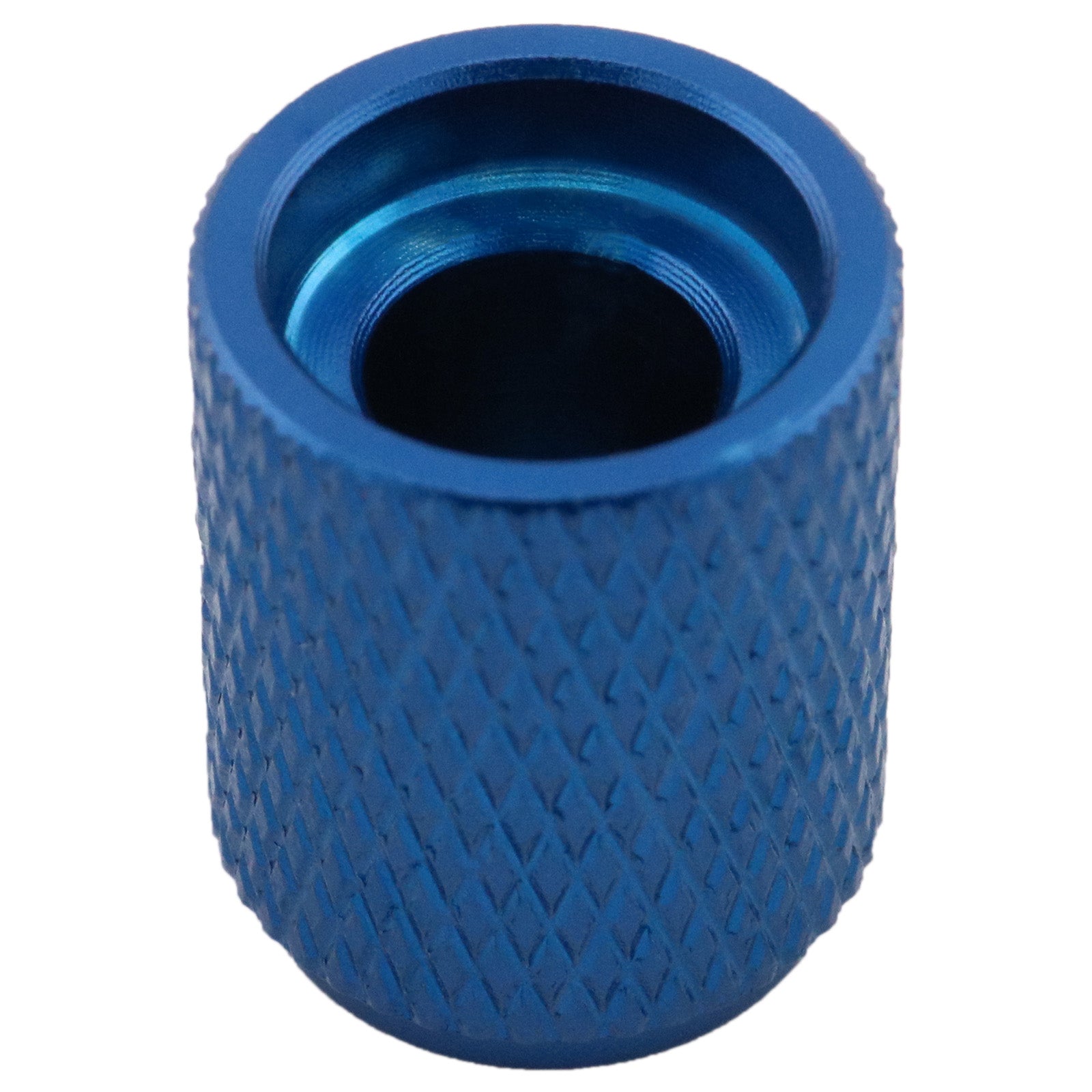

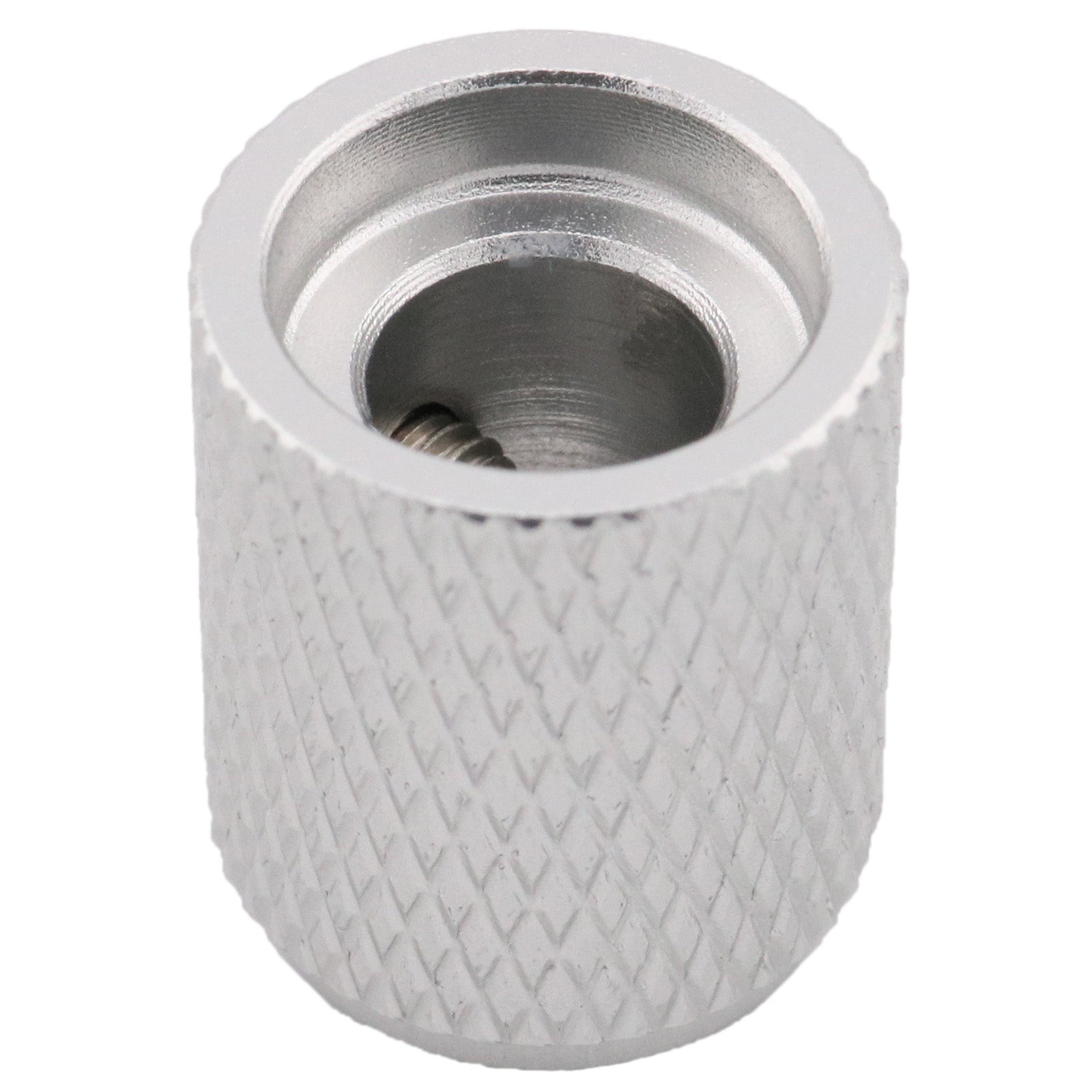

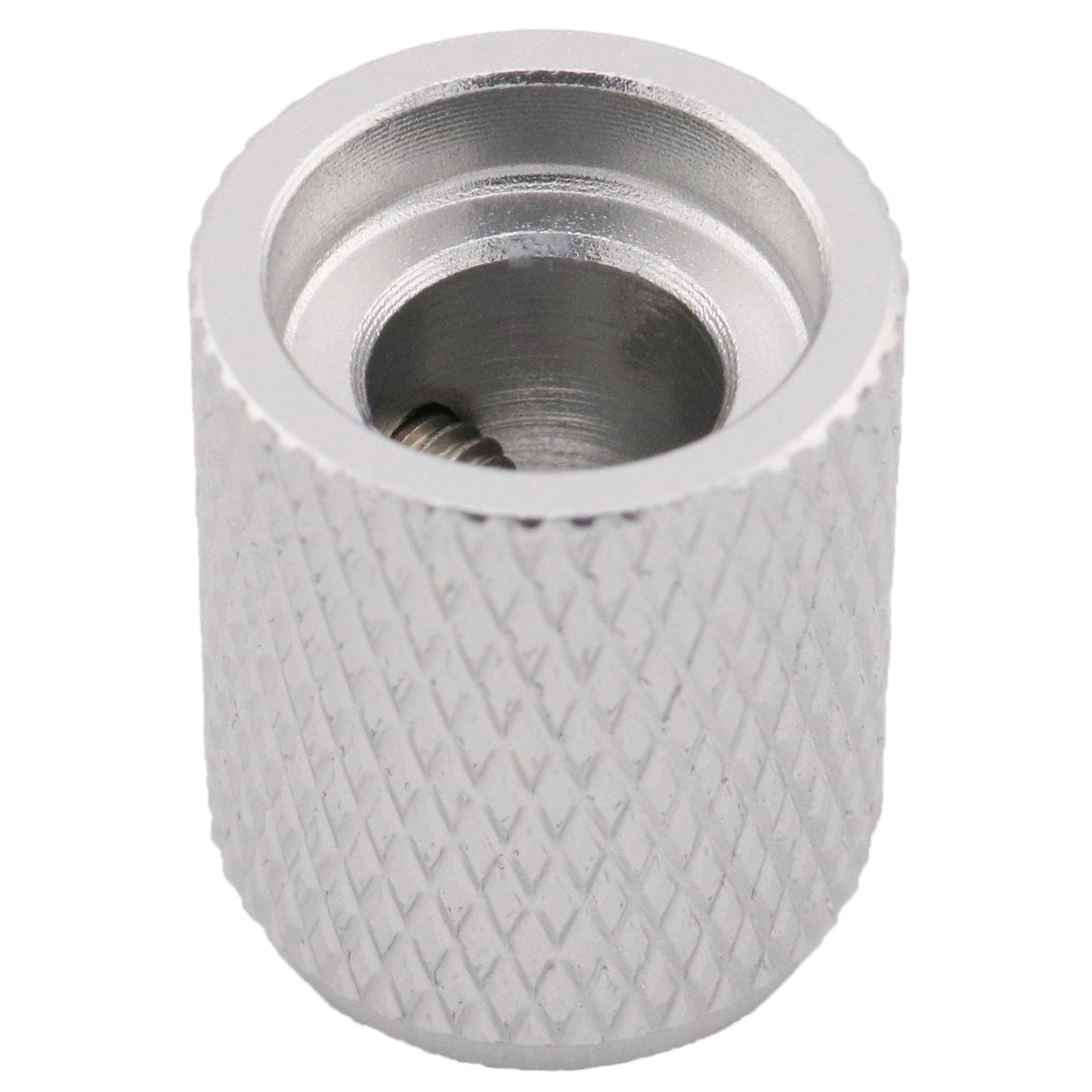

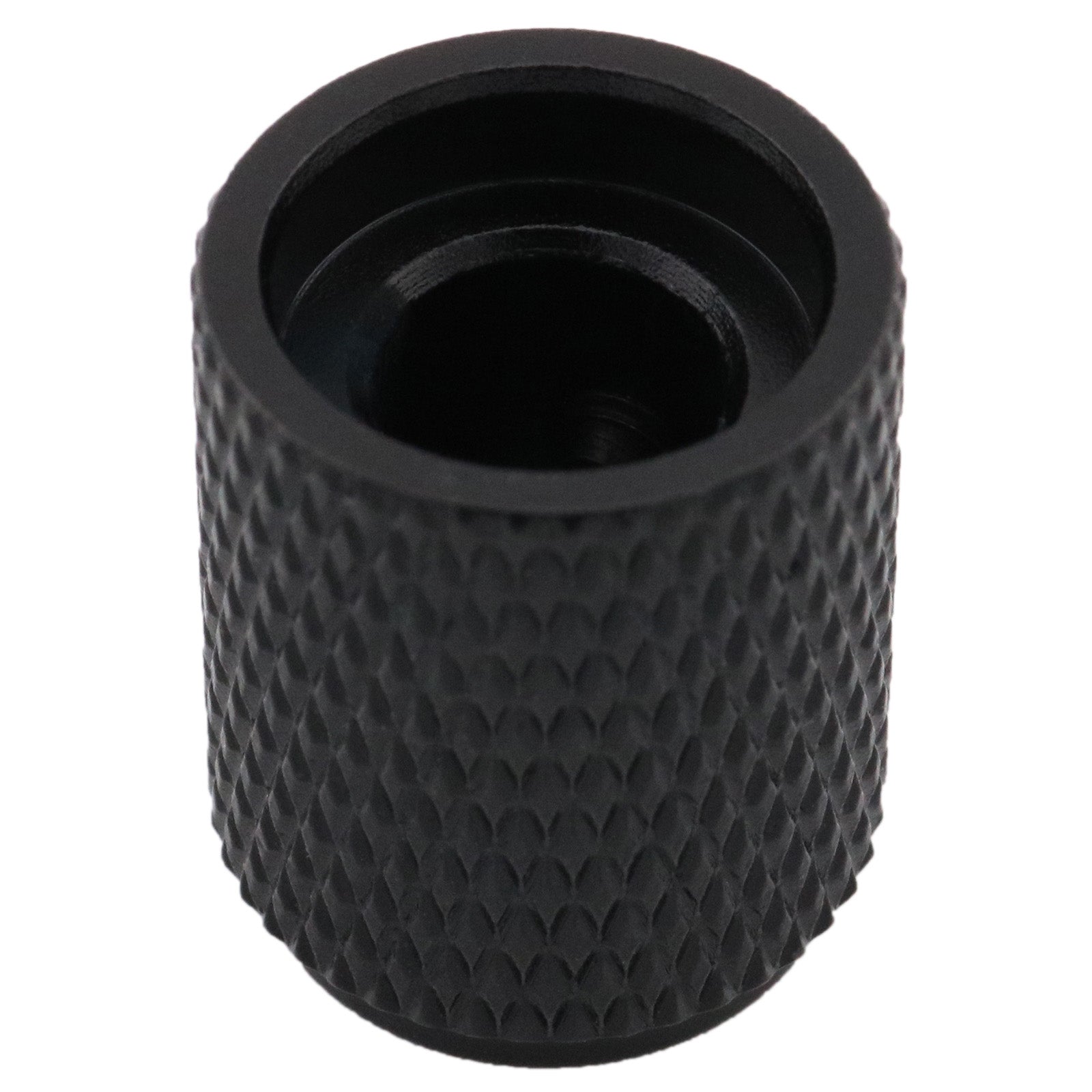

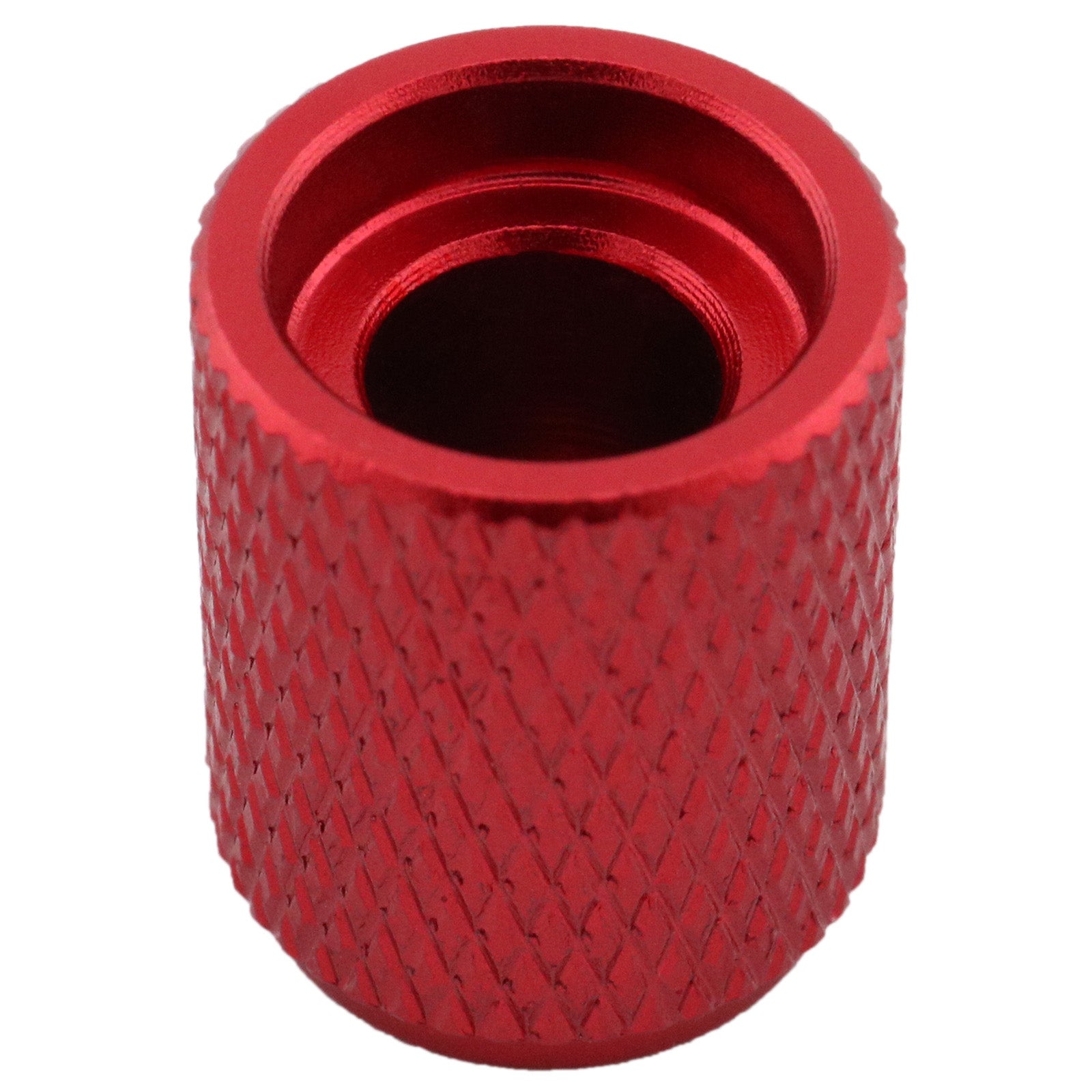

A View from the underside of the knob when fitting a round hole knob to a D shaft, showing the grub screw position relative to the position indicator:
